SKU
LTT644
Category
Label/Receipt Printers
Overview

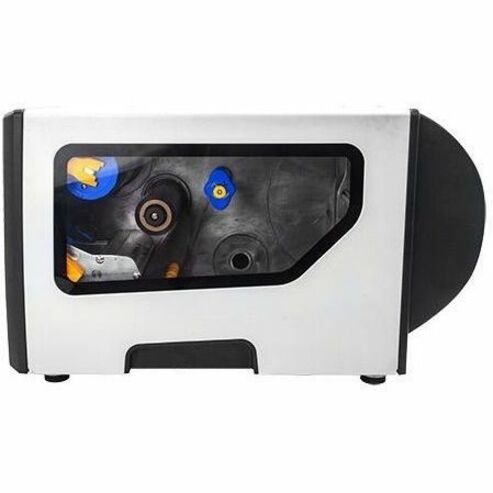

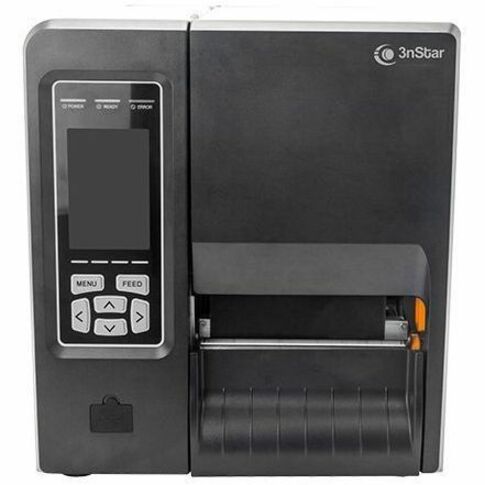

The LTT644 is a 4" industrial thermal transfer label printer, offering high-quality printing with a resolution of 300 DPI. It features a fast-printing speed of 8 inches per second (200mm/s), ensuring efficiency in industrial settings.
Designed for both thermal transfer and direct thermal printing, the LTT644 provides versatility and easy media loading. Equipped with 128MB SDRAM and 128MB Flash, it supports complex printing tasks, while compatibility with TSPL emulation (EPL, ZPL, DPL) and Bartender Label Printing Software makes it suitable for a wide range of labeling needs.
Features:
• Supports both Thermal Transfer and Direct Thermal printing

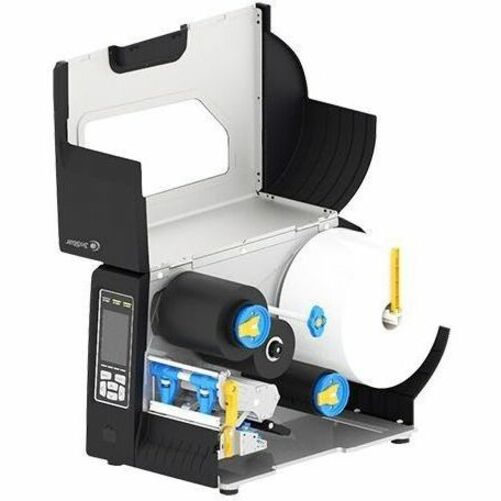

• Industrial design with easy media loading
• 128MB SDRAM and 128MB Flash memory
• High-resolution printing at 300 DPI
• Includes Bartender Label Printing Software
• Fast printing speed of 8 inches per second (200mm/s)
• Compatible with TSPL emulation (EPL, ZPL, DPL)
Warranty
Limited Warranty: 1 Year
Highlights
A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
300 maximum print resolution (dpi) offers great dependability with added efficiency
The printer is capable of printing sharp and detailed monochrome documents quickly
Delivers high-speed, hassle-free labeling solution for your business needs
Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
2.36" maximum label width for your convenience and feasible usability
90" maximum label length for your convenience and feasible usability
Supports continuous label media type for dependable, efficient printing results with maximum Direct Thermal/Thermal Transfer Printer usage productivity
Direct Thermal/Thermal Transfer Printer with industrial application/usage provides maximum usability with better reliance
Versatile feature for maximum efficiency and convenience
Specifications
Display & Graphics
Display Screen
Yes
Screen Size
4"
Environmental Conditions
Operating Temperature
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity
25% - 85%
Storage Temperature
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity
10% - 90%
General Information
Manufacturer
3nStar, Inc.
Manufacturer Part Number
LTT644
Brand Name
3nStar
Product Model
LTT644
Product Name
4" Industrial Direct and Thermal Transfer Label Printer LTT644
Product Type
Direct Thermal/Thermal Transfer Printer

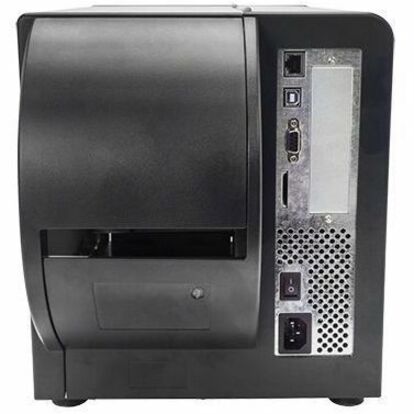

Interfaces/Ports
Serial Port
Yes
USB
Yes
Media Types & Handling
Media Type
Continuous Label, Gap, Black Mark, Fanfold, Pre-punched Paper, Label
Media Sensor
Black Mark Sensor, Cover Open Sensor, Gap Sensor, Ribbon Low/End Sensor, Head Open Sensor
Media Thickness
9.84 mil
Maximum Roll Diameter
7.99"
Maximum Label Width
2.36"
Maximum Label Length
90"
Memory
Standard Memory
128 MB
Flash Memory
128 MB
Network & Communication
Ethernet
Yes
Ethernet Technology
Ethernet
Physical Characteristics
Product Color
Black
Height
11.7"
Width
10.1"
Depth
19.8"
Weight (Approximate)
22.53 lb
Power Description
Power Source
AC Supply, DC, Power Adapter
Software
Operating System Supported
Windows
Linux
Android
Mac OS
Technical Information
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
8 in/s
Maximum Print Resolution (dpi)
300
Maximum Print Length
90"
Maximum Print Width
4.25"
Barcode Symbology Supported
PDF417, QR Code, Data Matrix, Code 39, Code 93, Code 128 UCC, Code 128, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) Digits Add-On, MSI, Plessey, POSTNET, China Post, GS1 DataBar, Code 11, AZTEC, Maxi Code, 1D, 2D, Code 128 (A/B/C)
Connectivity Technology
Wired
Application/Usage
Industrial
Features
Versatile
Warranty
Limited Warranty
1 Year
Fonts & Emulation
Language Emulation
TSPL, EPL, ZPL, DPL
Miscellaneous
Package Contents
4" Industrial Direct and Thermal Transfer Label Printer LTT644
Windows Labeling software driver and user manual CD
