SKU
LTT422
Category
Label/Receipt Printers
Overview

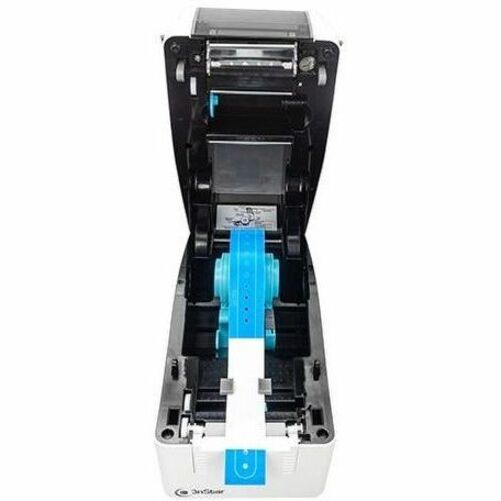

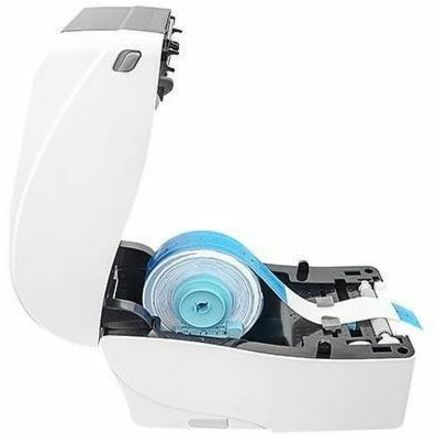

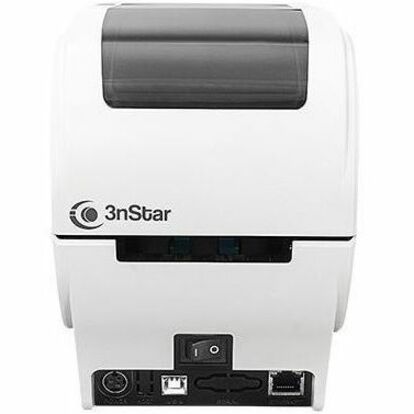

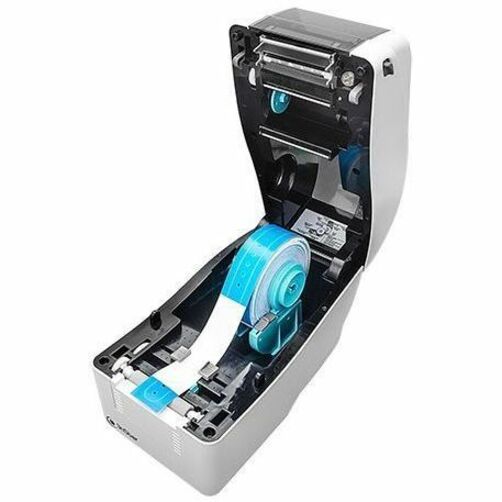

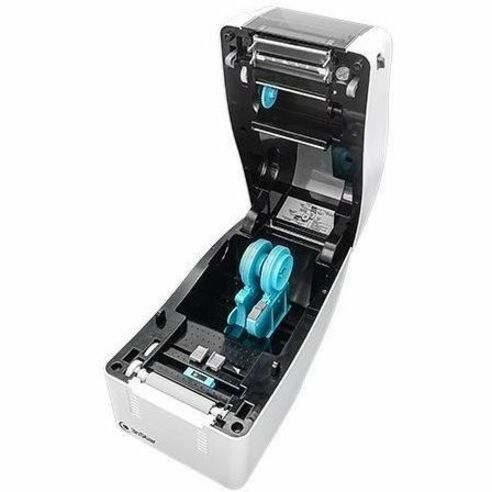

The 3nStar LTT422 is a high-performance wristband printer designed for precise and reliable printing needs, particularly in environments such as healthcare, hospitality, and event management.
This printer offers a high-resolution output of 300 dpi, ensuring clear and legible text and barcodes on wristbands up to 2 inches in width. Its compact and space-saving design makes it suitable for various settings where space might be limited.
The 3nStar LTT422 wristband printer combines high-resolution printing with a user-friendly interface, making it an excellent choice for environments that require reliable and efficient wristband printing solutions.
Features:
• Thermal Transfer and direct thermal printing
• 6 IPS (127mm/s) high printing speed
• TSPL Emulation (EPL, ZPL, DPL)
• Support Ribbons up to 110m (360 ft)
• 8MB SDRAM, 8MB Flash
• 300 dpi resolution
• Bartender Label Printing Software
Warranty
Limited Warranty: 1 Year
Highlights
Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
300 maximum print resolution (dpi) offers great dependability with added efficiency
Produce high-quality documents with this monochrome printer to increase your productivity
Print numerous wristbands with ease anywhere and anytime for various purposes
Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
2.36" maximum label width to easily accommodate your needs with added productivity
35" maximum label length for dependable, desired results
Supports label media type for dependable, efficient results with maximum productivity
In Healthcare, direct thermal/thermal transfer printer can be used to access and retrieve medical records
Dual Wall Frame feature for maximum productivity with added dependability
Specifications
Display & Graphics
Display Screen
Yes
Screen Size
2"
Environmental Conditions
Operating Temperature
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity
25% - 85%
Storage Temperature
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity
10% - 90%
General Information
Manufacturer
3nStar, Inc.
Manufacturer Part Number
LTT422
Brand Name
3nStar
Product Model
LTT422
Product Name
2" Wristbands Thermal Transfer Printer LTT422
Product Type
Direct Thermal/Thermal Transfer Printer
Interfaces/Ports
USB
Yes
Media Types & Handling
Media Type
Label, Continuous Label, Gap, Black Mark, Fanfold, Wristband, Pre-punched Paper
Media Sensor
Black Mark Sensor, Reflective Media Sensor, Cover Open Sensor, Gap Sensor, Ribbon Low/End Sensor
Media Thickness
9.84 mil
Maximum Roll Diameter
5"
Maximum Label Width
2.36"
Maximum Label Length
35"
Memory
Standard Memory
8 MB
Flash Memory
8 MB
Network & Communication
Ethernet
Yes
Ethernet Technology
Ethernet
Physical Characteristics
Product Color
White
Height
5.7"
Width
6.7"
Depth
9.6"
Weight (Approximate)
3.64 lb
Power Description
Power Source
AC Supply, DC, Power Adapter
Software
Operating System Supported
Windows
Linux
Android
Mac OS
Technical Information
Recommended Use
Wristband Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
6 in/s
Maximum Print Resolution (dpi)
300
Maximum Print Length
35"
Maximum Print Width
2.13"
Barcode Symbology Supported
PDF417, QR Code, Data Matrix, Code 39, Code 93, Code 128 UCC, Code 128, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) Digits Add-On, MSI, Plessey, POSTNET, China Post, GS1 DataBar, Code 11, AZTEC, Maxi Code, 1D, 2D
Connectivity Technology
Wired
Application/Usage
Healthcare, Hospitality
Features
Dual Wall Frame, Compact
Warranty
Limited Warranty
1 Year
Fonts & Emulation
Language Emulation
TSPL, EPL, ZPL, DPL
Miscellaneous
Package Contents
2" Wristbands Thermal Transfer Printer LTT422
Windows Labeling software driver and user manual CD
