AC1200 WiFi Everywhere Powerline AP Powerline 1200 Kit
$110.33
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

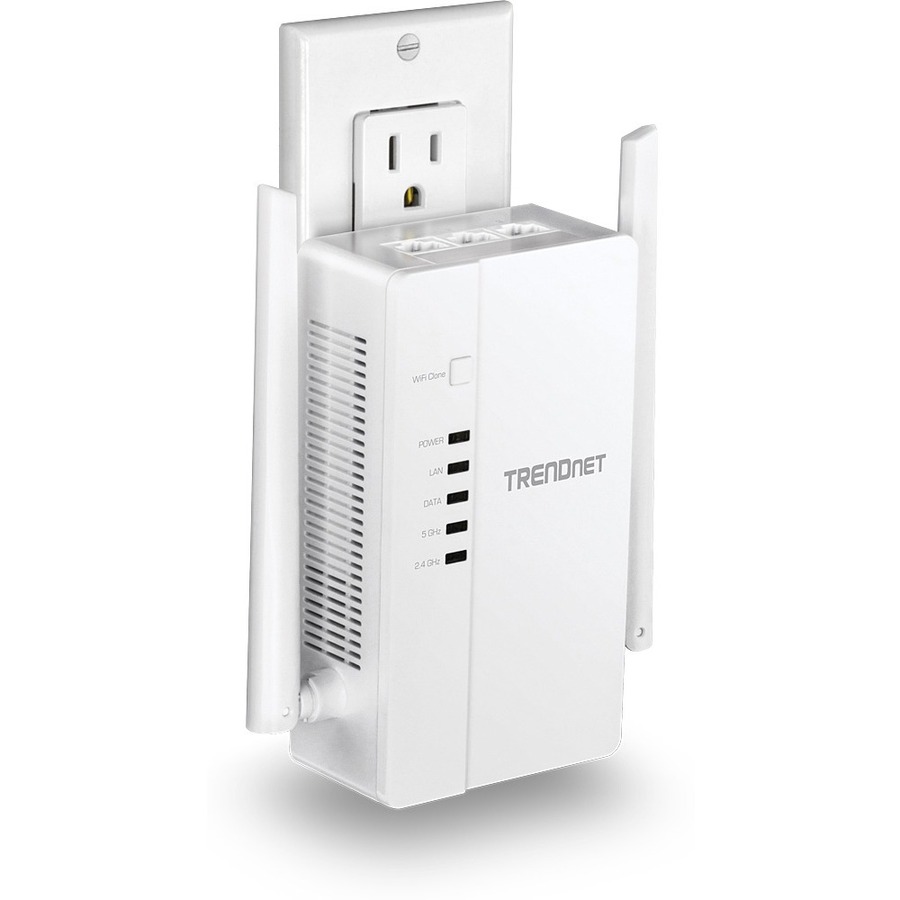

TRENDnet's WiFi Everywhere Powerline 1200 AV2 Wireless Kit, model TPL-430APK, uses your existing electrical outlets to create or expand a wireless network. Easily install the included TRENDnet Powerline adapters to create a high-speed powerline network. Connect the TPL-423E Powerline adapter to the router and plug the TPL-430AP WiFi Powerline adapter into a power outlet in another room where WiFi connectivity is needed. The WiFi Clone button conveniently copies your existing wireless network settings to the TPL-430AP WiFi Powerline adapter for faster network integration.
• POWERLINE KIT: 1 x TPL-430AP and 1 x TPL-423E. TPL-430AP features a dual-band wireless AC1200 access point with three gigabit ports. Powerline range of up to 300m (984 ft.) over existing electrical lines
• NDAA COMPLIANT: With our NDAA compliant Powerline Ethernet Adapters, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• MANUFACTURER PROTECTION: We stand by the quality of our products.The TPL-430APK WiFi Everywhere Powerline 1200 AV2 Wireless Kit is backed and supported with 3 years of TRENDnet Manufacturer Protection.
• POWERLINE 1200: Powerline 1200 networking over existing electrical lines using all three electrical wires: the live, neutral, and ground wires to achieve faster throughput speeds with this access point and powerline kit. Use up to 8 Powerline adapters on a single Powerline network
• WIFI EVERYWHERE: By combining wireless and Powerline technologies, you can enjoy wireless connectivity from any power outlet in your household. AC1200: concurrent 867Mbps WiFi AC + 300Mbps WiFi N bands
• WIFI CLONE: Use your router's WPS button and the TPL-430AP's WiFi Clone button to conveniently copy your existing wireless network name and password for quick network integration.
• EASY INSTALLATION: Simply plug in the TRENDnet Powerline adapter and WiFi Powerline adapter, and they will auto-connect to each other right out of the box. Connect the TPL-423E Powerline adapter to the router and plug the TPL-430AP WiFi Powerline adapter into a power outlet in another room where WiFi connectivity is needed.
• MIMO with BEAMFORMING TECHNOLOGY: Expand your wireless coverage with MIMO antenna technology. Enhanced Powerline performance and range from MIMO with Beamforming technology.
• PRE-ENCRYPTED: Pre-Encrypted For your convenience, the wireless on the WiFi Powerline adapter is pre-encrypted with a unique password
More from the Manufacturer
TRENDnet's WiFi Everywhere™ Powerline 1200 AV2 Wireless Kit, model TPL-430APK, uses your existing electrical outlets to create or expand a wireless network. Easily install the included TRENDnet Powerline adapters to create a high-speed powerline network. Connect the TPL-423E Powerline adapter to the router and plug the TPL-430AP WiFi Powerline adapter into a power outlet in another room where WiFi connectivity is needed. The WiFi Clone button conveniently copies your existing wireless network settings to the TPL-430AP WiFi Powerline adapter for faster network integration.
WiFi Everywhere™ Powerline 1200 AV2 Wireless Kit
Powerline 1200 networking over existing electrical lines

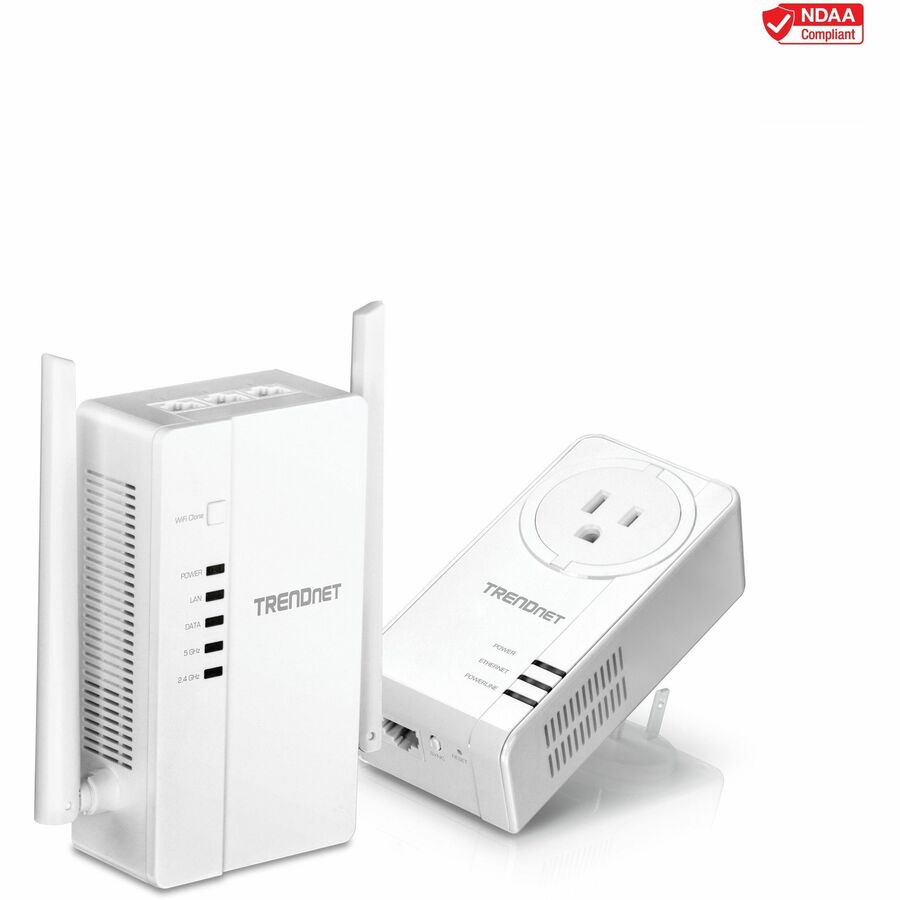

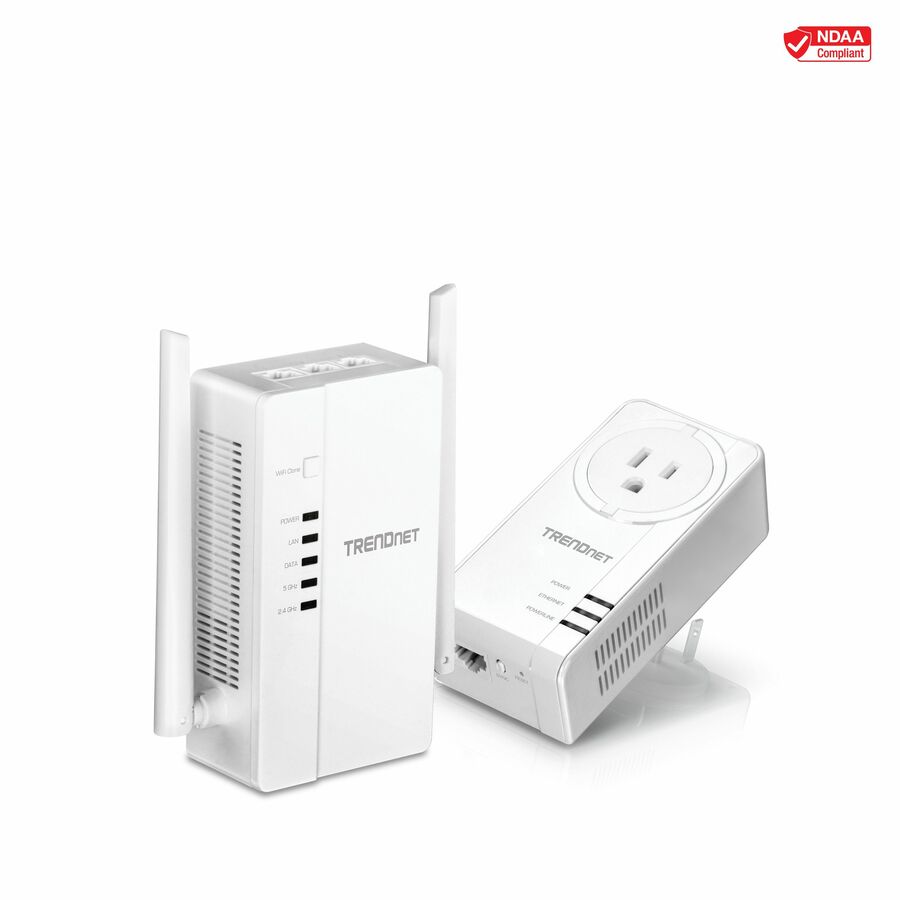

Powerline kit includes TPL-423E and TPL-430AP

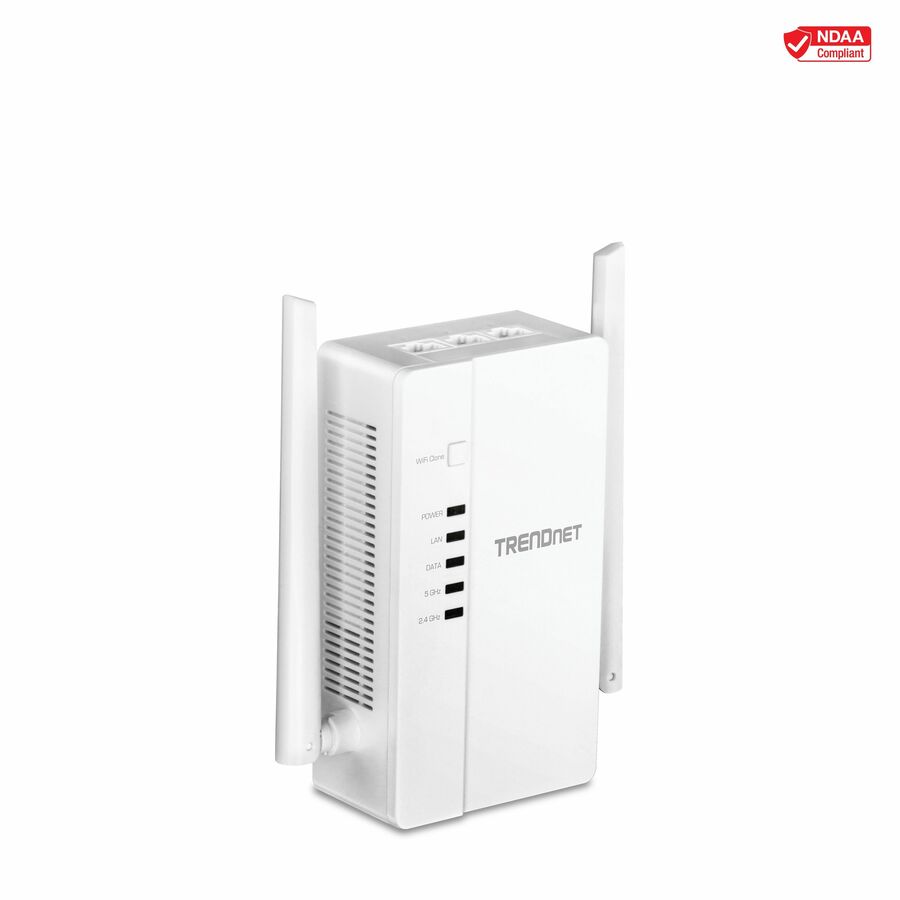

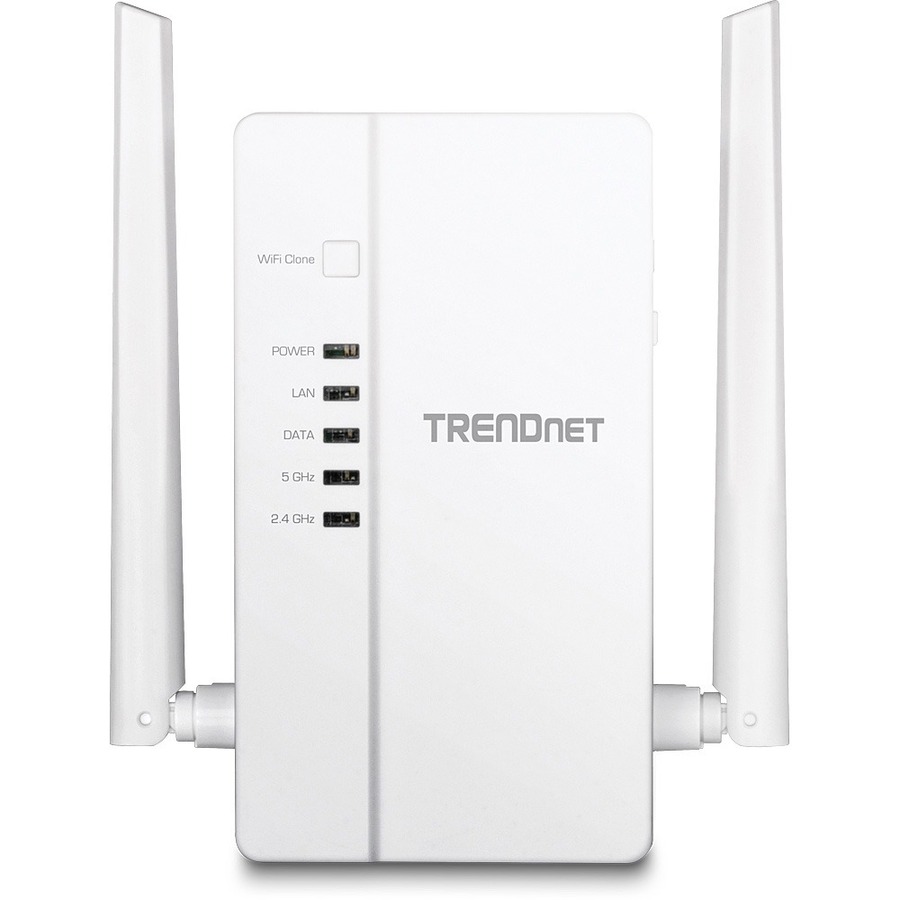

TPL-430AP features a dual-band wireless AC1200 access point with three gigabit ports
Enhanced Powerline performance and range from MIMO with Beamforming technology
Easy installation – TRENDnet adapters auto-connect out of the box
Pre-encrypted for your convenience
Powerline range of up to 300m (984 ft.) over existing electrical lines
WiFi Clone button copies your existing wireless network settings to the TPL-430AP for faster network integration
NDAA compliant
General description
Easy installation.
Just plug in TRENDnet's Powerline adapters and they'll automatically connect to each other right out of the box.
WiFi everywhere
By combining wireless and Powerline technology, you can enjoy wireless connectivity from any electrical outlet in your home.
WiFi clone
Use the WPS button on your router and the WiFi clone button on the TPL-430AP to conveniently copy your existing wireless network name and password for quick network integration.
Powerline
Sync Button
Press the Sync button to change existing Powerline encryption keys
Powerline 1200
Powerline 1200 networking over existing electrical lines using all three electrical wires: the live, neutral, and ground wires to achieve faster throughput speeds
Gigabit Ports
Convenient gigabit ports to hardwire computers, smart TVs, or other network enabled devices
Compatibility
Powerline adapters are backward compatible with Powerline 600, 500, and 200 adapters
MIMO with Beamforming Technology
Enhanced performance and range
Multiple Adapters
Use up to 8 Powerline adapters on a single Powerline network
Easy Installation
TRENDnet Powerline adapters and WiFi Powerline adapters auto-connect out of the box
Wireless
Concurrent Dual-Band
AC1200: concurrent 867Mbps WiFi AC + 300Mbps WiFi N bands
Wireless Coverage
Expand your wireless coverage with MIMO antenna technology
Pre-Encrypted
For your convenience, the wireless on the WiFi Powerline adapter is pre-encrypted with a unique password
WiFi Clone
Use your router's WPS button and the TPL-430AP's WiFi Clone button to conveniently copy your existing wireless network name and password for quick network integration
Aenean sit amet pellentesque odio. Maecenas quis tellus non odio pellentesque lobortis. Phasellus eleifend ante a turpis laoreet, quis facilisis risus cursus. Suspendisse convallis convallis turpis, non ornare ipsum ultricies et. In elementum rutrum dui eget dictum. Sed non luctus lacus. Praesent sed turpis viverra, cursus sapien ut, convallis nisi. Mauris sed placerat nibh. Sed mollis vulputate.
SPECIFICATIONS

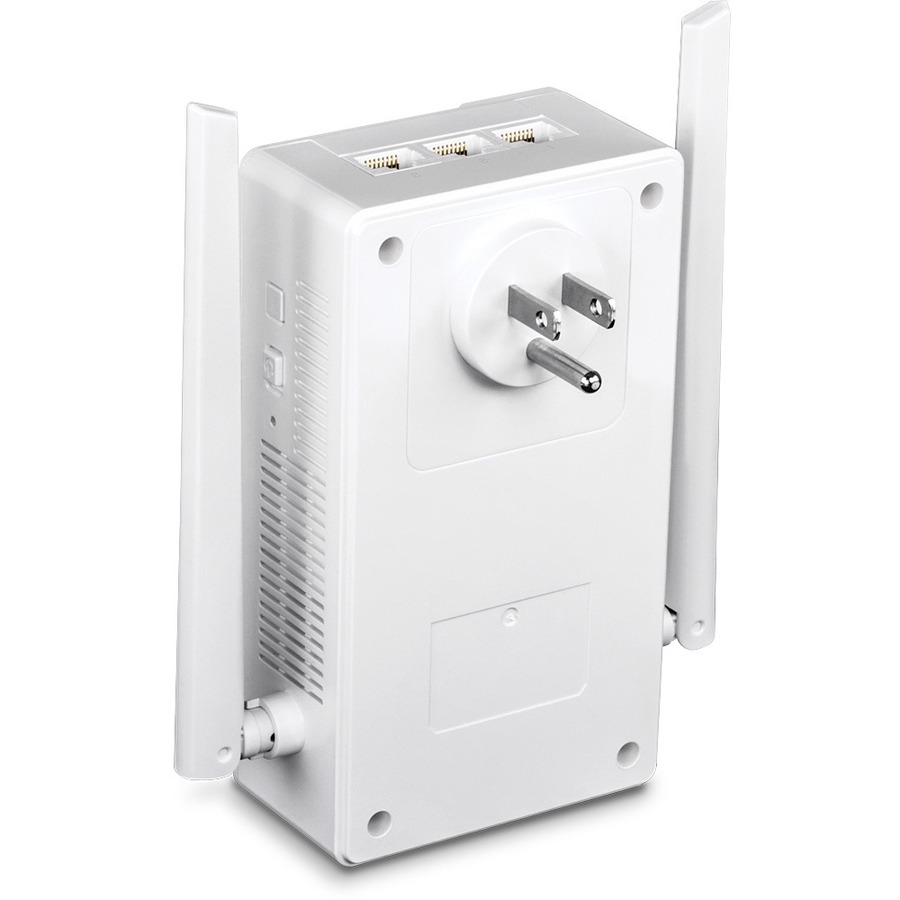

TPL-430AP
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (up to 300Mbps)
IEEE 802.11ac (up to 867Mbps)
IEEE 1901
Device Interfaces

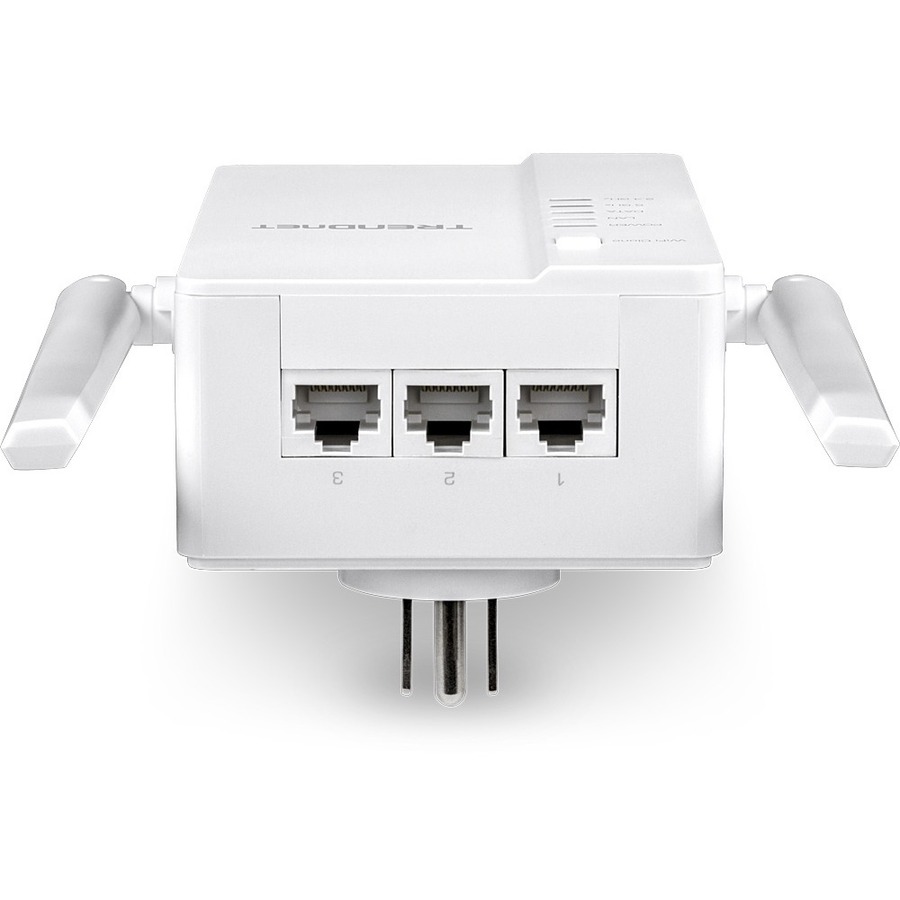

3 x Gigabit LAN ports
WiFi Clone button
Reset button
Sync button
Power switch
LED indicators
Power plug
Type B (NEMA 5–15)
Frequency Band
2–67MHz
Modulation/Protocol
OFDM Symbol Modulation on link synchronization, 4096/1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
CSMA/CA
Networking Distance
Powerline: Up to 300m (984 ft.) linear distance over electrical power lines***
Encryption
Wireless: WPA2-PSK
Powerline: 128-bit AES (Advanced Encryption Standard)
Powerline Nodes
Up to 8 (max.)
Overlapping Powerline Networks
Up to 4 (per electrical system)
Special Features
Auto-connects to other TRENDnet Powerline adapters
Additional Ethernet ports for wired connectivity
Automatically clones the SSID and password of your WiFi network
IPv6 support
QoS Management
IGMP / MLDv2 Streams
Antenna Gain
2.4GHz: 2 x 3.31dBi
5GHz: 2 x 4.51dBi
Wireless Output Power/Receiving Sensitivity
802.11a: 16dBm (typical) / -65dBm (typical) @ 54Mbps
802.11b: 20dBm (typical) / -88dBm (typical) @ 11Mbps
802.11g: 15dBm (typical) / -76dBm (typical) @ 54Mbps
802.11n (2.4GHz): 13dBm (typical) / -73dBm (typical) @ 300Mbps
802.11n (5GHz): 16dBm (typical) / -70dBm (typical) @ 300Mbps
802.11ac: 15dBm (typical) / -60dBm (typical) @ 867Mbps
Power
Input: 100 – 240V AC, 50/60Hz, 0.2A
Max. consumption 12W
Operating Temperature
0° – 40° C (32° – 104° F)
Operating Humidity
Max. 90% non-condensing
Certifications
FCC
IC
Dimensions
255 x 130 x 75mm (10.04 x 5.11 x 2.95in.)
Weight
332g (11.7 oz.)
Warranty
3 year

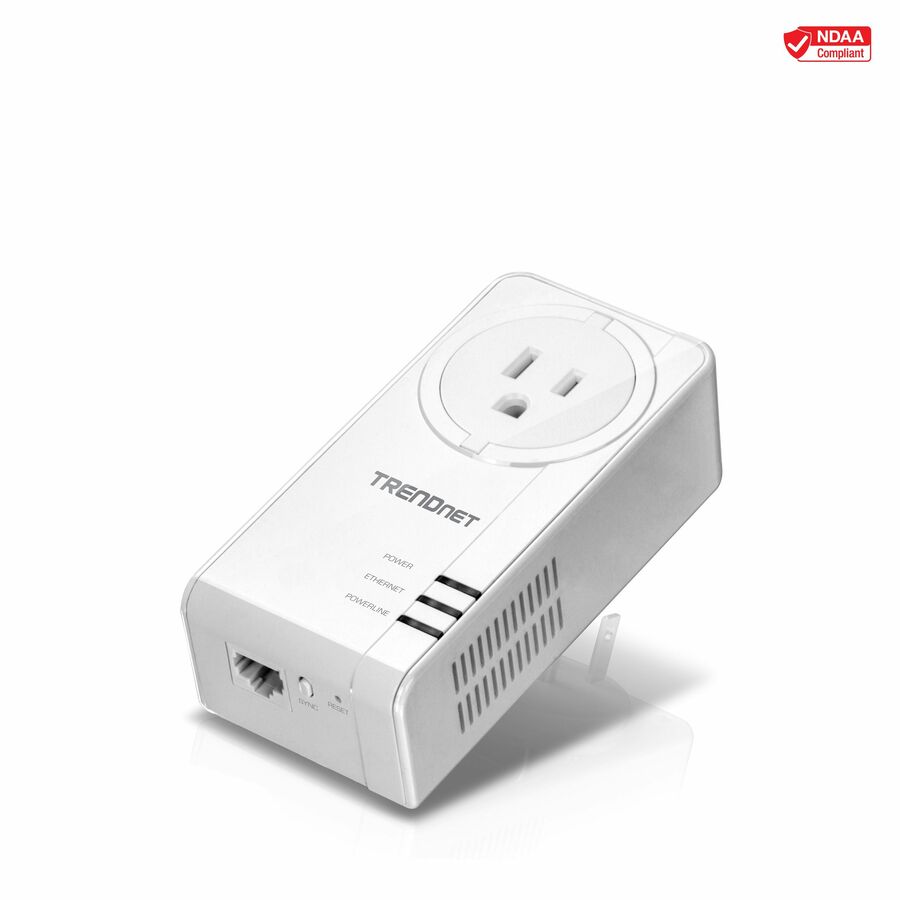

TPL-423E
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 1901
Device Interfaces
1 x Gigabit LAN ports
Sync button
Reset button
LED indicators
Power plug
Type B (NEMA 5–15) (10A max. @ 120V AC)
Frequency Band
2 – 67.5MHz
Data PHY Rate
Up to 1200Mbps
Networking Distance
Powerline: Up to 300m (984 ft.) linear distance over electrical power lines***
Encryption
Powerline: 128-bit AES (Advanced Encryption Standard)
Powerline Nodes
Up to 8 (max.)
Overlapping Powerline Networks
Up to 4 (per electrical system)
Special Features
Built-in power socket
Auto-connects to other TRENDnet Powerline adapters
IPv6 support
IGMP / MLDv2 Streams
Power
Input: 100 – 240V AC, 50/60Hz, 0.2A
Max. consumption: Active mode: 4W; Standby mode: 0.5W
Operating Temperature
0° – 50° C (32° – 122° F)
Operating Humidity
Max. 90% non-condensing
Certifications
FCC
IC
Dimensions
120 x 60 x 65mm (4.73 x 2.4 x 2.6 in.)
Weight
176g (6.2 oz.)
Warranty
3 year
PACKAGE CONTENTS
TPL-430AP
TPL-423E
Quick Installation Guide
2 x Network cable (1.5m / 5 ft.)
Do not use this unit with a power strip that is powering other devices. Max voltage cannot exceed 120V AC, 10A.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
WiFi Everywhere™ by TRENDnet
WiFi Everywhere™ combines Powerline and Wireless technologies to help eliminate wireless dead spots
Limited Warranty: 3 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPL-430APK |
| Brand Name | TRENDnet |
| Product Model | TPL-430APK |
| Product Name | AC1200 WiFi Everywhere Powerline AP Powerline 1200 Kit |
| Product Condition | New |
| Product Type | Powerline Network Adapter |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Phone Line (RJ-11) | No |
| USB | No |
| PoE (RJ-45) Port | No |
| Audio Line In | No |
| Audio Line Out | No |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Powerline Data Transfer Rate | 1200 Mbit/s |
| Maximum Distance Supported | 0.30 km |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Powerline Transmission Standard | HomePlug AV2 |
| Physical Characteristics | |
| Height | 4" |
| Width | 15" |
| Depth | 21" |
| Weight (Approximate) | 12.47 lb |
| Warranty | |
| Limited Warranty | 3 Year |
| Wireless Specifications | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Wireless Transmission Speed | 1.17 Gbit/s |
| Miscellaneous | |
| Country of Origin | Vietnam |
