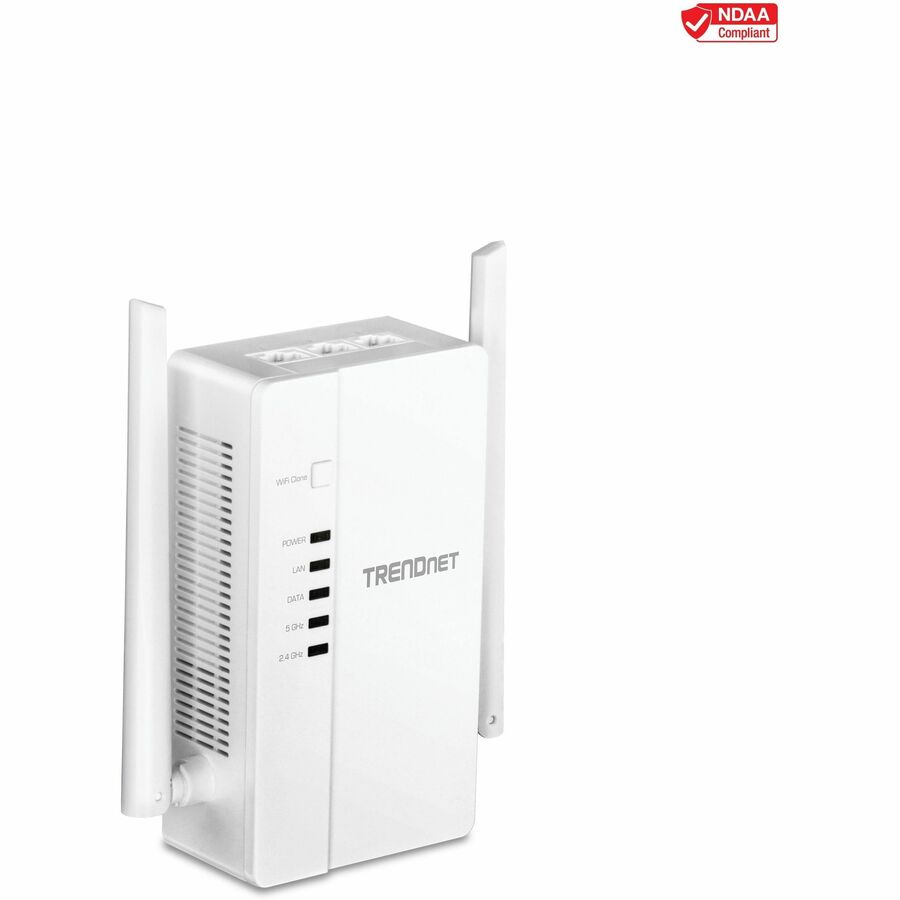

TRENDnet Wi-Fi Everywhere Powerline 1200 AV2 AC1200 Wireless Access Point, Expand Your Wireless Coverage, Built-in Concurrent Dual-Band, 3 x Gigabit Ports, MIMO, Beamforming, White, TPL-430AP

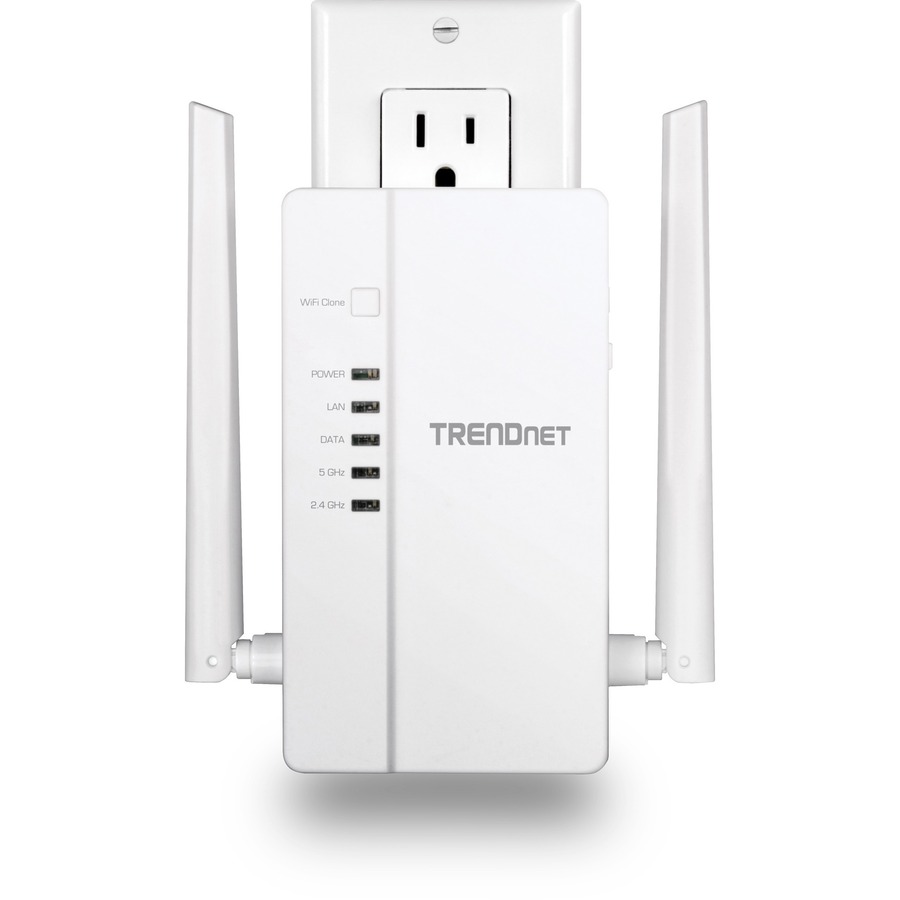

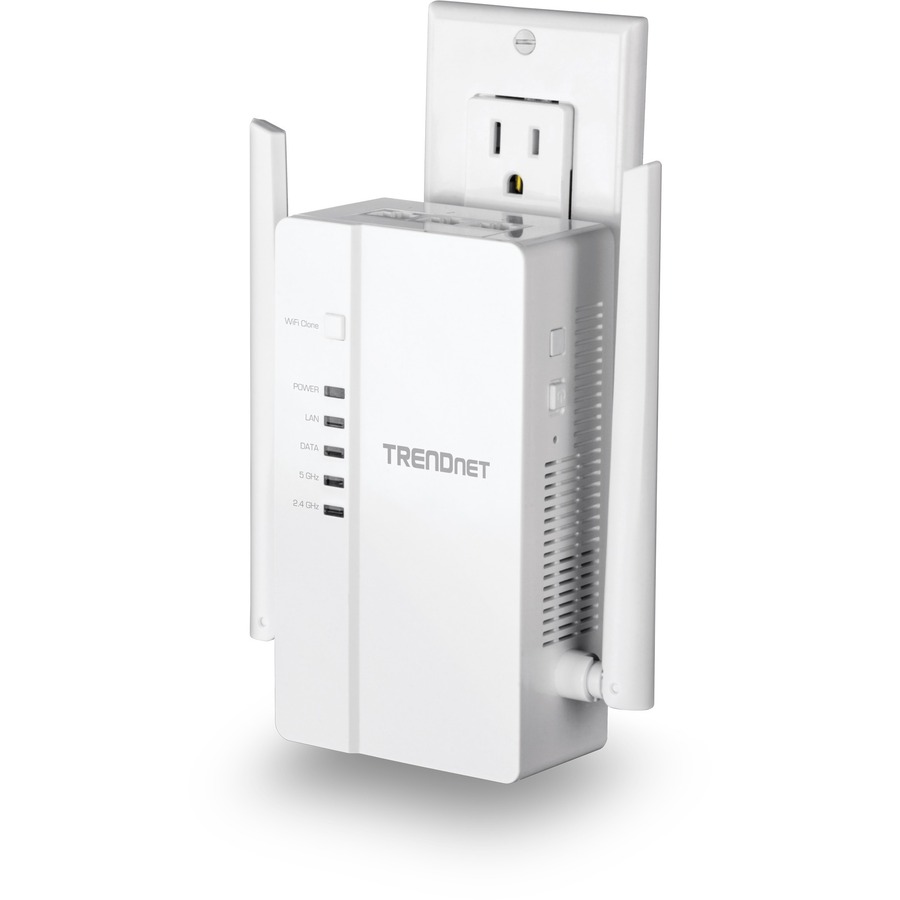

TRENDnet's WiFi Everywhere Powerline 1200 AV2 Access Point, model TPL-430AP, uses an electrical outlet to create or expand a wireless network. Two Powerline adapters are needed to start a network. Connect one Powerline adapter to the router, and plug the TPL-430AP into a power outlet in another room where WiFi connectivity is needed. The WiFi Clone feature conveniently copies your existing wireless network settings to the TPL-430AP for faster network integration.out this item

• POWERLINE 1200: Powerline 1200 networking over existing electrical lines.

• MANUFACTURER PROTECTION: We stand by the quality of our products.The TPL-430AP WiFi Everywhere Powerline 1200 AV2 Access Point is backed and supported with 3 years of TRENDnet Manufacturer Protection.

• NDAA COMPLIANT: With our NDAA compliant Powerline Ethernet Adapters, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• GIGABIT PORTS: Three convenient gigabit ports to hardwire computers, smart TVs, or other network enabled devices

• MIMO WITH BEAMFORMING TECHNOLOGY: Enhanced Powerline performance and range from MIMO with Beamforming technology.

• EASY INSTALLATION - TRENDnet adapters auto-connect out of the box.

• COMPATIBILITY: Backward compatible with Powerline 600, 500, and 200 adapters

• WIFI CLONE: Use your router's WPS button and the TPL-430AP's WiFi Clone button to conveniently copy your existing wireless network name and password for quick network integration.

More from the Manufacturer

TRENDnet's WiFi Everywhere

Powerline 1200 AV2 Access Point, model TPL-430AP, uses an electrical outlet to create or expand a wireless network. Two Powerline adapters are needed to start a network. Connect one Powerline adapter to the router, and plug the TPL-430AP into a power outlet in another room where WiFi connectivity is needed. The WiFi Clone feature conveniently copies your existing wireless network settings to the TPL-430AP for faster network integration.

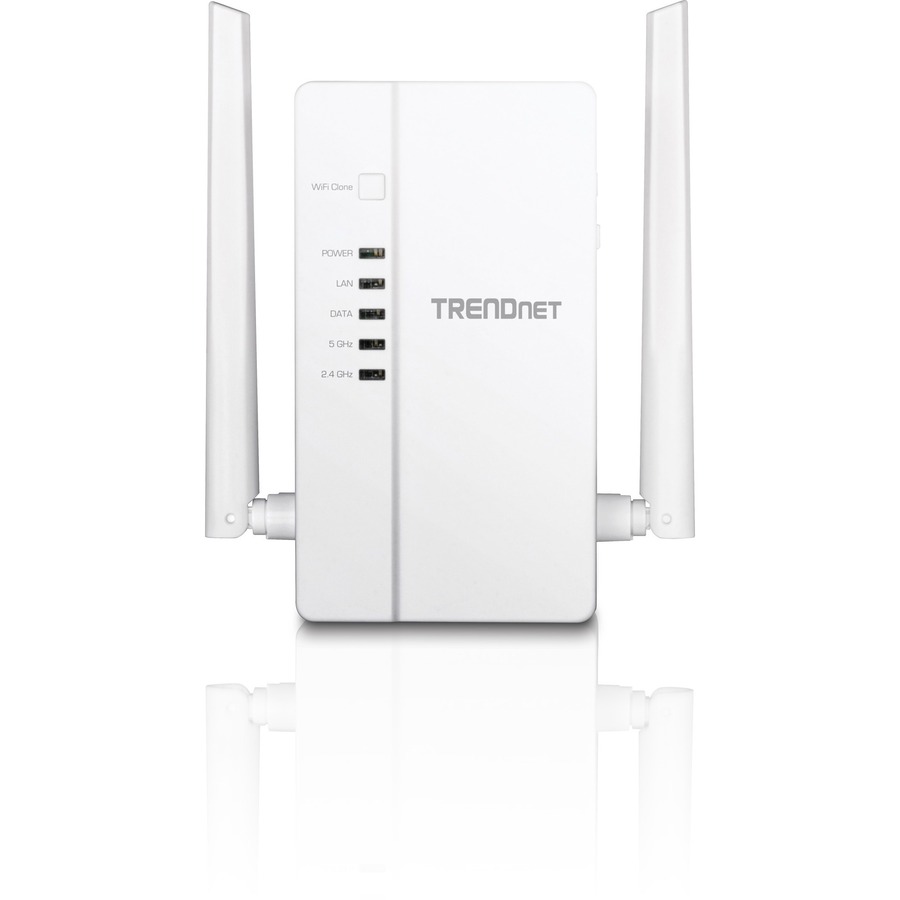

WiFi Everywhere™ Powerline 1200 AV2 Access Point

Powerline 1200 networking over existing electrical lines

Built-in dual-band wireless AC1200 access point

Enhanced Powerline performance and range from MIMO with Beamforming technology

Easy installation – TRENDnet adapters auto-connect out of the box

Pre-encrypted for your convenience

Three gigabit ports for high performance wired networking

Powerline range of up to 300 m (984 ft.) over existing electrical lines

Two Powerline adapters are required to start a network

WiFi Clone button copies your existing wireless network settings to the TPL-430AP for faster network integration

NDAA compliant

Gigabit ports

Three gigabit ports provide high-speed network connections to devices, and a 6 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

WiFi everywhere

Connect all your 2.4 GHz and 5 GHz devices to a dual-band AC1200 WiFi network.

WiFi clone

Use the WPS button on your router and the WiFi clone button on the TPL-430AP to conveniently copy your existing wireless network name and password for quick network integration.

Sync button

Press the Synchronize button to change existing Powerline encryption keys

Powerline 1200

Extreme Powerline networks over existing power lines use all three electrical wires: Live, Neutral and Ground wires to achieve faster throughput speeds

Gigabit ports

Three handy gigabit ports for hard network computers, smart TVs, or other network-enabled devices

Compatibility

Compatible with Powerline 600, 500 and 200 adapters.

Easy installation.

TRENDnet adapters connect automatically out of the box

Multiple adapters

Use up to 8 adapters on a single Powerline network

Pre-encrypted.

The adapter is pre-encrypted for your convenience

MIMO with Beamforming technology

Improved performance and range

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n (up to 300Mbps)

IEEE 802.11ac (up to 866Mbps)

IEEE 1901

Device Interface

3 x Gigabit LAN ports

WiFi Clone button

Reset button

Sync button

Power switch

LED indicators

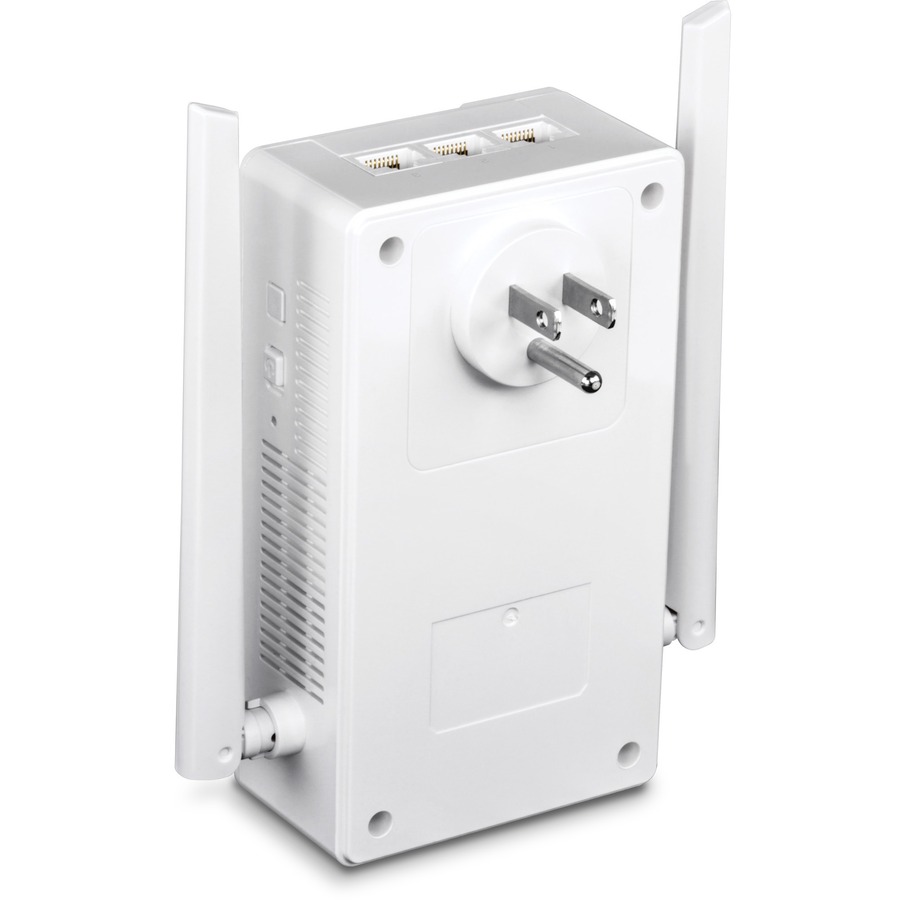

Power plug

A: North America Type B (NEMA 5–15)

EU: European Type E/F Hybrid (CEE 7/7)

UK : United Kingdom Type G (BS 1363)

Frequency Band

2 - 67MHz

Modulation/Protocol

OFDM Symbol Modulation on link synchronization, 4096/1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier

CSMA/CA

Powerline: Up to 300m (980ft.) linear distance over electrical power lines***

Encryption

Wireless: WPA2-PSK

Powerline: 128-bit AES (Advanced Encryption Standard)

Powerline Nodes

Up to 8 (max.)

Overlapping Powerline Networks

Up to 4 (per electrical system)

Special Features

Auto-connects to other TRENDnet Powerline adapters

Additional Ethernet ports for wired connectivity

Automatically clones the SSID and password of your WiFi network

IPv6 support

QoS Management

IGMP / MLDv2 Streams

Antenna Gain

2.4GHz: 2 x 3.31dBi

5GHz: 2 x 4.51dBi

Wireless Output Power / Receiving Sensitivity

802.11a: 16 dBm (typical) / -65 dBm (typical) @ 54Mbps

802.11b: 20dBm (typical) / -88dBm (typical) @ 11Mbps

802.11g: 15dBm (typical) / -76dBm (typical) @ 54Mbps

802.11n (2.4 GHz): 13dBm (typical) / -73dBm (typical) @ 300Mbps

802.11n (5 GHz): 16dBm (typical) / -70dBm (typical) @ 300Mbps

802.11ac (5GHz): 15dBm (typical) / -60dBm (typical) @ 866Mbps

Power

Input: 100 - 240V AC, 50 - 60Hz, 0.2A

Active mode consumption: 12W (max.)

Operating Temperature

0 - 40°C (32 – 104°F)

Operating Humidity

Max. 90% non-condensing

Certifications

CE

FCC

IC

UL

Dimensions

255 x 130 x 75mm (10.04 x 5.11 x 2.95in.)

Weight

A: 332g (11.7oz.)

EU: 342g (12oz.)

UK: 332g (11.7oz.)

Warranty:

3 year

PACKAGE CONTENTS

TPL-430AP

Quick Installation Guide

Network cable (1.5m / 5 ft.)

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

** 1200 Mbps is the maximum physical Powerline data rate. Data throughput may vary by circuit wire condition. Maximum of 8 adapters (nodes) recommended for streaming video across your network.

*** Powerline networking is limited to the same electrical system. Power strips, GFCI outlets, and AFCI circuit breakers may degrade Powerline signals.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
