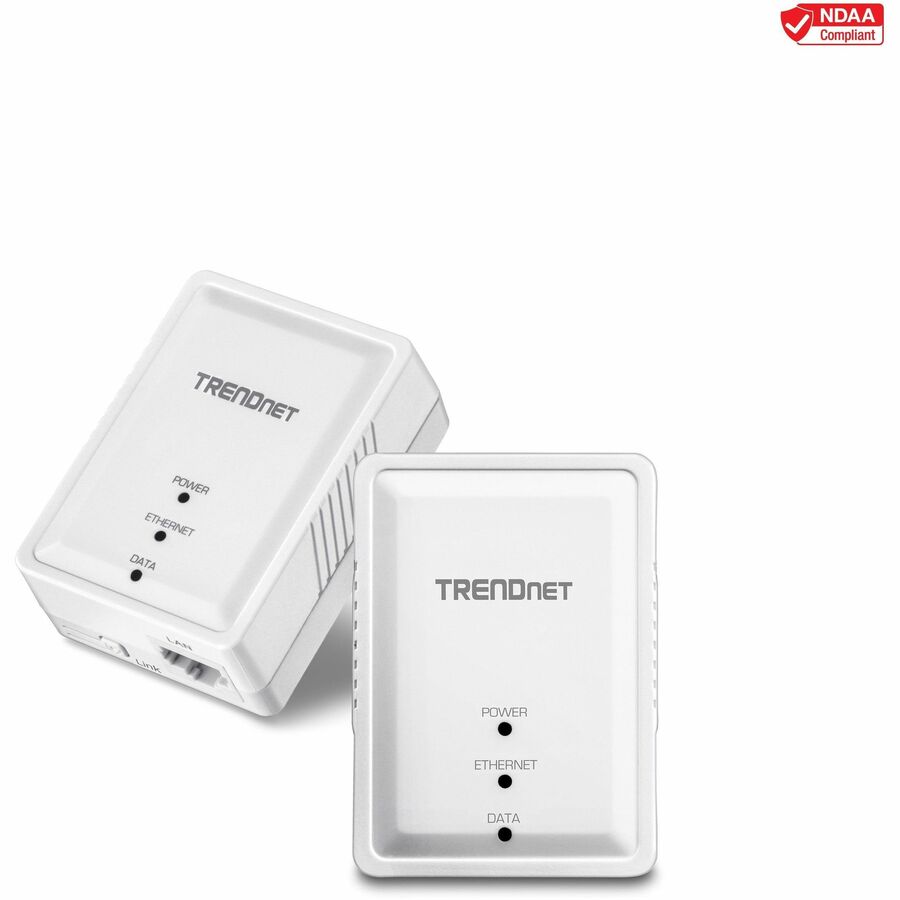

TRENDnet Powerline 500 AV Nano Adapter Kit, Includes 2 x TPL-406E Adapters, Cross Compatible With Powerline 600-500-200, Windows 10, 8.1, 8, 7, Vista, XP, Plug & Play Install, White, TPL-406E2K

TRENDnet's Powerline 500 AV Nano Adapter Kit, model TPL-406E2K, uses an electrical outlet to create a high speed network. Two adapters are needed to start a network. Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access. The compact form factor saves space around crowded electrical outlets. Use up to 8 adapters to network devices in different rooms without running new cabling.

• ADAPTERS: Includes two TPL-406E adapters. Two adapters are needed to start a network. Use up to 8 adapters to network devices in different rooms without running new cabling.

• MANUFACTURER PROTECTION: We stand by the quality of our products.The TPL-406E2K Powerline 500 AV Nano Adapter Kit is backed and supported with 3 years of TRENDnet Manufacturer Protection.

• NDAA COMPLIANT: With our NDAA compliant Powerline Ethernet Adapters, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• EXPAND YOUR NETWORK: Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access.

• ETHERNET PORT: The Powerline 500 AV adapters have an Ethernet Port that extends high performance wired connections. Convenient Ethernet port that allows you to hardwire a computer, smart TV, or other network enabled device.

• QUICK SETUP: Get up and running in minutes with the intuitive guided setup. Simply plug in the TRENDnet powerline Ethernet adapters. The encrypted Powerline signal auto-connects over an existing electrical system. Easy no-CD installation

• SMALL PROFILE: The compact form factor of the powerline adapter kit stays off the ground by plugging directly into an outlet.

• CROSS COMPATIBLE: Backward compatible with all Powerline 600, 500, and 200 adapters

• PRE-ENCRYPTED: For your convenience the Powerline signal is pre-encrypted

More from the Manufacturer

TRENDnet's Powerline 500 AV Nano Adapter Kit, model TPL-406E2K, uses an electrical outlet to create a high speed network. Two adapters are needed to start a network. Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access. The compact form factor saves space around crowded electrical outlets. Use up to 8 adapters to network devices in different rooms without running new cabling.

Powerline 500 AV Nano Adapter Kit

Includes two TPL-406E adapters

Expand your network with this Powerline adapter

Easy no-CD installation

Two Powerline devices are required to start a network

NDAA compliant

Plug in installation

Simply plug in TRENDnet adapters! The encrypted Powerline signal auto-connects over an existing electrical system.

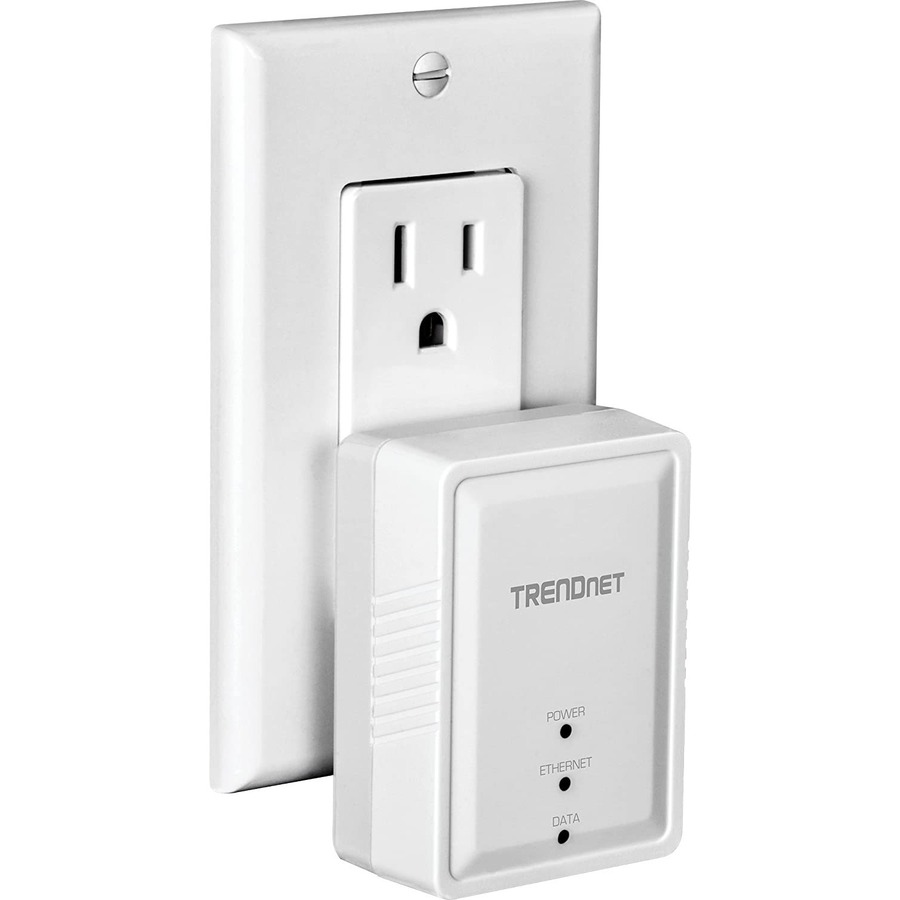

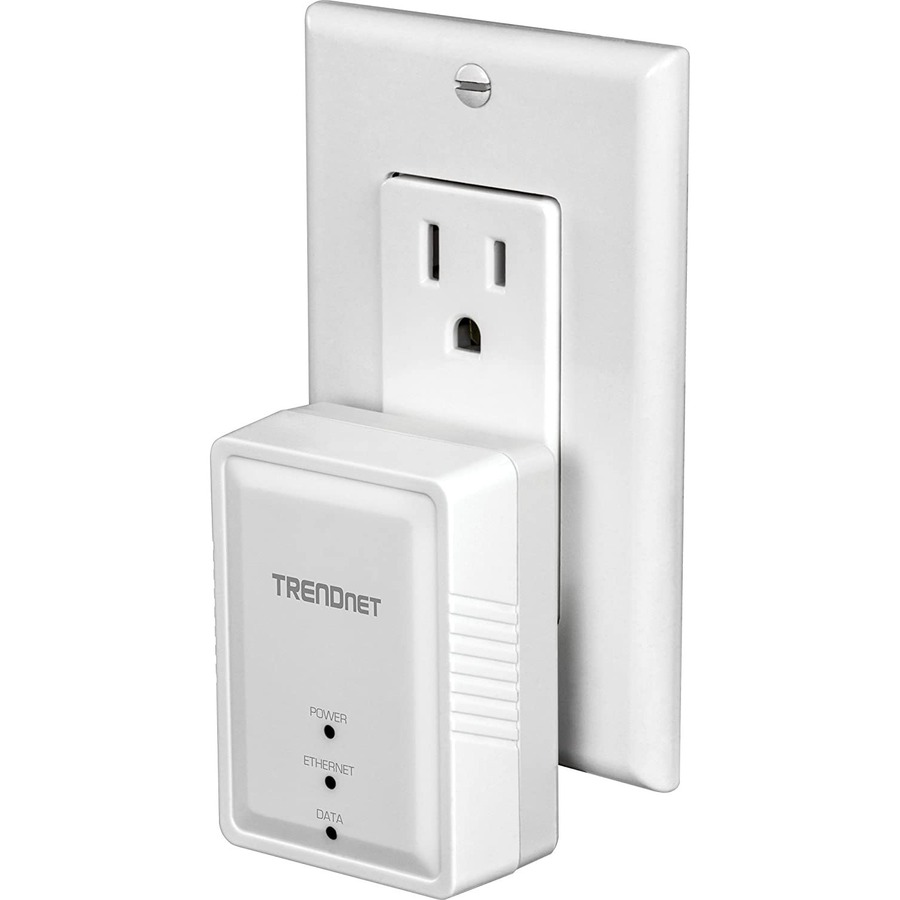

No clutter

The compact form factor stays off the ground by plugging directly into an outlet.

Ethernet port

Ethernet port extends high performance wired connections.

Adapters

Includes two TPL-406E adapters

Link Button

Press the Link button to change existing Powerline encryption keys

Pre-Encrypted

For your convenience the Powerline signal is pre-encrypted

Powerline 500

High speed Powerline networking over existing electrical lines

Ethernet Port

Convenient Ethernet port to hardwire computer, smart TV, or other network enabled device

Cross Compatible

Backward compatible with all Powerline 600, 500, and 200 adapters

Quick Setup

Get up and running in minutes with the intuitive guided setup

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 1901

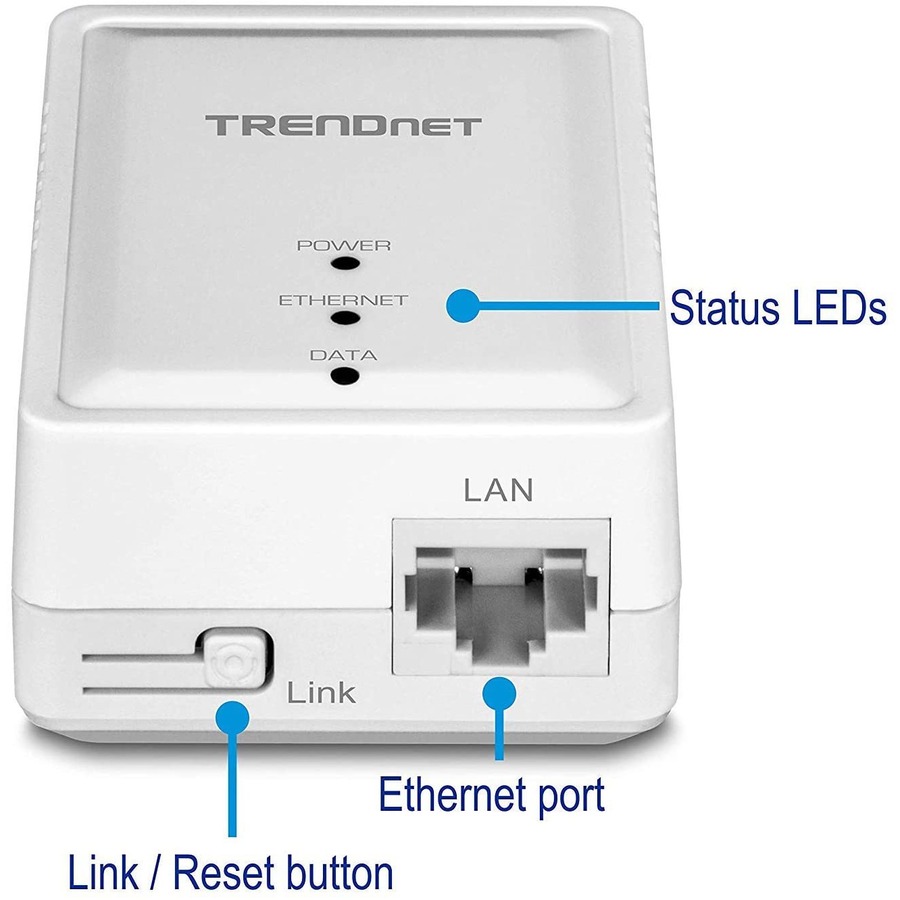

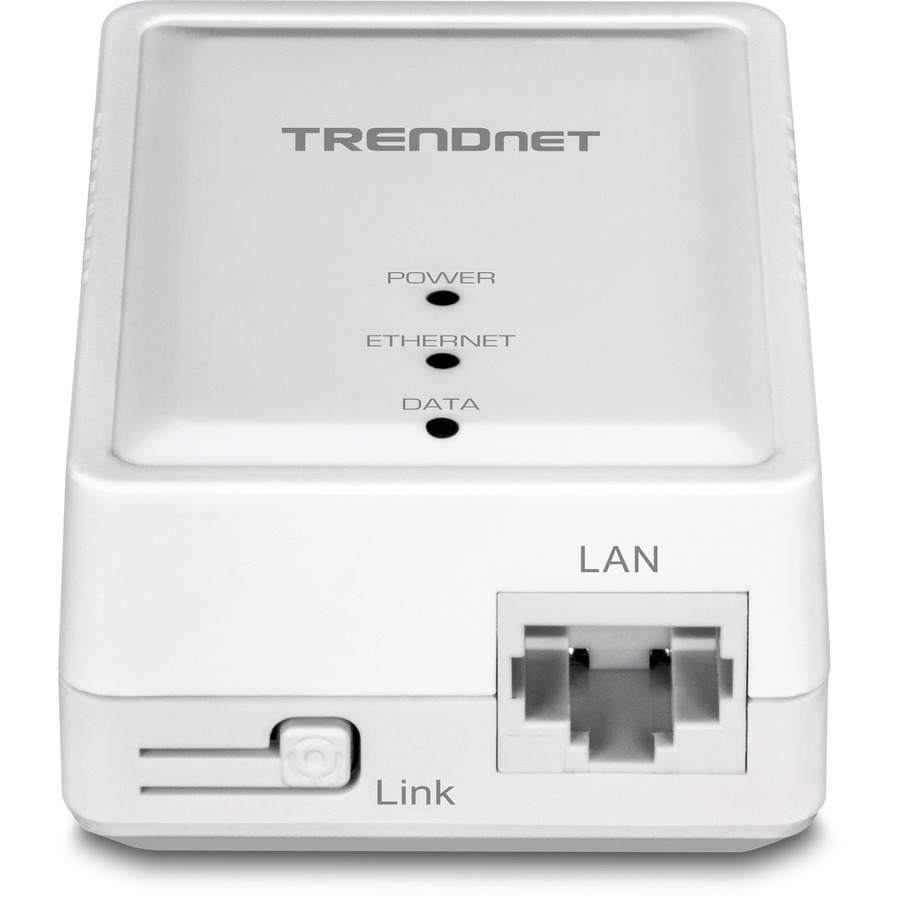

Device Interfaces

Ethernet port

Link / reset button

Status LEDs

Power plug

A: North America Type B (NEMA 5–15)

EU: Euro Type C (CEE 7/16)

UK: United Kingdom Type G (BS 1363)

Frequency Band

2 – 68 MHz

Data PHY Rate

Ethernet: up to 200 Mbps (Full Duplex mode)

Networking Distance

Up to 300 m (980 ft.) linear distance over electrical power lines

Encryption

128-Bit AES (Advanced Encryption Standard)

Optional Utility: OS Compatibility

Windows

10, 8.1, 8, 7, Vista, XP

Nodes

Up to 8 (max.)

Overlapping Powerline Networks

Up to 4 (per electrical system)

Power

Input: 100 – 240 V AC, 50/60 Hz

Consumption: Active mode: 2.7 Watts (max.); Standby mode: 0.34 Watts (max.)

Operating Temperature

0 – 40 °C (32 – 104 °F)

Operating Humidity

Max. 90 % non-condensing

Certifications

CE

FCC

Dimensions

68 x 55 x 28 mm (2.7 x 2.2 x 1.1 in.)

Weight

A: 64 g (2.2 oz.)

EU: 68 g (2.4 oz.)

UK: 68 g (2.4 oz.)

Warranty

3 year limited

PACKAGE CONTENTS

2 x TPL-406E

Quick Installation Guide

2 x Network cable (1.5 m / 5 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
