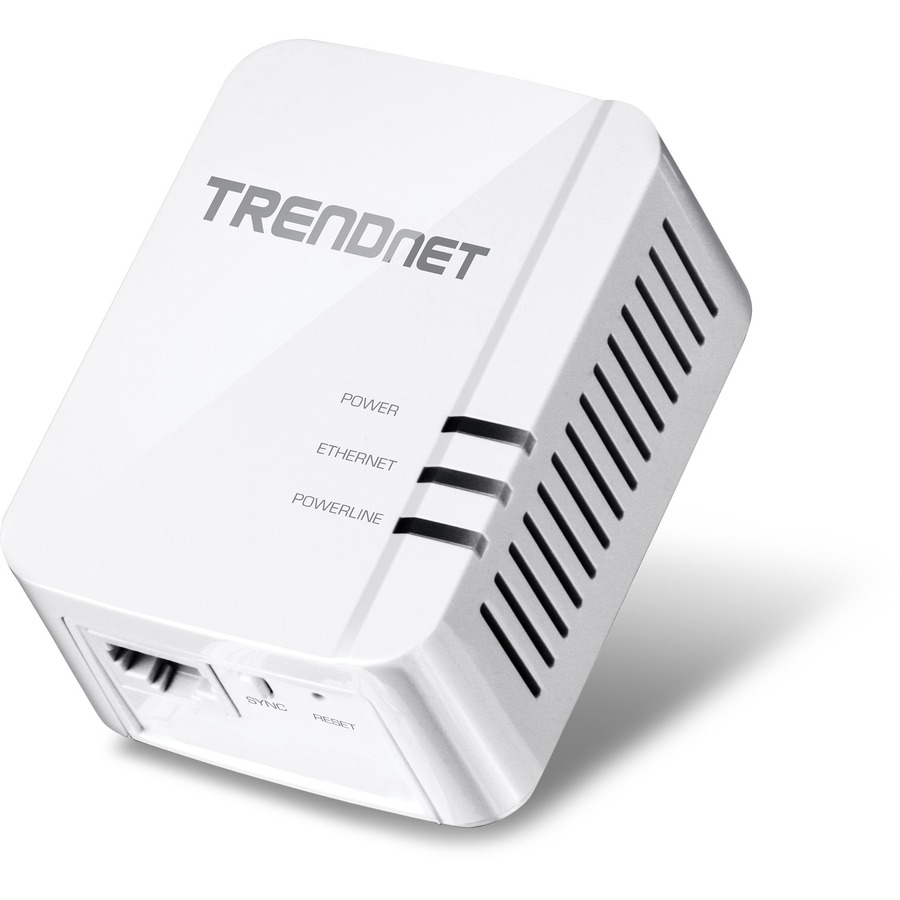

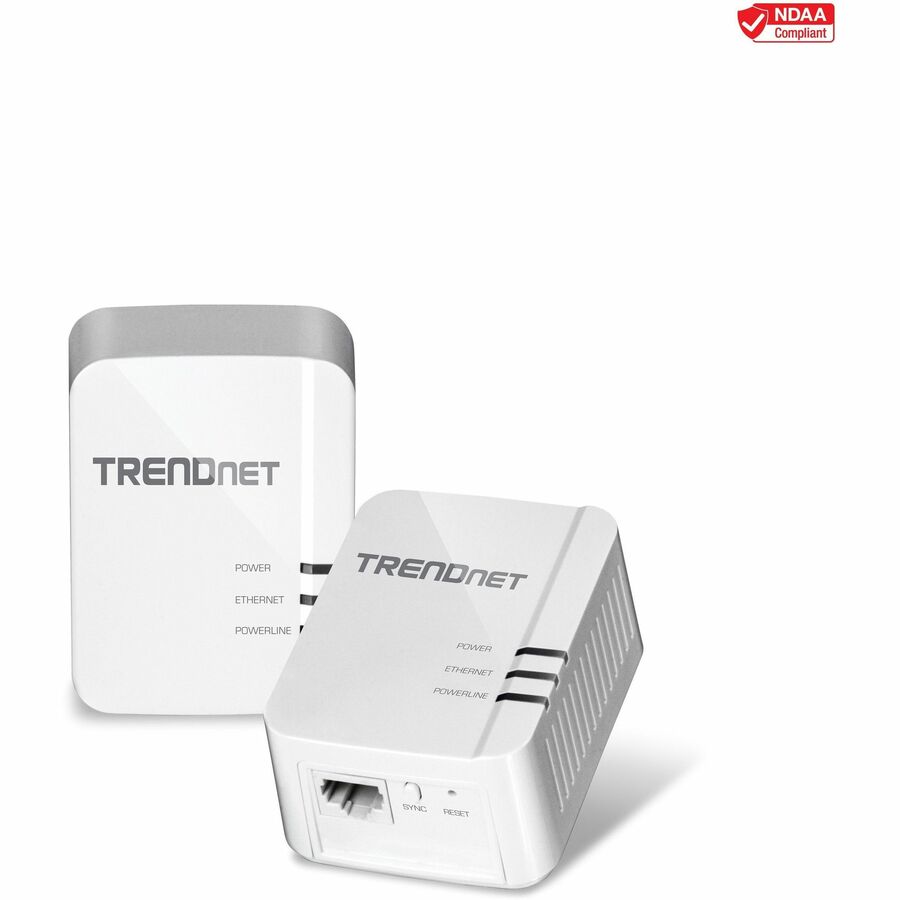

TRENDnet Powerline 1300 AV2 Adapter Kit, Includes 2 x TPL-422E Powerline Ethernet Adapters, IEEE 1905.1 & IEEE 1901, Gigabit Port, Range Up To 300m (984 ft), Simple Installation, White, TPL-422E2K

TRENDnet's Powerline 1300 AV2 Adapter Kit, model TPL-422E2K, comes with two Powerline adapters to create a high-speed Powerline 1300 network using your home's existing electrical system. Two adapters are needed to start a network. TRENDnet adapters are protected with 128-bit AES Encryption. Plug in the first adapter and network it to your existing router. Plug in other adapters on the same electrical system and they auto-connect to the first adapter for instant internet access.

• EXPAND YOUR INTERNET NETWORK- TRENDnet's Powerline 1300 AV2 Adapter Kit comes with two Powerline adapters to create a high-speed Powerline 1300 network using your home's existing electrical system. Use up to 8 adapters on a single Powerline network.

• MANUFACTURER PROTECTION: We stand by the quality of our products.The Powerline TPL-422E2K 1300 AV2 Adapter Kit is backed and supported with 3 years of TRENDnet Manufacturer Protection.

• NDAA COMPLIANT: With our NDAA compliant Powerline Adapters, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• HIGH-SPEED POWERLINE 1300- Powerline 1300 technology and a Gigabit port, deliver fast and stable networking to seamlessly connect computers, smart TVs, or other network enabled devices and stream 4K video.

• SIMPLE INSTALLATION- No configuration needed - Simply plug in TRENDnet Powerline adapters, and they will auto-connect out of the box.

• MIMO TECHNOLOGY-Multiple Input Multiple Output (MIMO) Powerline with Beamforming technology uses live, neutral, and ground wires to increase performance between adapters.

• CROSS COMPATIBILITY & OPERATING SYSTEMS- Cross compatible with Powerline 1200, 600, 500, and 200 adapters. Compatible with Windows 10, 8.1, 8, 7, Vista, XP.

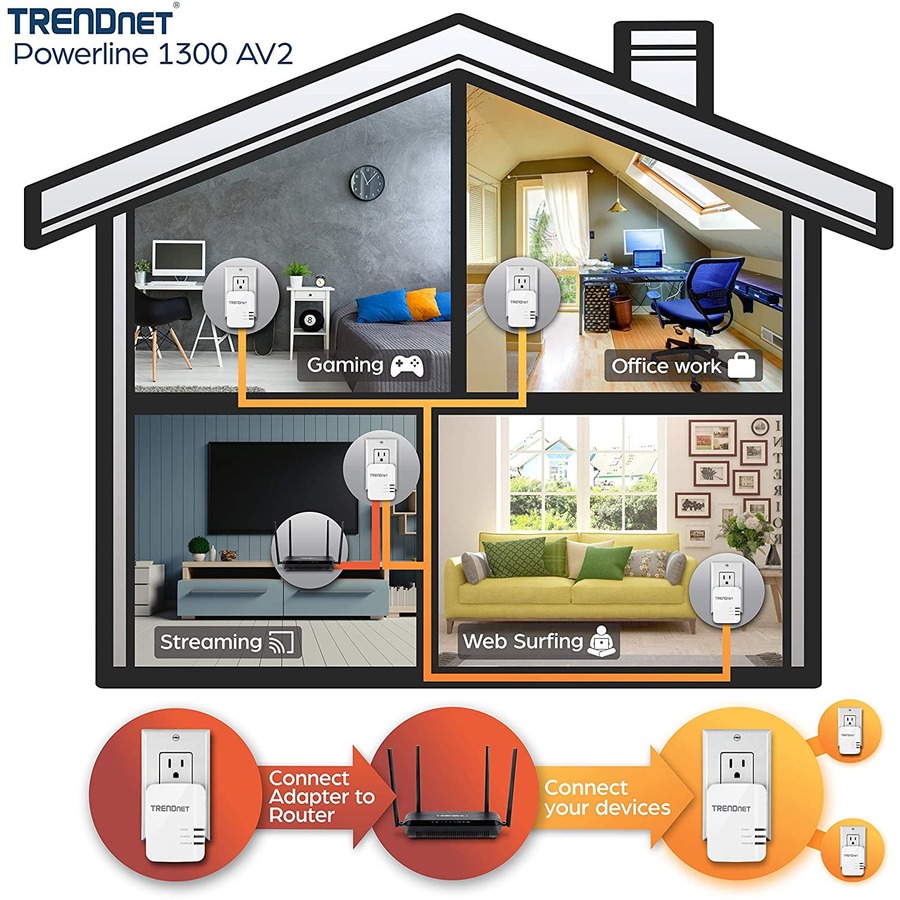

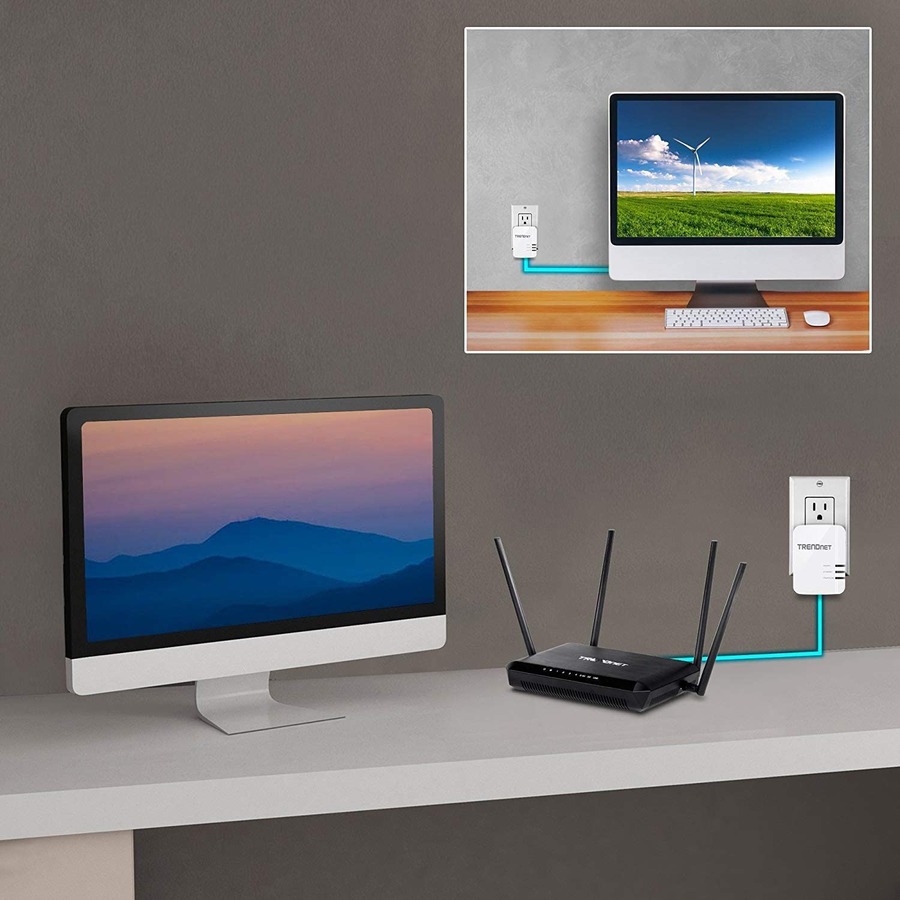

• SET-UP INSTRUCTIONS: Plug in the first adapter and network it to your existing router. Plug in the other adapter which will auto-connect to the first adapter for instant internet access. Two Powerline adapters are required to start a network.

• POWER CONSUMPTION: Input: 100 - 240V AC, 50-60Hz. Consumption: Active mode: 4W (max.); Standby mode: 0.5W (max.) Powerline communication is protected with 128-bit AES encryption

More from the Manufacturer

TRENDnet's Powerline 1300 AV2 Adapter Kit, model TPL-422E2K, comes with two Powerline adapters to create a high-speed Powerline 1300 network using your home's existing electrical system. Two adapters are needed to start a network. TRENDnet adapters are protected with 128-bit AES Encryption. Plug in the first adapter and network it to your existing router. Plug in other adapters on the same electrical system and they auto-connect to the first adapter for instant internet access.

Powerline 1300 AV2 Adapter Kit

Includes two TPL-422E adapters

Powerline 1300 networking over existing electrical lines

Enhanced Powerline performance and range from MIMO with Beamforming technology

Encrypted TRENDnet adapters auto-connect out of the box

Gigabit port for high-speed connectivity

Powerline range up to 300m (984 ft.)

Two Powerline adapters are required to start a network

Cross compatible with Powerline 1200, 600, 500, and 200 adapters

NDAA compliant

General description

Simple plug installation.

No setup required - just plug in TRENDnet's Powerline adapters and they'll connect automatically right out of the box.

High speed Powerline 1300

Powerline 1300 technology and a gigabit port offer fast and stable networks to seamlessly connect devices and stream 4K video.

MIMO technology

Multiple Input Multiple Output (MIMO) Powerline with Beamforming technology uses live, neutral, and ground wires to increase performance between adapters.

Sync button

Press the Synchronize button to change existing Powerline encryption keys

Powerline 1300

Powerline 1300 technology offers fast and stable networks to seamlessly connect devices and stream 4K video

Cross compatibility

Cross compatible with Powerline 1200, 600, 500 and 200 adapters.

Gigabit port

Gigabit port for computers, smart TVs, or other network-enabled devices

MIMO with Beamforming technology

Multiple Input Multiple Output (MIMO) with Beamforming technology uses live, neutral and ground wires to increase performance between adapters.

Easy installation.

TRENDnet adapters connect automatically out of the box

128-bit AES encryption

Powerline communication is protected with 128-bit AES encryption

Expandable.

Use up to 8 adapters on a single Powerline network

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 1901

IEEE 1905.1

Device Interface

1 x Gigabit LAN port

Sync button

Reset button

LED indicators

Power plug

North America Type B (NEMA 5–15)

Frequency Band

2 – 67.5MHz

Modulation/Protocol

OFDM, 4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO, HS-ROBO, Mini-ROBO

CSMA/CA

Data PHY Rate

Up to 1300Mbps

Networking Distance

Powerline: Up to 300m (980ft.) linear distance over electrical power lines***

Encryption

128-Bit AES (Advanced Encryption Standard)

Powerline Nodes

Up to 8 (max.)

Overlapping Powerline Networks

Up to 4 (per electrical system)

Special Features

Auto-connects to other TRENDnet Powerline adapters

IPv6 support

IGMP / MLDv2 Streams

Optional Utility: OS Compatibility

Windows

10, 8.1, 8, 7, Vista, XP

Power

Input: 100 - 240V AC, 50-60Hz

Consumption: Active mode: 4W (max.); Standby mode: 0.5W (max.)

Operating Temperature

0 – 50°C (32 – 122°F)

Operating Humidity

Max. 90 % non-condensing

Certifications

FCC

IC

ETL

Dimensions

58 x 77 x 65 mm (2.3 x 3.0 x 2.6 in.)

Weight

108g (3.8 oz.)

Warranty:

3 year

PACKAGE CONTENTS

2 x TPL-422E

Quick Installation Guide

CD-ROM (Utility & User's Guide)

2 x Network cable (1.5 m/5 ft.)

* Maximum of 8 adapters (nodes) recommended for streaming video across your network.

** 1.3 Gbps is the maximum theoretical Powerline data rate when connected to another Powerline 1300 device. Data throughput may vary by circuit wire conditions. If an electrical system does not have a grounded connection, the theoretical networking speed is reduced to 650 Mbps.

*** Powerline communication works on a single electrical system. (Usually controlled by a single distribution panel). Power strip, GFCI outlets, and AFCI circuit breakers may degrade Powerline network signals.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
