TRENDnet Industrial 100/1000Base-T to SFP Media Converter, TI F11SFP…

TRENDnet's Industrial 100/1000Base-T to SFP Media Converter, model TI-F11SFP, is a reliable IP50 rated media converter with hardened components rated for extreme industrial environments. The front panel DIP switches control Link Fault Pass Through (LFPT), and setting the device to switch/converter mode. DEVICE INTERFACE: 1 x Gigabit Port; 1 x Gigabit SFP Port (100/1000Mbps); 3-Pin Removable Terminal Block; LED Indicators;

DIP Switch

NDAA + TAA COMPLIANT: With NDAA and TAA compliant network products, you can plan and install the networking solutions that

government customers demand today. (U.S. and Canada only)

RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your

needs during normal business hours. We take pride in being there for our customers.

INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration

and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F).

POWER SUPPLY SOLD SEPARATELY: 12 - 60V DC power input with overload current protection. Use this industrial sfp media

converter with the compatible power supply. Model TI-M6024 (Sold Separately)

SWITCH MODE TO CONVERTER MODE: This device can be set to be used in switch mode or converter mode.

DIP SWITCHES: 1: Turns LFPT (Link Fault Pass Through) on/off 2: Converter mode / switch mode

SURGE PROTECTION: 6kV Ethernet surge protection

NETWORKING DISTANCES: Up to 80km fiber networking distances with the TEG-MGBS80 SFP module

More from the Manufacturer

OVERVIEW

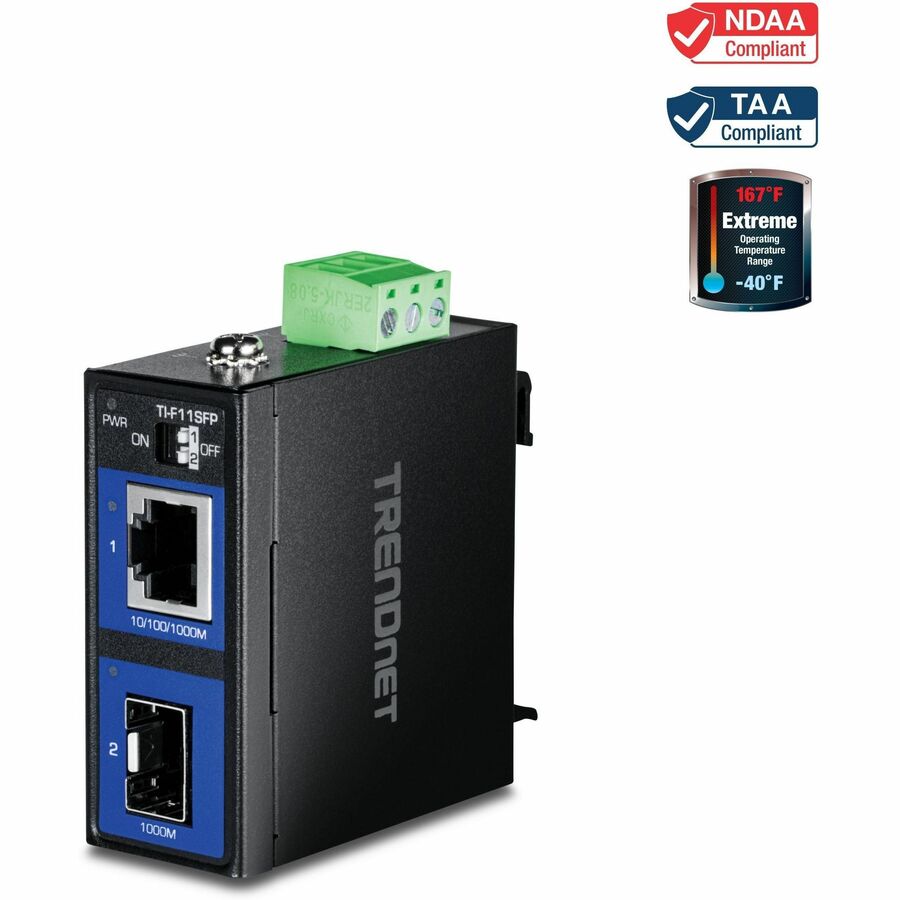

TRENDnet’s Industrial 100/1000Base-T to SFP Media Converter, model TI-F11SFP, is a reliable IP50 rated media converter with

hardened components rated for extreme industrial environments. The front panel DIP switches control Link Fault Pass Through

(LFPT), and setting the device to switch/converter mode.

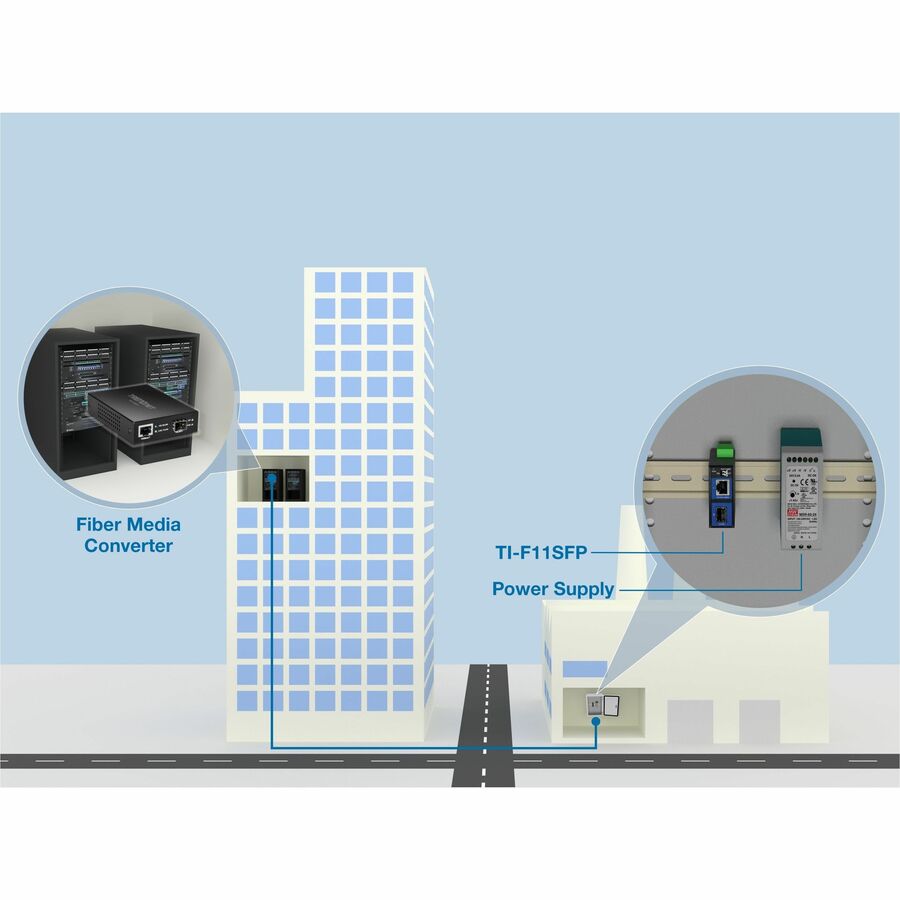

Industrial Applications

Networks devices for manufacturing,

general industrial, warehousing,

surveillance, and corporate

applications.

Front Panel Switches

The industrial multi-mode media

converter’s front panel DIP switches

quickly allow switching between switch/

converter modes, and enable or

disable Link Fault Pass Through

(LFPT).

Industrial Hardened Design

Designed with a rugged IP50 rated housing,

resistance to a high degree of vibration and

shock, protection against ESD/EMI/surge, and

operates within a wide operation temperature

range of -40° - 75° C (-40° – 167° F).

Network Ports

1 x Gigabit Ethernet port and 1 x SFP slot

Dip Switches

1: Turns LFP (Link Fault Pass Through) on/off

2: Set SFP speed to 100Mbps or 1000Mbps

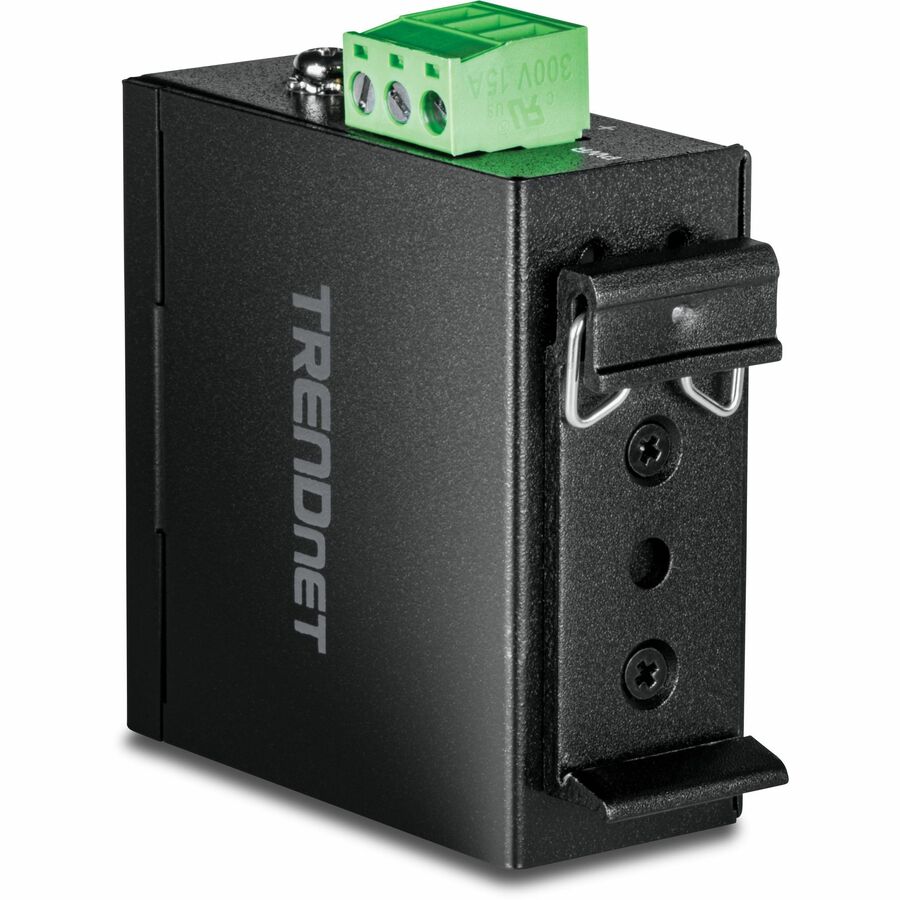

DIN-Rail/Wall Mounts

IP50 rated metal enclosure with

included DIN-rail and wall

mount hardware

Switching Capacity

4Gbps switching capacity

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27),

freefall (EN 60068-2-31), and

vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with FCC Part 15

Subpart B Class A and CE EN

55022 Class A standards

Surge Protection

6kV Ethernet surge protection

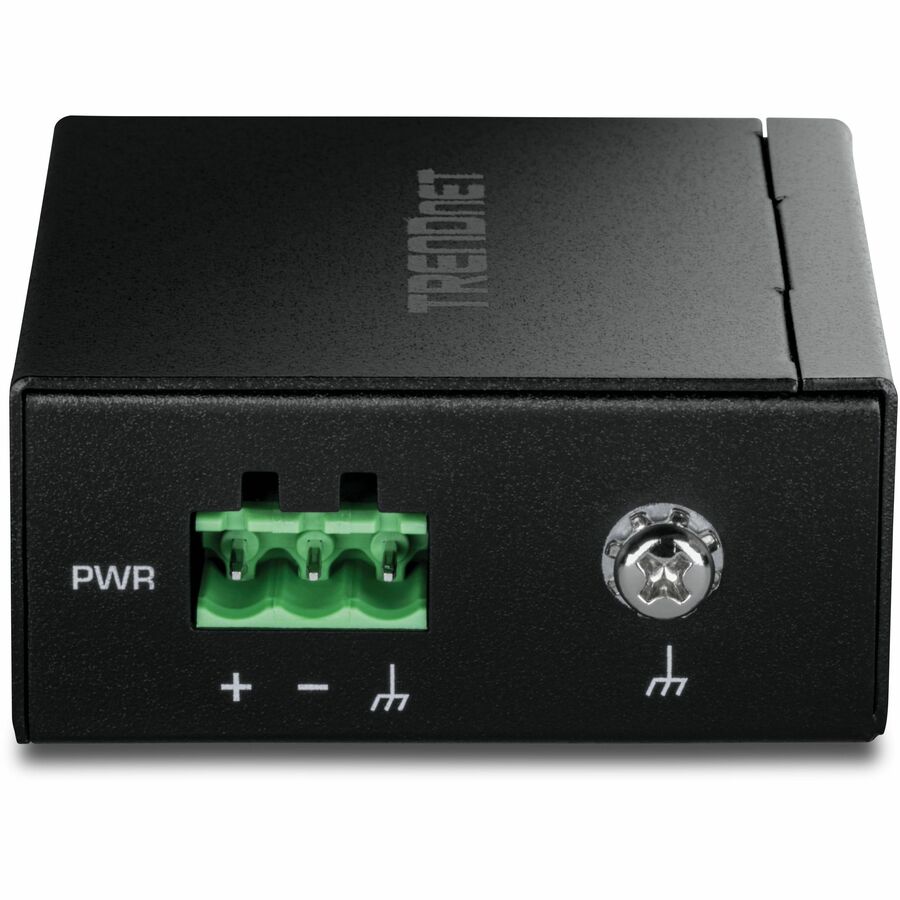

Grounding Point

Grounding point protects

equipment from external electrical

surges

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

Hardened Industrial 100/1000Base-T to SFP Media Converter

• Hardened IP50 rated 100/1000Base-T Ethernet to SFP converter

• SFP port accommodates Multi or Single Mode fiber modules

• Up to 80km fiber networking distances with the TEG-MGBS80 SFP module

• Operating temperature range of -40° – 75° C (-40° – 167° F)

• 12 – 60V DC power input with overload current protection

• 6kV RJ45 surge protection

• Includes DIN-Rail and wall mounts

• Powers supply sold separately (model: TI-M6024)

• NDAA / TAA compliant (U.S. and Canada only)

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3z

IEEE 802.3x

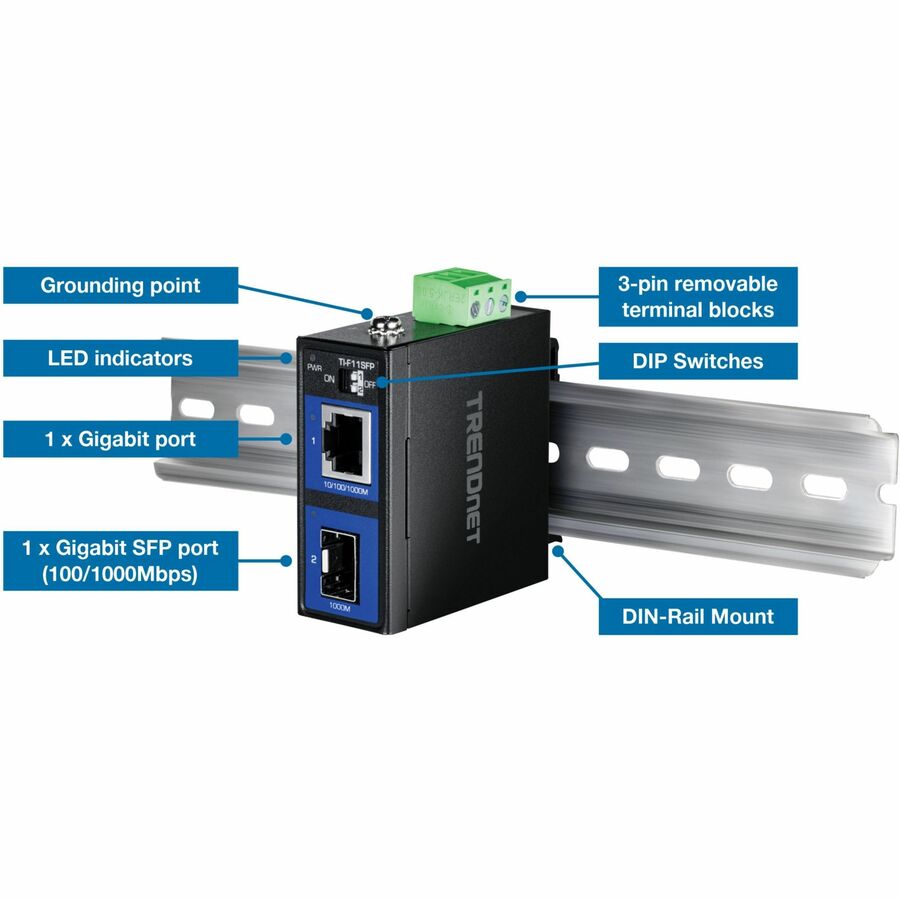

Device Interface

1 x Gigabit port

1 x Gigabit SFP port (100/1000Mbps)

3-pin removable terminal block

LED indicators

DIP Switch

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2Gbps (full duplex)

Fiber: 200Mbps (full duplex)

Fiber: 2Gbps (full duplex)

Performance

Data RAM Buffer: 64KB

Jumbo Frame: 16KB

Power

Input: 12-60V DC

Compatible power supply: TI-M6024 (sold separately)

Max. consumption: 1.64W

Terminal Block

3-pin terminal block

Wire range: 1.5mm^2

Solid wire (AWG): 16-28

Stranded Wire (AWG): 16-28

Torque: 3 lb. – In / 0.2Nm / 0.56Nm

Wire strip length: 6-7mm

MTBF

4,800,000 hours @ 25° C

DIP Switch

1: On (LFPT on – Default), Off (LFPT off)

2: On (Converter mode – Default), Off (Switch mode)

Housing

IP50 metal case

DIN-Rail mount

Wall mount

Grounding point

ESD 2kV protection

6kV RJ45 protection

Operating Temperature

-40° - 75° C (-40° - 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

57 x 64 x 25mm (2.24 x 2.52 x 0.98 in.)

Weight

144g (5.08 oz.)

Certifications

CE

FCC

LVD

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-31)

Vibration (IEC 60068-2-6)

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Warranty

3-year

PACKAGE CONTENTS

TI-F11SFP

Removable terminal block

DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

Standards

• IEEE 802.3

• IEEE 802.3u

• IEEE 802.3ab

• IEEE 802.3z

• IEEE 802.3x

Device Interface

• 1 x Gigabit port

• 1 x Gigabit SFP port (100/1000Mbps)

• 3-pin removable terminal block

• LED indicators

• DIP Switch

Data Transfer Rate

• Ethernet: 10Mbps (half duplex), 20Mbps

(fullduplex)

• Fast Ethernet: 100Mbps (half duplex),

200Mbps (full duplex)

• Gigabit: 2Gbps (full duplex)

• Fiber: 200Mbps (full duplex)

• Fiber: 2Gbps (full duplex)

Performance

• Data RAM Buffer: 64KB

• Jumbo Frame: 16KB

Power

• Input: 12-60V DC

• Compatible power supply: TI-M6024

(sold separately)

• Max. consumption: 1.64W

Terminal Block

• 3-pin terminal block

• Wire range: 1.5mm^2

• Solid wire (AWG): 16-28

• Stranded Wire (AWG): 16-28

• Torque: 3 lb. – In / 0.2Nm / 0.56Nm

• Wire strip length: 6-7mm

MTBF

• 4,800,000 hours @ 25° C

DIP Switch

• 1: On (LFPT on – Default), Off (LFPT off)

• 2: On (Converter mode – Default), Off

(Switch mode)

Housing

• IP50 metal case

• DIN-Rail mount

• Wall mount

• Grounding point

• ESD 2kV protection

• 6kV RJ45 protection

Operating Temperature

•-40° - 75° C (-40° - 167° F)

Operating Humidity

• Max. 95% non-condensing

Dimensions

• 57 x 64 x 25mm (2.24 x 2.52 x 0.98 in.)

Weight

• 144g (5.08 oz.)

Certifications

• CE

• FCC

• LVD

• Shock (IEC 60068-2-27)

• Freefall (IEC 60068-2-31)

• Vibration (IEC 60068-2-6)

• IEC 61000-4-2

• IEC 61000-4-4

• IEC 61000-4-5

Warranty

• 3-year

Package Contents

• TI-F11SFP

• Removable terminal block

• DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
