(2 km, 1.24 mi.), TI-F10SC, Hardened IP50 Rated 100Base-T Ethernet to 100Base-FX Converter, NDAA & TAA Compliant
Industrial 100Base-FX Multi-Mode SC Fiber Converter (2 km, 1.24 mi.)
$79.43*
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Nov 20 and Dec 25, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

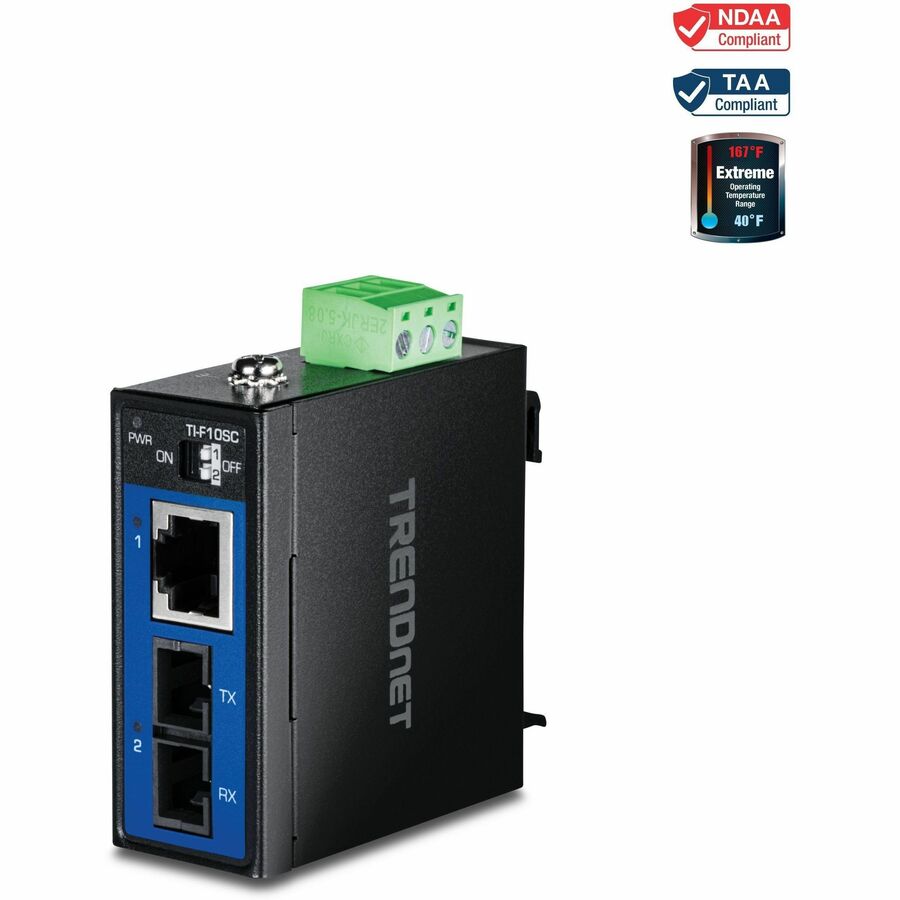

TRENDnet's Industrial 100Base-FX Multi-Mode SC Fiber Converter (2 km, 1.24 mi.), model TI-F10SC, is a reliable IP50 rated multi mode SC-type media converter with hardened components rated for extreme industrial environments and spans distances up to 2km (1.24 mi.). The front panel DIP switches control Link Fault Pass Through (LFPT), and setting the device to switch/converter mode.
• DEVICE INTERFACE: 1 x 100Mbps Ethernet port (10/100Mbps); 1 x 100Mbps Multi-Mode SC-type port; 3-pin Removable Terminal Block; LED Indicators; DIP Switch
• NDAA + TAA COMPLIANT: With NDAA and TAA compliant products, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)
• RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.
• DIP SWITCHES: (1) LFPT (Link Fault Pass Through) on/off (default ON); (2) Converter and Switch mode on/off (default Converter mode)
• POWER SUPPLY SOLD SEPARATELY: Powers supply sold separately (model: TI-M6024)
• INDUSTRIAL HARDENED DESIGN: Rugged IP50 Rated housing with an extreme operating temperature range of -40° - 75° C
(-40° - 167° F) allows for installations in industrial environments with intense hot or cold conditions
• SURGE PROTECTION: 6kV Ethernet surge protection

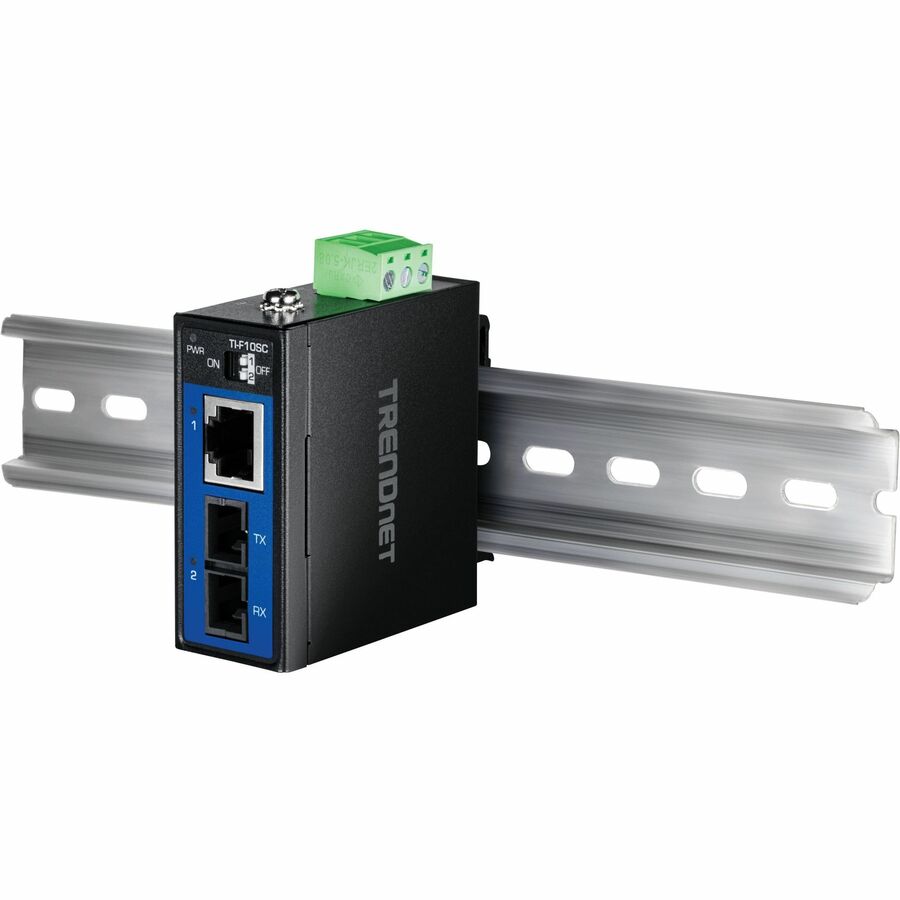

• DIN RAIL & WALL MOUNTS INCLUDED: IP50 rated metal enclosure with included DIN-rail and wall mount hardware
• GROUNDING POINT: Grounding point protects equipment from external electrical surges
• ELECTRO MAGNETIC COMPLIANCE: Complies with industrial EMS certifications ESD (IEC 61000-4-2); Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV
More from the Manufacturer
OVERVIEW
TRENDnet’s Industrial 100Base-FX Multi-Mode SC Fiber Converter (2 km, 1.24 mi.), model TI-F10SC, is a reliable IP50 rated multi
mode SC-type media converter with hardened components rated for extreme industrial environments and spans distances up to 2km
(1.24 mi.). The front panel DIP switches control Link Fault Pass Through (LFPT), and setting the device to switch/converter mode.

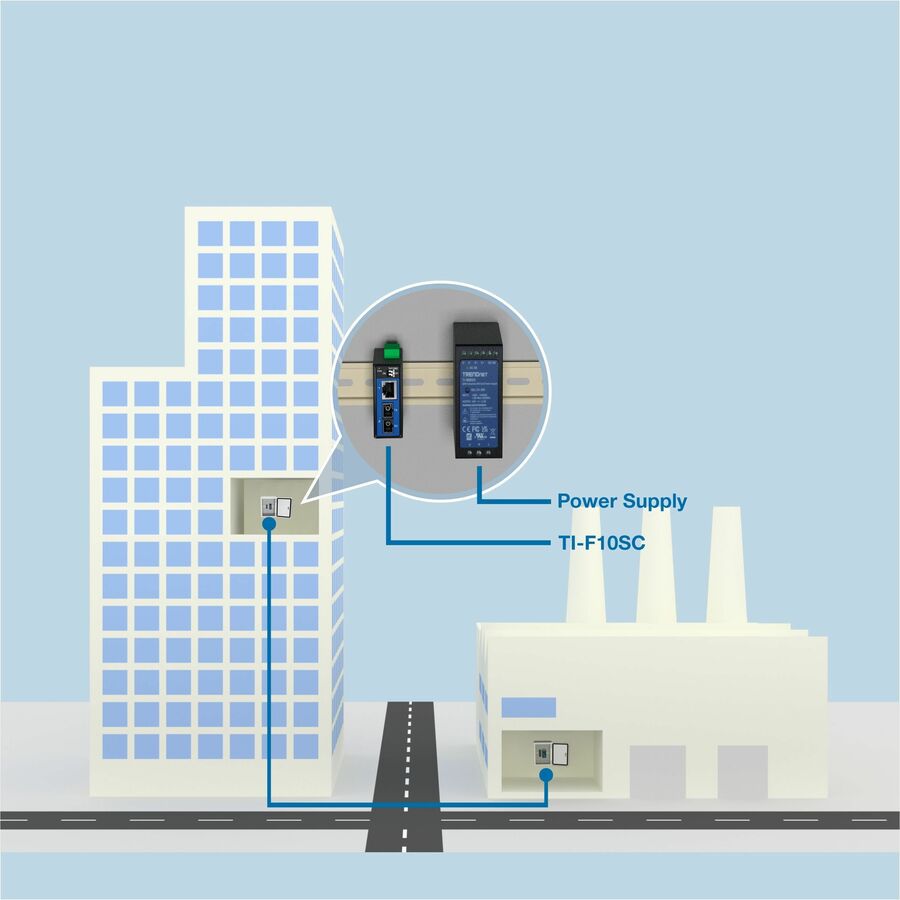

Industrial Applications
Networks devices for manufacturing,
general industrial, warehousing,
surveillance, and corporate
applications.
Front Panel Switches
The industrial multi-mode media
converter’s front panel DIP switches
quickly allow switching between switch/
converter modes, and enable or disable
Link Fault Pass Through (LFPT).
Industrial Hardened Design
Rugged IP50-rated housing with a high
degree of vibration and shock
resistance, and an operating
temperature range of -40° – 75° C (-40° – 167° F).
Network Ports
1 x 100Mbps Ethernet port and 1
x multi-mode SC-type port
Surge Protection
6kV Ethernet surge protection
Dip Switches
1: LFPT (Link Fault Pass Through)
on/off (default ON) 2: Converter and
Switch mode on/off (default
Converter mode)

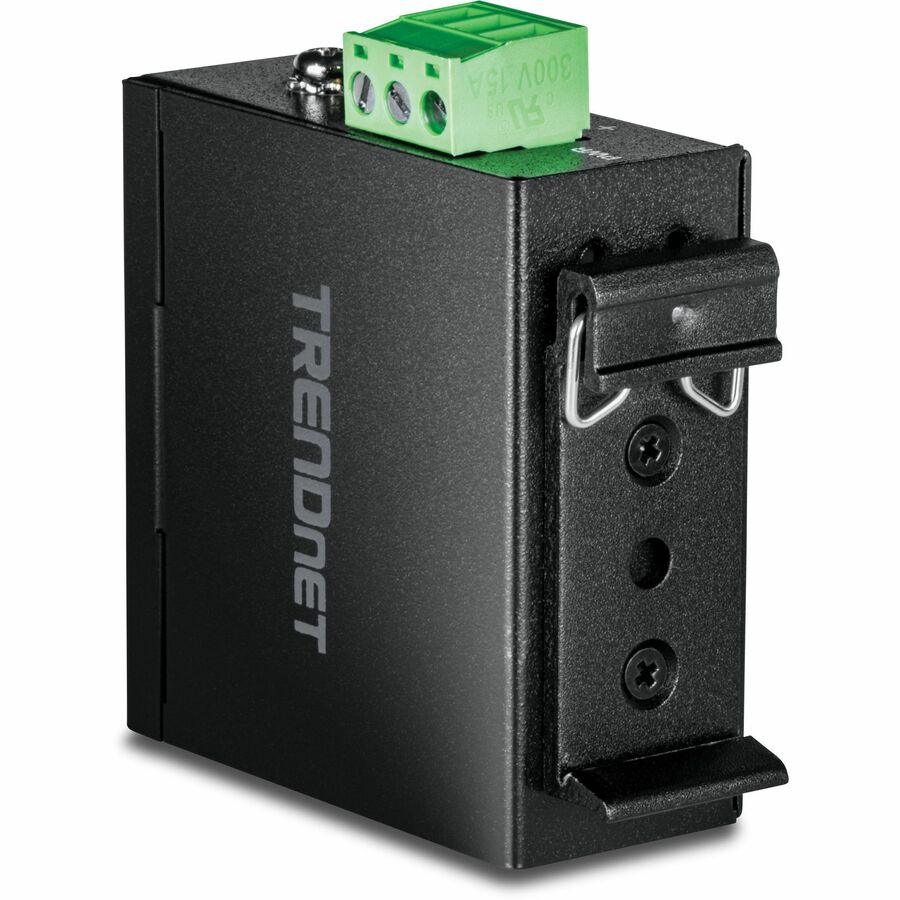

DIN-Rail/Wall Mounts
IP50 rated metal enclosure with
included DIN-rail and wall
mount hardware
Extreme Temperatures
An extreme operating temperature
range of -40° – 75° C (-40° – 167°
F) allows for installations in
industrial environments with
intense hot or cold conditions
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-31), and
vibration (EN 60068-2-6
Electro Magnetic Compliance
Complies with industrial EMS
certifications ESD (IEC 61000-4
2);
Contact: 6kV, Air: 8kV; EFT (IEC
61000-4-4): Power 2kV, Signal:
2kV; Surge (IEC 61000-4-5):
Power: 2kV, Signal: 2kV
Grounding Point
Grounding point protects
equipment from external electrical
surge
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x

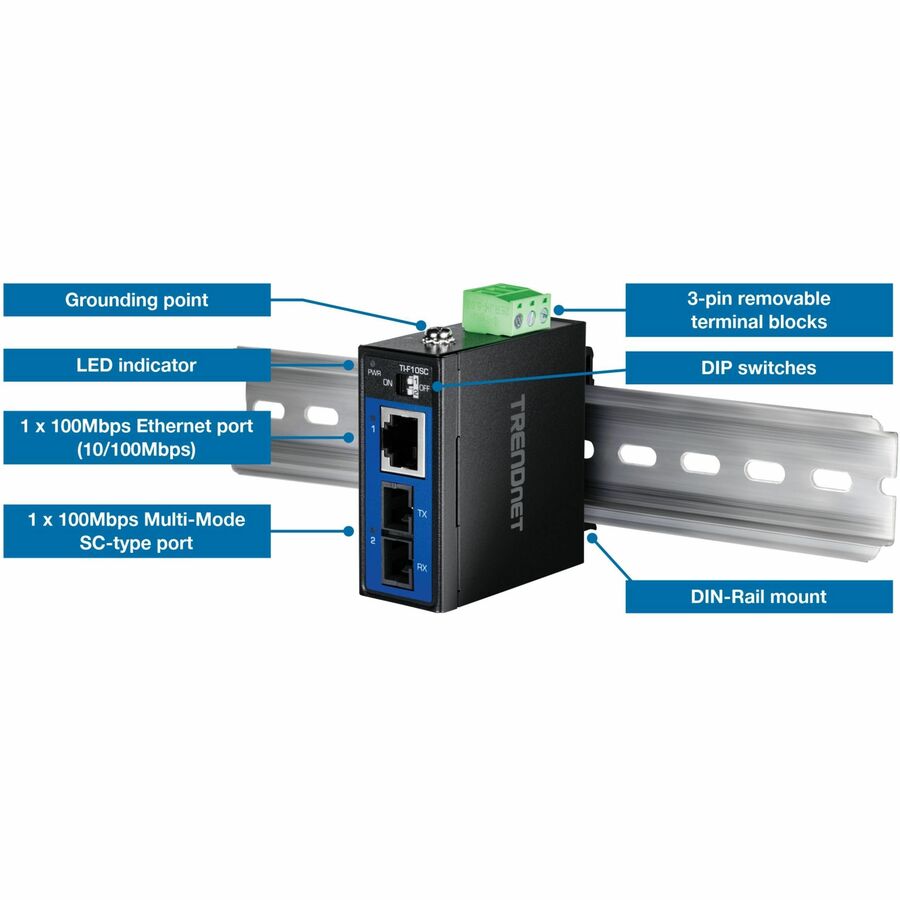

Device Interface
1 x 100Mbps Ethernet port (10/100Mbps)
1 x 100Mbps Multi-Mode SC-type port
3-pin removable terminal block
LED indicators
DIP Switch
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Fiber: 200Mbps (full duplex)
Fiber
Multi-mode
SC-type
Wavelength: 1310nm
Distance: up to 2km
DIP Switch
1: LFPT (Link Fault Pass Through) on/off (default ON)
2: Converter and Switch mode on/off (default Converter mode)
Power
Input: 12-60V DC
Compatible power supply: TI-M6024 (sold separately)
Max. consumption: 1.56W
Terminal Block
3-pin terminal block
Wire range: 1.5mm²
Solid wire (AWG): 16-28
Stranded Wire (AWG): 16-28
Torque: 3 lb. – In / 0.2Nm / 0.56Nm
Wire strip length: 6-7mm
MTBF
5,206,779 hours @ 25° C
Housing
IP50 metal case
DIN-Rail mount
Wall mount
Grounding point
6kV ESD protection
6kV RJ45 protection
Operating Temperature
-40° - 75° C (-40° - 167° F)
Operating Humidity
Max. 95% non-condensing
Dimensions
60 x 60 x 25mm (2.24 x 2.24 x 0.98 in.)
Weight
144g (5.1 oz.)
Certifications
CE
FCC
LVD
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-31)
Vibration (IEC 60068-2-6)
IEC 61000-4-4
IEC 61000-4-5
Warranty
3-year
PACKAGE CONTENTS
TI-F10SC
Removable terminal block
DIN-Rail / wall mount kit
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
TRENDnet hardened industrial switches
Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.
TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.
Limited Warranty: 3 Year
TRENDnet Hardened Industrial 100Base-FX
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-F10SC |
| Brand Name | TRENDnet |
| Product Model | TI-F10SC |
| Product Name | Hardened Industrial 100Base-FX |
| Product Condition | New |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 2 km |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm, 50/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-FX, 10/100Base-T |
| Physical Characteristics | |
| Form Factor | Rail-mountable, Wall Mountable |
| Height | 3" |
| Width | 5" |
| Depth | 10" |
| Weight (Approximate) | 1.49 lb |
| Power Description | |
| Power Source | Power Supply |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
