For Optical Network, Data Networking - 1 x LC Duplex 100Base-FX Network - Optical Fiber - 50/125 µm, 62.5/125 µm - Multi-mode - Fast Ethernet - 100Base-FX - Hot-pluggable
$34.10*
In stock: 8
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

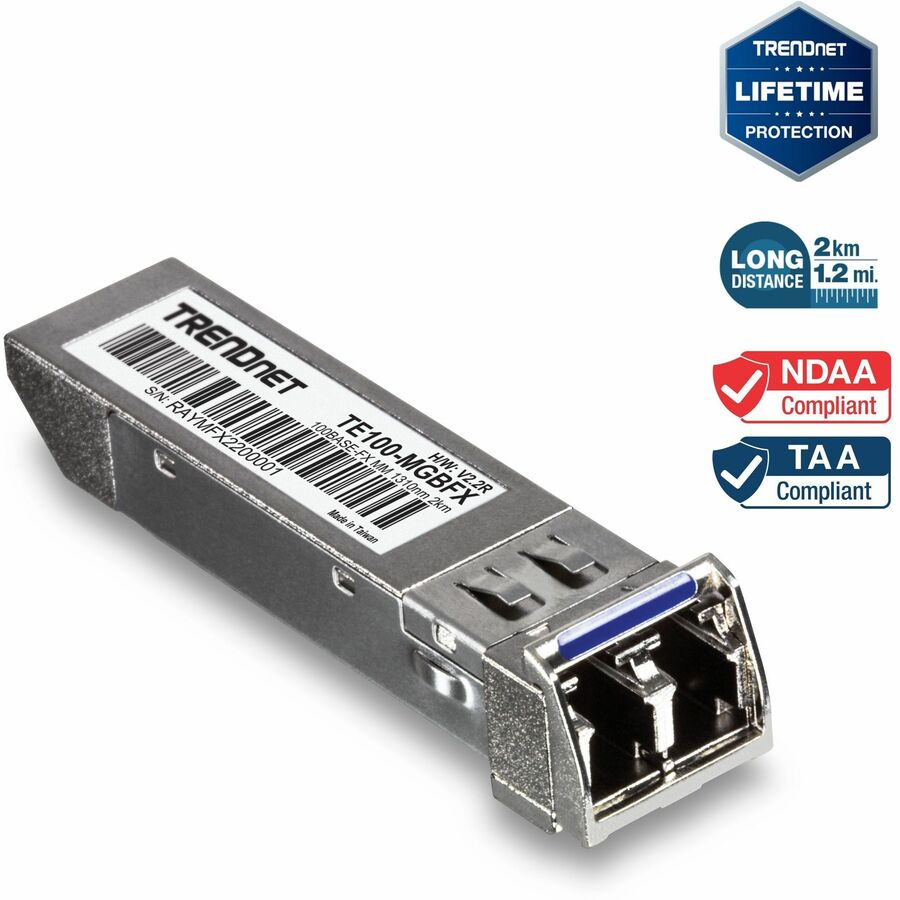

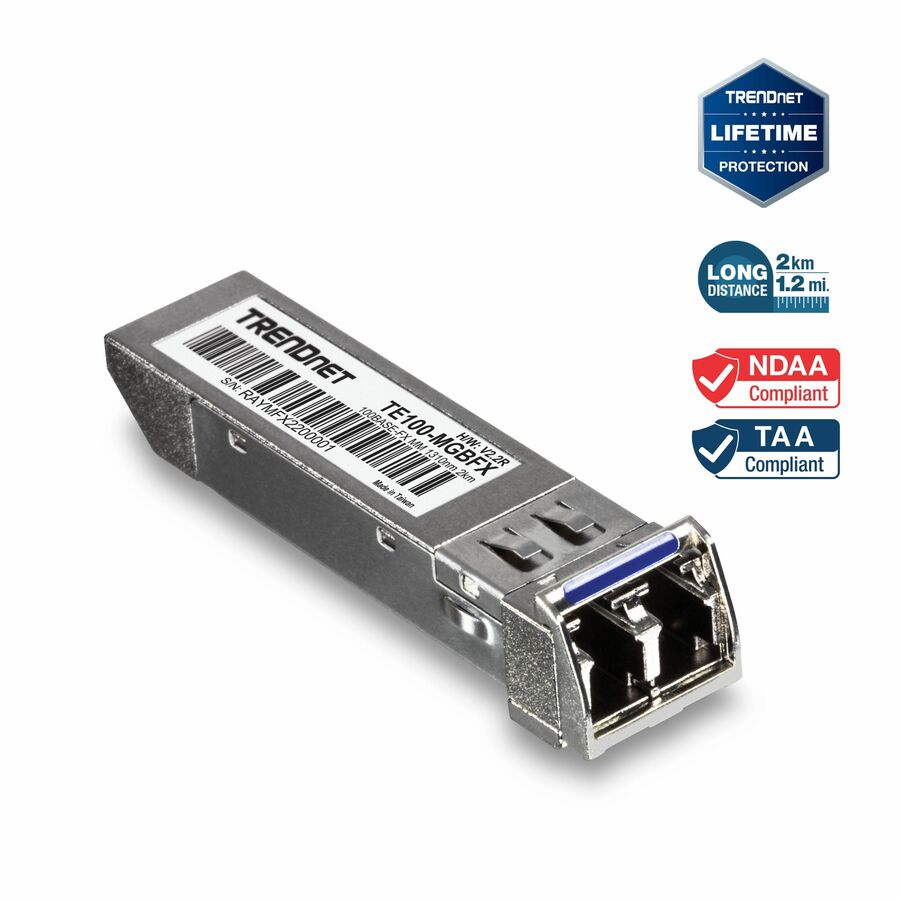

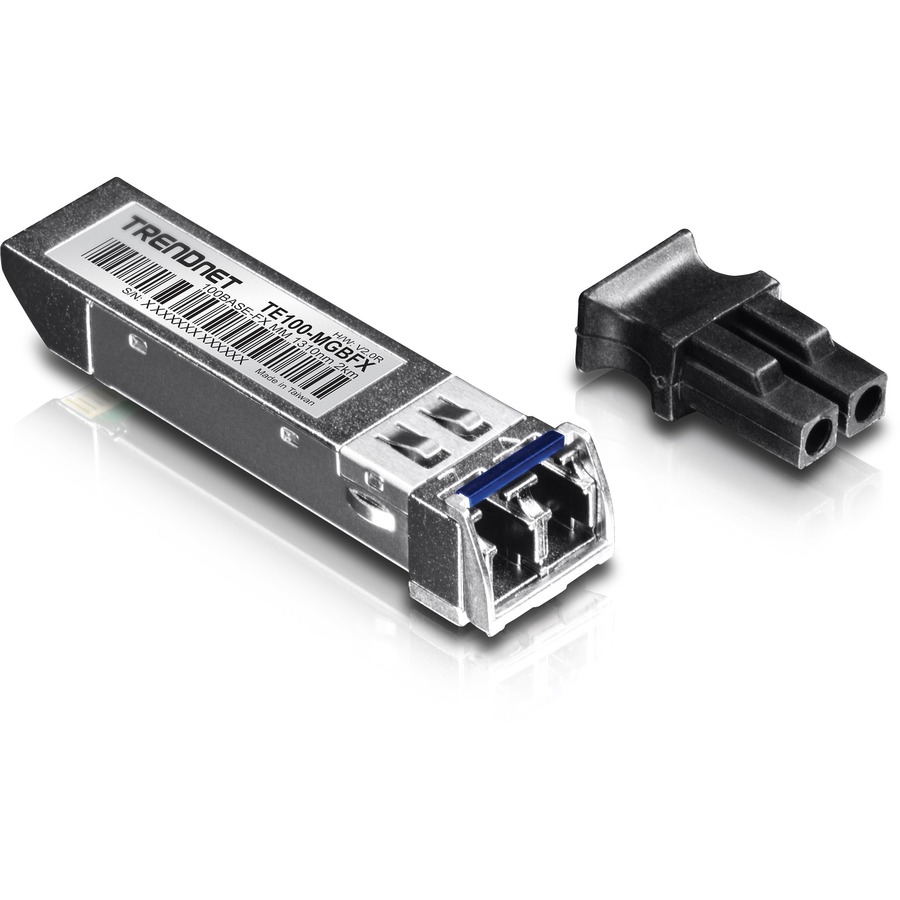

The Mini-GBIC Multi-Mode LC Module, model TE100-MGBFX, works with standard SFP (Mini-GBIC) slots on most switches and supports Multi-Mode network transmissions speeds of 100Mbps. The TE100-MGBSX is compatible with Duplex-LC fiber connector types and supports fiber optic connection distances of up to 2 kilometers (1.2 miles).
• DEVICE INTERFACE: SFP + MSA Compliant; LC duplex connector
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Modules, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• LIFETIME PROTECTION -We stand by the quality of our products. The TE100-MGBFX 100Base-FX SFP Multi-Mode LC Module (2 km) is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• FIBER APPLICATIONS: Long distance fiber networking for industrial, manufacturing, and corporate/education campus applications.

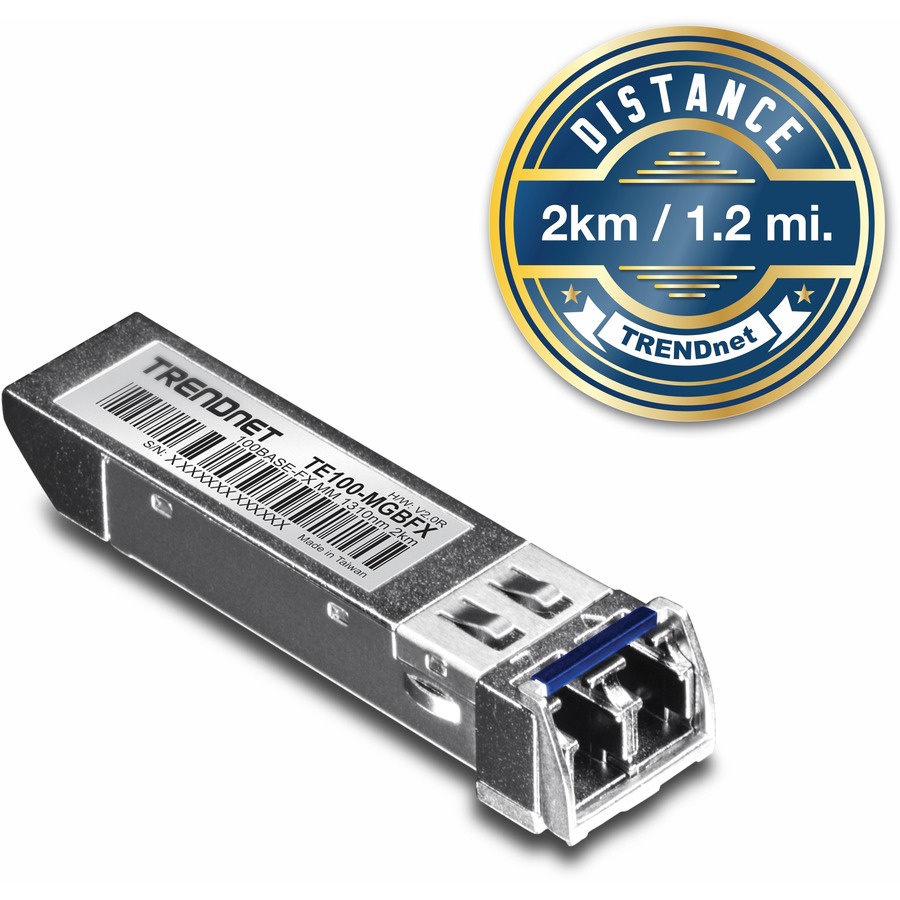

• FIBER MODE / DISTANCE: Multi-Mode transceiver spans distances up to 2 km (1.2 miles) and supports up to 155 Mbps.
• COMPATIBILITY: Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors.
• FIBER WAVELENGTH: Compatible with Multi-Mode 1310 nm transmissions
• OPERATING TEMPERATURE: Rated for an operating temperature range of 0 to 70 °C (32 to 158 °F)
• FIBER INTERFACE: LC-type duplex connector
More from the Manufacturer
The 100Base-FX SFP Multi-Mode LC Module, model TE100-MGBFX, works with standard SFP (Mini-GBIC) slots on most switches and supports Multi-Mode network transmission speeds of up to 155 Mbps. The TE100-MGBFX is compatible with Duplex-LC fiber connector types and supports fiber optic connection distances of up to 2 kilometers (1.2 miles).
Overview
Fiber Applications
Long distance fiber networking for industrial, manufacturing, and corporate/education campus applications
Fiber Mode / Distance
Multi-Mode transceiver spans distances up to 2 km (1.2 miles) and supports up to 155 Mbps
Compatibility
Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors
Hot-Pluggable SFP
Hot-pluggable SFP transceiver compatible with a MSA compliant SFP slot
Fiber Wavelength
Compatible with Multi-Mode 1310 nm transmissions
Fiber Distance
Supports networking for distances up to 2 km (1.2 miles)
Fiber Interface
LC-type duplex connector
SPECIFICATIONS
Standards
IEEE 802.3u
Data Transfer Rate
SFP + MSA Compliant
LC duplex connector
Data Transfer Rate
155 Mbps
Wavelength
1310 nm
Optical Output Power
-20 ~ -10 dBm
Distance
2 km
Special Features
Hot pluggable
Metal enclosure
Sensitivity
-32 dBm
Power
Consumption: 439 mW
Operating Temperature
0 – 70 °C (32 - 158 °F)
Operating Humidity
Max. 90% non-condensing
Dimensions
13 x 53 x 10 mm (0.5 x 2.1 x 0.4 in)
Weight
18 g (0.6 oz.)
Certifications
CE
FCC
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TE100-MGBFX
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TE100-MGBFX |
| Brand Name | TRENDnet |
| Product Model | TE100-MGBFX |
| Product Name | Mini-GBIC Multi-Mode 100Base-FX LC Module (2KM) |
| Product Type | SFP (mini-GBIC) |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 100Base-FX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm, 50/125 µm |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-FX |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 0.4" |
| Width | 2.1" |
| Depth | 0.5" |
| Technical Information | |
| Application/Usage | Optical Network, Data Networking |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
