Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 24 and Nov 28, then process your delivery right after.
Genuine Transition Networks through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Network Interface Cards
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

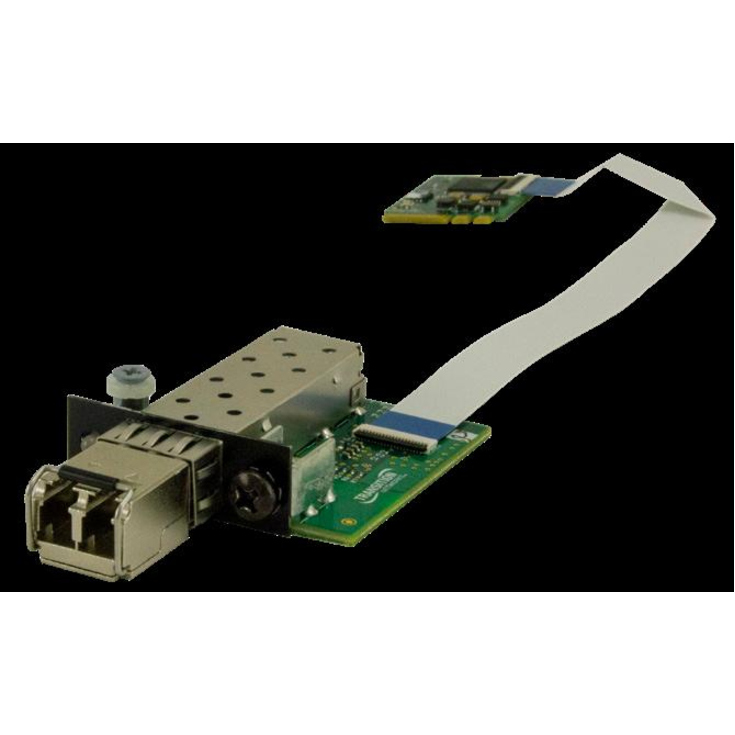

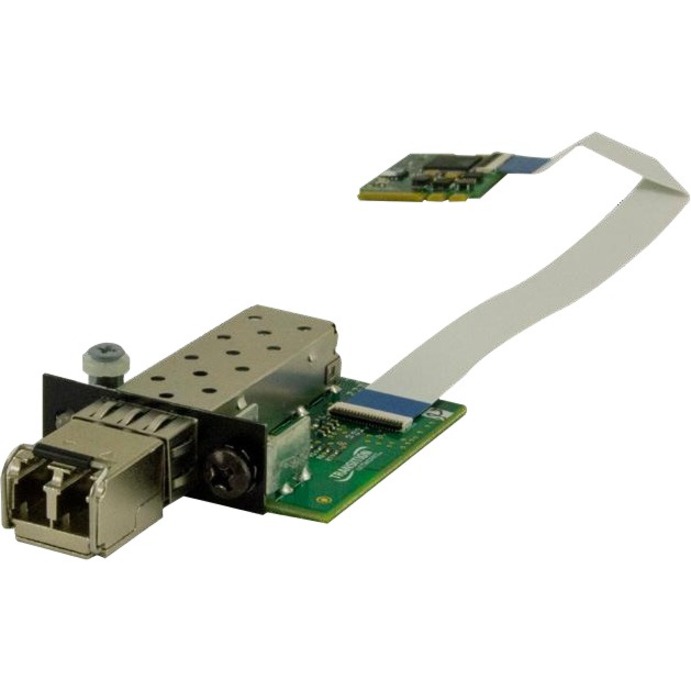

Transition Networks M.2 Fast Ethernet Fiber Network Interface Card (NIC) provides a fiber optic interface for the Dell OptiPlex 7060, 5060, and 3060 Micro PCs. The NM2-FXS-2230-SFP-201 consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "E key" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The fiber optic adapter is an open SFP with a 100Base-FX to SGMII SFP Module (included).
Warranty
Limited Warranty: Lifetime
Highlights
PCI Express M.2 compliant
A + E keyed M.2 interface
Full duplex
IPv6 Capable
Supports UEFI
Supports PXE boot
Jumbo frame support 9014 bytes
100Base-FX to SGMII SFP interface
Specifications
General Information
Manufacturer
Lantronix, Inc
Manufacturer Part Number
NM2-FXS-2230-SFP-201
Brand Name
Transition Networks
Product Model
NM2-FXS-2230-SFP-201
Product Name
M.2 Fast Ethernet Fiber Network Interface Card for Dell OptiPlex 7060/5060/3060
Product Type
Fast Ethernet Card
I/O Expansions
Expansion Slot Type
SFP
Interfaces/Ports
Host Interface
M.2
Total Number of Ports
1
Media & Performance
Media Type Supported
Optical Fiber
Network & Communication
Network Technology
100Base-FX
Physical Characteristics
Form Factor
Plug-in Card
Weight (Approximate)
1.60 oz
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
M.2 Fast Ethernet Fiber Network Interface Card for Dell 7060/5060/3060
100Base-FX to SGMII SFP Module
Device Supported
PC
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
