Overview

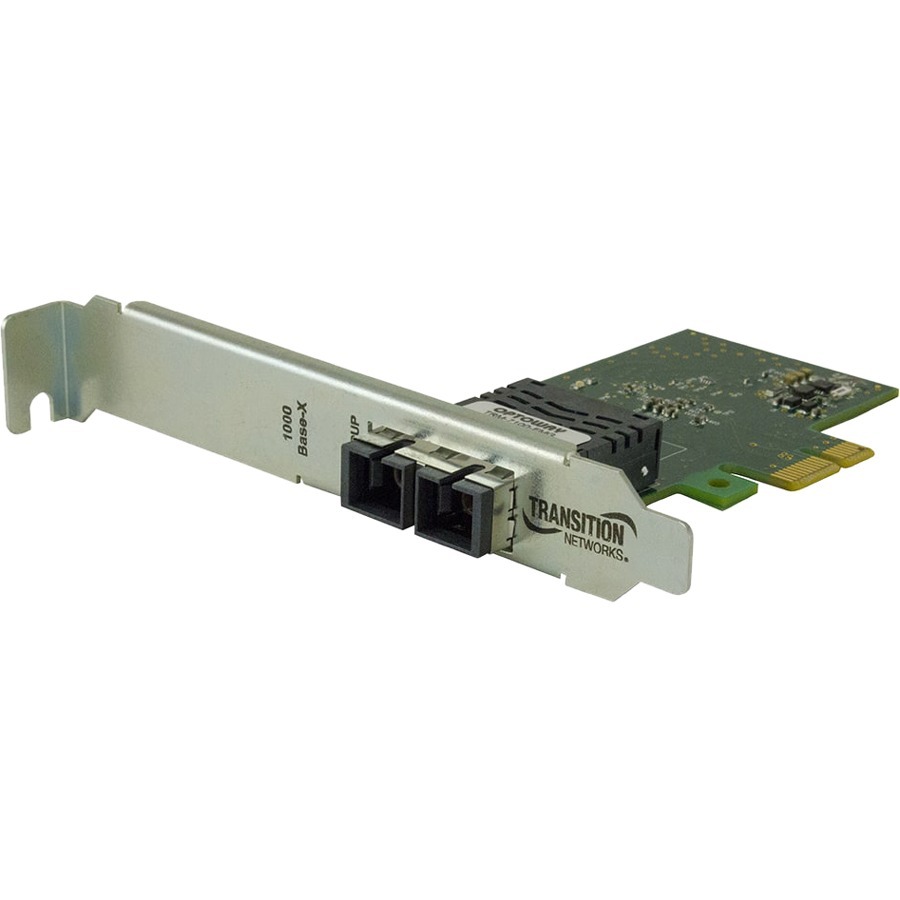

The N-GXE-xx-02 Series is a Fiber Gigabit Ethernet to PCIe bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX standards. It provides up to 2000 Mbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, link aggregation, smart load balancing, fail-over, and Wake-on-LAN, the adapter provides enhanced performance, flexible configuration and secure networking for users in a standard-based environment. An LED indicator on the bracket displays link status, activity and speed.
Warranty
Limited Warranty: Lifetime
Highlights
Supports PCIe x1 bus
High bandwidth 1000 Mbps network speed (100/1000 Mbps with Auto-Negotiation for SFP version)
Supports full-duplex mode
Supports IEEE 802.3x and IEEE 802.3z Full-Duplex Flow Control
Compliant with PCIe Rev 2.1 Interface
IEEE 802.1Q VLAN Support
Link Aggregation Control Protocol (LACP)
Link Aggregation Smart Switch
Smart Load Balancing (SLB) and Failover
Full Wake-on-LAN Support
Specifications
General Information
Manufacturer
Lantronix, Inc
Manufacturer Part Number
N-GXE-SFP-02
Brand Name
Transition Networks
Product Series
N-GXE-xx-02
Product Model
N-GXE-SFP-02
Product Name
N-GXE-SFP-02 Gigabit Ethernet Card
Product Type
Gigabit Ethernet Card
I/O Expansions
Expansion Slot Type
SFP (mini-GBIC)
Interfaces/Ports
Host Interface
PCI Express 2.1 x1
Total Number of Ports
1
Media & Performance
Media Type Supported
Optical Fiber
Network & Communication
Network Technology
1000Base-SX
Physical Characteristics
Form Factor
Plug-in Card
Height
2.2"
Depth
4.1"
Weight (Approximate)
8.80 oz
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
N-GXE-SFP-02 Gigabit Ethernet Card
Low-Profile Bracket
Device Supported
Computer, Server
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
