SKU
N-GXE-ST-02
Category
Network Interface Cards
Overview

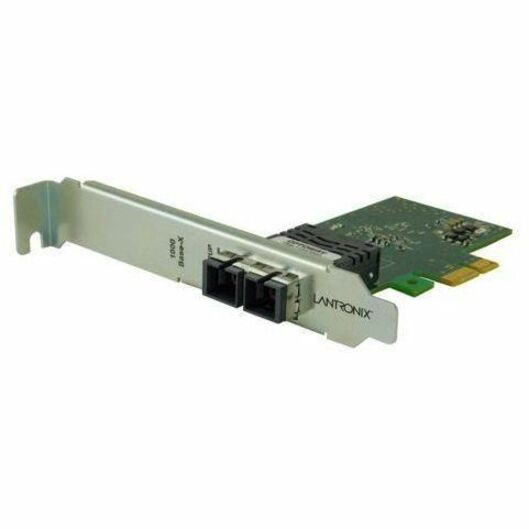

The N-GXE-xx-02 Series is a Fiber Gigabit Ethernet to PCIe bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX standards. It provides up to 2000 Mbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, link aggregation, smart load balancing, fail-over, and Wake-on-LAN, the adapter provides enhanced performance, flexible configuration and secure networking for users in a standard-based environment. An LED indicator on the bracket displays link status, activity and speed. NDAA Compliant, TAA Compliant
Highlights
Supports PCIe x1 bus

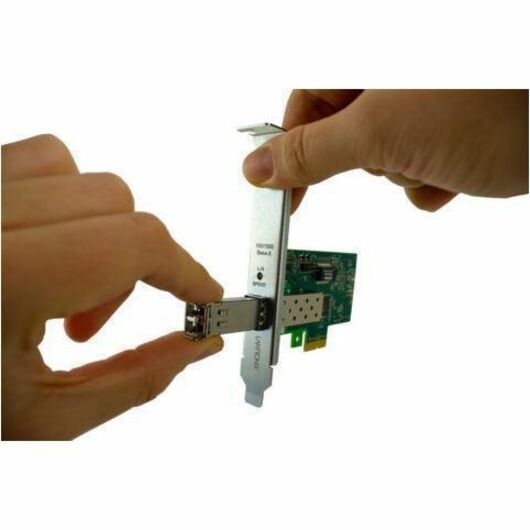

High bandwidth 1000 Mbps network speed 100/1000 Mbps with Auto-Negotiation for SFP version
Supports full-duplex mode
Supports IEEE 802.3x and IEEE 802.3z Full-Duplex Flow Control
Compliant with PCIe Rev 2.1 Interface
IEEE 802.1Q VLAN Support
Link Aggregation Control Protocol LACP
Link Aggregation Smart Switch
Smart Load Balancing SLB and Failover
Full Wake-on-LAN Support
Advanced Power Management APM Support
Advanced Configuration and Power Interface ACPI Specification v2.0c
Magic Packet Wake-up enable
Jumbo frames support up to 9014 bytes
IPv4 and IPv6
IPv4 checksum offloading TCP/UDP
IPv6 support for IP/TCP and IP/UDP receive checksum offload
Transmit Segmentation Offloading TSO
Interrupt Handling
Interrupt Throttling Control
Legacy and Message Signaling Interrupt/Extension MSI/MSI-X
Intelligent Interrupt Generation
Low Latency Interrupts
PXE and UEFI Boot
RoHS Compliance
Standard bracket attached, low-profile bracket included
Supports identification of NIC when multiple cards are installed
Specifications
Host Interface
PCI Express 2.1 x1
Product Type
Gigabit Ethernet Card
Device Supported
Server
Manufacturer Part Number
N-GXE-ST-02
Limited Warranty
Lifetime
Weight (Approximate)
8.80 oz
Form Factor
Plug-in Card
Manufacturer
Lantronix, Inc
Product Name
N-GXE-xx-02 Gigabit Ethernet Card
Network Technology
1000Base-SX
Product Series
N-GXE-xx-02
Brand Name
Lantronix
Height
2.2"
Depth
4.1"
Maximum Operating Distance
1804.46 ft
Number of ST Ports
1
Media Type Supported
Optical Fiber
Fiber Mode Supported
Multi-mode
Total Number of Ports
1
TAA Compliant
Yes
Product Color
Gray
Color Family
Gray
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
