Taoglas Hercules MA104 White 2in1 GPS/GALILEO & 3G/2G Permanent Mount…
Antenna
824 MHz to 896 MHz, 880 MHz to 960 MHz, 1850 MHz to 1990 MHz, 1710 MHz to 1880 MHz, 1920 MHz to 2170 MHz, 1575.42 MHz - GPS, Cellular Network, Outdoor - White - Screw Mount
SKU
Category
Antennas
$89.29
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Nov 19 and Dec 24, then process your delivery right after.
Genuine Taoglas through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Antennas
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

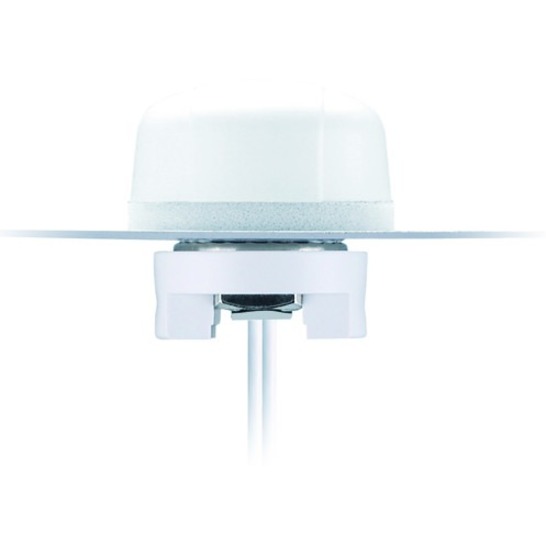

The MA104.C.W GPS/GALILEO &Cellular 2in1 Combination Hercules Antenna is a combination high performance GPS/GALILEO and penta-band cellular antenna solution for reliable asset tracking and remote monitoring. Durable UV and robust PC housing is resistant to vandalism and direct attack. At only 29 mm height it complies with the latest EU height restrictions directives for roof-mounted objects, with a diameter of 49 mm.
It is designed to not catch on tree-branches.
The Hercules can be mounted on metal or non-metal structures as it has a metal ground-plane base integrated inside. The MA104 is also available in Black.
Highlights
Low profile - Height 29 mm and Diameter 49mm

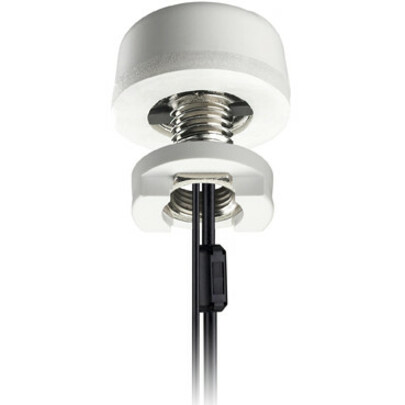

Heavy duty screw mount
UV and vandal resistant PC housing
GPS/GALILEO - Two Stage 28dB+ LNA
Cellular -Penta Band Antenna
850/900/1800/1900/2100/1575.42 MHz
GSM/GPRS/CDMA/EVDO/UMTS/HSPA/WCDMA
IP67 & IP69K compliance
Standard is 3 metres SMA(M)
GPS/GALILEO :RG174:Cell:CFD200
Specifications
General Information
Manufacturer
Taoglas
Manufacturer Part Number
MA104.C.W.AB.002
Brand Name
Taoglas
Product Line
Hercules
Product Model
MA104
Product Name
Hercules MA104 White 2in1 GPS/GALILEO & 3G/2G Permanent Mount Antenna
Packaged Quantity
1
Product Type
Antenna
Interfaces/Ports
Connector Type
SMA
Physical Characteristics
Product Color
White
Height
1.14"
Diameter
1.93"
Form Factor
Screw Mount
Weight (Approximate)
4.64 oz
Technical Information
Operating Frequency Range
824 MHz to 896 MHz, 880 MHz to 960 MHz, 1850 MHz to 1990 MHz, 1710 MHz to 1880 MHz, 1920 MHz to 2170 MHz, 1575.42 MHz
