600 MHz to 6000 MHz - Router, Cellular Network, Indoor, OutdoorDesktop/Magnetic Mount - SMA Connector
SKU
Category
Antennas
MSRP$104.91
$84.70
Save 19%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Nov 18 and Dec 23, then process your delivery right after.
Genuine Taoglas through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Antennas
Overview

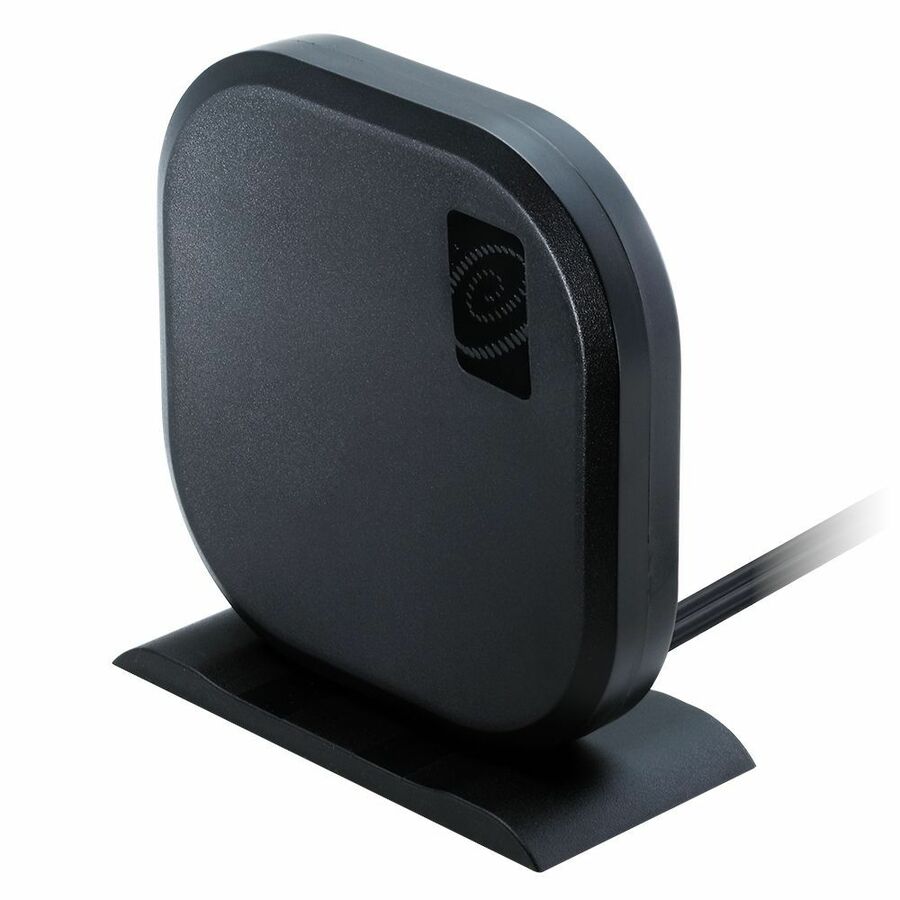

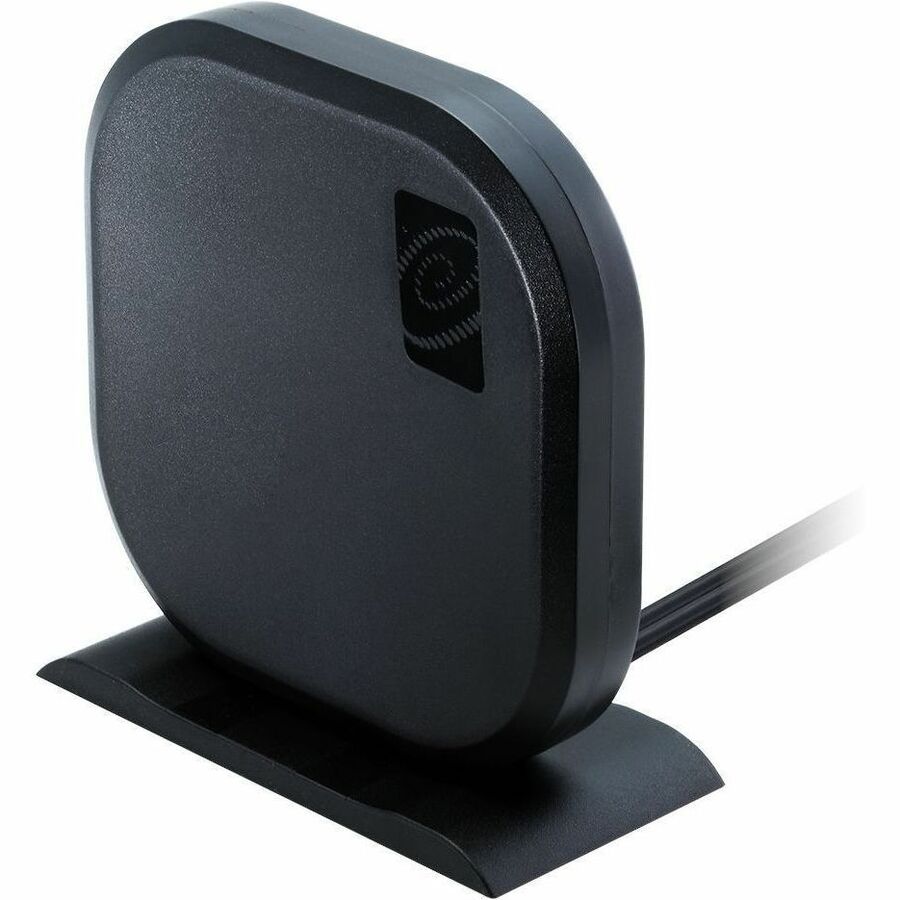

Taoglas Gemini LMA101 is a 2* 5G/4G MIMO Antenna for use with all 5G/4G cellular routers and access points worldwide requiring MIMO connectivity. It includes two high efficiency 5G/4G antennas that operate at all common and 5G/4G bands worldwide from 600MHz to 6000MHz. It has been designed to include 3G and 2G bands, meaning the antenna can also be used for fallback in circumstances where 5G/4G is not available. High isolation and low ECC between the two embedded MIMO antennas prevent
self-interference and the low loss CFD-200 cables are used to keep efficiency high over longer cable lengths of up to 5 meters.
This unique antenna offers three mounting options for easy installation. The base features eight super-magnets for easy and secure installation on metal surfaces. The rear of the enclosure features a bracket to enable wall installation, keeping your workstation free from clutter or the antenna can also be placed directly on a flat surface using the stand. The LMA101 can be used both indoors and outdoors as the robust
external enclosure is fully IP67 rated.
Typical Applications include:
• HD Real-time Streaming Video over LTE
• Intelligent Transport Systems
• Digital Signage and HD Broadcast Systems
• Wireless 5G/4G MIMO M2M devices with legacy 3G/2G functionality.
Highlights
Designed to operate at 600 MHz to 6000 MHz frequency
Dramatically enhance the performance of router with this antenna
Antenna can be mounted as desktop/magnetic mount
Specifications
General Information
Manufacturer
Taoglas
Manufacturer Part Number
LMA101-A-BI-001
Brand Name
Taoglas
Product Line
Gemini
Product Model
LMA101
Product Name
Gemini LMA101 Antenna
Product Type
Antenna
Interfaces/Ports
Connector Type
SMA
Physical Characteristics
Height
1.44"
Width
6.46"
Depth
6.46"
Form Factor
Desktop/Magnetic Mount
Weight (Approximate)
14.11 oz
Technical Information
Operating Frequency Range
600 MHz to 6000 MHz
Voltage Standing Wave Ratio (VSWR)
3.5
Miscellaneous
Application/Usage
Router, Cellular Network, Indoor, Outdoor
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
