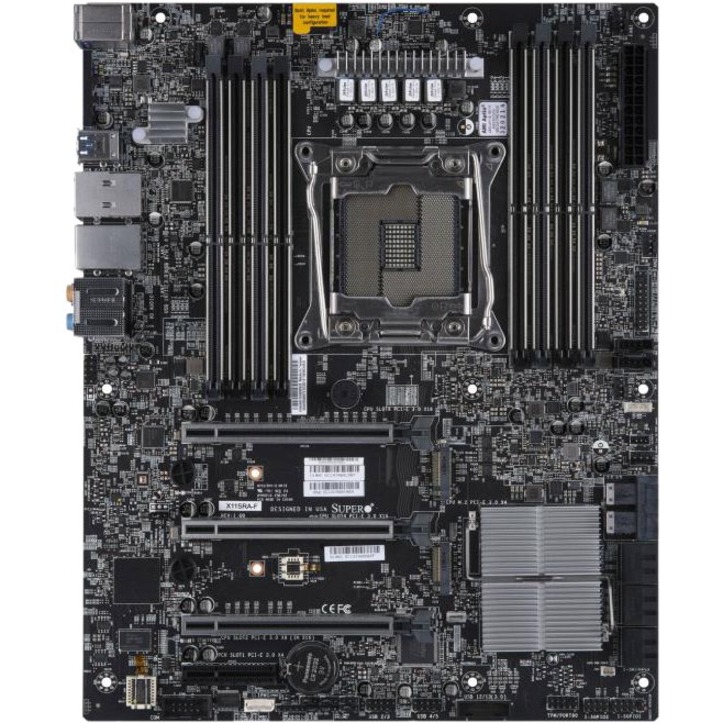

Supermicro X11SRA Workstation Motherboard - Intel C422 Chipset - Socket R4 LGA-2066 - Intel Optane Memory Ready - ATX
Xeon Processor Supported - 512 GB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces
- SKU
- MBD-X11SRA-O
- Category
- Motherboards
MSRP$449.33
$417.70
Save 7%Back ordered — ships when restocked.
Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MBD-X11SRA-O
- Category
- Motherboards
Overview
UP Xeon® Motherboards - Socket R4 (LGA 2066)
BOARDS supporting Intel® Xeon® W Processors / Socket R4 (LGA 2066)
Supermicro's single processor Socket R4 design features the Intel® C422 chipset and the Intel® Xeon® W processor. The outstanding features include DDR4 ECC RDIMM/LRDIMM memory, onboard OCuLink connectors for Intel Virtual RAID on Chip (VROC) support, PCI-E 3.0, M.2 and SATA 3.0 (6Gbps) HDD/SSD, 1GbE networking and IPMI 2.0 plus KVM with dedicated LAN. Designed with performance, reliability, and manageability, Supermicro's single processor motherboards are the perfect solution for a variety of server and workstation applications.
Highlights
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX workstation motherboard
Specifications
| Product Type | Workstation Motherboard |
|---|---|
| Compatibility | SuperChassis : SC732D3-903B SC732D3-1200B SCGS5A-753K SCGS5A-753R SC743AC-668B SC743AC-1200B-SQ SC743TQ-865B-SQ |
| Manufacturer Part Number | MBD-X11SRA-O |
| Maximum Memory Supported | 512 GB |
| Packaged Quantity | 1 |
| Form Factor | ATX |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X11SRA |
| Product Name | X11SRA Workstation Motherboard |
| Package Type | Retail |
| Processor Supported | Xeon |
| RAID Levels | 10, 5, 1, 0 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket R4 LGA-2066 |
| Brand Name | Supermicro |
| Memory Technology | DDR4 SDRAM |
| Width | 12" |
| Depth | 9.6" |
| Chipset Manufacturer | Intel |
| Chipset Model | C422 |
| Number of Memory Slots | 8 |
| Audio Channels | 7.1 |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 6 |
| Onboard Video | No |
| RAID Supported | Yes |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of USB Ports | 8 |
| Number of USB 3.0 Ports | 4 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 3.0 Ports | 2 |
| Total Number of PCI Express Slots | 4 |
| Memory Form Factor | RDIMM, LRDIMM, DIMM |
| Total Number of Expansion Slots | 4 |
| Number of M.2 Interfaces | 2 |
| Number of USB 3.1 Ports | 2 |
| Memory Speed Supported | 1866 MHz, 2666 MHz, 2400 MHz, 2133 MHz, 1600 MHz |
| Intel Optane Memory Ready | Yes |
