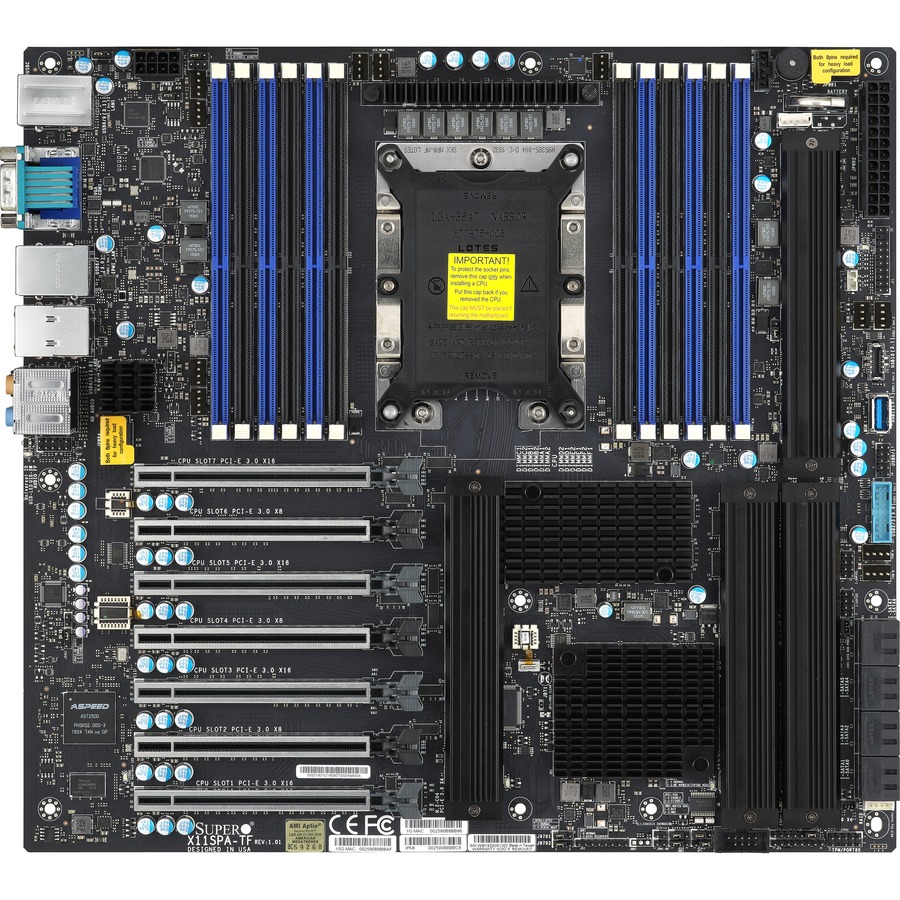

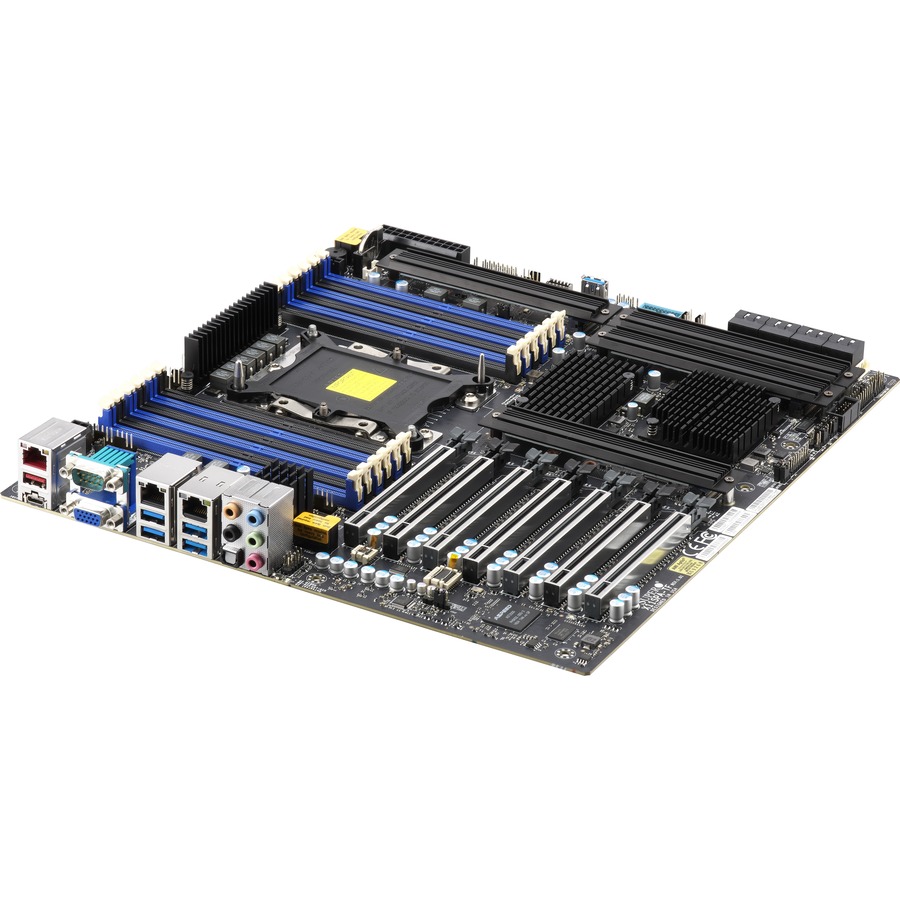

Supermicro X11SPA-TF Workstation Motherboard - Intel C621 Chipset - Socket P LGA-3647 - Extended ATX
3 TB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 12 x Memory Slots - Gigabit Ethernet - 8 x SATA Interfaces
- SKU
- MBD-X11SPA-TF-O
- Category
- Motherboards
MSRP$772.00
$715.60
Save 7%Back ordered — ships when restocked.
Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MBD-X11SPA-TF-O
- Category
- Motherboards
Overview
BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)
Supermicro's new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 2TB DDR4 2933MHz in 8 DIMM slots with support for Intel® Optane? DC Persistent Memory per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.
Warranty
Limited Warranty: 1 Year
Highlights
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Extended ATX workstation motherboard
Specifications
| Package Contents |
|
|---|---|
| Product Type | Workstation Motherboard |
| Compatibility | Supermicro Chassis: 3U SC835BTQC-R1K23B SC835BTQ-R1K28B SC835TQC-R1K03B SC835TQ-R920B 4U/Tower SC743AC-1200B-SQ SC743AC-668B SC743TQ-903B SC745BAC-R1K28B2 SC745BTQ-R1K28B-SQ SC842XTQC-R804B SC842TQC-865B SC842TQC-668B SC747BTQ-R1K62B |
| Manufacturer Part Number | MBD-X11SPA-TF-O |
| Maximum Memory Supported | 3 TB |
| Packaged Quantity | 1 |
| Limited Warranty | 1 Year |
| Form Factor | Extended ATX |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X11SPA-TF |
| Product Name | X11SPA-TF Workstation Motherboard |
| Package Type | Retail |
| Processor Supported | Xeon |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket P LGA-3647 |
| Brand Name | Supermicro |
| Memory Technology | DDR4 SDRAM |
| Width | 13" |
| Depth | 12" |
| Environmentally Friendly | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Number of Memory Slots | 12 |
| Graphics Controller Model | AST2500 |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 8 |
| Onboard Video | On-board Video Chipset |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 7 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Total Number of USB Ports | 6 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 2 |
| Total Number of PCI Express Slots | 7 |
| Memory Form Factor | RDIMM, LRDIMM, DIMM |
| Total Number of Expansion Slots | 7 |
| 10Gigabit Ethernet | Yes |
| Number of M.2 Interfaces | 1 |
| Number of USB 3.1 Ports | 6 |
| Number of Onboard USB 3.1 Ports | 4 |
| Memory Speed Supported | 2933 MHz, 2666 MHz |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
