SIIG HDMI 2.0 4K HDR with Audio Extractor & ARC
SIIG

SIIG HDMI 2.0 4K HDR with Audio Extractor & ARC

HDMI 18Gbps Video bandwidth - 3.5mm & S/PDIF Audio Extraction - EDID management - 4K60Hz 4:4:4 8-bit / 4K60Hz 4:2:0 10-bit HDR - Micro USB Firmware update - CEC bypass / S/PDIF ARC output / 3.5mm Audio jack out - ESD protection - 3 years warranty - TAA Compliant

SKU
CE-H24F11-S1
Category
Video Processing/Capturing Modules

MSRP$79.99

$69.82

Save 13%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H24F11-S1
Category
Video Processing/Capturing Modules

Overview

Splits incoming HDMI audio signal to stereo audio and Toslink outputs, allowing you to connect to speakers and entertainment systems that do not have an HDMI connection

• Identifies and separates high quality audio track from an incoming HDMI signal and sends it to a 3.5mm stereo jack and Toslink S/PDIF port, allowing you to connect to speakers, AV receivers and entertainment systems that lack an HDMI connection

• Works with multi-channel HDMI embedded audio

• Supports PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1 audio

• Supports audio extraction via stereo and Toslink

• Supported Optical Audio Formats: PCM 2-CH and Dolby 5.1

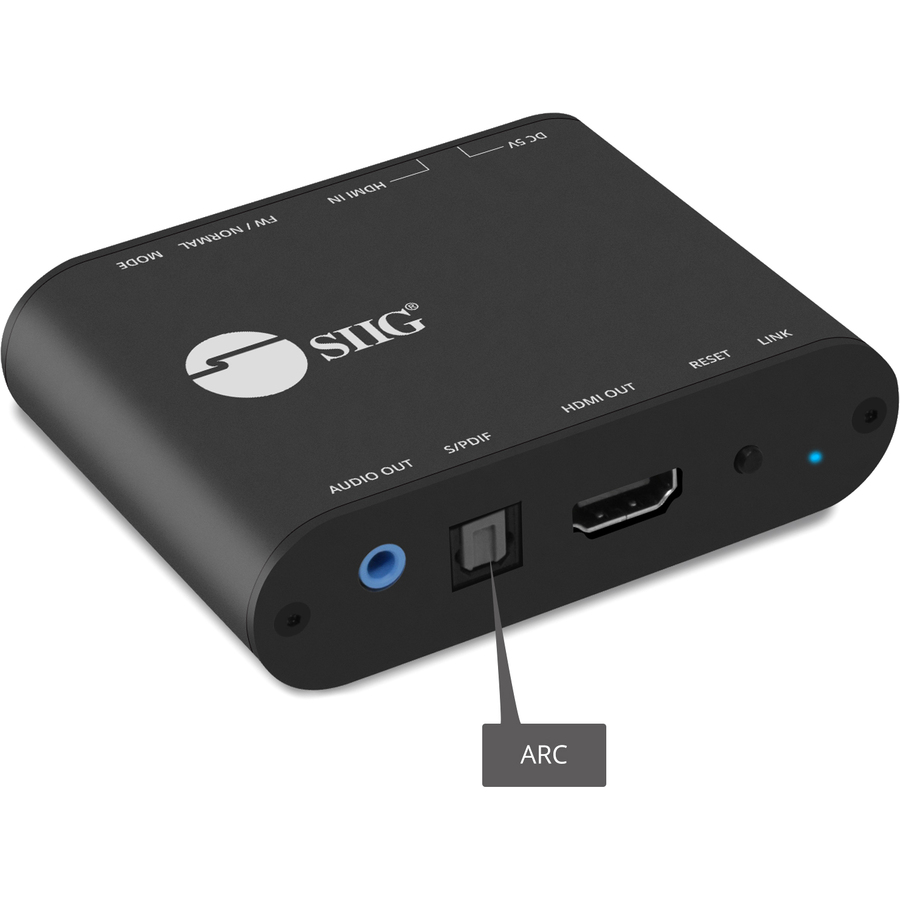

• Supports ARC audio extraction via Toslink connection

• Wall-mountable metal housing allows easy installation in any environment and provides better RF shielding and heat dissipation for dependable performance and long life

• Plug and Play Installation - No driver or software installation required

Highlights

  • The signal extractor is a great choice for capturing and saving your favorite photos, audio and videos recorded by the capture card
  • Embed audio to the chosen video according to your desire
  • Mountable to a wall, saves you floor space and yet easy-to-reach

Specifications

Package Contents
  • HDMI 2.0 4K HDR with Audio Extractor & ARC
  • USB Type-A to Micro B Cable
  • Installation Guide
Product TypeSignal Extractor
Manufacturer Part NumberCE-H24F11-S1
Limited Warranty3 Year
Weight (Approximate)0.49 lb
Form FactorWall Mountable
FunctionsAudio Extraction, Audio Embedding
ManufacturerSIIG, Inc
Product NameHDMI 2.0 4K HDR with Audio Extractor & ARC
Maximum Resolution4096 x 2160
Brand NameSIIG
Country of OriginTaiwan

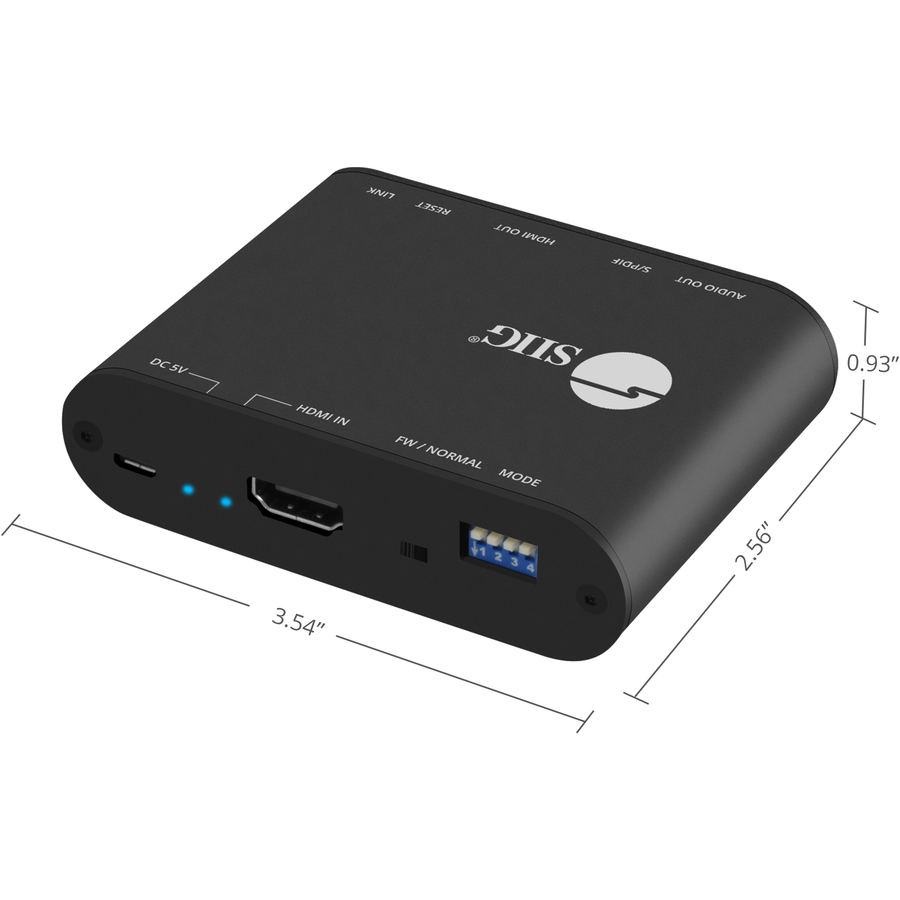

Height0.9"
Width2.6"
Depth3.5"
Environmentally FriendlyYes
USBYes
HDMIYes
Audio Line InYes
TAA CompliantYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
