SKU
Category
General Purpose UPS
Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Smart-UPS are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
Warranty
Limited Warranty: 2 Year
Highlights
Cold-start capable - Provides temporary battery power when the utility power is out.
Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency - Reduces utility costs, generates less heat.
LCD Status Display - Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
SmartConnect - Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
Battery Information
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
9.20 Minute
Hot Swappable
Yes
Typical Battery Recharge Time
3 Hour
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMC1000I-2UC
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
SMC
Product Name

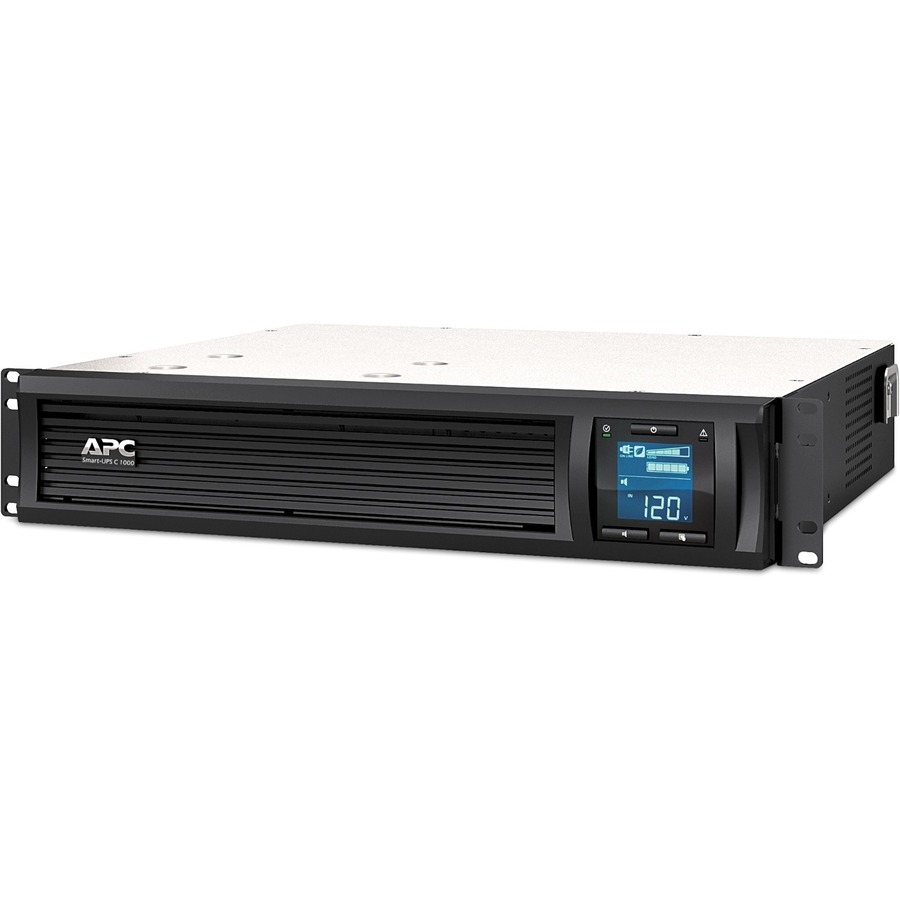

Smart-UPS C 1000VA LCD RM 2U 230V With SmartConnect
Product Type
Line-interactive UPS
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Product Color
Black
Height
3.39"
Width
17.01"
Depth
15.98"
Rack Height
2U
Form Factor
Rack-mountable
Weight (Approximate)
45.24 lb
Power Description
Load Capacity (VA)
1000 VA
Load Capacity (Watt)
600 W
Input Voltage Range
180 V AC - 287 V AC
Output Voltage
230 V AC
Waveform Type
Sine Wave
Technical Information
Receptacle Type
IEC 60320 C13, IEC Jumper
Receptacle Detail
4 x IEC 60320 C13, 2 x IEC Jumper
Number of Battery & Surge Outlets
6
Transfer Time
10 ms
Application/Usage
Storage Device, Network Device, Server, POS Terminal, Router, Switch, Network Hub, Communication System, Security System
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
Smart-UPS C 1000VA LCD RM 2U 230V With SmartConnect
