24 V DC, 48 V DC Input - 1 x RJ-45 Input Port(s) - 40 W - Gray
SKU
Category
Power Injectors/Splitters
MSRP$919.60
$843.50
Save 8%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 4 and Nov 8, then process your delivery right after.
Genuine Perle Systems through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Power Injectors/Splitters
Overview

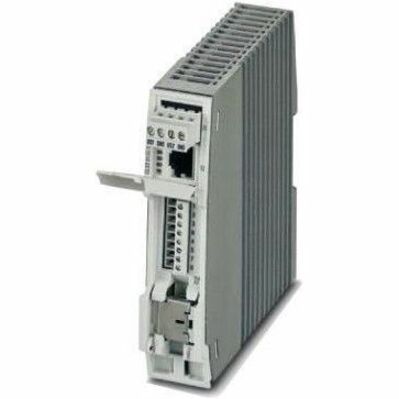

INJ 2100-T PoE Injectors are DIN Rail mounted single port, PoE mid-span injectors . In environments vulnerable to voltage surges, it acts as an intermediary devices between a non-PoE switch and a PoE device to inject fully compliant power over the Ethernet cable. With electrical isolation of the internal power supply, the INJ-2100-T units are protected against short circuits on the PoE side. The integrated surge protection increases system availability by protecting the connected end devices.
Highlights
10/100/1000 Mbps
Supply PSE power to PoE, PoE+ and Hi-PoE compliant devices
Provide 4 to 60 Watts of PoE power
IEEE 802.3af, IEEE802.3at and IEEE802.3bt compliant
Support for PoE PDs: Class 1 to 6 & Type 1, 2 and 3
Extended supply voltage range of 18 V DC ... 57 V DC, redundant
Safe shield connection to ground potential
Extended temperature range of -40°C to +75°C
Electrical isolation of the internal power supply unit
Integrated surge protection to ensure high system availability
Wiring space covered with front panel cover
Specifications
General Information
Manufacturer
Perle Systems, Inc
Manufacturer Part Number
27030118
Brand Name
Perle
Product Model
INJ 2101-T
Product Name
INJ 2101-T DIN Rail PoE Injector
Product Type
PoE+ Injector
Interfaces/Ports
Input Ports
1 x RJ-45
Physical Characteristics
Color Family
Gray
Product Color
Gray
Form Factor
Din Rail
Height
5.1"
Width
1.2"
Depth
4.7"
Weight (Approximate)
11.45 oz
Power Description
Input Voltage
24 V DC, 48 V DC
Minimum Output Voltage
54 V DC
Maximum Output Power
40 W
Technical Information
Protection Type
Surge Protection
Miscellaneous
Certifications & Standards
IEEE 802.3af
IEEE 802.3at
IEEE802.3bt
CE
UL 60079-0 Ed. 6 / UL 60079-15 Ed. 4
UL: Class I, Zone 2, AEx nA IIC T4, Ex nA IIC Gc X T4
