Genuine Lenovo through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Docking Stations
Overview

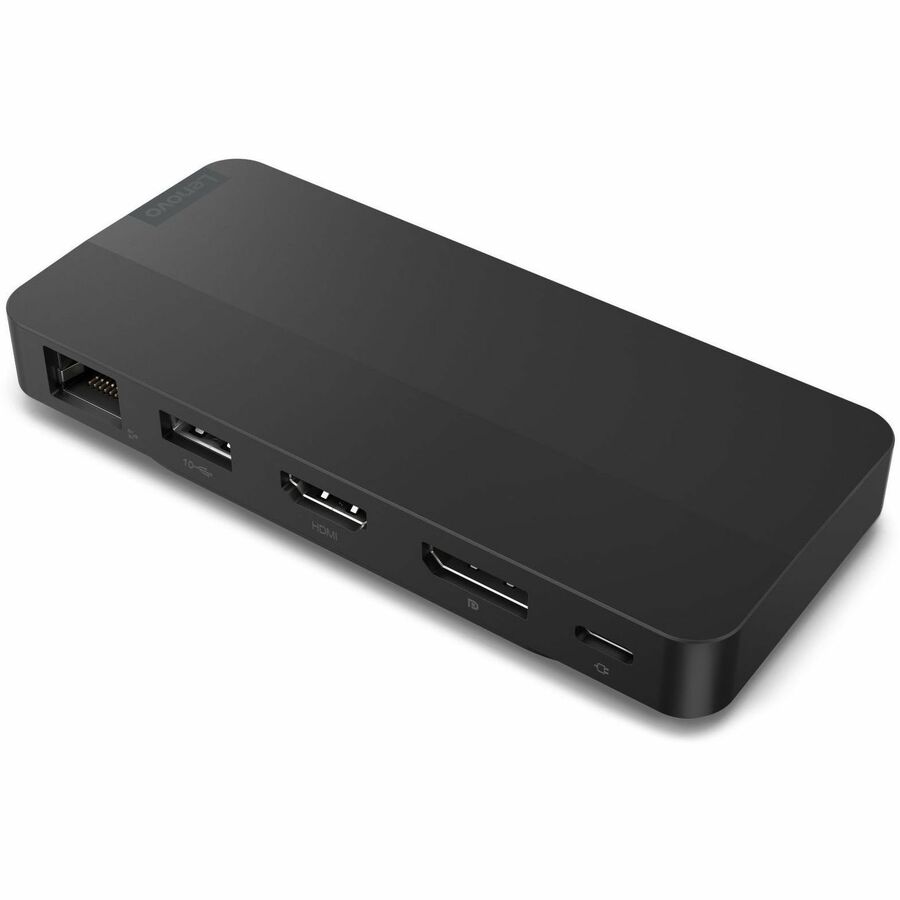

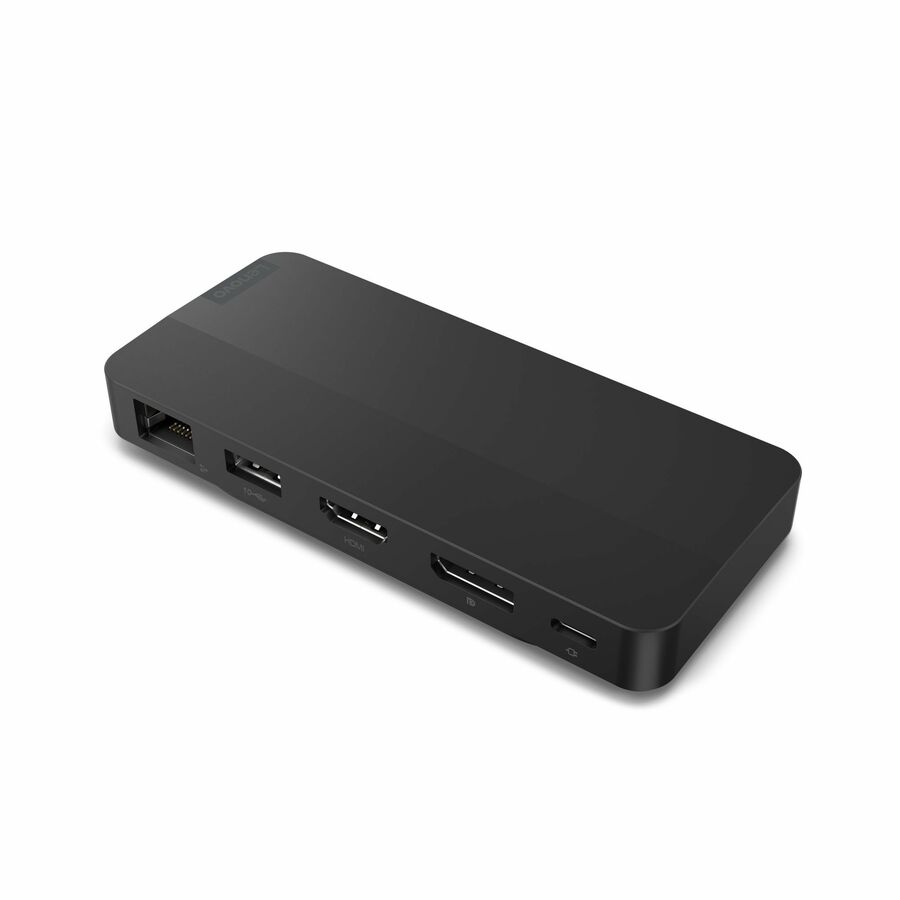

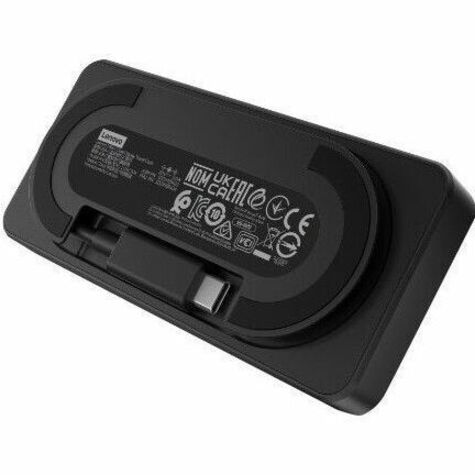

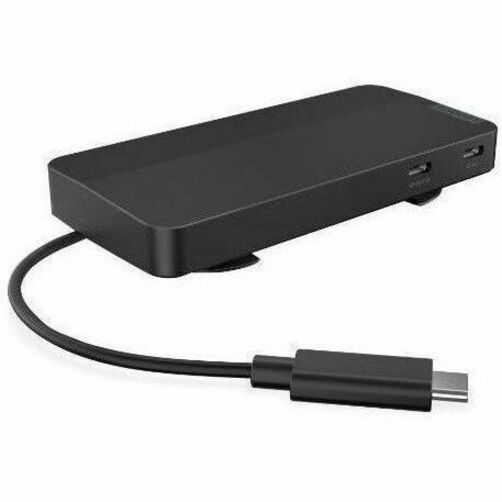

The Lenovo USB-C Dual Display Travel Dock is an essential companion for the modern remote professional. This compact dynamo supports dual 4K displays and powers your USB-C laptop with up to 100W PD (with an additional 135W USB-C adapter.) Crafted with 66% post-consumer recycled content in the chassis, it's designed to lighten your carbon footprint. And don't forget the adjustable cable management, balancing efficiency and convenience flawlessly. It's a true productivity booster at home, work, or anywhere in between. DISCLAIMER: Lenovo USB-C & Thunderbolt Docks are compatible with notebooks supporting industry-standard USB-C Alt-Mode or Thunderbolt protocols via their USB Type C port.
Warranty
Limited Warranty: 3 Year
About Lenovo
Join Lenovo Transformation is a Team Sport When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
Wired connectivity technology is highly feasible, offers maximum usability
Charging capability puts less strain on the charging port to allow prolonged usability
USB Type C host interface Offers a more refined structure and safer to use connectivity
Monitor device supported according to your requirements with maximum productivity
Compact feature for maximum usage efficiency and convenience
Lets you conveniently connect to the gigabit ethernet Ethernet technology to offer maximum productivity
Power Adapter power source type for your docking station provides maximum energy feasibility and added surveillance productivity
Enjoy HD quality videos on your HDTV with the HDMI port facility
3 USB ports allows powerful and efficient transfer of data with maximum productivity
Specifications
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
40B90100US
Brand Name
Lenovo
Product Model
40B9
Product Name
USB-C Dual Display Travel Dock (w/ adapter)
Product Type
Docking Station

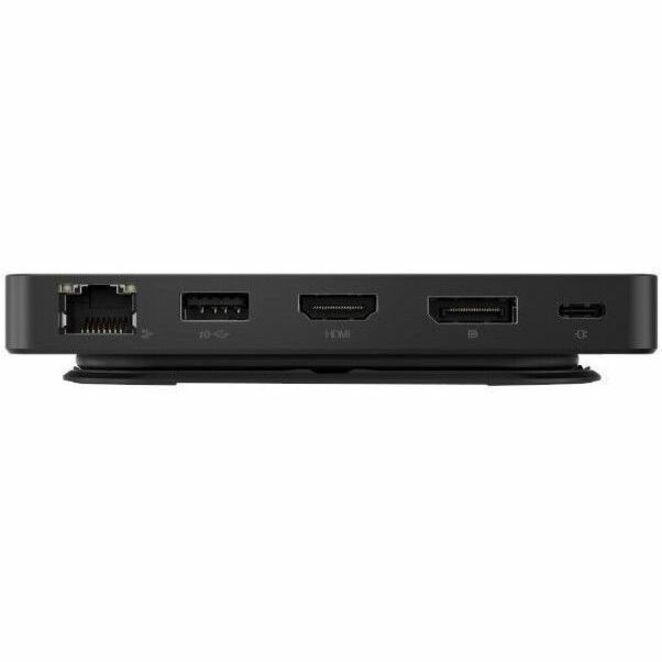

Interfaces/Ports
Host Interface
USB Type C
Total Number of USB Ports
3
Number of USB Type-C Ports
2
USB Type-A
Yes
USB Type-C
Yes
USB Type-C Detail
2 x USB-C 10 Gbps (1 x AOU 12W Max)
Number of USB Type-A Ports
1
Number of RJ-45 Ports
1
Network (RJ-45)
Yes
Number of DisplayPorts
1
DisplayPort
Yes
DisplayPort Version
1.4
Number of HDMI Ports
1
HDMI
Yes
USB Power Delivery
100W
Network & Communication
Ethernet Technology
Gigabit Ethernet
Physical Characteristics
Product Color
Eclipse Black
Height
0.79"
Depth
2.17"
Weight (Approximate)
4.83 oz
Power Description
Maximum Power Supply Wattage
135 W
Software
Operating System Supported
Windows 10, Windows 11
Technical Information
Connectivity Technology
Wired
Charging Capability
Yes
Number of Displays Supported
2
Device Supported
Monitor, Notebook
Supported Resolutions
3840 x 2160
Screen Mode Supported
4K @ 60Hz
Warranty
Limited Warranty
3 Year
Miscellaneous

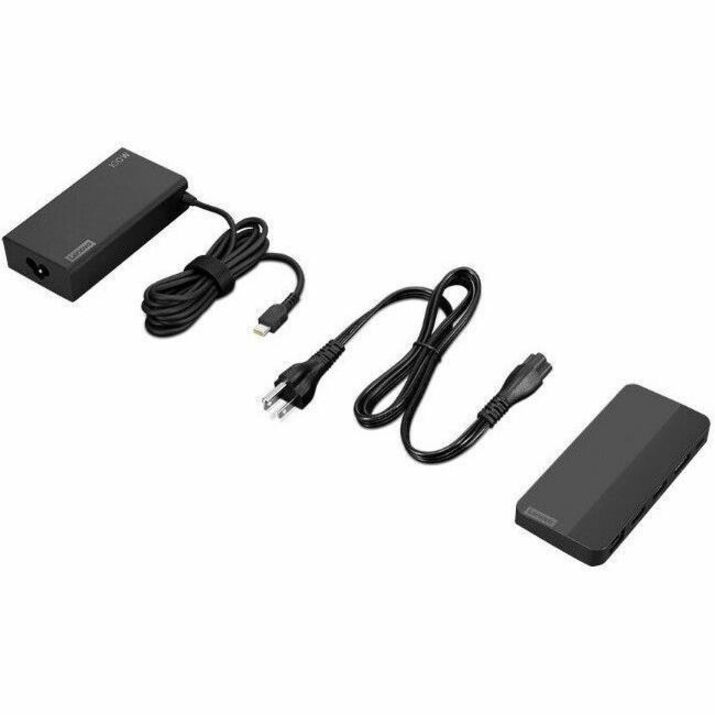

Package Contents
USB-C Dual Display Travel Dock
100W AC Power Adapter
Power Cord
Setup Poster
Warranty Poster
Compatibility
Compatibility across all USB-C laptops
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
