100Base-X/OC-3 - 44.70 Mbit/s - 1 x Expansion Slots - SFP - 1 x SFP Slots - Power Supply - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount - TAA Compliant
SKU
Category
Transceivers/Media Converters
MSRP$834.00
$659.64*
Save 21%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine Lantronix through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Transceivers/Media Converters
Overview

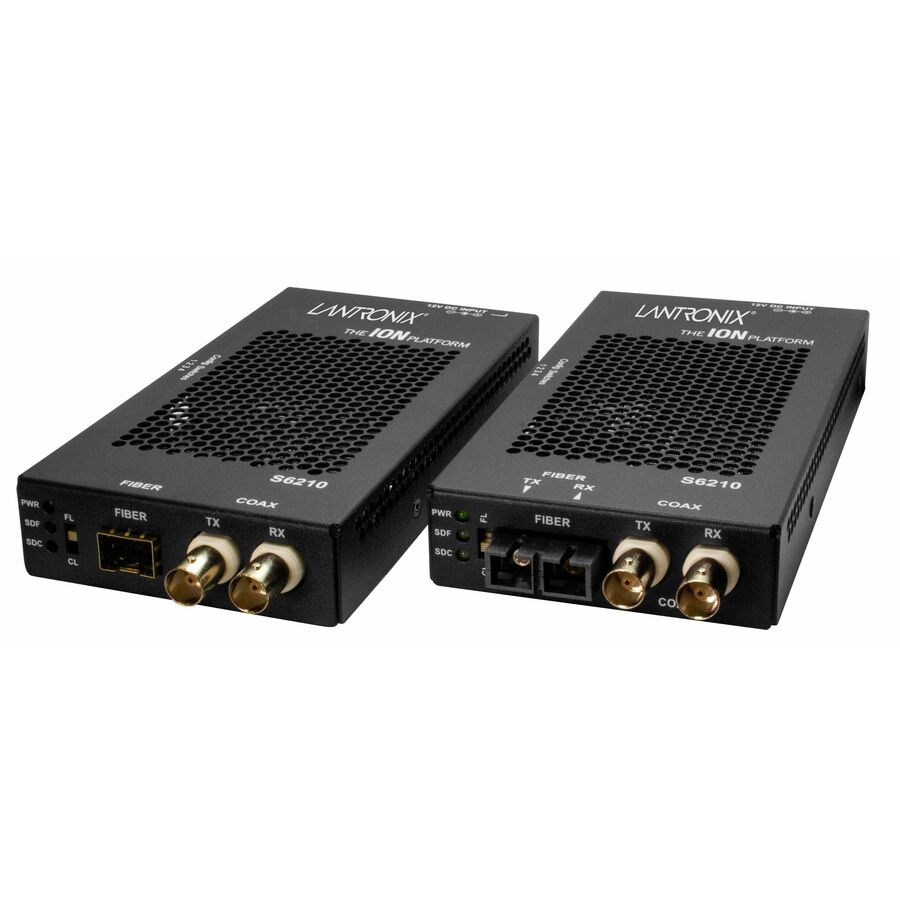

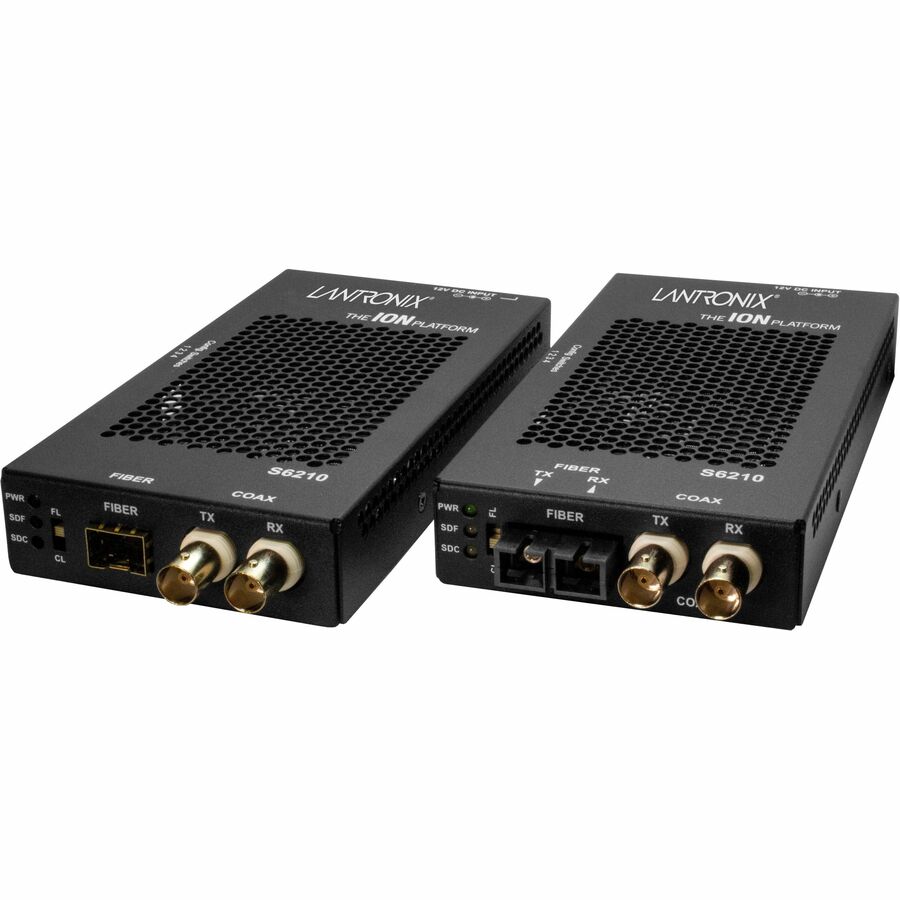

Stand-alone DS3-T3/E3 Network Interface Device
DS3 - T3/E3 Coax over Fiber
The ION S6210 is a managed stand-alone media converter that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The S6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The S6210 DS3-T3/E3 converters must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6210 is linked to a C6210 card installed in a managed ION chassis.
Warranty
Limited Warranty: Lifetime
Highlights
AIS (Alarm Indication Signal)
Coax Line Build Out
Switch selectable for DS3/T3 or E3
Remote firmware upgrade
Loopback - Coax and Fiber
LEDs for immediate visual status
Supports dual or single fiber
Supports multimode and single mode fiber at a variety of distances
Supports CWDM SFPs
SNMP management when used with ION chassis and management module
Specifications
General Information
Manufacturer
Lantronix, Inc
Manufacturer Part Number
S6210-3040-LA
Brand Name
Transition Networks
Product Line
ION
Product Series
S6210
Product Model
S6210-3040
Product Name
S6210-3040 Transceiver/Media Converter
Product Type
Transceiver/Media Converter
I/O Expansions
Total Number of Expansion Slots
1
Expansion Slot Type
SFP
Number of SFP Slots
1
Interfaces/Ports
Total Number of Ports
2
Media & Performance
Media Type Supported
Optical Fiber, Coaxial
Maximum Data Transfer Rate
44.70 Mbit/s
Network & Communication
Network Technology
100Base-X/OC-3
Physical Characteristics
Form Factor
Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount
Height
1"
Width
3.5"
Depth
6.5"
Weight (Approximate)
2 lb
Power Description
Power Source
Power Supply
Power Consumption
2.40 W
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
S6210-3040 Transceiver/Media Converter
Power Supply - Latin America
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
