Rack-mountable - 120 V AC, 230 V AC Input - 17 V DC, -17 V DC, 48 V DC, 8 V DC Output - 980 W
SKU
Category
Power Supplies
$5,220.13
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 14 and Nov 18, then process your delivery right after.
Genuine Harman International Industries through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Power Supplies
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

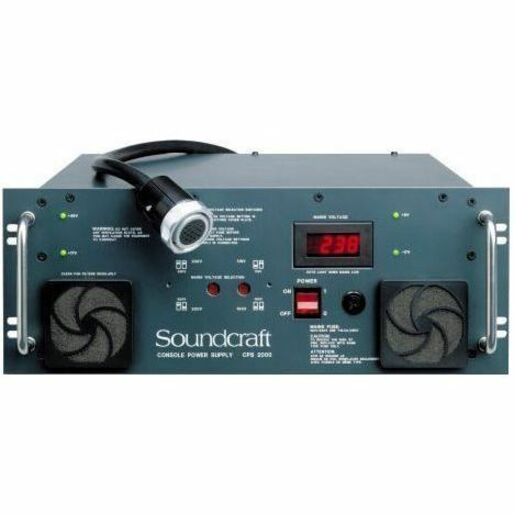

Aconsole is nothing without a reliable power supply. So when Soundcraft designed the Series FIVE front-of-house console, we introduced the CPS 2000, a ground up redesign using nothing but the finest quality components.
Now thoroughly road tested, reliability of the CPS 2000 has proved exceptional, so the decision to include the same power supply with the FIVE Monitor was taken without hesitation.
The key to the reliability of the CPS 2000 is the simplified voltage rail structure which makes for an uncomplicated voltage processing mechanism. Another crucial element is the headroom; with the CPS 2000, there's no shortage. And in the unlikely event of a failure, a second diode-linked supply will seamlessly switch into action, ensuring that there is no chance of a power interruption.
• Linear circuitry uses industry standard components
• Fewer voltage rails makes for a simpler, more reliable configuration
• Load is spread across several power devices on each rail for optimum heat dissipation
• Heavy current wiring is all hard soldered minimising number of connectors
• Front panel digital mains voltage meter aids correct voltage tap setting
• Built-in diode output linking allows two supplies to be connected for redundancy
• Heavy duty Socapex® DC connectors link PSU to console
• High quality PAPST® fans for reduced noise and longer product life
• 4U high 19" rackmountable
Highlights
Limits current to the safety level and manages electrical faults
The compatible output voltage of 17 V DC ensures that the device is ready to use when needed
The maximum output power of 980 W boosts up the performance
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
RW8021US
Brand Name
Soundcraft
Product Model
CPS2000
Product Name
CPS2000 Power Supply
Product Type
Power Supply
Physical Characteristics
Form Factor
Rack-mountable
Height
7"
Width
17.3"
Depth
17.2"
Weight (Approximate)
66.14 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Output Voltage
17 V DC, -17 V DC, 48 V DC, 8 V DC
Output Voltage Detail
17 V DC @ 16 A, -17 V DC @ 16 A, 48 V DC @ 500 mA, 8 V DC @ 1.25 A
