Surface Mount, Rack-mountable - 120 V AC, 230 V AC Input - 12 V DC Output
SKU
Category
Power Supplies
MSRP$720.00
$466.84
Save 35%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 14 and Nov 18, then process your delivery right after.
Genuine Harman International Industries through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Power Supplies
Overview

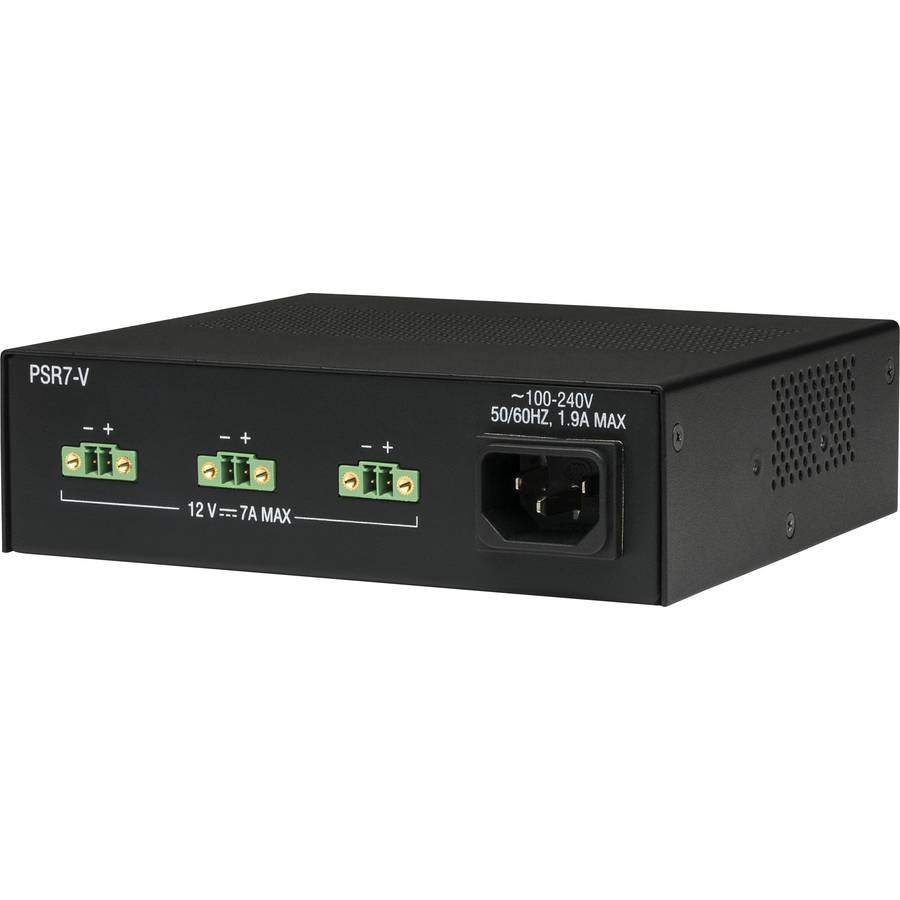

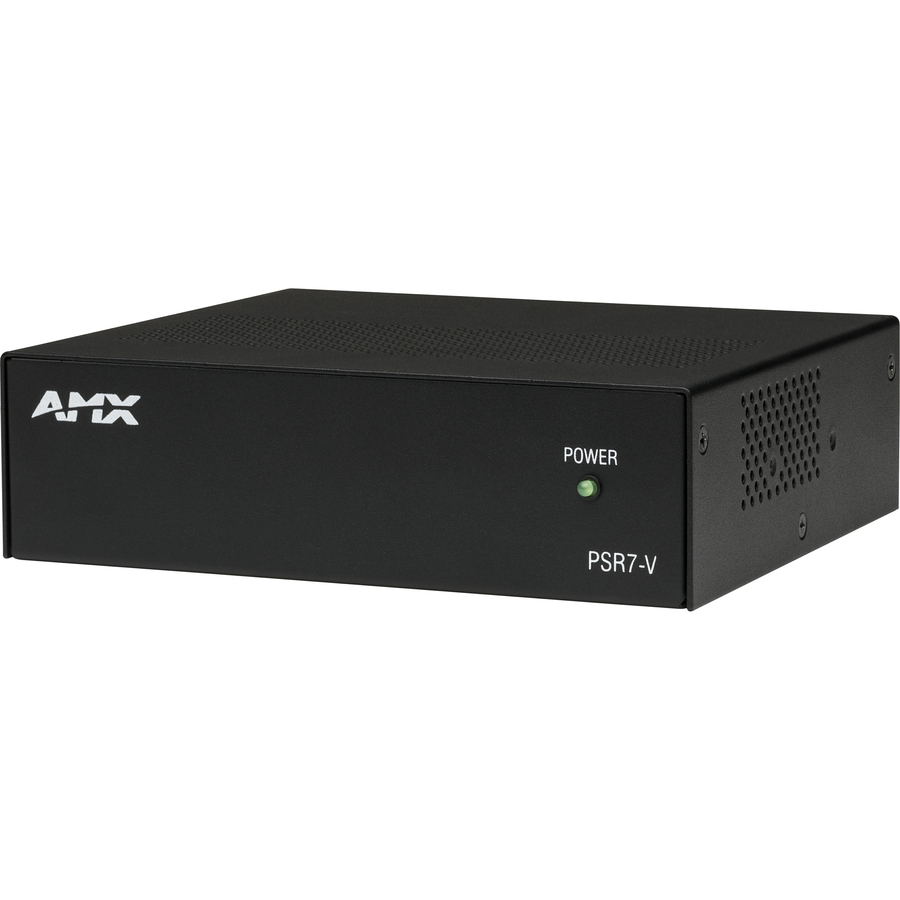

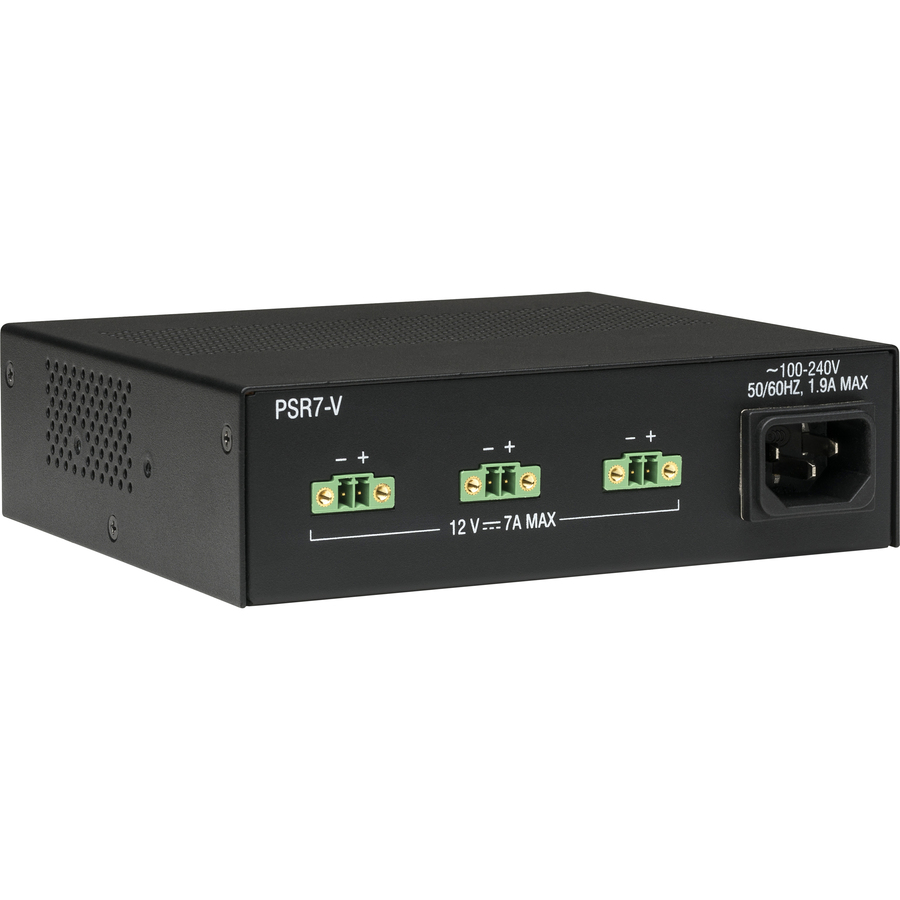

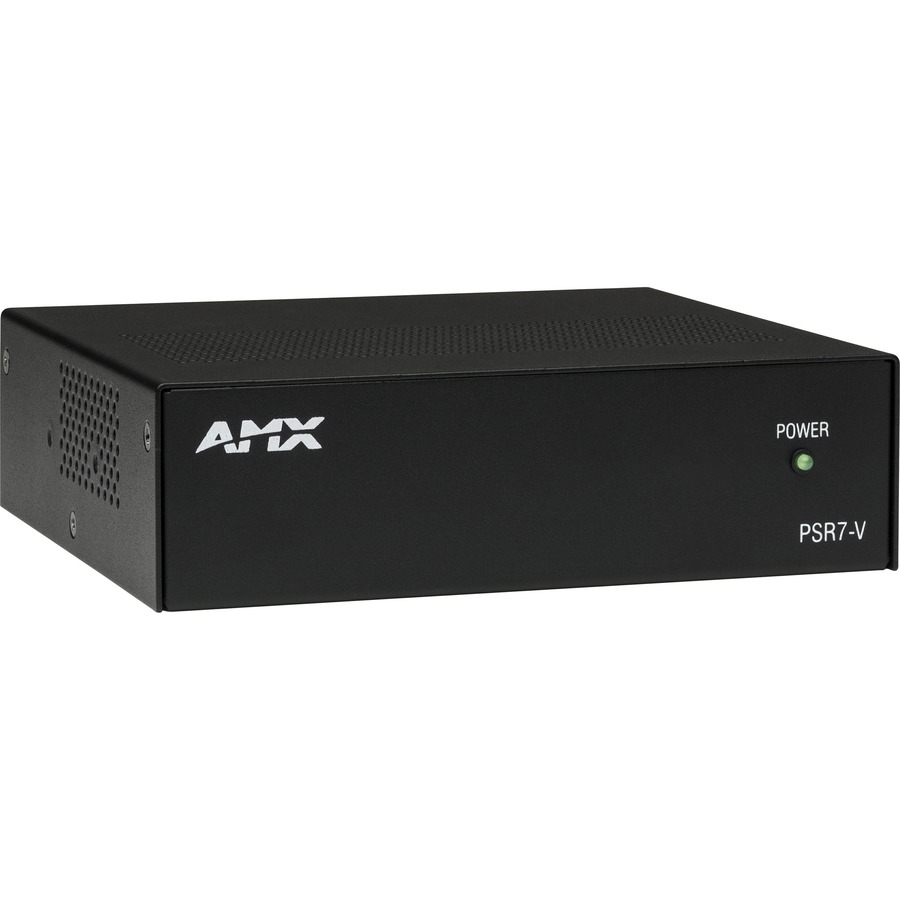

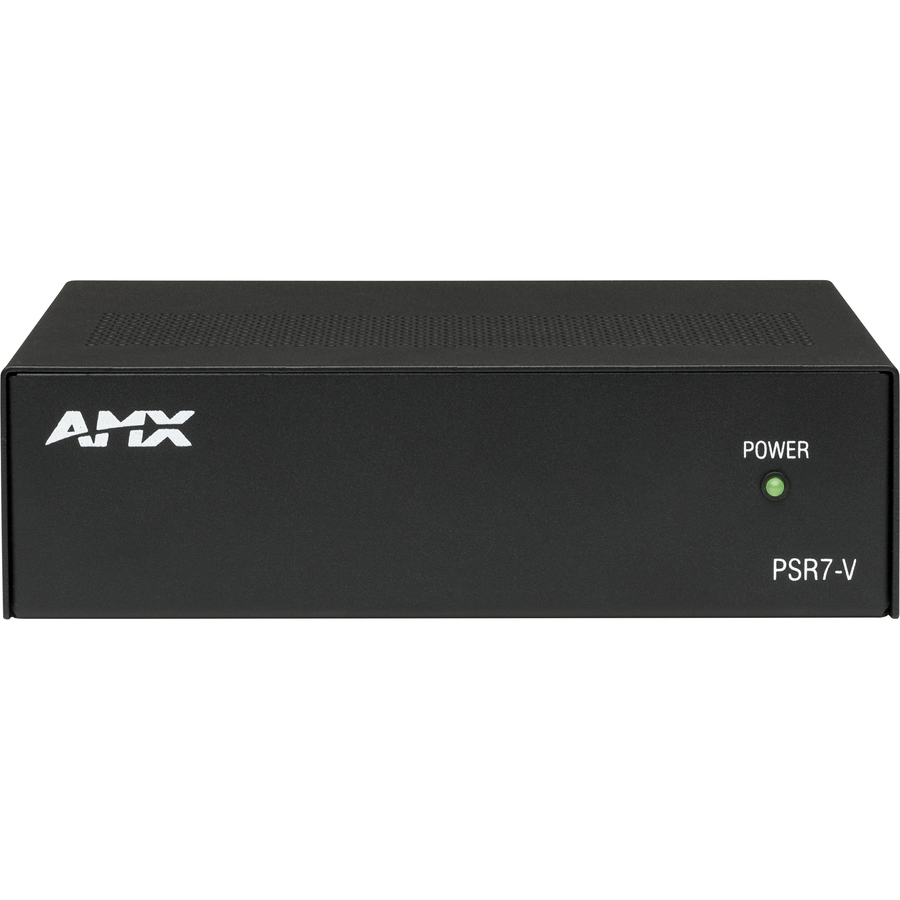

The PSR7-V power supply provides 5.5 amps of 12VDC power and is an optional power supply for Modero ® X Series line of touch panels and NetLinx NX Integrated Central Controllers. It includes three 3.5 mm phoenix connectors with retention screws.
Accessories include a V-style module rack tray and surface mount brackets which allow the PSR7-V power supply to be securely mounted to flat surfaces such as under a table or on a wall. Up to three power supplies can be mounted side-by-side using a 1 RU space.
COMMON APPLICATIONS
Ideal for professional AV installations, the PSR7-V power supply helps to protect valuable components against over-voltage, over-current, short-circuit, transient and thermal damage.
FEATURES
• Protection - Against over-voltage, over-current, short-circuit, transient and thermal; switching regulated and overload protected.
• Power Indicator - Green LED indicates DC on the output in fault tolerant range.
• Connectors - Includes 3 x Mini 2-pin captive wire connector (3.5 mm).
• Input Power Cord - IEC power cord provided as a separate part, dependent on country requirements.
Warranty
Limited Warranty: 1 Year
Highlights
Converts current to the desired voltage and frequency to manage your power requirements
12 V DC ensures the safety of your device
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FG423-49
Brand Name
AMX
Product Model
PSR7-V
Product Name
PSR7-V Versatile Mount 5.5 Amp Power Supply
Product Type
Power Supply
Physical Characteristics
Form Factor
Surface Mount, Rack-mountable
Height
1.6"
Width
5.7"
Depth
5.1"
Weight (Approximate)
1.45 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Output Voltage
12 V DC
Output Current
5.50 A
Warranty
Limited Warranty
1 Year
Miscellaneous
Compatibility
AMX Products: Modero® X Series Line Touch Panels NetLinx NX Integrated Central Controllers
