SKU
U236-MMF-LC
Category
Network Interface Cards
Overview

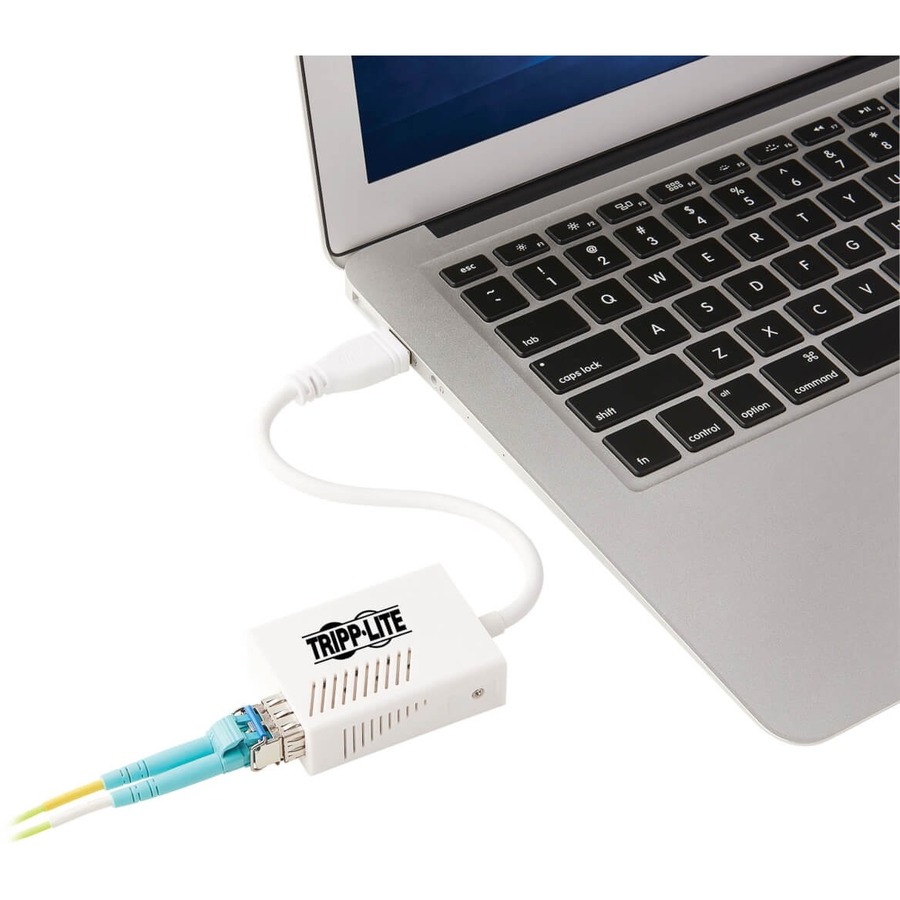

Connects Your USB Device to a Wired Ethernet Network without an Internet Card Installed

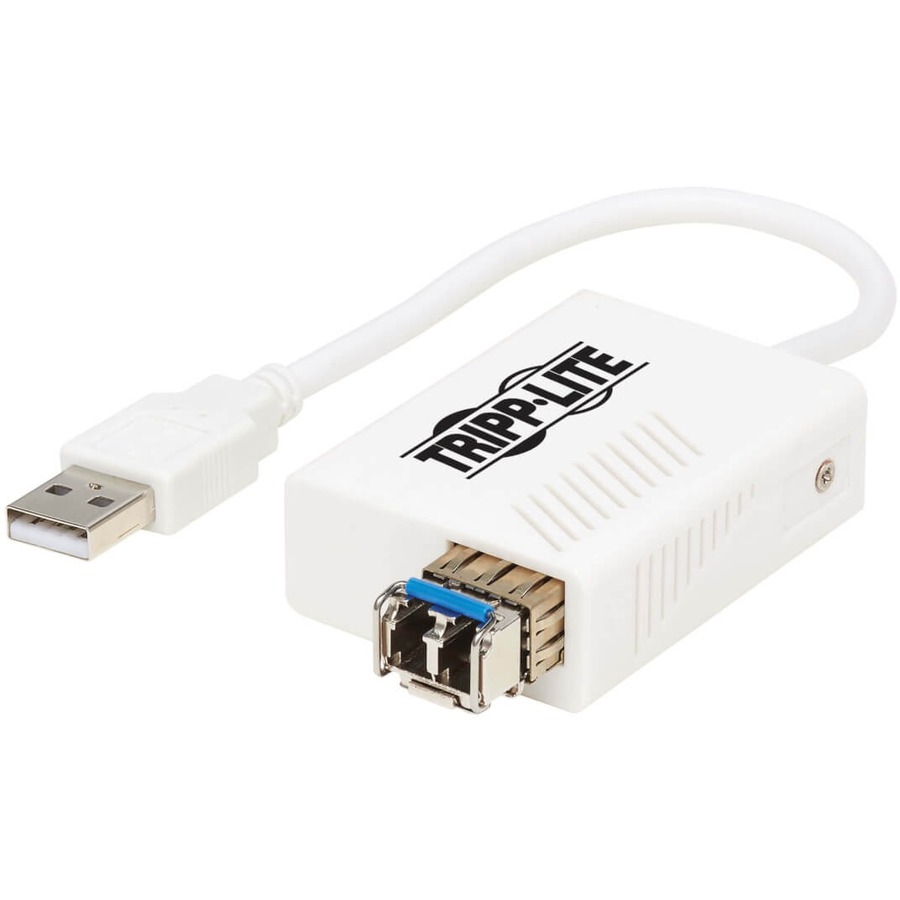

This USB to Ethernet adapter allows you to instantly connect your computer, laptop, tablet or other USB-compatible device to a wired 10/100 Mbps fiber optic network, even if your device has no NIC (Network Interface Controller) installed. The adapter offers access to an Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. It transmits data up to 2 kilometers (1.2 miles) from your fiber network using a 1310 nm wavelength.
Hot-Swappable for Installation Without Network Interruption

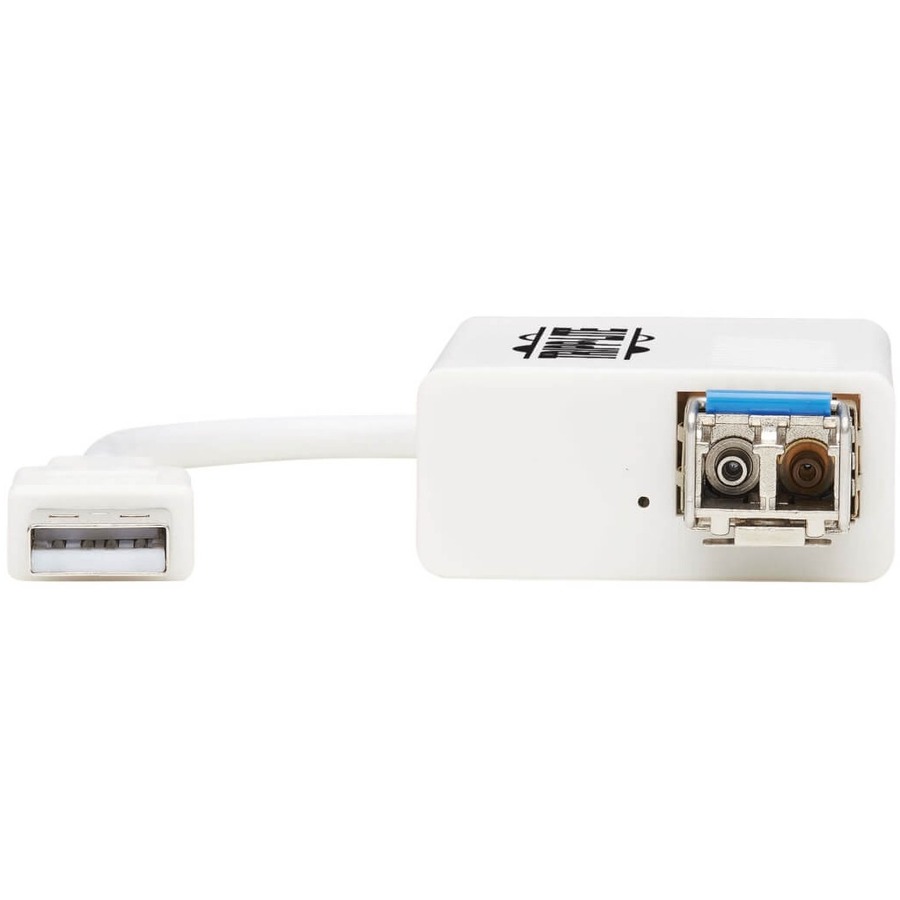

This USB 2.0 Ethernet adapter is fully hot-swappable, so you can install it without a potentially costly network shutdown or device reboot. Just connect the built-in USB cable to your device's USB port (which also powers the adapter), and wait for the installation process to finish (you may have to reboot your computer). Then, connect the LC duplex port using existing or newly run multimode fiber cable (such as Tripp Lite's N820-Series, sold separately).
Delivers Full Ethernet Performance with Audio and Video Streaming
The compact USB to Ethernet adapter supports full 10/100 Mbps network speeds and USB 2.0 speeds, allowing you to transfer data efficiently and stream audio and video. The direct fiber connection minimizes the risk of data leaks and electromagnetic interference (EMI). A blue LED indicates successful Ethernet connection and data transfer. The adapter works with Windows operating systems and is backward compatible with USB 1.1 devices.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Connects you to a wired Ethernet network when Wi-Fi is weak or unavailable
Provides 10/100 Mbps throughput up to 2 km (1.2 mi.) via multimode fiber cabling
Supports USB 2.0 speeds up to 480 Mbps to ensure efficient data transfers
Hot-swappable interface lets you install and uninstall without shutting down computer
USB 2.0 Ethernet adapter powered via USB, so no external power supply is required
3-year limited warranty
Specifications
Package Contents
U236-MMF-LC Fast Ethernet Card
Driver CD
Quick Start Guide
Host Interface
USB 2.0 Type A
Product Type
Fast Ethernet Card
Device Supported
Computer, Tablet, Notebook
Manufacturer Part Number
U236-MMF-LC
Limited Warranty
3 Year
Weight (Approximate)
1.92 oz
Form Factor
Portable
Manufacturer
Eaton Corporation
Product Model
U236-MMF-LC
Product Name
U236-MMF-LC Fast Ethernet Card
Network Technology
100Base-FX
Brand Name
Tripp Lite series
Country of Origin
China
Height
0.7"
Width
2.2"
Depth
1.6"
Environmentally Friendly
Yes
Media Type Supported
Optical Fiber
Total Number of Ports
1
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS)
