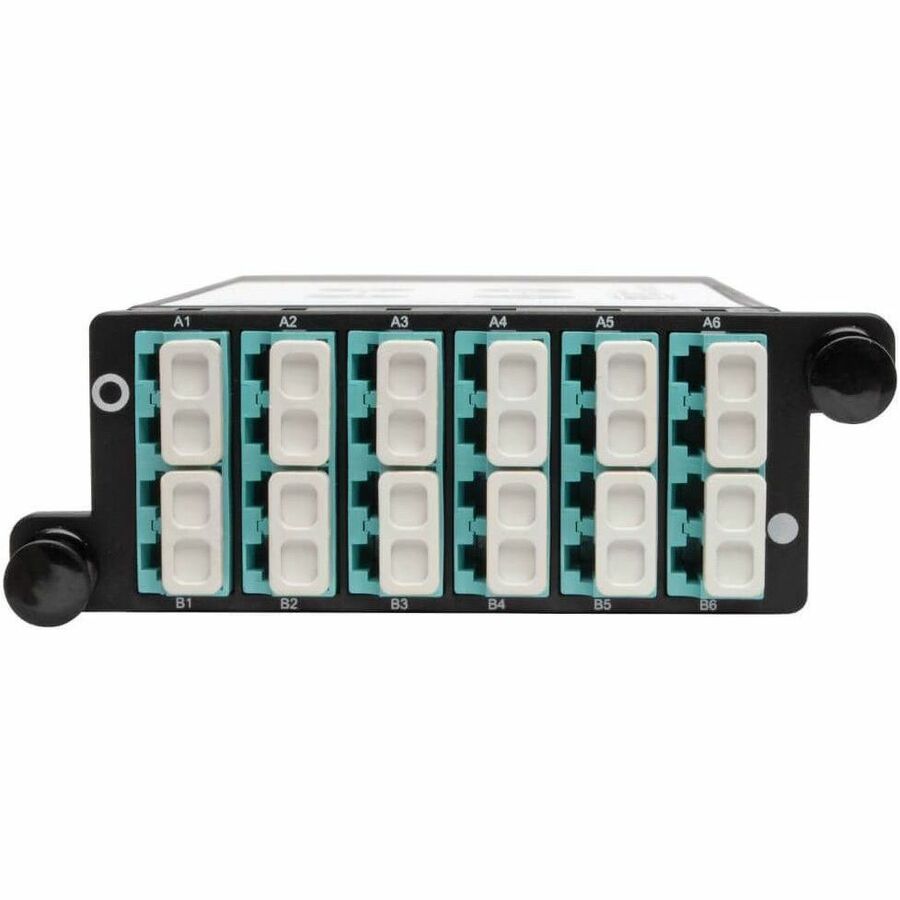

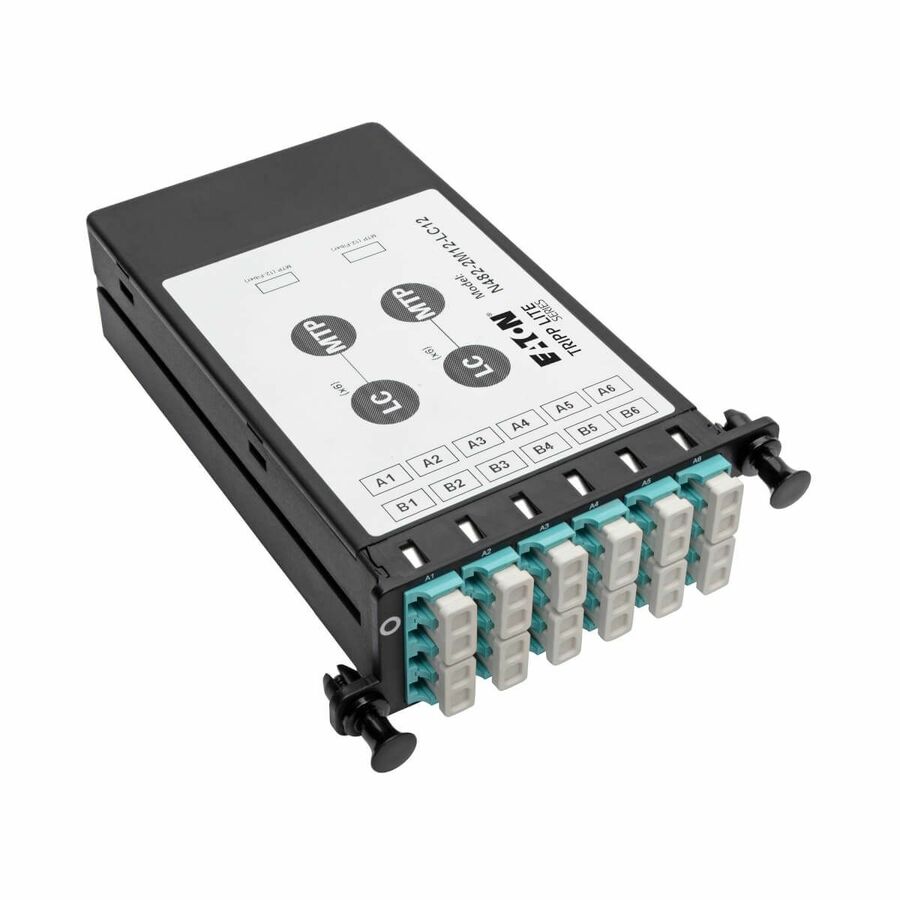

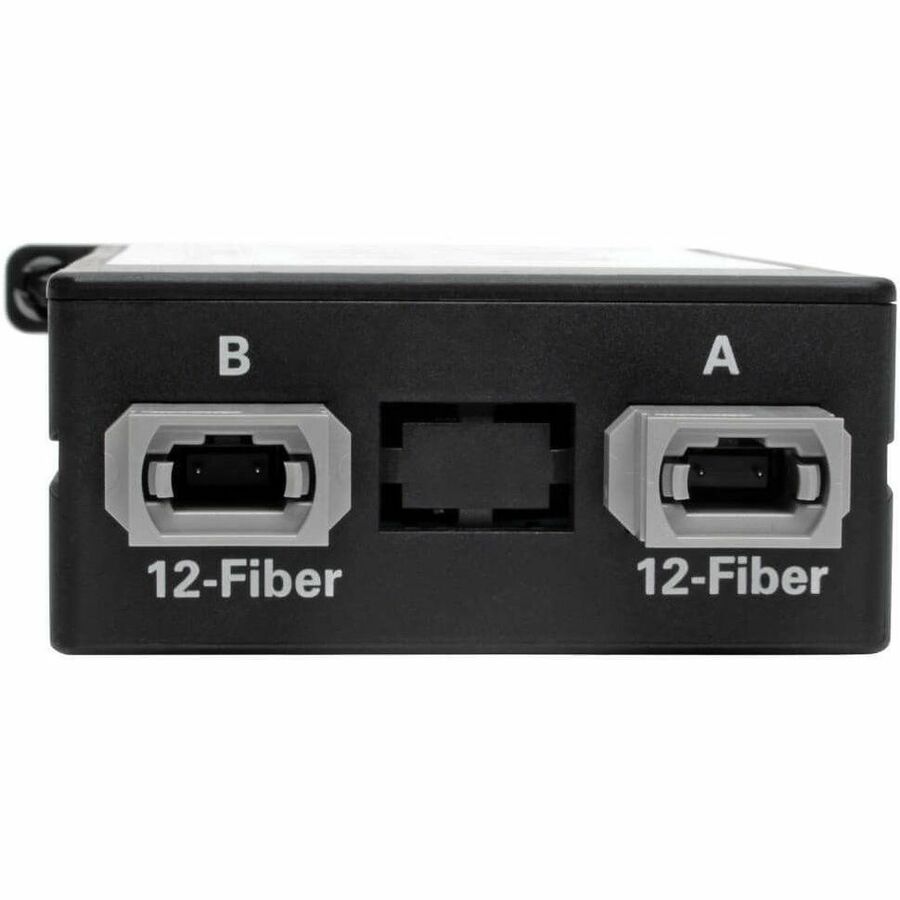

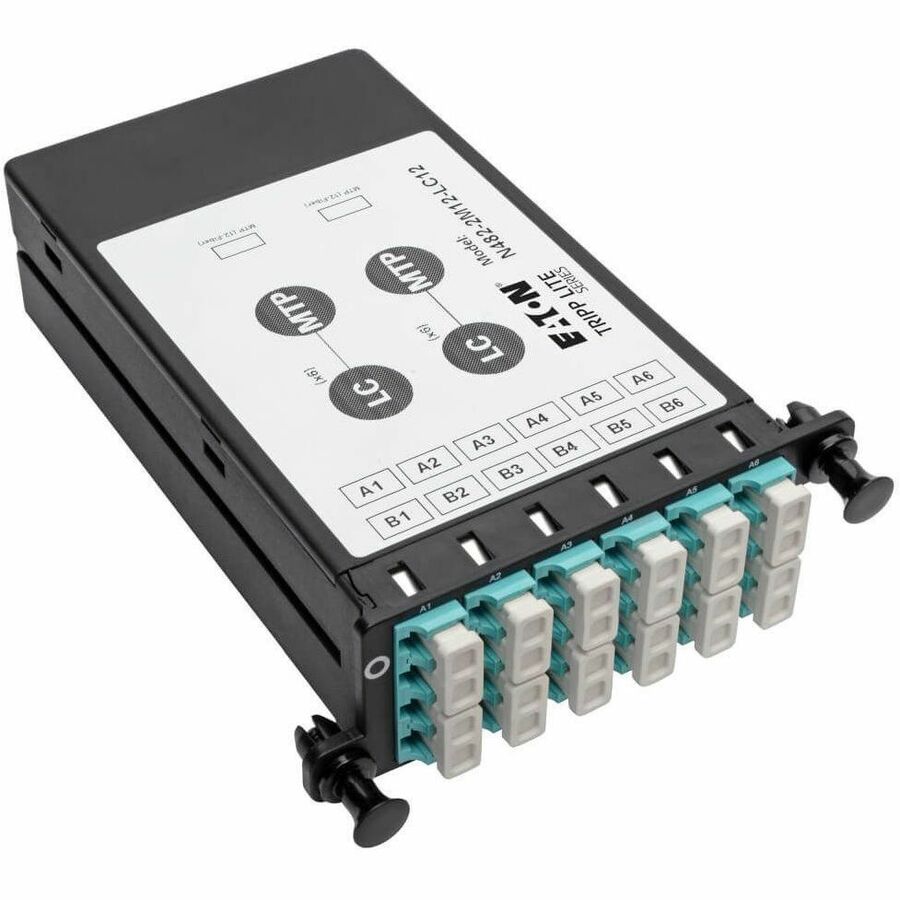

Eaton Tripp Lite Series 40Gb to 10Gb Breakout Cassette - (x2) 12-Fiber OM4 MTP/MPO ( Male with Pins ) to (x12) LC

Tripp Lite's N482-2M12-LC12 is a High Density 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to (x2) 12-Fiber, OM4, MTP/MPO connections. For use with Tripp Lite's N482-01U and N482-02U High Density Fiber Enclosure Panels; up to 5 cassettes per N482-01U, or up to 14 cassettes per N482-02U. Guaranteed compatibility when used with recommended Tripp Lite cabling. Designed specifically for use with Tripp Lite cables, such as the N820-, N821- and N844-Series cables. Installation is simple, with the cassette being easily installed or removed using push / pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Complies with IEEE 802.3ae (10Gbe) and ANSI T11.2 (Fibre Channel) requirements, with a maximum insertion loss of 0.35dB falling well under the IEEE 802.3ae maximum channel loss spec of Guaranteed compatibility when used with recommended Tripp Lite cabling. Designed specifically for use with Tripp Lite cables, such as the N820-, N821- and N844-Series cables

More from the Manufacturer

Save Time with Simplified Fiber Cable Installations

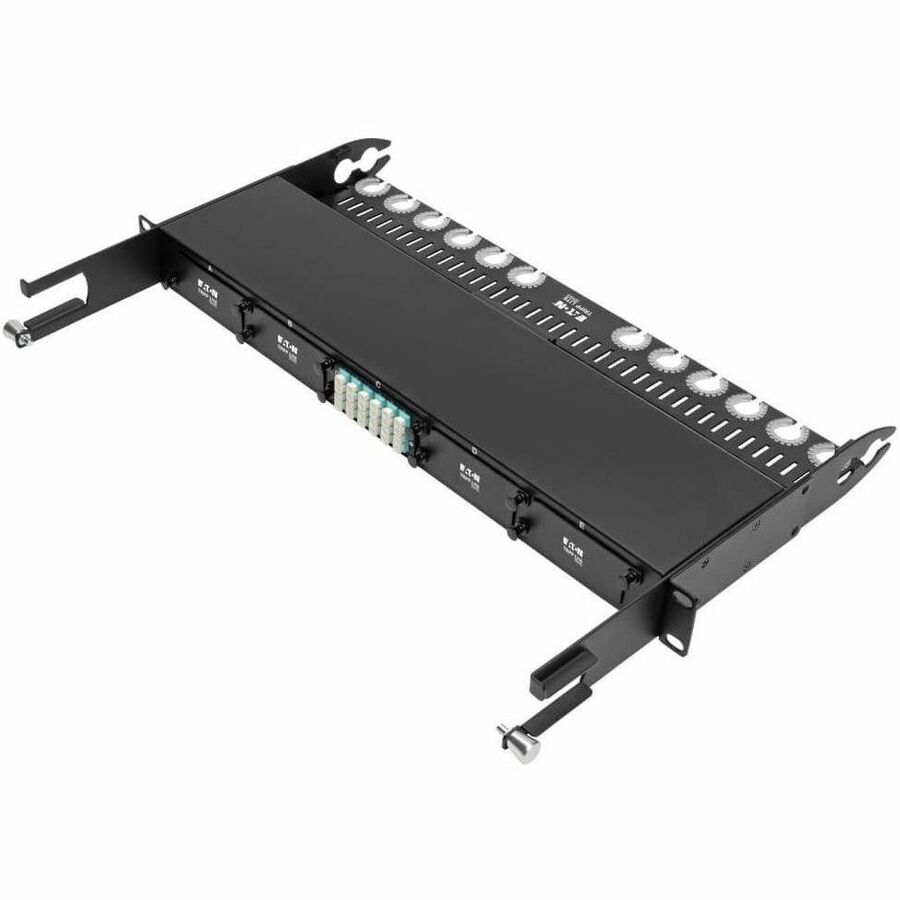

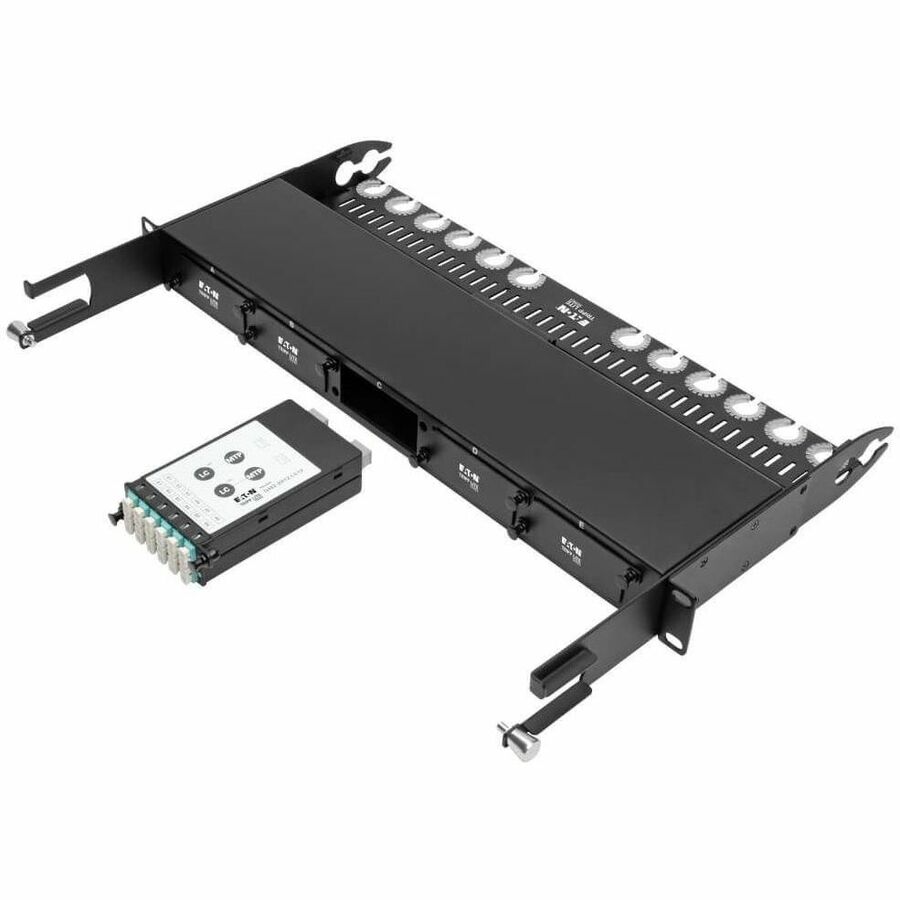

Configuring the N482-2M12-LC12 couldn’t be easier. It installs in the N482-01U or N482-02U chassis with no tools required. Just insert the cassette into the chassis, and tighten its retention clips to secure it. Then plug the LC patch cables, such as Tripp Lite’s N820-, N821- and N844-Series, into the factory-terminated connectors using the cable’s convenient push/pull tabs, and you’re ready to go. Up to five N482-2M12-LC12 cassettes can fit into the N482-01U 1U enclosure panel for a total of 60 servers and up to 14 cassettes can fit into the N482-02U 2U panel for a total of 168 10 Gb servers (more than 10 racks).

Designed for Quick, Easy Modifications and Upgrades

When evolving standards or organizational needs require network changes, the N482-2M12-LC12’s modular design makes it easy to modify, upgrade or expand your infrastructure as your needs grow. If you need to change out a single cassette, you can do so without replacing the panel or removing other cassettes. The N482-2M12-LC12 complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements, and also supports devices of varying speeds, including 10 Gb and 40 Gb network equipment.

Premium Construction and Backed by a Lifetime Warranty

With a durable plastic housing and factory-terminated connectors that reduce time and labor, the N482-2M12-LC12 is made from the finest materials to ensure fast installations, optimal performance and a lifetime of intensive use.

The N482-2M12-LC12 comes with a lifetime warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
