SKU
N250-SH12-DIN6A
Category
Patch Panels
Overview
12-Port Patch Panel Manages and Organizes 10G Network Cabling

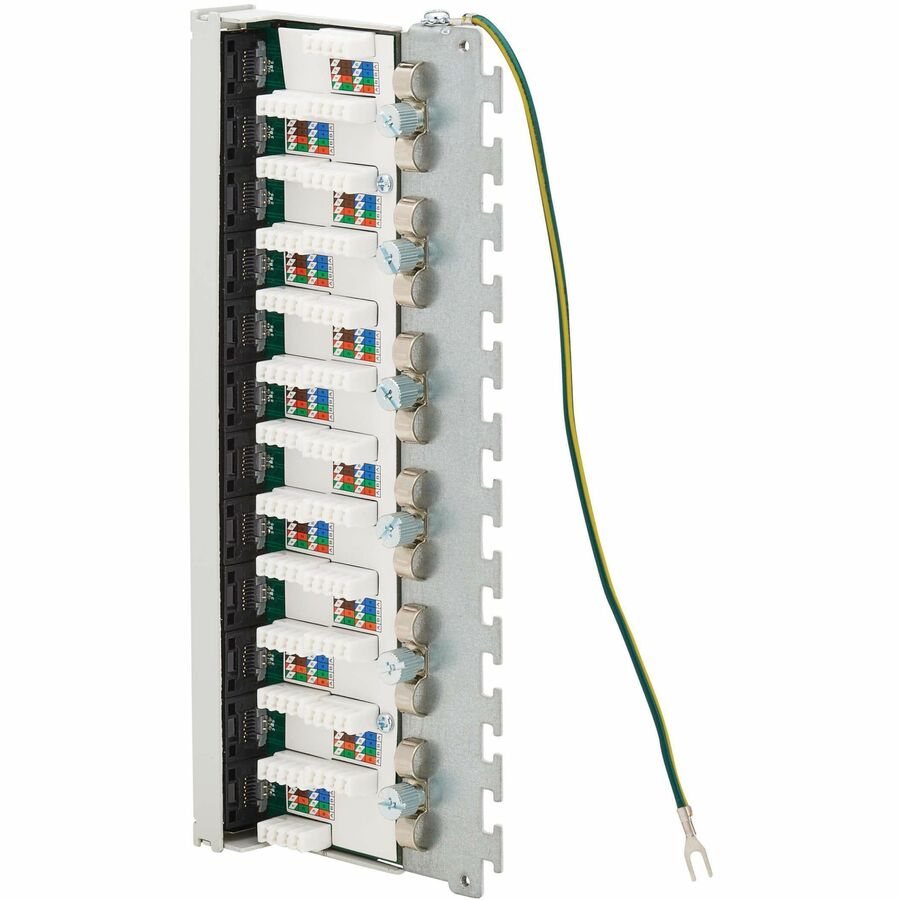

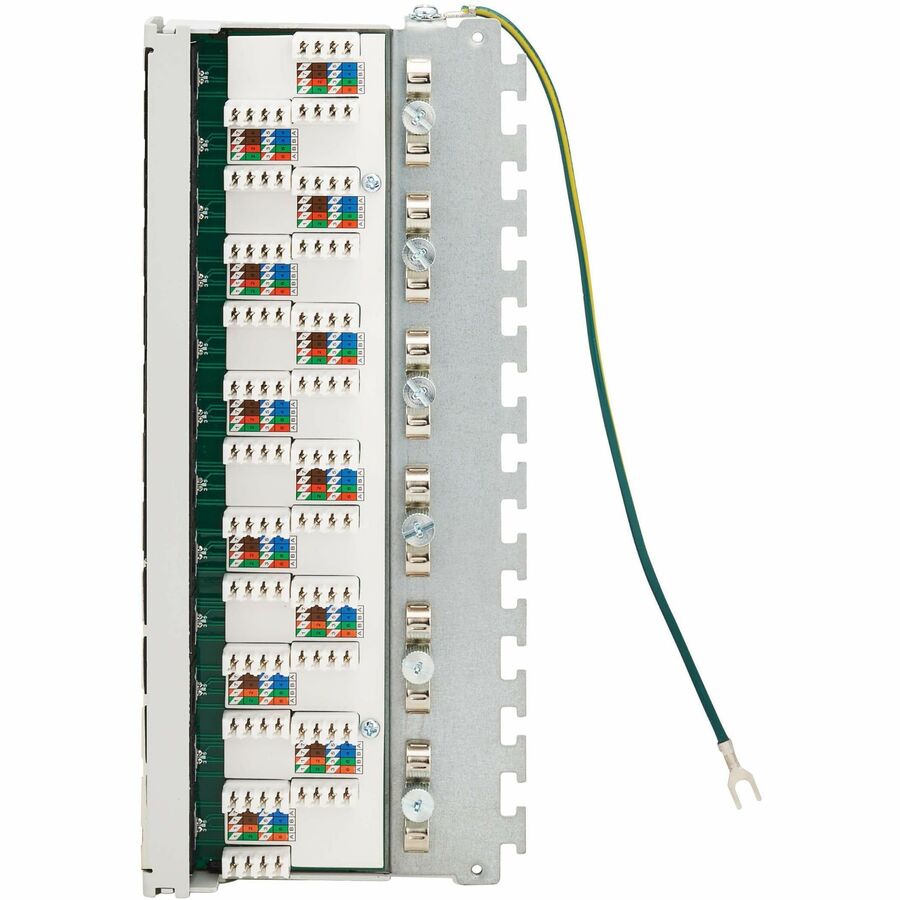

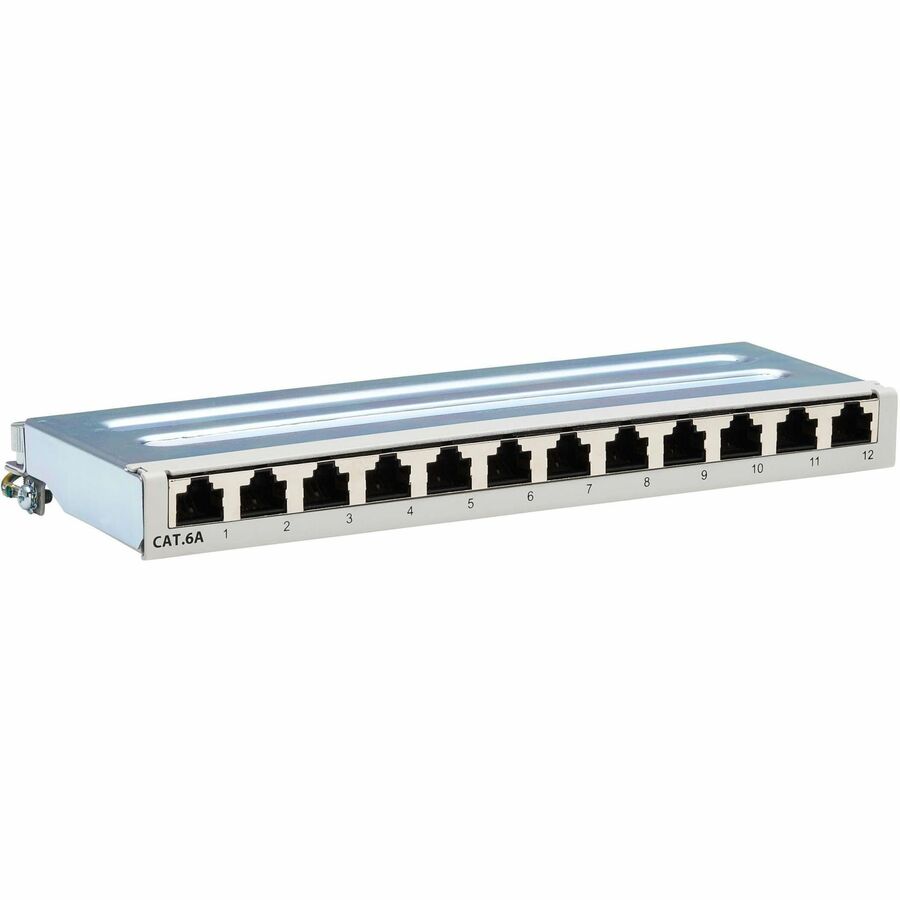

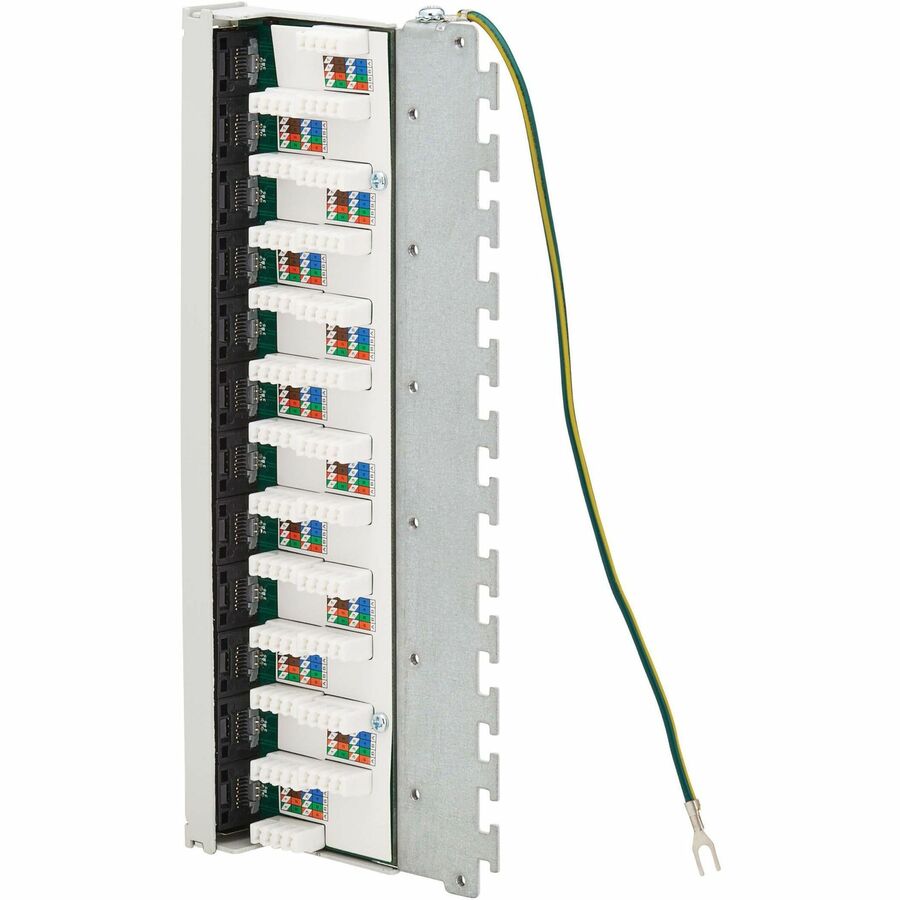

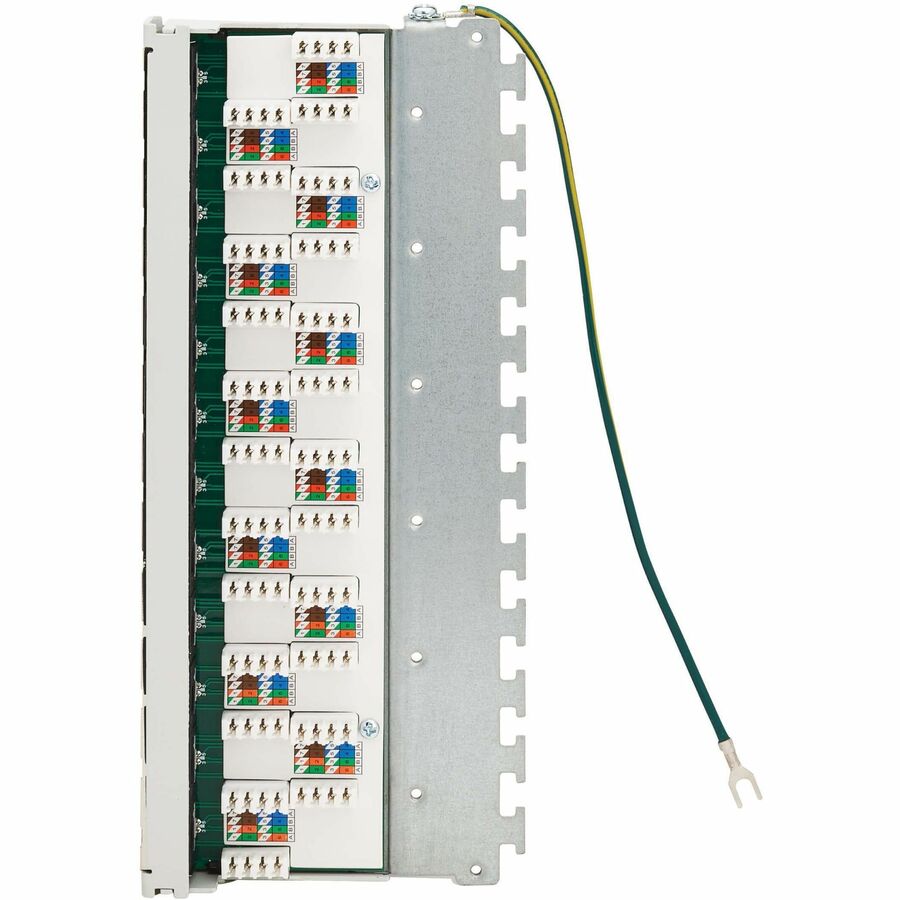

This Cat6a patch panel enables quick, easy cable patching. Just connect Cat6a patch cables to its 12 front RJ45 ports, and use a 110 or Krone punch-down tool to terminate color-coded connections in the rear. The RJ45 ports and 110 terminals are clearly numbered to help you identify individual cable runs. The N250-SH12-DIN6A supports 10 Gbps in compliance with EIA/TIA 568A and 568B wiring standards. It is ideal for small applications such as network closets or installations where space is a major constraint. Note : Do not use a 4/5 pair 110 punch-down tool with this patch panel.
Effortlessly Mounts to a Wall or DIN Rail
The N250-SH12-DIN6A's robust PBT frame mounts to a wall or standard 35-millimeter DIN rail using the included brackets. A cable management bar, cover plate and included cable ties help organize your connections and cut down on cord clutter.
Fully Shielded to Protect Your Data and Equipment
The protective shielding reduces electromagnetic interference (EMI) and radio frequency interference (RFI) that can inflict hardware damage or data loss in healthcare, institutional and financial applications where data is particularly sensitive. This EMI/RFI filtering also helps your connected components perform better and last longer. Contacts with 50-µin gold plating help resist corrosion.
TAA-Compliant for GSA Schedule Purchases
The N250-SH12-DIN6A is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Ideal for network closets or other small installations where space is at a premium
Plastic frame mounts to wall or standard DIN rail for maximum flexibility in placement
Fully shielded to reduce EMI/RFI line noise that can damage equipment and data
Supports EIA/TIA 568A/B wiring standards for 110/Krone-type terminations
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
This product is covered by a Lifetime Limited Warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
N250-SH12-DIN6A
Brand Name
Tripp Lite series
Product Model
N250-SH12-DIN6A
Product Name
Cat6a STP Patch Panel, 12 Ports, DIN Rail or Wall Mount, TAA
Product Type
Network Patch Panel
Physical Characteristics
Color Family
Silver
Product Color
Silver
Product Material
Polybutylene Terephthalate (PBT), Polycarbonate
Form Factor
DIN Rail Mountable, Wall Mountable
Height
1"
Width
8.7"
Depth
3.8"
Warranty
Limited Warranty
Lifetime
Interfaces/Ports
Total Number of Ports
12
Number of Network (RJ-45) Ports
12
Miscellaneous
Package Contents
Cat6a STP Patch Panel, 12 Ports, DIN Rail or Wall Mount, TAA
