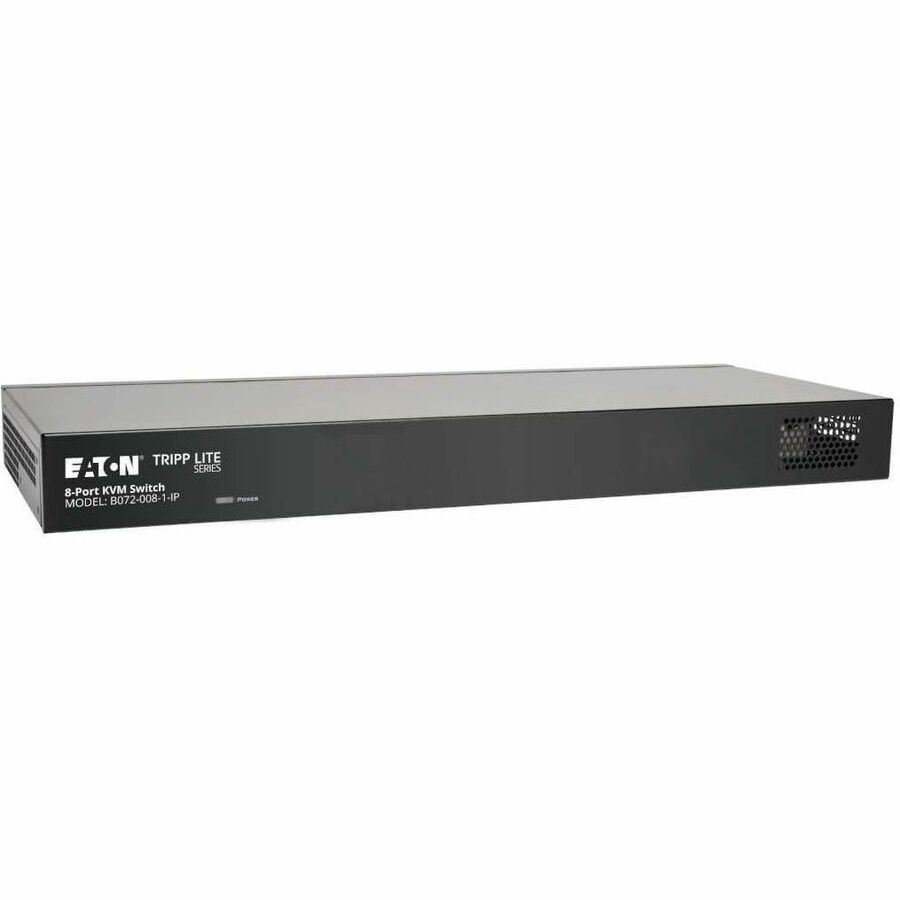

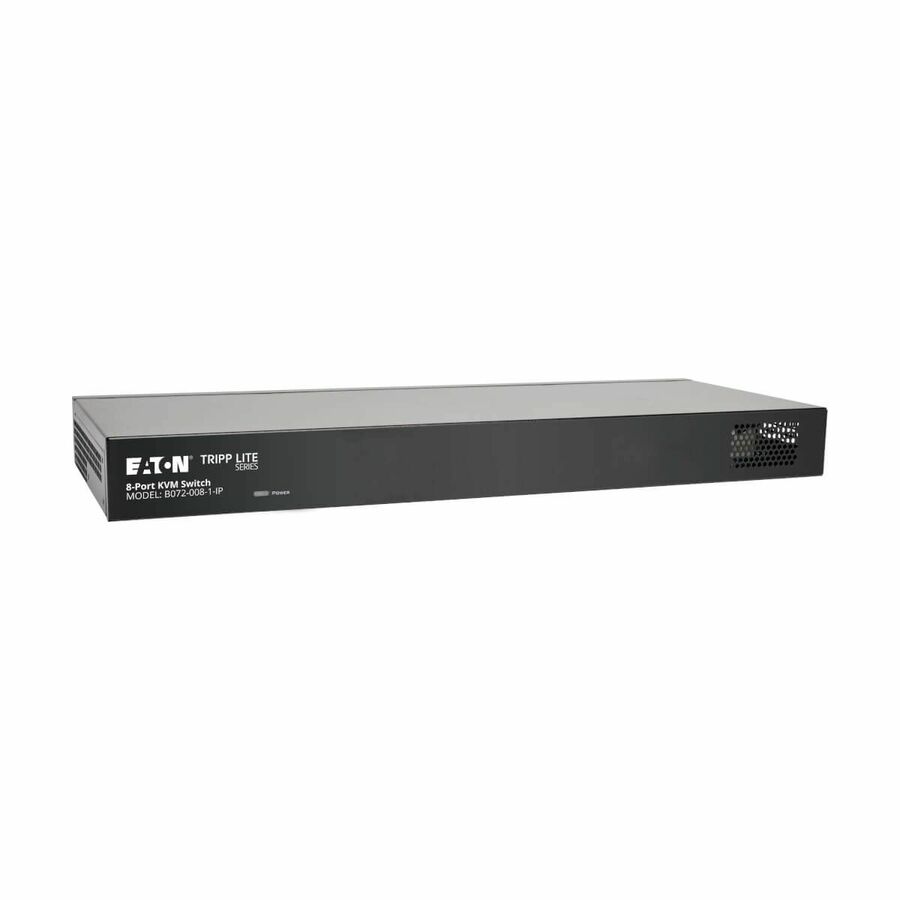

Tripp Lite by Eaton NetCommander 8-Port Cat5 KVM over IP Switch - 1 Remote + 1 Local User 1U Rack-Mount

Tripp Lite's B072-008-1-IP KVM Switch is the optimal solution for controlling up to 8 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet. This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available.The B072-008-1-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports; if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 8 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and a remote user can each log on and access different ports simultaneously. Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with both Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes. Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-008-1-IP. More from the Manufacturer

Control 8 Servers from a Local Console or Remote Location

Tripp Lite's B072-008-1-IP NetCommander Cat5 IP KVM Switch is the smart solution for controlling multiple computers and servers from one monitor, keyboard and mouse. The B072-008-1-IP offers a comprehensive, cost-effective network management solution that installs in 1U of rack space. No server-resident software is required, and upgradable firmware fine-tunes compatibility with emerging standards. Servers are connected to the switch with inexpensive Cat5 patch cabling, reducing clutter and conserving valuable rack space. Cat5 connections also allow the B072-008-1-IP to be located up to 100 feet away from the servers.

Simultaneous Local and Remote Support for 2 Users

The B072-008-1-IP enables control of multiple computers from either a local console or a remote location by offering simultaneous support for one local and one remote user. With simultaneous local/remote support, users can each access a different port on the KVM at the same time.

IP remote access enables system administration, BIOS-level troubleshooting, GUI application installations and equipment reboots from any location using a standard Web browser or multi-platform client software. The B072-008-1-IP also lets you add IP PDUs as devices that can be controlled by the KVM. Users can assign individual ports on the KVM to a PDU port to Power Cycle or Power Off/On the computer/server connected to that port.

Simple, Flexible and Secure Network Control

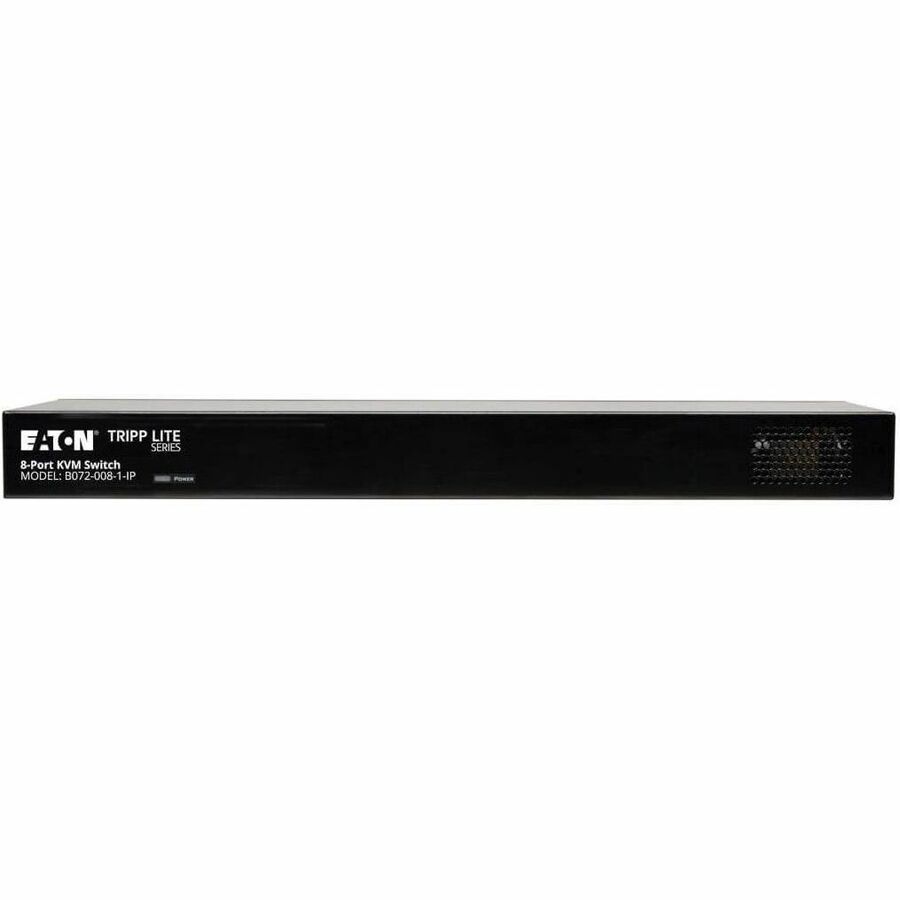

The B072-008-1-IP eases multi-server management in data centers, server rooms and other high-density environments. An advanced, high-resolution 1600 x 1200 on screen display (OSD) provides a graphical user interface with a variety of management tools (for remote sessions, the B072-008-1-IP supports resolutions up to 1920 x 1080). Users may also select a connected computer using on-console pushbuttons or keyboard hotkey commands. Two LEDs per KVM port indicate when a computer is connected, powered on and selected.

The B072-008-1-IP offers three levels of password protection. Remote authentication support is provided via RADIUS, LDAP, LDAPS and Active Directory, and the unit incorporates the most advanced encryption technologies: 128-bit SSL and HTTPS.

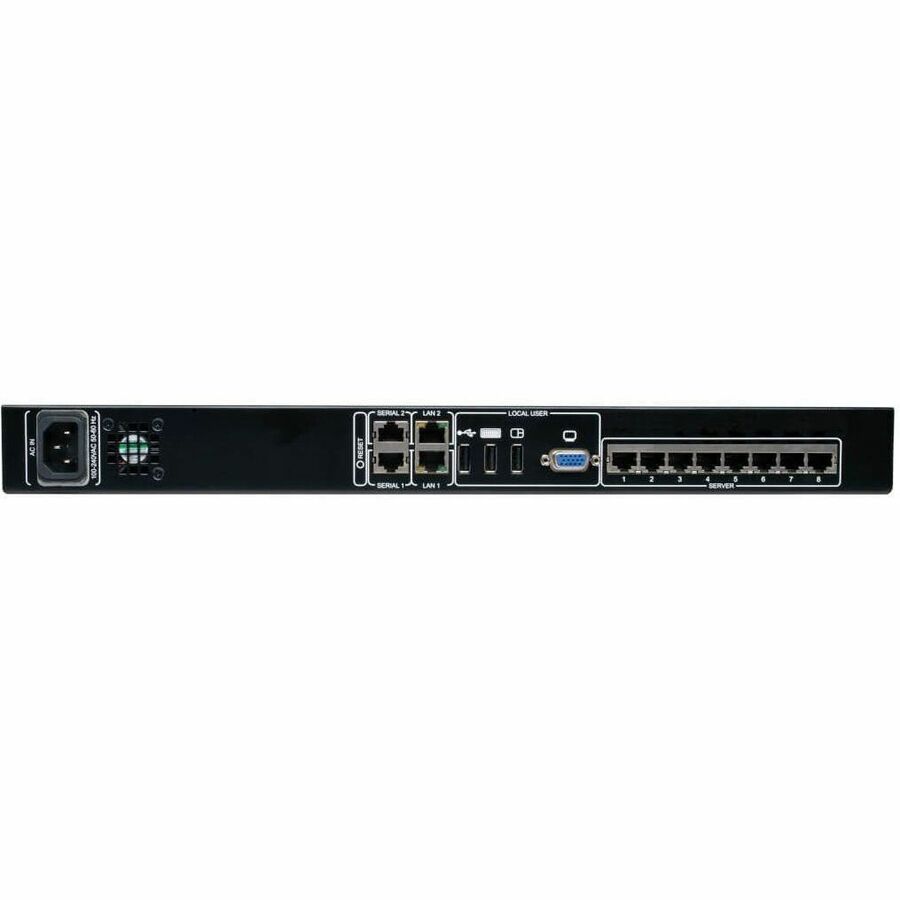

The B072-008-1-IP supports both PS/2 and USB server connections (Tripp Lite B078-101 Series server interface units and Cat5 patch cables required; sold separately), and almost any platform can be accommodated.
