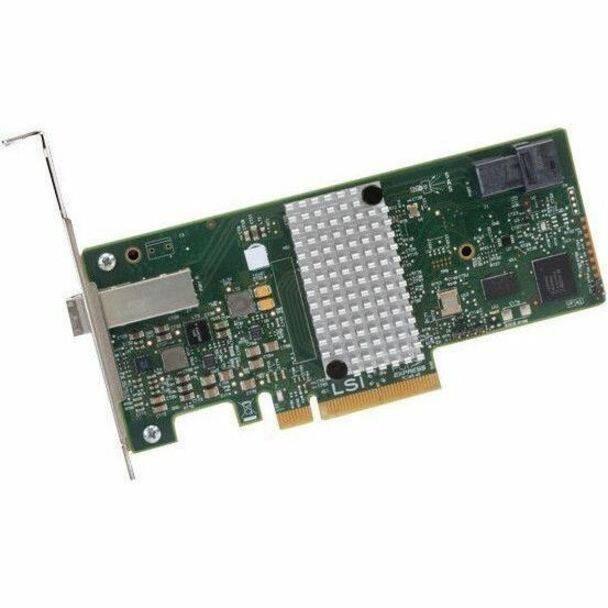

12Gb/s SAS, Serial ATA - PCI Express 3.0 x8 - Low-profile - Plug-in Card - Mini SAS HD SFF8643 One (x4) - 4 Total SAS Port(s) - 4 SAS Port(s) Internal - PC, SPARC, Linux - Windows, Linux, SUSE Linux, Red Hat Linux, Solaris, FreeBSD OS Supported Operating System
SKU
LSI00346
Category
SCSI/RAID Controllers
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Broadcom through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
LSI00346
Category
SCSI/RAID Controllers
Overview
The SAS 9300 8 and 4-port, 12Gb/s SAS host bus adapter family provides increased connectivity and maximum performance for high-end servers and appliances within internal storage, or connecting to large scale storage enclosures.
The SAS 9300 HBA family is based on the SAS 3008 IO controller, integrating the latest enhancements in SAS and PCI Express® technology. Each host bus adapter also supports 8 or 4 SAS ports operating at 12Gb/s data transfer rates, and can reach over 1 million IOPs. The 9300 adapter family supports 8 PCI Express lanes that comply with the latest PCI Express 3.0 specifi cations. In addition, these adapters are backwards compatible with previous SAS and PCIe generations through automatic negotiation, and provide SAS data transfer rates of 12, 6, and 3 Gb/s per lane, and SATA data transfer rates of 6 and 3Gb/s per lane. Avago Technologies provides a broad suite of industry standard operating system drivers.
Highlights
Eight/four ports of 12Gb/s SAS + SATA ports
Eight lanes of PCI Express 3.0
Low-profile form factor
Mini-SAS HD connectors
SAS 3008 12Gb/s SAS+SATA controller
Supports SSDs, HDDs, and tape drives
Specifications
Additional Warranty Information
3 years, free advanced technical support, advanced replacement option.
Host Interface
PCI Express 3.0 x8
Product Type
SAS Controller
Device Supported
Hard Drive, Solid State Drive, Storage System, Server
Manufacturer Part Number
LSI00346
Packaged Quantity
1
Platform Supported
PC, SPARC, Linux
Limited Warranty
3 Year
Form Factor
Plug-in Card
Manufacturer
Broadcom Corporation
Product Model
9300-4i
Product Name
9300-4i Sas Controller
Controller Type
12Gb/s SAS, Serial ATA
Brand Name
Avago
Operating System Supported
Windows, Linux, SUSE Linux, Red Hat Linux, Solaris, FreeBSD OS
Card Height
Low-profile
Maximum Data Transfer Rate
12 Gbit/s
RAID Supported
No
Total Number of SAS Ports
4
Number of SAS Ports (Internal)
4
SAS Connector Details
Mini SAS HD SFF8643 One (x4)
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
