Serial ATA/600, 6Gb/s SAS - PCI Express 2.0 x8 - Full-height - Plug-in Card - 4 x SFF-8087 - 16 Total SAS Port(s) - 16 SAS Port(s) Internal - PC, Linux, Unix - Windows, Red Hat Linux, SUSE Linux, Solaris Supported Operating System
SKU
LSI00244
Category
SCSI/RAID Controllers
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Broadcom through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
LSI00244
Category
SCSI/RAID Controllers
Overview

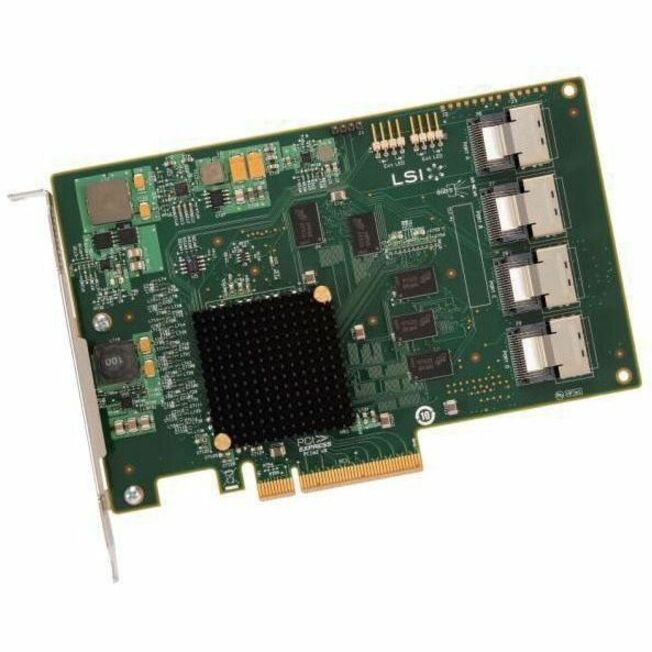

The LSI SAS 9201-16i, quad port, host bus adapter provides maximum connectivity and performance for servers and appliances with internal storage. The LSI SAS 9201-16i provides 16 lanes of 6Gb/s SAS connectivity to 8 lanes of PCI Express 2.0. Performance is based on the LSISAS2116 IO controller that highly integrates the latest enhancements in PCI Express and SAS technology. The HBA supports up to 512 SAS or SATA devices.
The LSI SAS 9201-16i has four (x4) internal mini- SAS connectors (SFF8087) enabling a solution which provide SAS and SATA data transfer rates of 1.5, 3 and 6Gb/s per lane through automatic speed negotiation that can achieve over 430,000 IOPs. Enhanced features include T-10 Protection Information Model for early detection of and recovery from data corruption, and Spread Spectrum Clocking (SSC) for minimal EMI.
SAS Leadership
LSI offers the broadest SAS product portfolio in the industry with true end-to-end solutions including controllers, expanders, active-active multiplexers, ROCs, host bus adapters, RAID solutions, and external storage. LSI's proven SAS core has completed extensive stress and interoperability testing resulting in the industry's most robust, interoperable solution.
LSI has supplied leading edge serial technology to systems throughout the world for over seven generations, making LSI the most experienced enabler of serial interconnect for storage in the world. Integrators can be assured that their LSI adapter is providing the most advanced and robust serial technology available.
Fusion MPT Architecture
? The LSI SAS host bus adapters are based on the Fusion MPT? architected SAS controllers, which implements LSI's Fusion-MPT (Message Passing Technology) architecture. Each controller features embedded PowerPC? processors that deliver maximum host CPU offload. The built-in intelligence enables LSI to publish a single binary OS driver to operate any Fusion MPT controller or adapter. The architecture enables high performance, reduced software development, and faster time to market.
Highlights
16 internal 6Gb/s SAS+SATA ports
8 lanes, PCI Express 2.0
Standard height form factor
Four x4 internal mini-SAS connectors (SFF8087)
LSISAS2116 6Gb/s SAS+SATA Controller
Supports up to 512 SAS or SATA end devices
Supports SSDs, HDDs and tape drives
Specifications
Additional Warranty Information
3 Years; with advanced replacement option.
Host Interface
PCI Express 2.0 x8
Product Type
SAS Controller
Device Supported
Server, Solid State Drive, Hard Drive, Tape Drive
Manufacturer Part Number
LSI00244
Packaged Quantity
1
Platform Supported
PC, Linux, Unix
Limited Warranty
3 Year
Form Factor
Plug-in Card
Manufacturer
Broadcom Corporation
Product Model
9201-16i
Product Name
9201-16i SAS Controller
Controller Type
Serial ATA/600, 6Gb/s SAS
Brand Name
Avago
Operating System Supported
Windows, Red Hat Linux, SUSE Linux, Solaris
Height
4.2"
Width
6.6"
Card Height
Full-height
Maximum Data Transfer Rate
48 Gbit/s
RAID Supported
No
Total Number of SAS Ports
16
Number of SAS Ports (Internal)
16
SAS Connector Details
4 x SFF-8087
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
