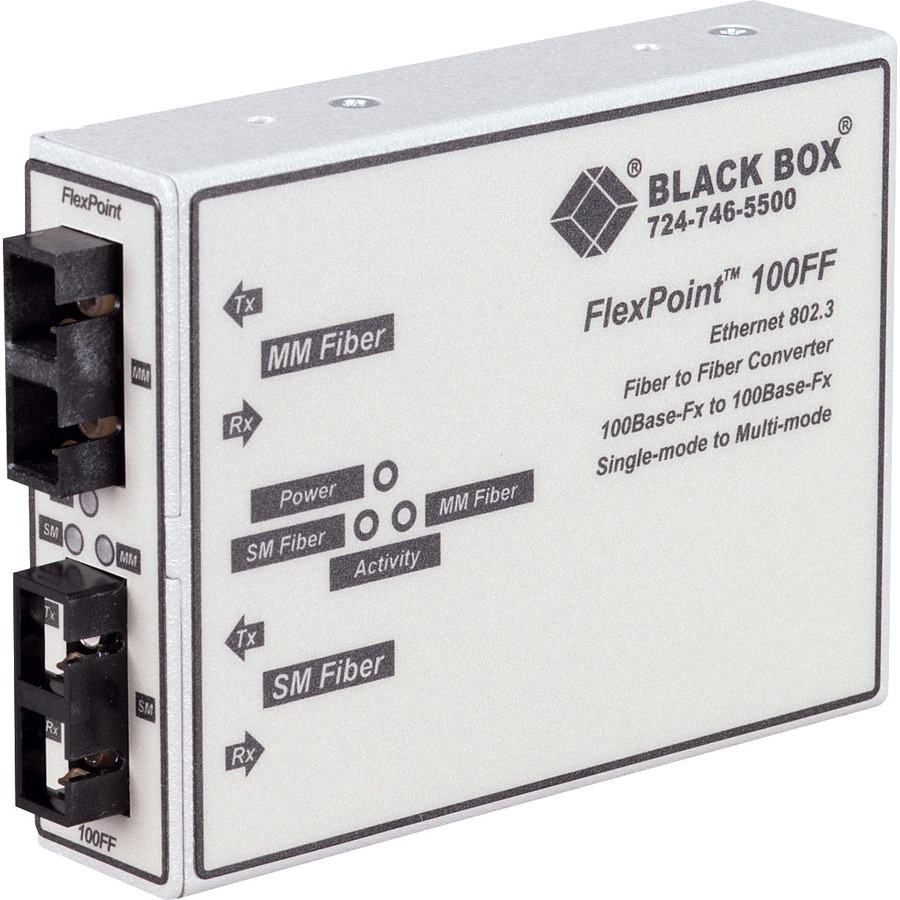

Black Box FlexPoint Fiber-to-Fiber Mode Converter
2 x SC - 100Base-FX - Wall-mountable
- SKU
- LMC250A-LH
- Category
- Transceivers/Media Converters
MSRP$1,009.68
$790.17
Save 22%Back ordered — ships when restocked.
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- LMC250A-LH
- Category
- Transceivers/Media Converters
Overview
Bridge multimode and singlemode fiber networks with this high-performance 100-Mbps Fast Ethernet mode converter. The LMC250A-LH converts 100-Mbps multimode fiber (1300 nm, up to 5 km) to 100-Mbps singlemode fiber (1300 nm, up to 58 km), enabling seamless long-distance connectivity across mixed fiber infrastructures.
Because multimode and singlemode fibers differ in core size and light transmission characteristics, they cannot be directly connected. This converter acts as a signal translator, receiving optical data from one fiber type and retransmitting it to match the specifications of the other ensuring reliable communication across your network.
Highlights
- Converts 100-Mbps multimode fiber to singlemode fiber
- Operates at 1300 nm wavelength
- Supports distances from 5 km (MM) to 58 km (SM)
- (2) SC fiber connectors for secure connectivity
- Enables interoperability between incompatible fiber types
- Ideal for extending Fast Ethernet networks across long distance
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | LMC250A-LH |
| Maximum Distance Supported | 58 km |
| Power Source | Power Supply |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 6.40 oz |
| Form Factor | Wall Mountable |
| Manufacturer | Black Box Corporation |
| Product Name | FlexPoint Fiber-to-Fiber Mode Converter |
| Network Technology | 100Base-FX |
| Product Line | FlexPoint |
| Brand Name | Black Box |
| Country of Origin | United States |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Ethernet Technology | Fast Ethernet |
| Number of SC Ports | 2 |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| TAA Compliant | Yes |
| Fiber Optic Cable Wavelength | 1300 nm |
