16 Computer(s) - 1 Local User(s) - 50 Hz, 60 Hz - 17 x Network (RJ-45)
MSRP$1,507.63
$1,244.49
Save 17%In stock: 3
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

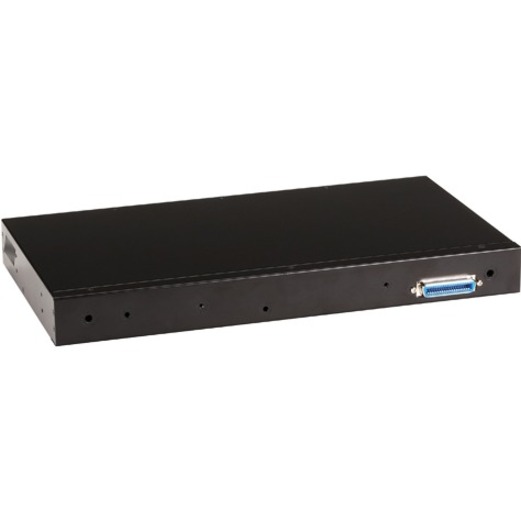

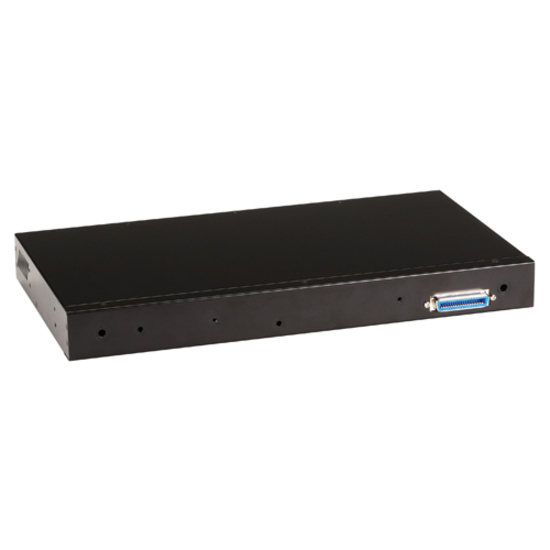

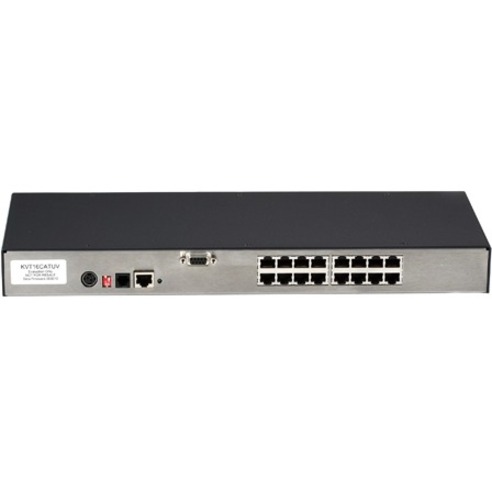

ServView17 CX Switching Modules are new switching options for use with the ServView17. Control up to 16 multiplatform computers from your ServView17 tray console, with expansion options to increase the number of servers available.
ServSwitch CX UNO IP guarantees a high level of quality and compatibility across multiple server hardware and software platforms. It comes with 8 or 16 computer ports that can be adapted to either PS/2, USB or Sun via Server Access Modules (SAMs) for each server connection. All platforms are available with stereo audio support for speakers!
Use convenient network-style CATx patch cables. Servers can be placed up to 10m away from the switching modules over a simple CATx cable.
These switching modules offer various port configurations and remote access options:
• The non-IP modules (KVT8CATUV and KVT16CATUC) provide access over the KVM tray plus a KVM extension port that enables a second KVM console to access the switch from 300m away using standard CATx cabling and a CATmix extender remote unit.
• The KVMoIP modules enable network users to control the switching module, besides the local tray, from one computer on the LAN or WAN using a VNC client (included) or web browser.
• For high availability order KVT4IP16CATUV, which enables up to four IP sessions to simultaneously access different computers.
• The IP engine supports resolutions up to 1600 x 1200 at 60Hz to ensure there is enough power to allow smooth KVM over IP control.
Control the modules using the OnScreen Display (OSD) menu, pushbuttons, hotkeys or mouse. Expand the system by using the ServSwitch CX UNO. Connect the CX Uno as a satellite using a single CATx cable.
With these switching modules, users can control a serial power switch, enable password security access with user profiles, respond to RS232 switching commands and much more.
KVMoIP modules come with free wizard.net management software, simplifying the access, security, and management systems with larger numbers of computers or users.
Order the modules separately to expand your existing ServView17 with CX switching capabilities or order a ServView17 with build-in CX modules (see solution products below).
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure. On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
| General Information | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVT16CATUV |
| Brand Name | Black Box |
| Product Line | ServView17 |
| Product Series | CX |
| Product Model | KVT16CATUV |
| Product Name | ServView17 CX Switching Module - 1 local or 1 CATx user, 16-Port |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 17 |
| Physical Characteristics | |
| Height | 1.7" |
| Width | 15.7" |
| Depth | 5.2" |
| Weight (Approximate) | 1.98 lb |
| Power Description | |
| Input Voltage Range | 100 - 240 VAC |
| Frequency | 50 Hz, 60 Hz |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 16 |
| Number of Local Users Supported | 1 |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | No |
