SKU
KN2140VA
Category
KVM Switchboxes
Overview

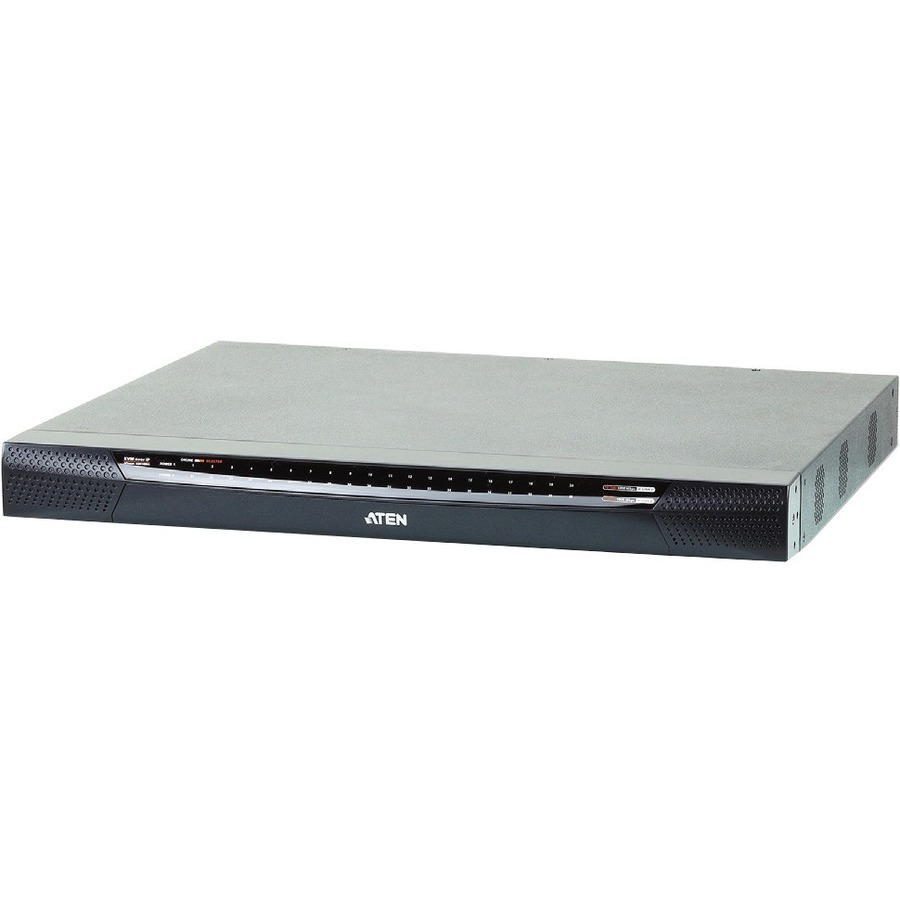

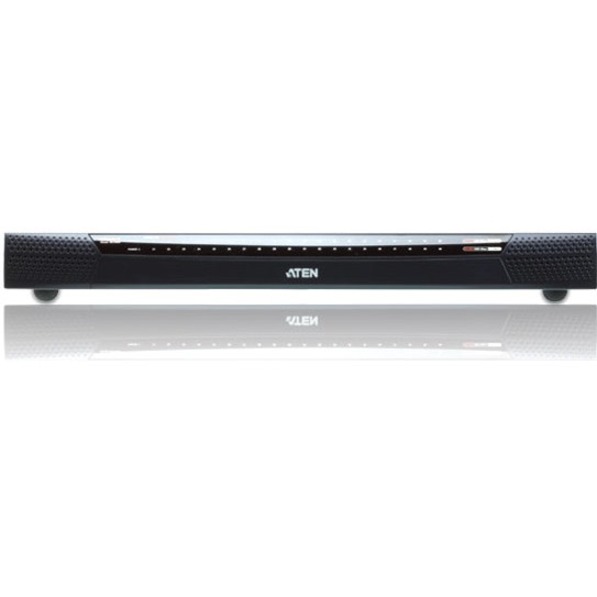

ATEN's 4th generation of KVM over IP switches exceed expectations. The KN2140VA feature superior video quality with HD resolutions up to 1920 x 1200, FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the normal speed.
The KN Series provides a local console and remote over IP access for users to monitor and access their entire data center over a network.
• Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200
With dual on-board NICs and dual power supplies, the KN Series is built for reliability, to ensure 24/7 availability of remote access to all servers.
The KN Series can be integrated into ATEN's CC2000 Management Software. CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world - allowing them to remotely monitor and control all devices on a network, including blade server chassis, individual blades and virtual machines.
Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Mode?, Mouse DynaSync? and the Adapter ID function.
ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere - minimizing travel and Mean Time To Repair (MTTR) costs and ensuring the highest availability for data center services.
Highlights
High-Grade Security - supports FIPS 140-2 level 1 security standards
Advanced FPGA graphics processor with Full HD resolutions up to 1920 x 1200
2x faster virtual media transmission speeds
Simultaneously share one local console and two independent connections to servers

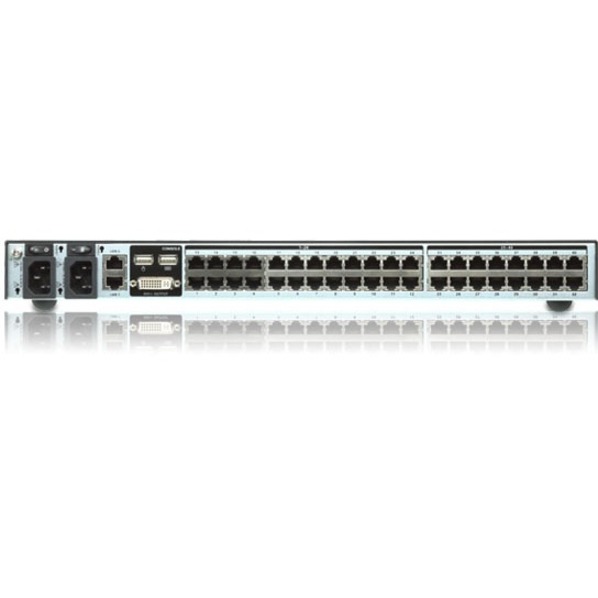

High Port Density - RJ-45 connectors for up to 40 ports in 1U housing
Laptop USB Console (LUC) - a dedicated USB port directly connects to a laptop for easy console operation
Two separate buses for remote KVM over IP access
Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
Blade server support
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Specifications
Package Contents
KN2140VA KVM over IP Switch
2 x Power Cords
1 x Mounting Kit
2 x Lok-U-Plugs
1 x Lok-U-Plug Installation Tool
4 x Foot Pad
1 x User Instructions
Product Type
KVM Switchbox
Manufacturer Part Number
KN2140VA
Packaged Quantity
1
Limited Warranty
3 Year
Weight (Approximate)
12.21 lb
Form Factor
Rack-mountable
Manufacturer
ATEN Technology, Inc
Product Model
KN2140VA
Product Name
KN2140VA KVM over IP Switch
Product Series
KN
Rack Height
1U
Brand Name
ATEN
Country of Origin
Taiwan
Height
1.7"
Width
16.2"
Depth
17.1"
Environmentally Friendly
Yes
Maximum Video Resolution
1920 x 1200
USB
Yes
DVI
Yes
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Number of USB Ports
5
Number of DVI Ports
1
Number of Computers Supported
40
Number of Local Users Supported
1
Number of Remote Users Supported
2
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE)
