ATEN 4-Port USB HDMI Secure KVM Switch (PSD PP v4.0 Compliant)
ATEN Technology

ATEN 4-Port USB HDMI Secure KVM Switch (PSD PP v4.0 Compliant)

4 Computer(s) - 1 Local User(s) - 3840 x 2160 - 50 Hz, 60 Hz - 6 x USB - 5 x HDMI - Rack-mountable

SKU
CS1184H4
Category
KVM Switchboxes

MSRP$649.00

$480.30

Save 26%

In stock: 9

Get a quote

Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CS1184H4
Category
KVM Switchboxes

Overview

ATEN PSD PP v4.0 Secure KVM Switch CS1184H4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1184H4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Secure KVM Switch CS1184H4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1184H4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS). With multi - layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1184H4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

Highlights

  • Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
  • Always-on chassis intrusion detection - renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
  • Tamper-evident labels - provides visual indication of any attempt to access the ATEN PSD PP v4.0 Secure KVM Switch's internal components
  • Non-reprogrammable firmware - prevents reprogramming the ATEN PSD PP v4.0 Secure KVM Switch's firmware
  • Restricted peripheral connectivity - non-authorized HIDs (Human Interface Devices), and video are rejected

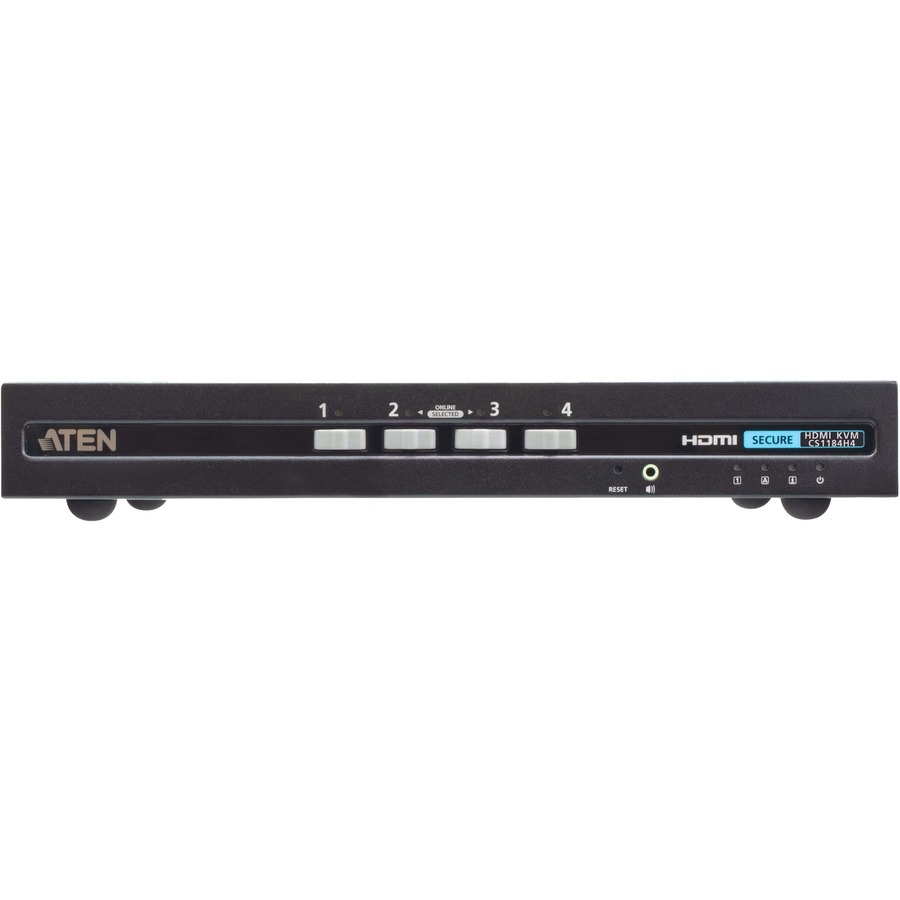

  • Port selection via pushbuttons / Remote Port Selector (RPS) only to enhance security
  • LED indicators for peripheral filtering and KVM security status
  • Strict audio filtration protects against audio leakage.
  • Rugged metal enclosure
  • True data path isolation - data cannot be transferred between computers

Specifications

Package Contents
  • 4-Port USB HDMI Secure KVM Switch (PSD PP v4.0 Compliant)
  • 1 x Power Cord
  • 1 x User Instructions
Product TypeKVM Switchbox
Manufacturer Part NumberCS1184H4
Packaged Quantity1
Limited Warranty3 Year
Weight (Approximate)3.88 lb
FeaturesLED Indicator, Video DynaSync
Form FactorRack-mountable
Frequency50 Hz, 60 Hz
ManufacturerATEN Technology, Inc
Product Name4-Port USB HDMI Secure KVM Switch (PSD PP v4.0 Compliant)
Product LineSecure
Brand NameATEN
Input Voltage Range100-240 V
Height1.7"
Width6.5"
Depth13.2"
Maximum Video Resolution3840 x 2160
USBYes
HDMIYes
Number of HDMI Ports5
Number of USB Ports6
Number of Computers Supported4
Number of Local Users Supported1
