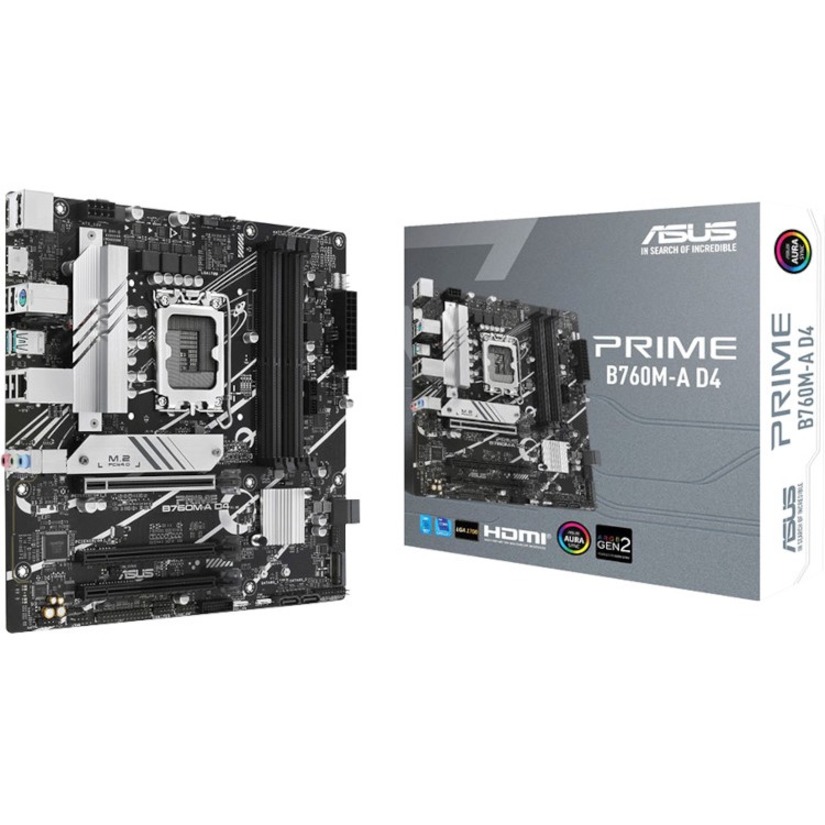

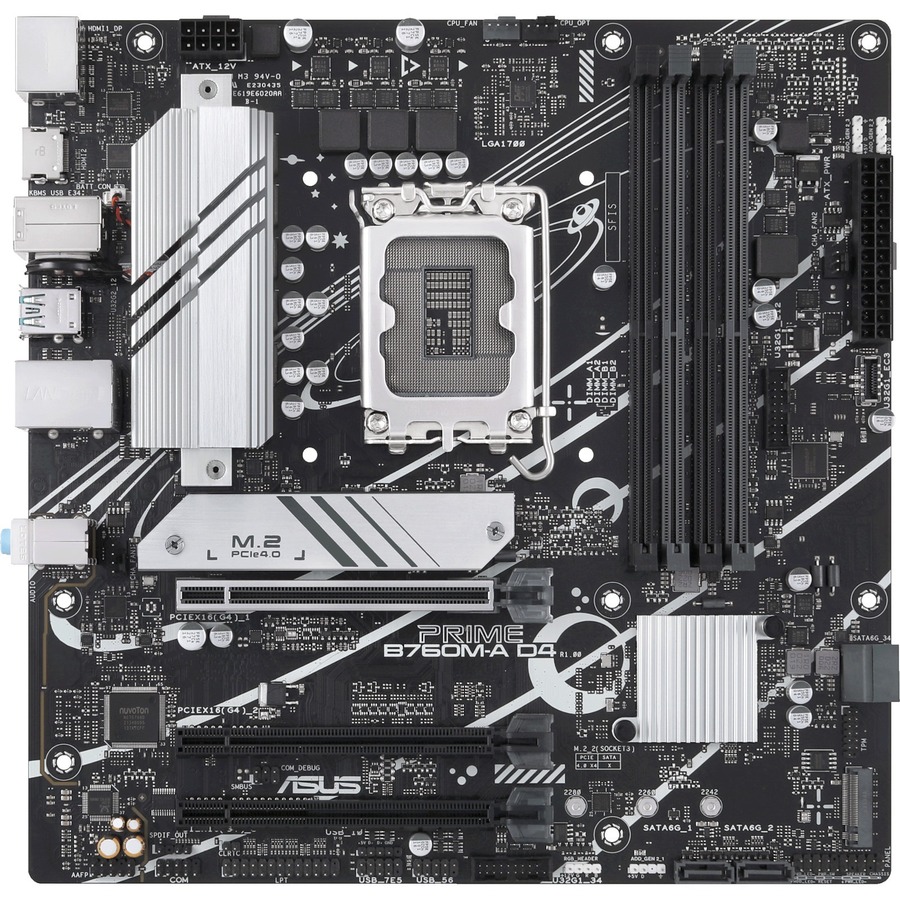

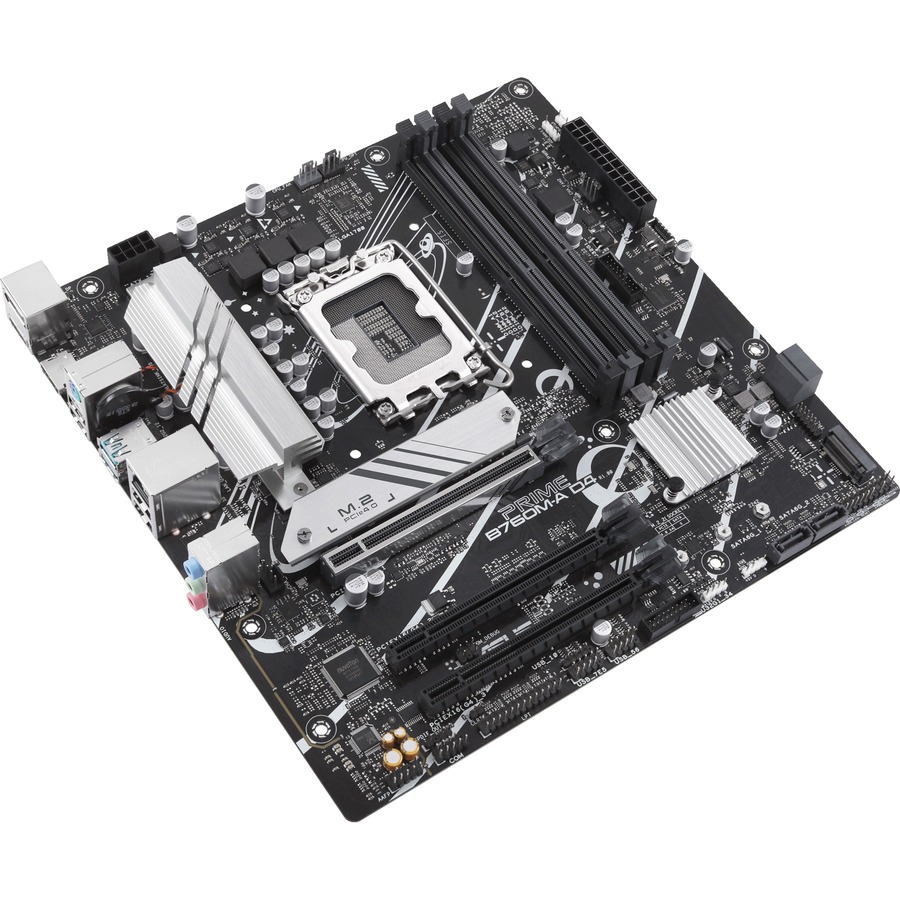

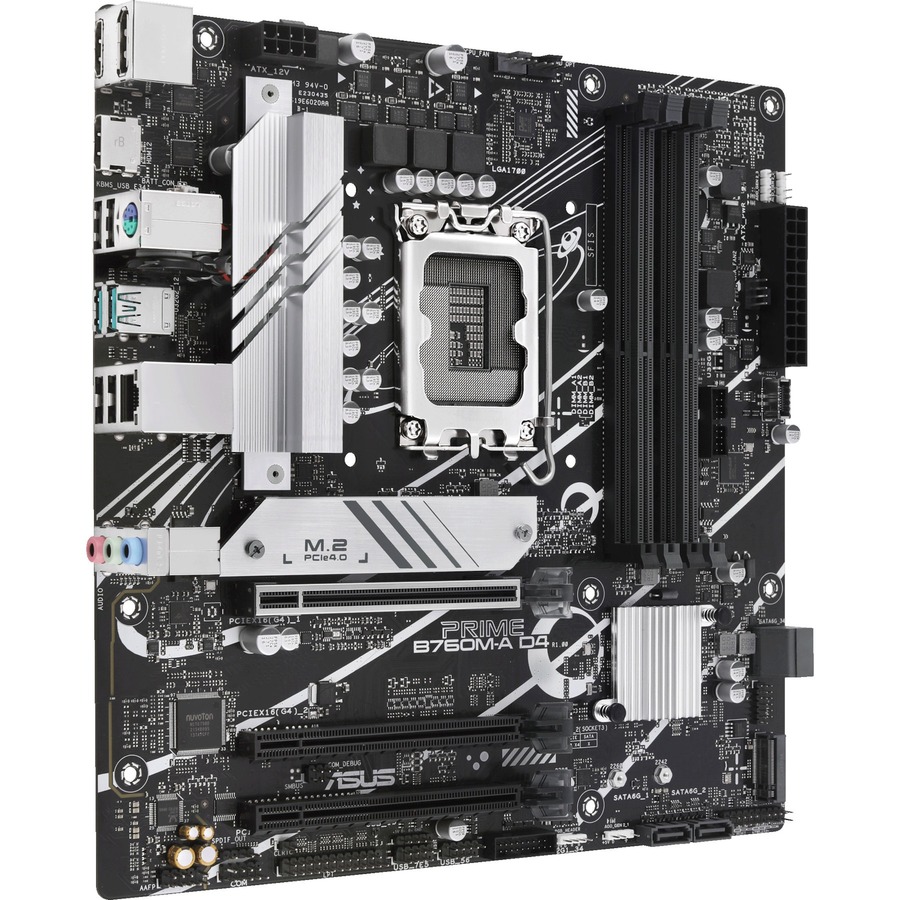

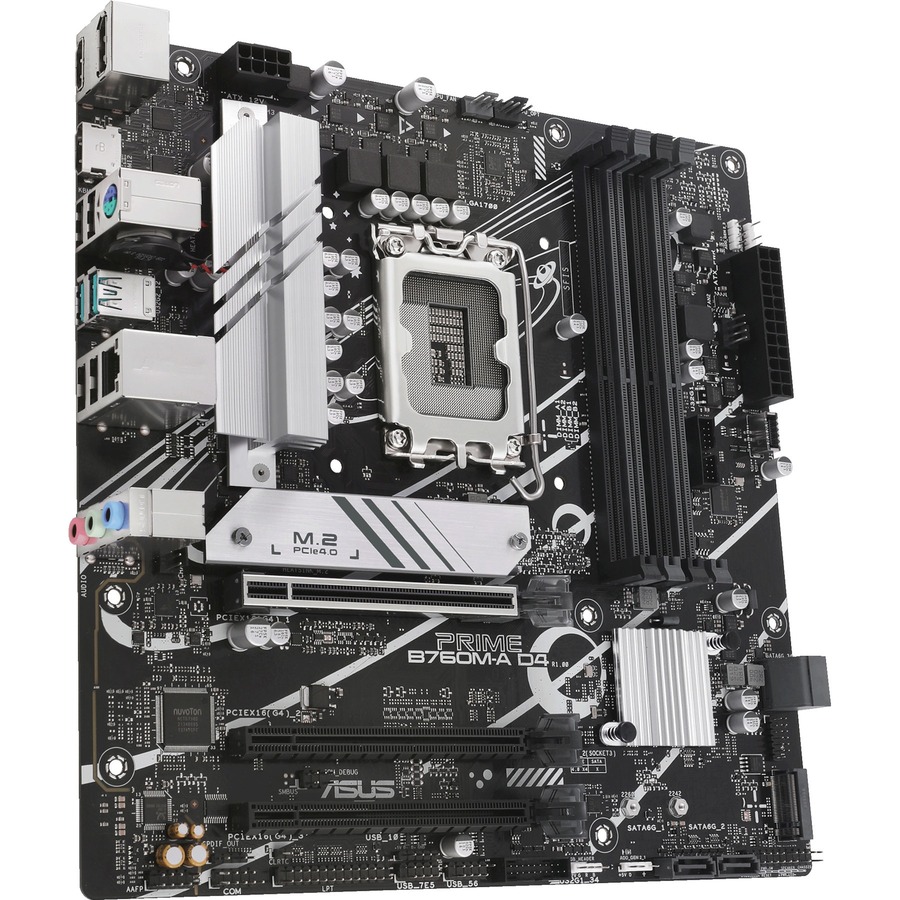

Asus Prime B760M-A D4 Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX
Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
- SKU
- 90MB1D00-M0EAY0
- Category
- Motherboards
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 90MB1D00-M0EAY0
- Category
- Motherboards
Overview
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13 th Gen Intel ® Core? Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
COOLING
PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.
PERFORMANCE
The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13 th Gen Intel ® Core? Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel ® processors. The PRIME B760M-A D4 is geared to cater to the demands of these high-core-count CPUs.
Highlights
- Pentium Gold processors supported for enhanced, dependable system performance with maximum usability
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- RAID supported levels provide data reliability and fault tolerance
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Micro ATX form factor for your accessibility convenience and simplicity of usage for Desktop Motherboard
Specifications
| Product Type | Desktop Motherboard |
|---|---|
| Manufacturer Part Number | 90MB1D00-M0EAY0 |
| Maximum Memory Supported | 128 GB |
| S/PDIF | Yes |
| Form Factor | Micro ATX |
| Manufacturer | ASUS Computer International |
| Product Model | B760M-A D4 |
| Product Name | PRIME B760M-A D4 Desktop Motherboard |
| Processor Supported | Pentium Gold, Celeron, Core |
| Product Line | Prime |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1700 |
| Brand Name | Asus |
| Memory Technology | DDR4 SDRAM |
| Width | 9.6" |
| Depth | 9.6" |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Number of Memory Slots | 4 |
| Audio Channels | 7.1 |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 4 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Total Number of Onboard USB Ports | 10 |
| Number of Onboard USB 2.0 Ports | 5 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 3 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 3 |
| Number of M.2 Interfaces | 2 |
| Memory Speed Supported | 5333 MHz, 5066 MHz, 5000 MHz, 4800 MHz, 4600 MHz, 4400 MHz, 4266 MHz, 4000 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3400 MHz, 3333 MHz, 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| 2.5Gigabit Ethernet | Yes |
| Processor Generation Supported | 12th Gen, 13th Gen |
