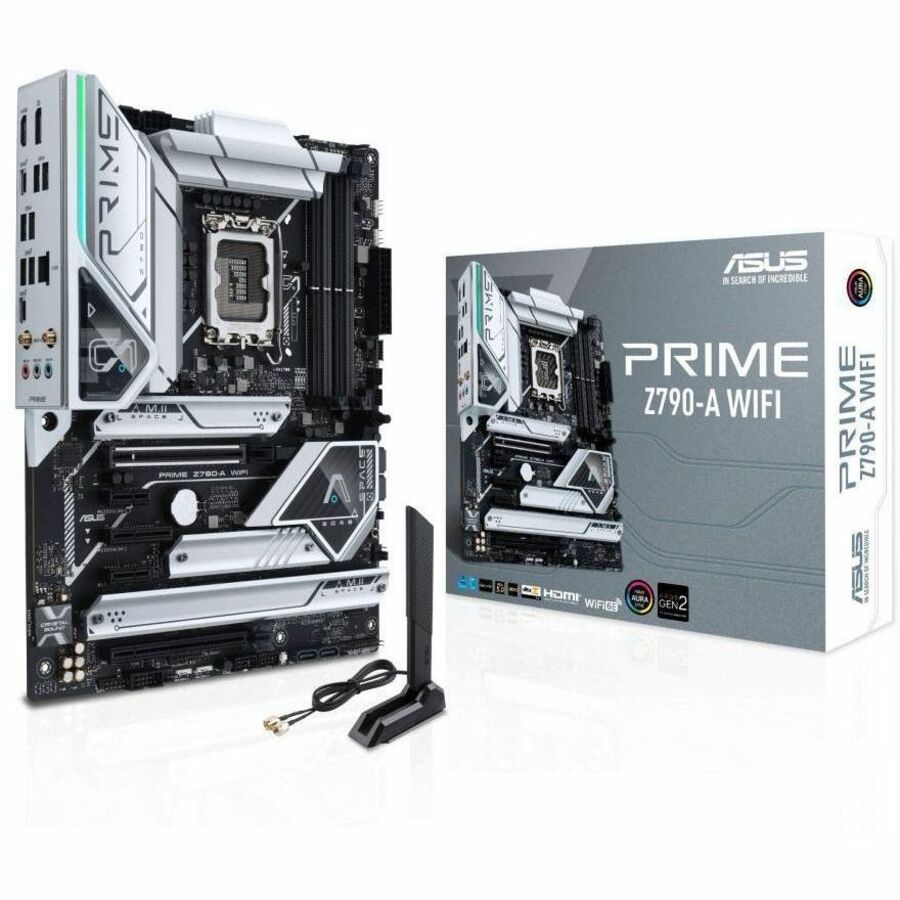

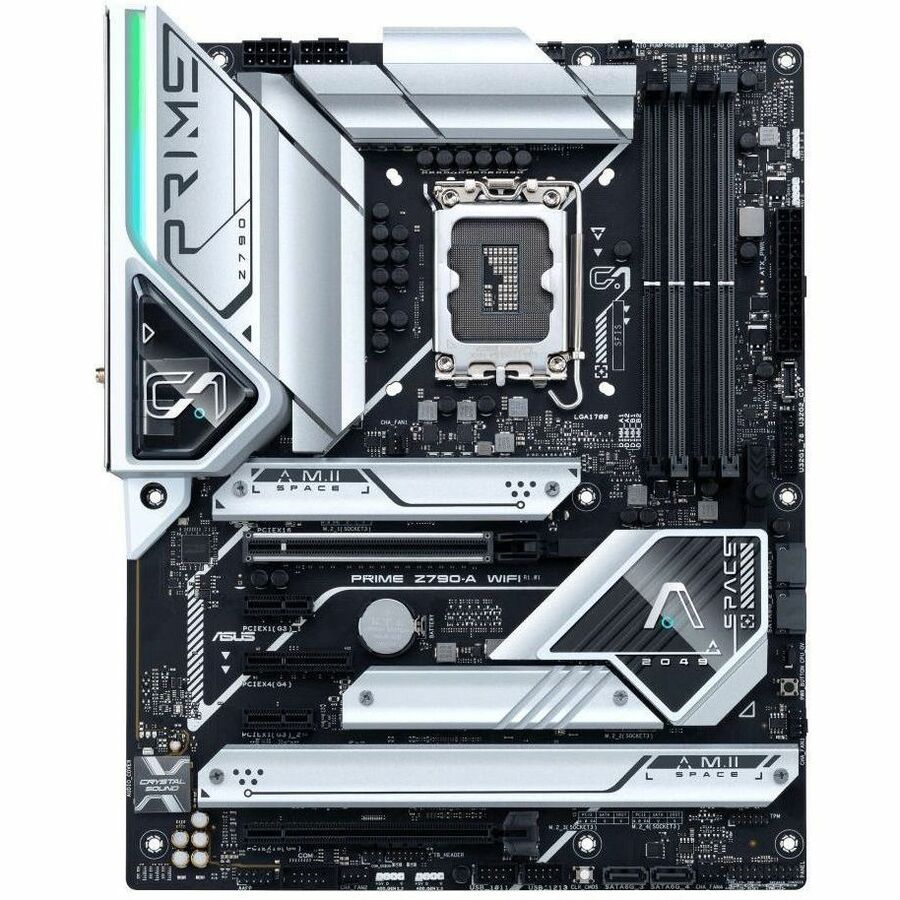

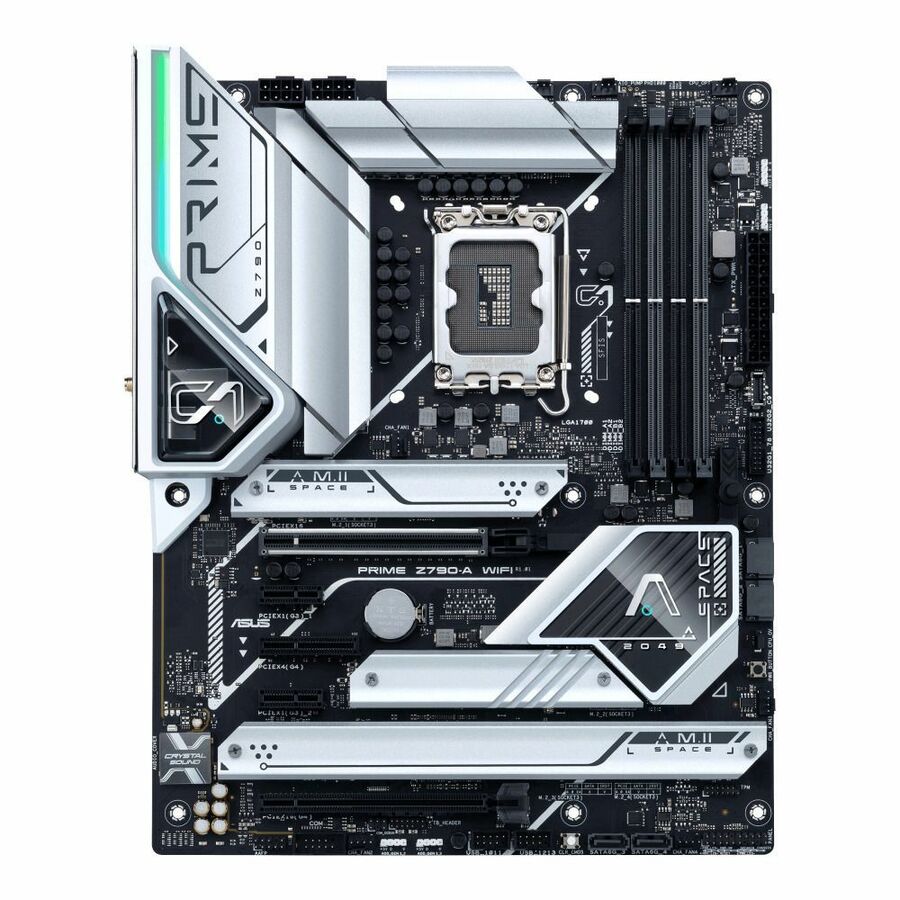

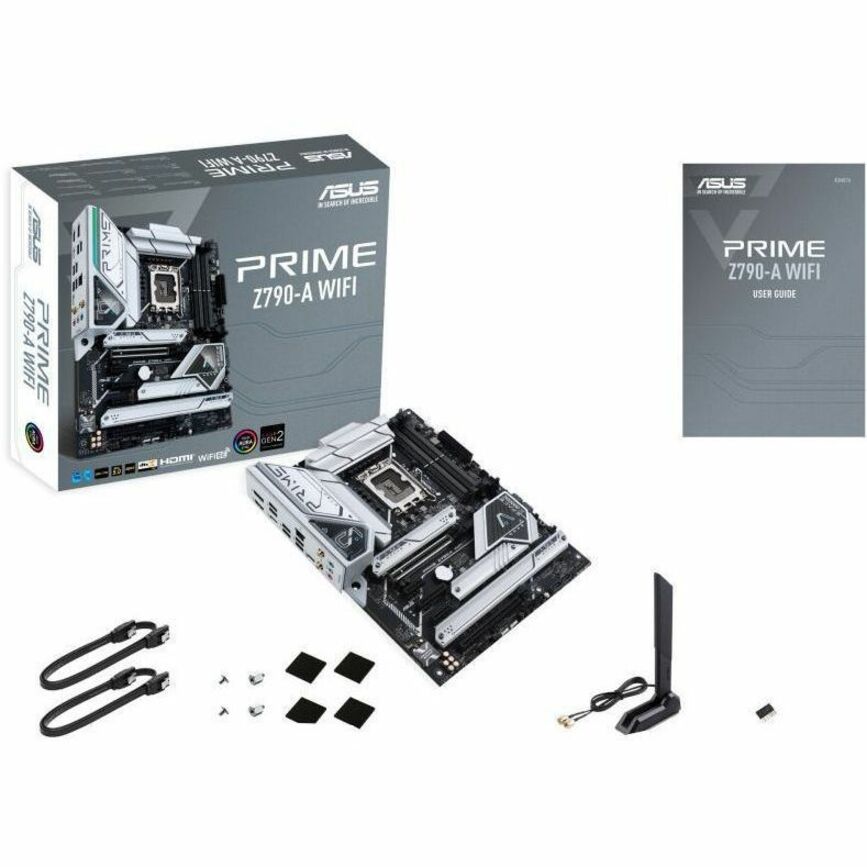

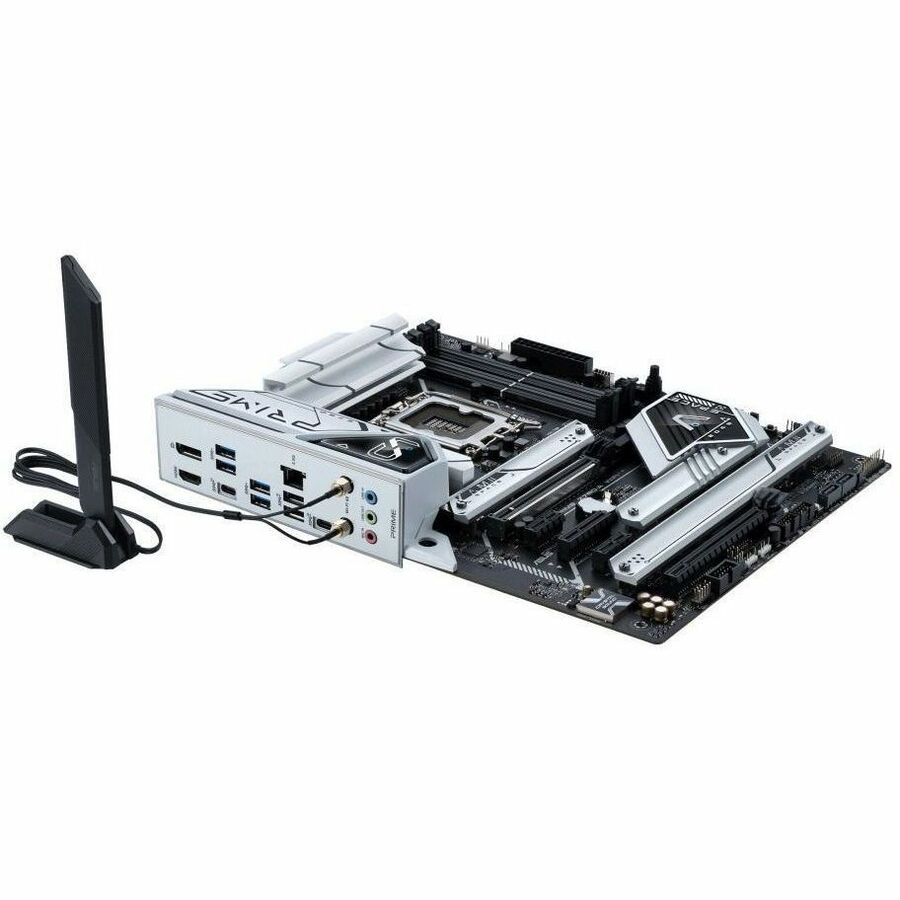

Asus Prime Z790-A WIFI Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX

PRIME Z790-A WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core? Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

The ASUS PRIME Z790-A WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.

16 + 1 Teamed Power Stages (60 A) with Enlarged Heatsinks

Gen 5 Slot for Graphics Card

AEMP II for Ultimate DDR5 Performance

USB 3.2 Gen 2x2 Type-C® & Thunderbolt (USB4®) Support

2.5 Gb Ethernet

Wi-Fi 6E

Intelligent Control

Al Cooling II

Customization

Intel® Socket LGA1700 for 13th Gen Intel® Core? Processors & 12th Gen Intel® Core?, Pentium® Gold and Celeron® Processors

• Expansion Slots

• 1 x PCIe 5.0 x16 SafeSlot

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• 1 x PCIe 4.0 x4 slot

• 2 x PCIe 3.0 x1 slots

• 16 + 1 Teamed Power Stages (60 A)

• 4 x M.2 Slots

• 2 x M.2 22110 (PCIe 4.0 x4 mode)

• 1 x M.2 2280 (PCIe 4.0 x4 mode)

• 1 x M.2 2280 (PCIe 4.0 x4 & SATA mode)

VRM Heatsinks

• All M.2 Slots with Dedicated Heatsinks

• CPU / CPU OPT Fan Headers & AIO Pump Header

Chipset Heatsinks

• 4x Chassis Fan Headers

Aura Sync Shroud RGB LED | Crystal Sound 3

• Realtek S1220A 7.1 Codec

• DTS:X® Ultra

• Two-Way AI Noise-Cancellation

1 x 4-pin Aura RGB Header

1 x 3-pin Aura Addressable Gen 2 RGB Header

2 x 3-pin Aura Addressable Gen 2 RGB Headers

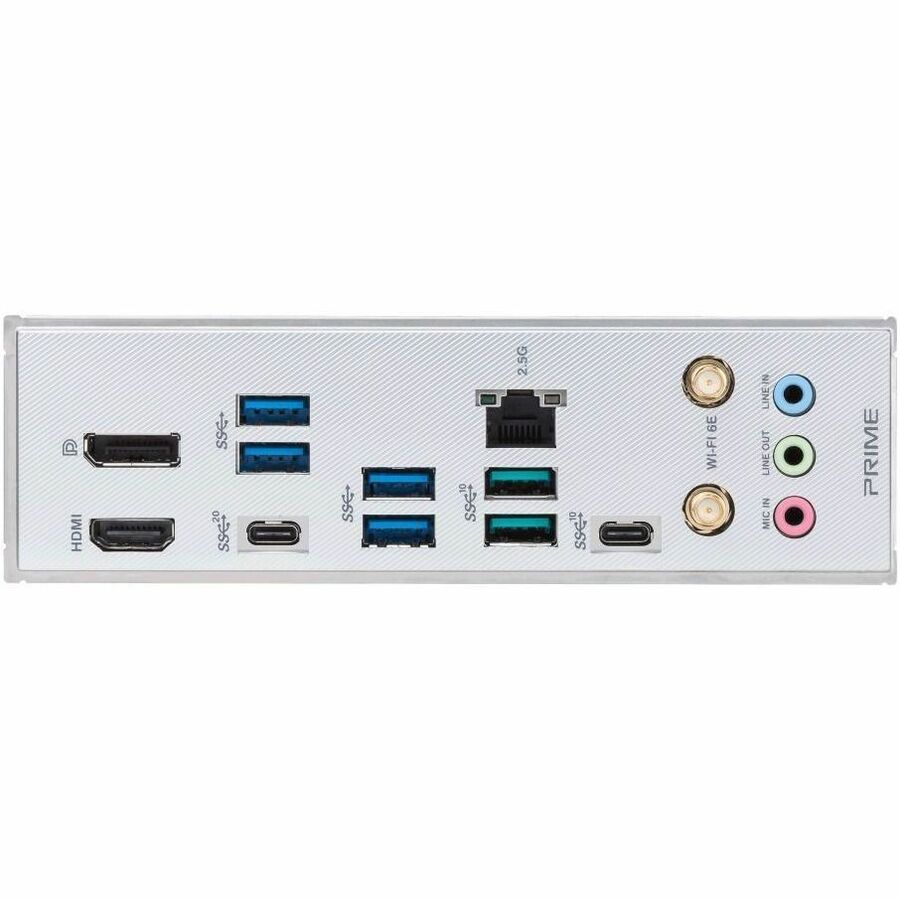

• DisplayPort

• HDMI®

• 1 x USB 3.2 Gen 2x2 Type-C®

• 4 x USB 3.2 Gen 1 ports (4 x Type-A)

• Intel® 2.5Gb Ethernet

• 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®)

• WI-FI 6E

• 3 x Audio Jacks

• 1 x Front USB 3.2 Gen 2 Type-C®

• 11 x Front USB 3.2 Gen 1 Header

• 1 x Thunderbolt? (USB4®) Header

• 2 Front USB 2.0 headers

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-A WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

AI Cooling ll

AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Mode Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it
