Asus ROG Strix STRIX Z790-I GAMING WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Mini ITX
Core, Pentium Gold, Celeron Processor Supported - 96 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 2 x SATA Interfaces
- SKU
- 90MB1CM0-M0AAY0
- Category
- Motherboards
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 90MB1CM0-M0AAY0
- Category
- Motherboards
Overview

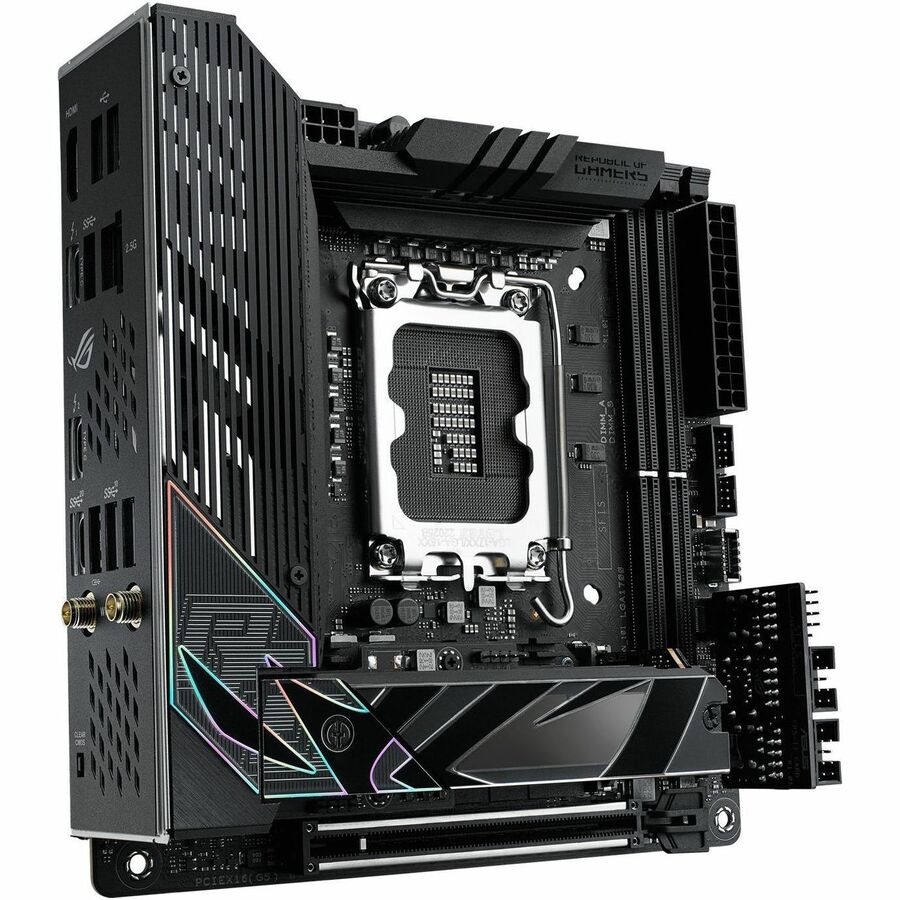

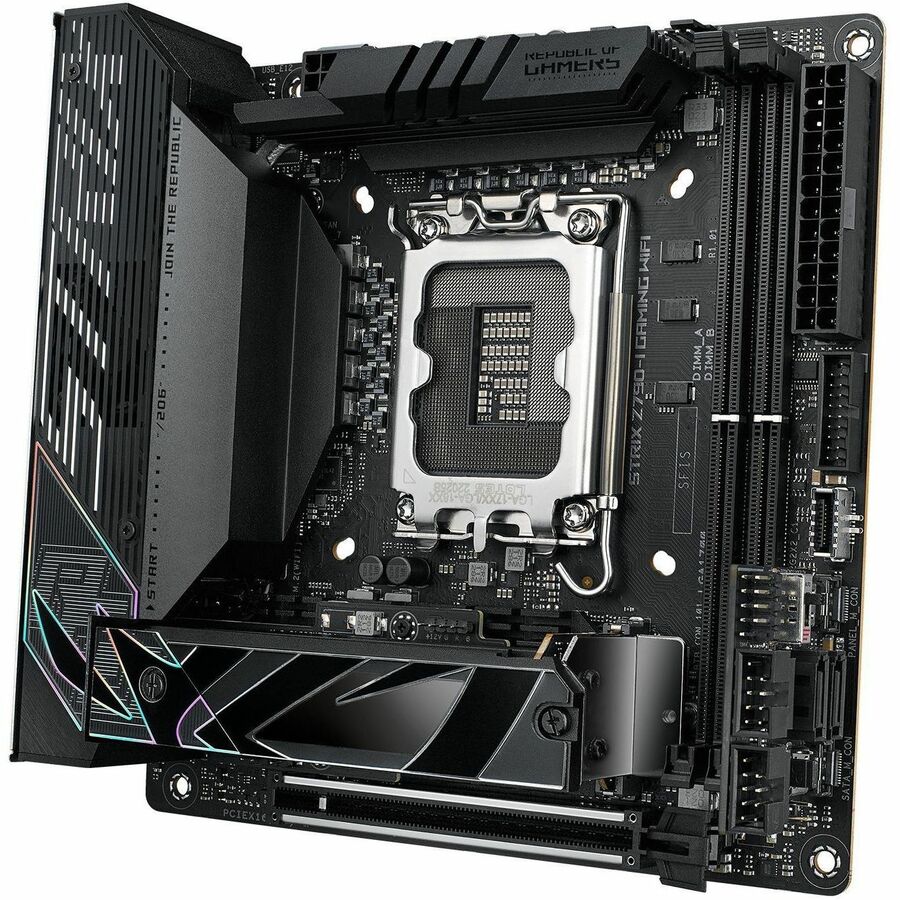

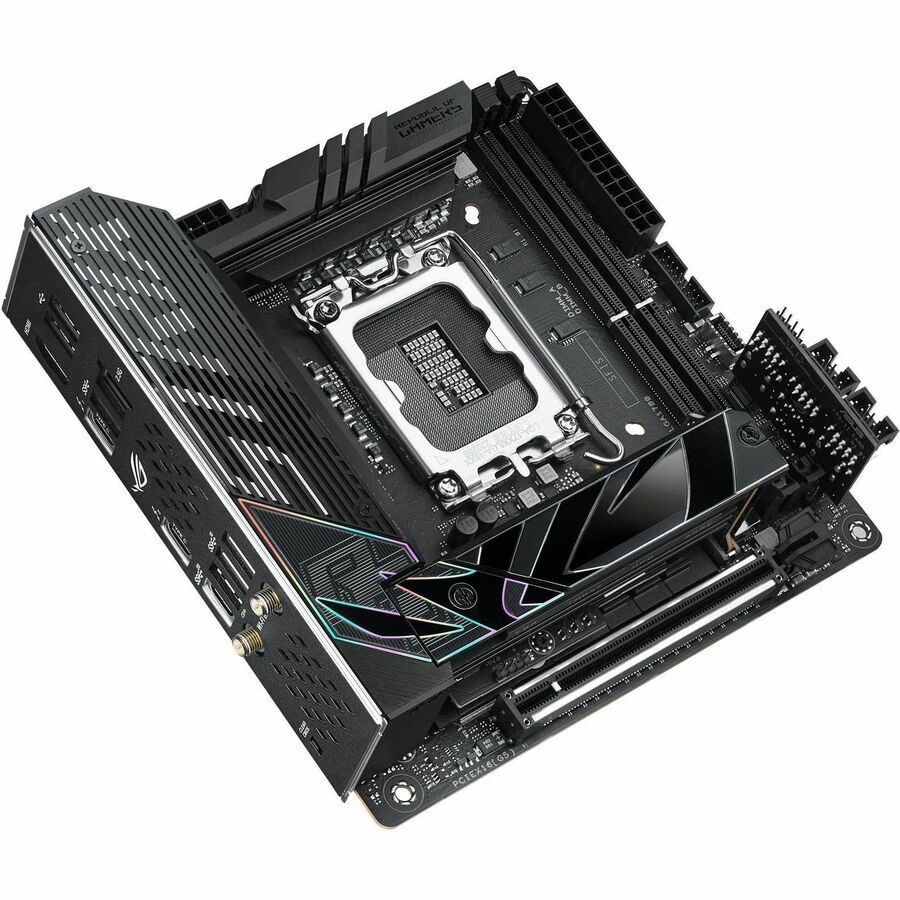

ROG STRIX Z790-I GAMING WIFI
Rules are made to be broken. Smashing the conventions of what a mini-ITX motherboard can do, the ROG Strix Z790-I's power delivery rivals that of full-scale titans and its stacked thermal array is more than a match for multi-core behemoths. It also expands the boundaries of connectivity, with the innovative ROG Hive, a hybrid audio and USB hub with an added twist - an AI Overclocking button makes tuning so easy, it feels like cheating.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
LEADING CONNECTIVITY
The ATX experience thoughtfully scaled into mini-ITX: grace your desktop with the ROG Strix Hive for superb audio and control, build easier with the ROG FPS-II card, and make faster connections with the latest Thunderbolt and WiFi support.

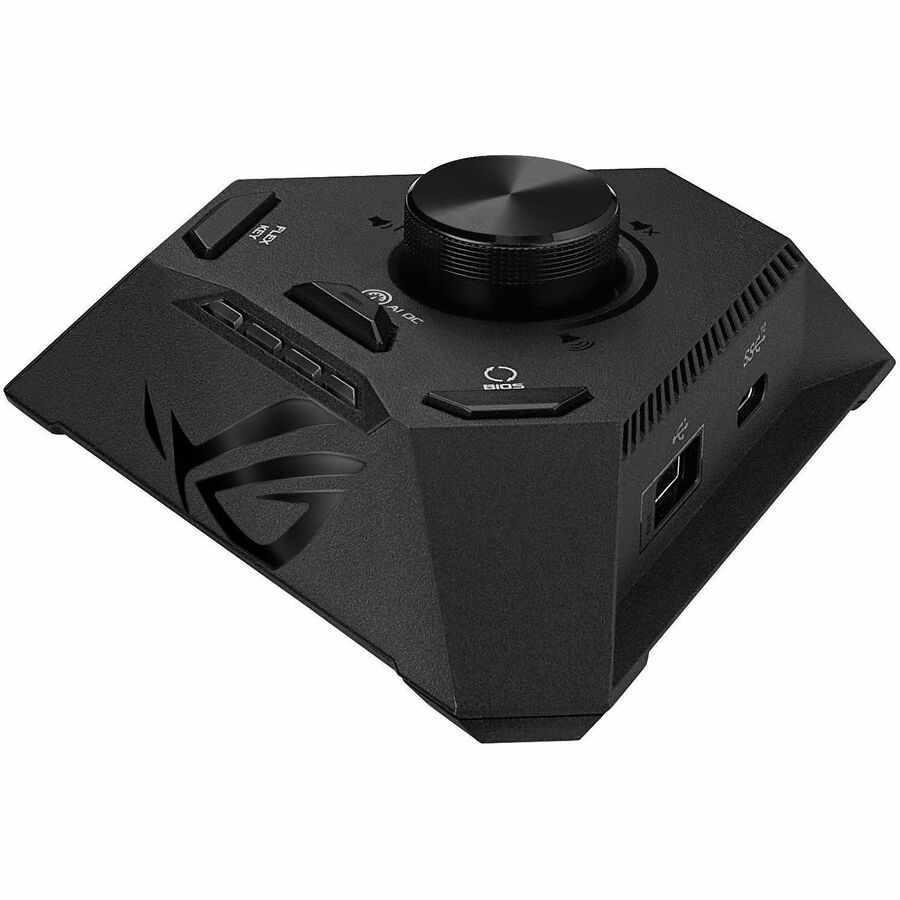

ROG STRIX HIVE
The all-new ROG Strix Hive brings critical controls and I/O within arm's reach, moving them from the cramped quarters of an SFF chassis to a compact peripheral that sits on the desktop. DIY-friendly buttons and diagnostic LEDs are brought front and center along with a large volume dial. On the sides, a varied group of I/O ports handle audio input and output and provide convenient connectivity for grab-and-go peripherals.
PLAY IN STYLE
The black shrouds and gentle accents of the Strix Z790-I make it a solid foundation for nearly any rig, especially when coordinated with the vast range of offerings in the ROG ecosystem.
UNDENIABLY ROG STRIX
Linear vents and subtle grid-like textures give the Strix Z790-I a stealthy form that blends in the shadows of most SFF builds. But if a little lighting hits the side of its M.2 shroud, its true colors show in the form of a prismatic sheen glinting off of the highly-reflective aluminum that outlines the embossed ROG logo.
SOFTWARE UTILITIES
ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.
AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Highlights
- Intel LGA 1700 socket:
- Ready for 13<sup>th</sup>Gen Intel Core processors & 12<sup>th </sup>Gen Intel Core, Pentium Gold and Celeron Processors
- SFF Innovations:
- ROG Strix Hive moves OC controls and connectivity to the desktop while allowing for a larger audio solution, and the ROG FPS-II Card vertically mounts USB and SATA ports for a better building experience
- Robust Power Solution:
- 10 + 1 power solution rated for 105A per stage with ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
- Optimized VRM Thermals:
- Thick heatsinks with integrated I/O cover high-conductivity thermal pads, and connected with an L-shaped heatpipe
- Multi-Layer M.2 Stack:
- Both a PCIe 5.0 M.2 slot and a PCIe 4.0 M.2 are sandwiched between thick heatsinks in a space-saving and thermally-efficient array
- Abundant Connectivity:
- Two Thunderbolt 4 ports, USB 3.2 Gen 2x2 Type-C rear I/O port and front-panel connector, four additional USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, and HDMI<sup>®</sup>2.1
- High-Performance Networking:
- On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Intelligent Control:
- ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- Immersive Gaming Audio:
- ALC4050 with ESS SABRE 9260Q DAC, along with DTS Sound Unbound and Sonic Studio III
- Unmatched Personalization:
- ASUS-exclusive Aura Sync RGB lighting, including one RGB header and one addressable Gen 2 headers
- DIY Friendly Design:
- AI Overclocking button, M.2 Q-Latch, Pre-mounted I/O shield, FlexKey button, BIOS FlashBack button, and Clear CMOS button
- Renowned Software:
- Bundled 60-day AIDA64 Extreme free trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Specifications

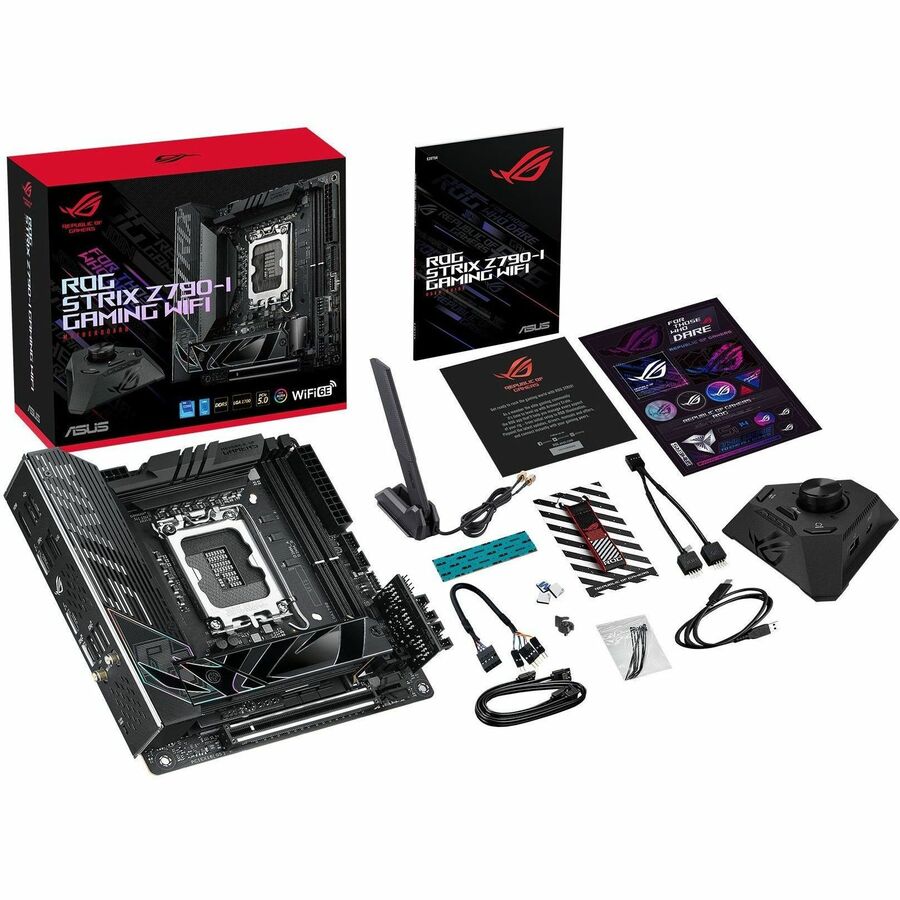

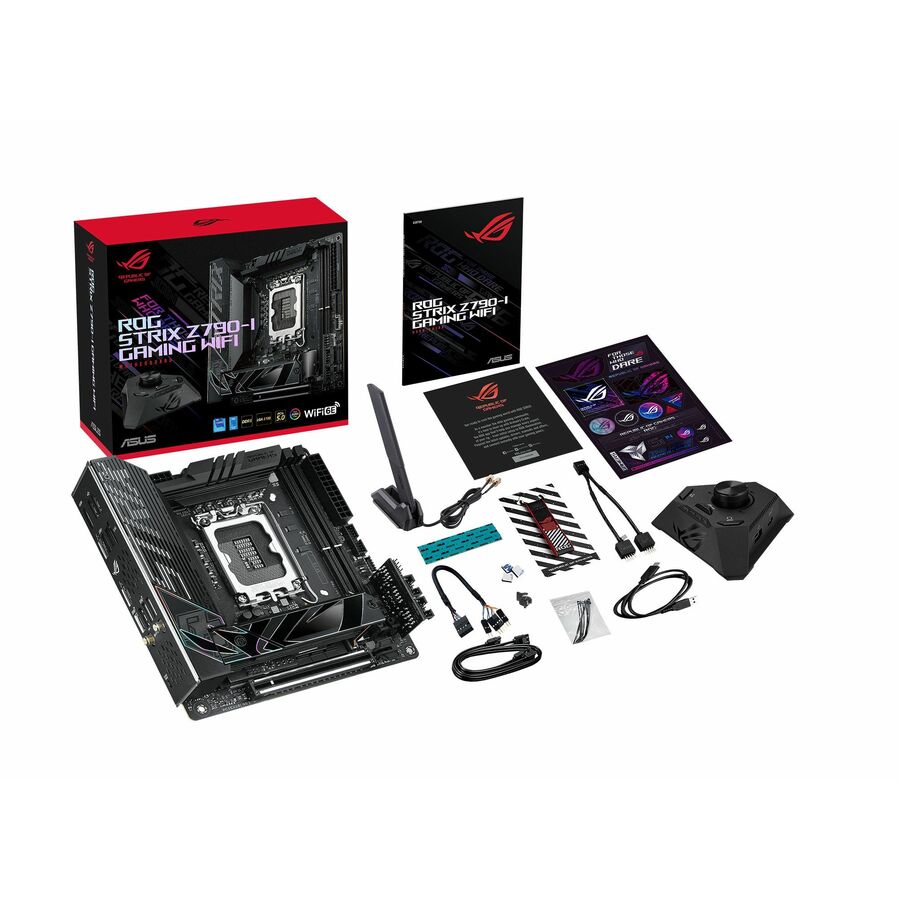

| Package Contents |
|
|---|---|
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | 90MB1CM0-M0AAY0 |
| Maximum Memory Supported | 96 GB |
| S/PDIF | Yes |
| Form Factor | Mini ITX |
| Manufacturer | ASUS Computer International |
| Product Model | STRIX Z790-I GAMING WIFI |
| Product Name | STRIX Z790-I GAMING WIFI Gaming Desktop Motherboard |
| Processor Supported | Core, Pentium Gold, Celeron |
| Product Line | Strix |
| RAID Levels | 0, 1 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1700 |
| Brand Name | Asus ROG |
| Memory Technology | DDR5 SDRAM |
| Width | 6.7" |
| Depth | 6.7" |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Number of Memory Slots | 2 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 2 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5.3 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 1 |
| HDMI | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 2 |
| Total Number of Onboard USB Ports | 3 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 1 |
| Thunderbolt | Yes |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 1 |
| Number of M.2 Interfaces | 2 |
| Memory Speed Supported | 7000 MHz, 6800 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5800 MHz, 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz, 7600 MHz, 7400 MHz, 7200 MHz |
| Number of USB 3.2 Gen 1 Type-A Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| 2.5Gigabit Ethernet | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Processor Generation Supported | 13th Gen, 12th Gen, 14th Gen |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| AI-powered | Yes |
