Allied Telesis MWS2533AP IEEE 802.11ac 2.30 Gbit/s Wireless Access Point
Allied Telesis

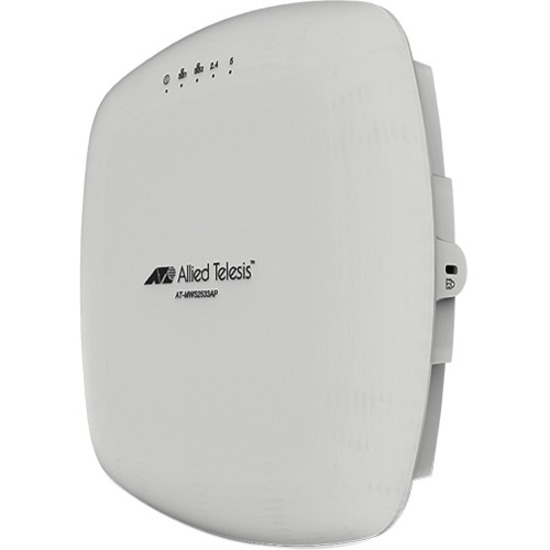

Allied Telesis MWS2533AP IEEE 802.11ac 2.30 Gbit/s Wireless Access Point

2.40 GHz, 5 GHz - MIMO Technology - 2 x Network (RJ-45) - Wall Mountable, Ceiling Mountable

SKU
AT-MWS2533AP-01
Category
Wireless Access Points/Bridges

MSRP$767.00

$639.48

Save 17%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Allied Telesis through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
AT-MWS2533AP-01
Category
Wireless Access Points/Bridges

Overview

The MWS Series wireless APs support IEEE802.11a/b/g/n or IEEE802.11a/b/g/n/ac. Dual-band support utilizes the 2.4GHz and 5.0GHz frequencies at the same time.

The MWS Series is equipped with advanced encryption and authentication IEEE 802.11i capabilities. These APs protect WLANs by segmenting public and private access with multiple Service Set Identifications (SSIDs) and VLAN Tagging. Rogue AP detection prevents unauthorized entry to the wireless network.

MWS600AP supports two IEEE802.11n spatial streams, with throughput of 300Mbps in the 2.4GHz band and 300Mbps in the 5GHz band.

MWS1750AP supports three IEEE 802.11n/ac spatial streams, with throughput of 450Mbps in the 2.4GHz band and1.3Gbps in the 5GHz band.

MWS2533AP supports four IEEE 802.11n/ac spatial streams, with throughput of 600Mbps in the 2.4GHz band and 1.7Gbps in the 5GHz band.

Key Features

IEEE802.11ac/11n

• MWS2533AP supports 4x4 MIMO of IEEE802.11ac wave2

• MWS1750AP supports 3x3 MIMO of IEEE802.11ac

• MWS600AP supports 2x2 MIMO of IEEE802.11n

Band Steering

• The MWS Series prioritizes connection to the 5GHZ band wherever possible, to minimize interference with the busy 2.4GHZ band.

Scheduling

• It is possible to activate/deactivate SSIDs and restart APs with automatic scheduling.

Fast Handover

• Clients connecting to an AP where signal strength is low can be forcibly handed over to an AP with a stronger signal.

Graphical User Interface

• The Web-based user interface is user-friendly and intuitive, minimizing training needs.

Highlights

  • Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
  • 2.30 Gbit/s wireless transmission speed is ideal for fast data transfer with maximum reliability
  • Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11ac technology and speeds up to 2.30 Gbit/s
  • Gigabit Ethernet port for ultra-fast wired network speeds
  • Wall Mountable form factor for your usage convenience and better reliance

Specifications

Product TypeWireless Access Point
Manufacturer Part NumberAT-MWS2533AP-01
Weight (Approximate)3.53 lb
Form FactorWall Mountable, Ceiling Mountable
ManufacturerAllied Telesis, Inc
Product ModelMWS2533AP
Product NameMWS2533AP Wireless Access Point
Product SeriesMWS
Wireless Transmission Speed2.30 Gbit/s
Brand NameAllied Telesis
Height2.2"
Width8.5"
Depth8.5"
Frequency Band2.40 GHz, 5 GHz
Environmentally FriendlyYes
Wireless LAN StandardIEEE 802.11ac
Ethernet TechnologyGigabit Ethernet
HDMINo
VGANo
Number of Network (RJ-45) Ports2
PowerlineNo
MIMO TechnologyYes
PoE PD PortYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
