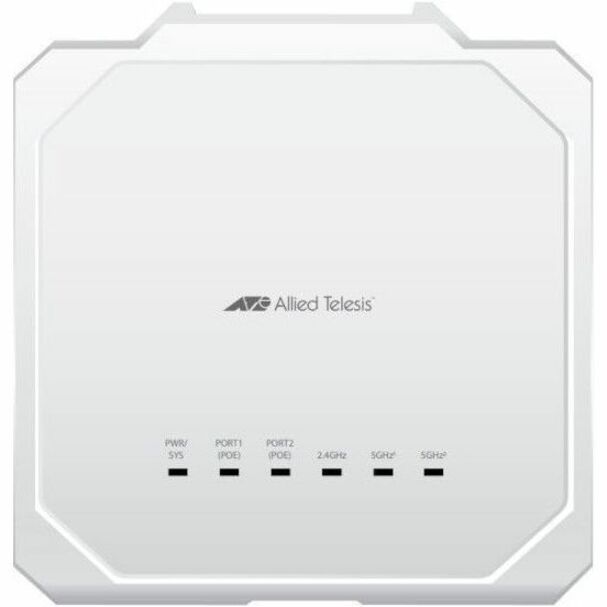

Allied Telesis TQ6403 GEN2 Tri Band Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax/k/v/r 2.40 Gbit/s Wireless Access Point

The TQ6403 GEN2 Wi-Fi 6 AP supports multi-channel, single-channel (Channel Blanket) and hybrid operation (the simultaneous use of multi-channel and Channel Blanket). This combines maximum performance and seamless roaming in a flexible wireless solution, and provides the best possible user experience.

The TQ6403 GEN2 has one 2x2 2.4GHz and two 2x2 5GHz radios, delivering a raw capacity of up to 2.4 Gigabits, for effective and efficient operation with superior performance.

The power and efficiency of Wi-Fi 6, and Allied Telesis smart hybrid technologies, enable a wireless MultiDimensional Exchange (MDX). This allows user devices to be managed and tracked as they move not only around the building floor, but between floors too. The innovative MDX wireless solution enables user device tracking in real-time as well as historically for security and auditing purposes - and also supports restoring the wireless network to a past operational configuration if required.

The TQ6403 GEN2 supports MultiUser Multiple Input and Multiple Output (MU-MIMO), allowing multiple clients to send and receive data at the same time, substantially increasing throughput. A comprehensive feature set provides a superior solution for Enterprise businesses.

Flexible deployment options include desktop use, and wall or ceiling mounting. Power can be supplied by Power over Ethernet, or by an optional AC power adapter.

Key Features | Flexible Management

• The TQ6403 GEN2 can be managed in standalone mode using an intuitive web-based interface.

• Autonomous Wave Control (AWC) provide centralized management, and regularly analyses the wireless network, automatically optimizing AP settings to reduce interference and minimize coverage gaps-all with no user intervention.

• AWC wireless management is available on our Vista Manager EX network management platform, and from Vista Manager mini running on a number of switch and firewall products.

Channel Blanket Hybrid Operation

• The TQ6403 GEN2 supports operation in multichannel, single-channel (Channel Blanket) and hybrid (multi-channel and Channel Blanket) modes, for the most flexible wireless solution available.

• Multi-channel operation provides maximum throughput for high-bandwidth clients, while Channel Blanket operation supports seamless roaming for dynamic environments like warehouses and hospitals, as all APs appear as a single virtual AP.

• Hybrid mode combines the best of both architectures, enabling an innovative wireless solution that maximizes performance for a superior user experience.

• The high throughput of Wi-Fi 6 further increases the performance wireless networks, and with AWC Channel Blanket, the TQ6403 GEN2 can combine their radio signals to create a powerful single virtual AP environment for user devices.

Captive Portal

• Manage user access to the Wi-Fi network with captive portal. New users are taken to a login page to authenticate before gaining access to any online resources and applications.
