Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ADD-MCC10GRJLC-SR-SK
Category
Transceivers/Media Converters
Overview

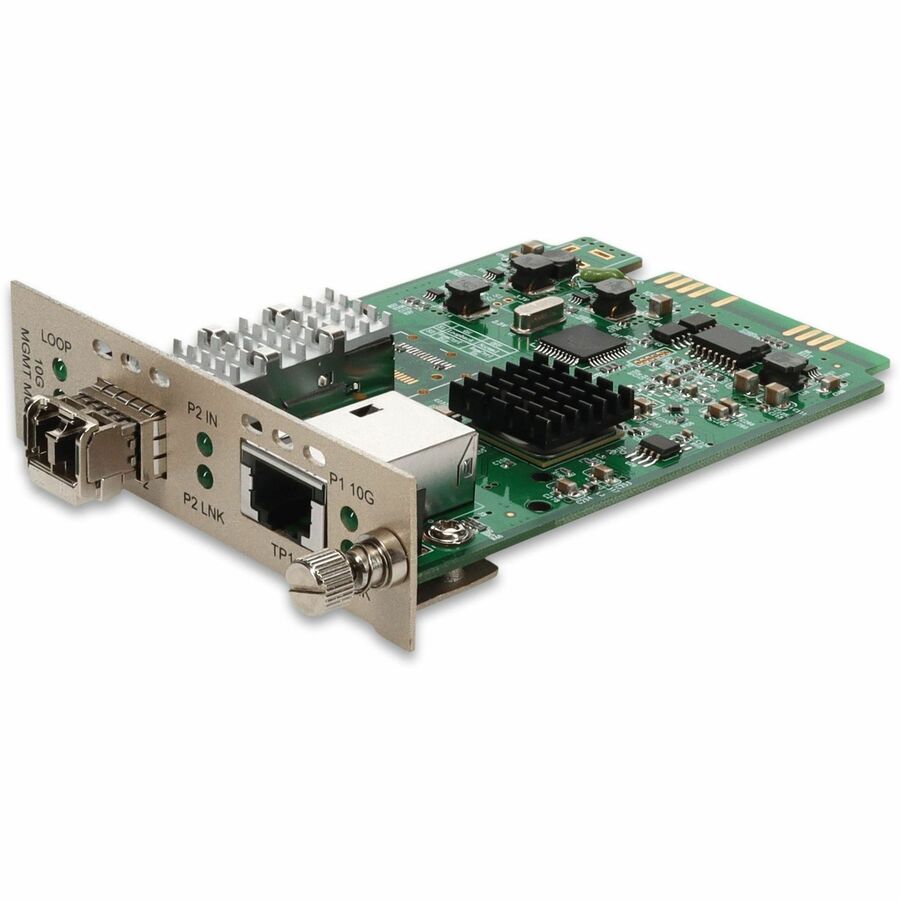

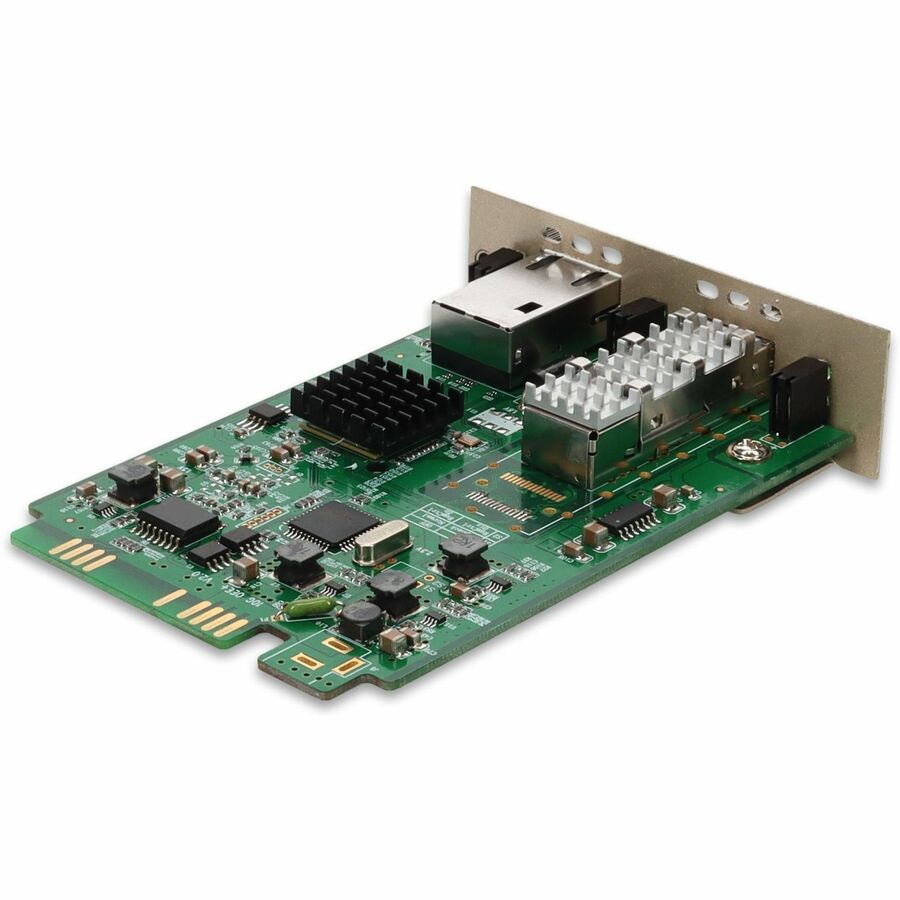

This is a standalone media converter card kit that converts 10GBase-T RJ-45 to 10GBase-SR(LC) 850nm 300m. It includes the a media converter card and enclosure. The open SFP+ port also allows users to customize between the SR, LR, CWDM, DWDM, bidirectional, or etc. connections. It provides a cost effective conversion from 10GBase copper RJ-45 & SFP+, while extending your network reach beyond the 100m reach limitation of copper. This standalone media converter can also be used (without the enclosure) and housed in the rack's system for plug and play rack mount support. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Highlights
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Expand your network capabilities with this 2 transceiver/media converter
With 10GBase-T technology get up to 10Gbps data transfer rate over twisted pair cable
The unit is standalone and you can place it anywhere on a flat surface
Specifications
Package Contents
10GBase-T RJ-45 to 10GBase-SR(LC) 850nm 300m Standalone Media Converter Card Kit
1x enclosure
Product Type
Transceiver/Media Converter
Manufacturer Part Number
ADD-MCC10GRJLC-SR-SK
Maximum Distance Supported
0.30 km
Packaged Quantity
1
Power Source
AC
Limited Warranty
3 Year
Weight (Approximate)
6.30 lb
Form Factor
Standalone, Rack-mountable
Manufacturer
AddOn
Product Name
10GBase-T RJ-45 to 10GBase-SR(LC) 850nm 300m Standalone Media Converter Card Kit
Network Technology
10GBase-T, 10GBase-SR
Brand Name
AddOn
Country of Origin
China
Height
5.5"
Width
4.5"
Depth
1.8"
Maximum Data Transfer Rate
10 Gbit/s
Ethernet Technology
10 Gigabit Ethernet
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of LC Ports
1
Media Type Supported
Twisted Pair, Optical Fiber
Fiber Mode Supported
Single-mode, Multi-mode
Total Number of Ports
2
TAA Compliant
No
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
