Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ADD-FMCMN-LX-2ST
Category
Transceivers/Media Converters
Overview

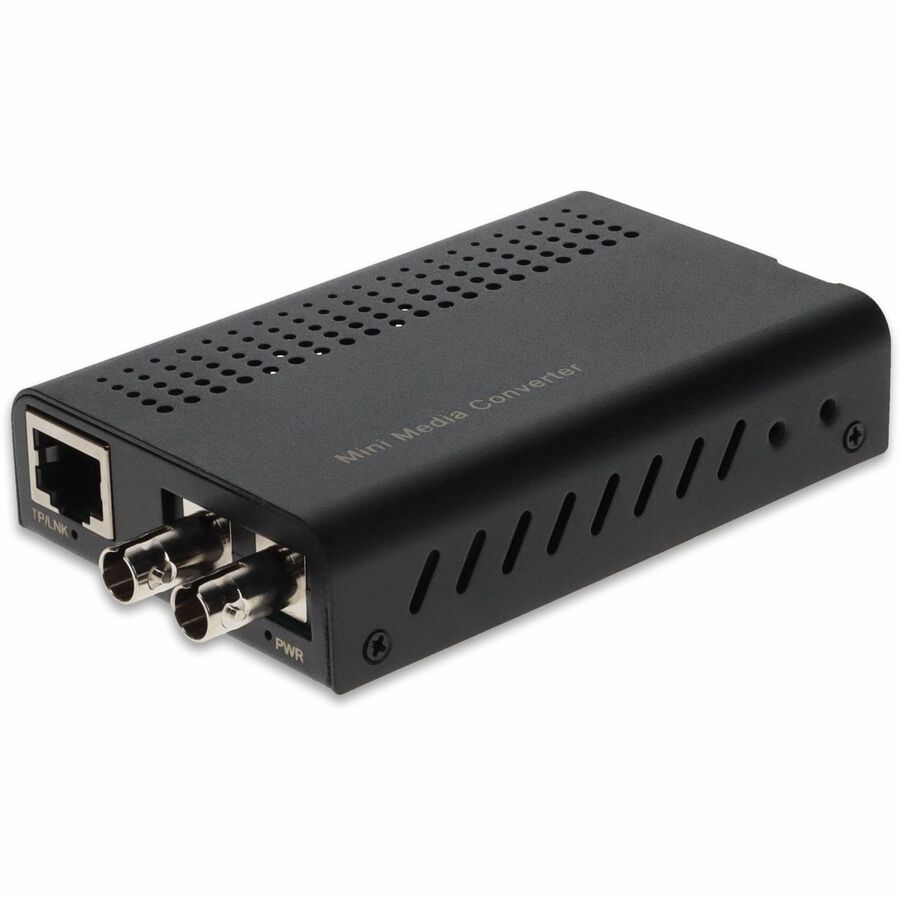

This is a mini media converter that converts a 10/100Base-TX(RJ-45) to 100Base-LX(ST) via a 1310nm single-mode fiber (SMF) ST connector, which allows distance reach up to 20km. This provides a cost effective conversion from 10/100Base-TX(RJ-45) to 100Base-LX fiber, while extending the network reach beyond the 100m reach limitation of copper and saving space (3.75" x 2.25" x 1"). Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Highlights
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
Specifications
Product Type
Transceiver/Media Converter
Manufacturer Part Number
ADD-FMCMN-LX-2ST
Maximum Distance Supported
20 km
Packaged Quantity
1
Power Source
AC/DC
Limited Warranty
3 Year
Weight (Approximate)
8 oz
Manufacturer
AddOn
Product Name
10/100Base-TX(RJ-45) to 100Base-LX(ST) SMF 1310nm 20km Mini Media Converter
Network Technology
10/100Base-TX, 100Base-LX
Brand Name
AddOn
Country of Origin
China
Height
3.8"
Width
2.3"
Depth
1"
Maximum Data Transfer Rate
100 Mbit/s
Ethernet Technology
Fast Ethernet
USB
No
DVI
No
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Management Port
No
Number of ST Ports
1
Media Type Supported
Twisted Pair, Optical Fiber
Fiber Mode Supported
Single-mode
Total Number of Ports
2
TAA Compliant
No
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
