Genuine Taoglas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
TLS.01.1F21
Category
Antennas
Overview

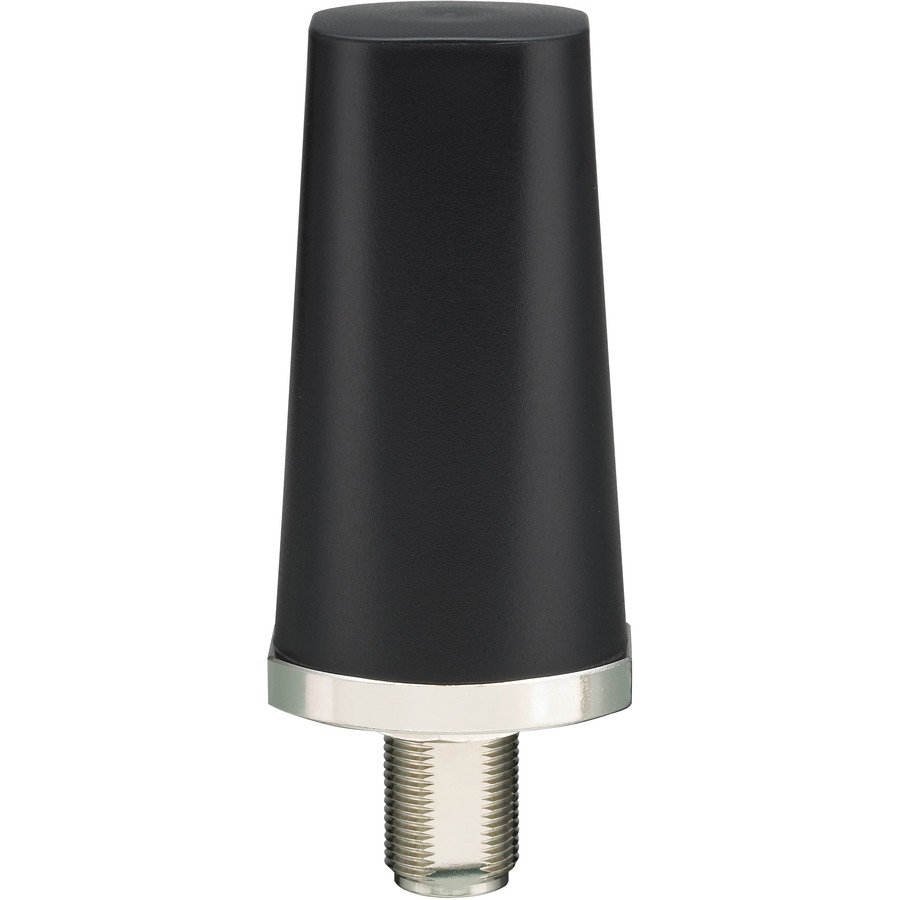

The Shockwave TLS.01.1F21 is a permanent mount, waterproof, external 2G/3G/4G cellular and GPS antenna operating at 698-960/1575.42/1710-2700MHz with an N type male connector. It has been designed to be used on a Ground Plane. It can be used in mobile and fixed applications for 4G LTE wireless such as :
• Public safety
• HD Video Streaming
• Utilities and Smart Cities
• Fleet Management
• Agricultural
• Industrial
This antenna has superior performance over wide-bands compared to traditional whip antennas. Up to 90% efficiency and with an minimum 2.5dBi peak gain over all cellular bands result when mounted on a 30x30 cm ground plane. Stable radiation patterns over low angles provides consistent gain in the horizontal plane, meaning that it is especially suitable for cellular applications.

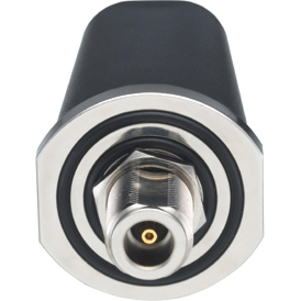

A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location while tightening up the nut beneath the metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna.
The TLS.01 antenna is IP67 waterproof and IP69K resistant against high pressure water jets in commercial cleaning environments, which makes the antenna ideal for 2G/3G/4G applications either in indoor or in harsh outdoor environments.
Highlights
Applicable for 2G/3G/4G cellular bands and GPS
Over 60% efficiency and 2.5 dBi gain
Mechanically robust for indoor/outdoor applications
Height: 79.45mm(3.13") ; Diameter : 42mm(1.65")
IP67 and IP69K Waterproof
N type(F) connector
RoHS compliant
Specifications
General Information
Manufacturer
Taoglas
Manufacturer Part Number
TLS.01.1F21
Brand Name
Taoglas
Product Line
Shockwave
Product Name
Shockwave TLS.01 4G/3G/2G Terminal Antenna, N Type(F)
Packaged Quantity
1
Product Type
Antenna
Package Type
Bulk
Interfaces/Ports
Connector Type
N-Type
Physical Characteristics
Product Color
Black
Height
3.13"
Diameter
1.65"
Form Factor
Whip
Weight (Approximate)
5.96 oz
Technical Information
Directivity
Omni-directional
Operating Frequency Range
698 MHz to 803 MHz, 824 MHz to 896 MHz, 880 MHz to 960 MHz, 1575.42 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2300 MHz to 2700 MHz
Antenna Gain (Isotropic)
4.8 dBi
Miscellaneous
Application/Usage
Cellular Network, Wireless Access Point, Indoor, Outdoor, GPS, Wireless Data Network
