APC Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U, 208/230V, 3x C13, 2x C19 IEC outlets, Network Card, Extended runtime, W/rail kit
Schneider Electric

APC Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U, 208/230V, 3x C13, 2x C19 IEC outlets, Network Card, Extended runtime, W/rail kit

1U Rack-mountable - 1.50 Hour Recharge - 208 V AC, 240 V AC Input - 208 V AC, 240 V AC Output - Single Phase - Sine Wave - 2 x IEC 320-C19, 3 x IEC 320-C13 Receptacle(s)

SKU
SRTL2K2RM1UWNC
Category
General Purpose UPS

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SRTL2K2RM1UWNC
Category
General Purpose UPS

Overview

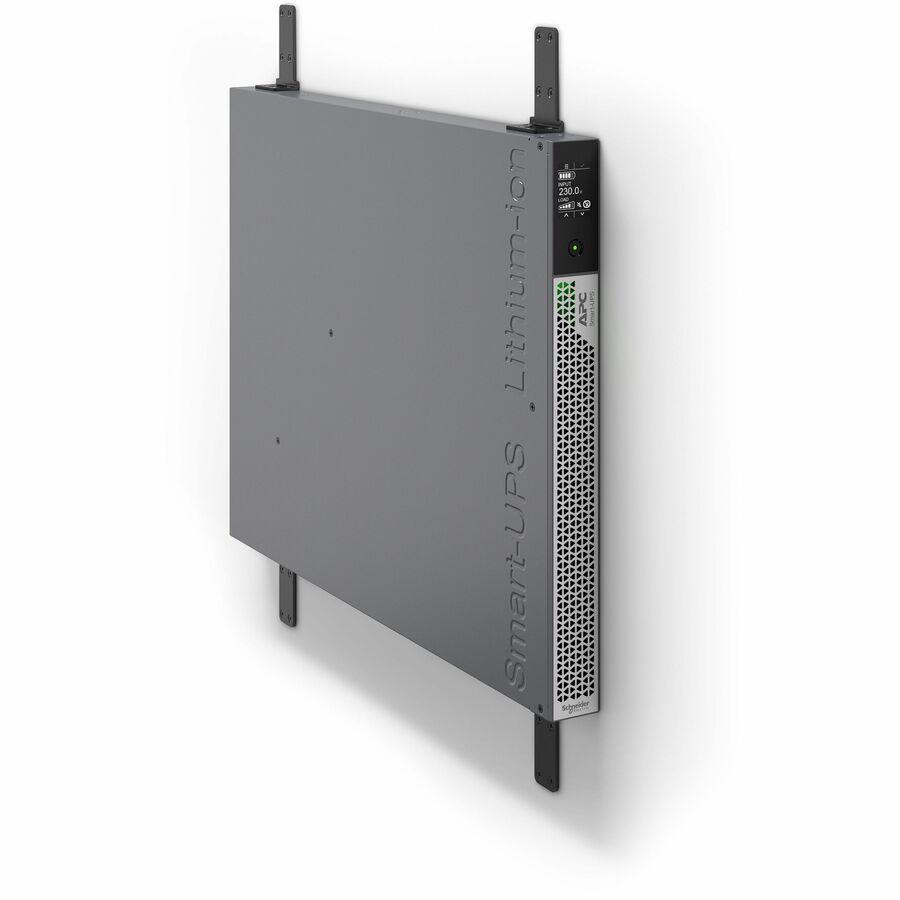

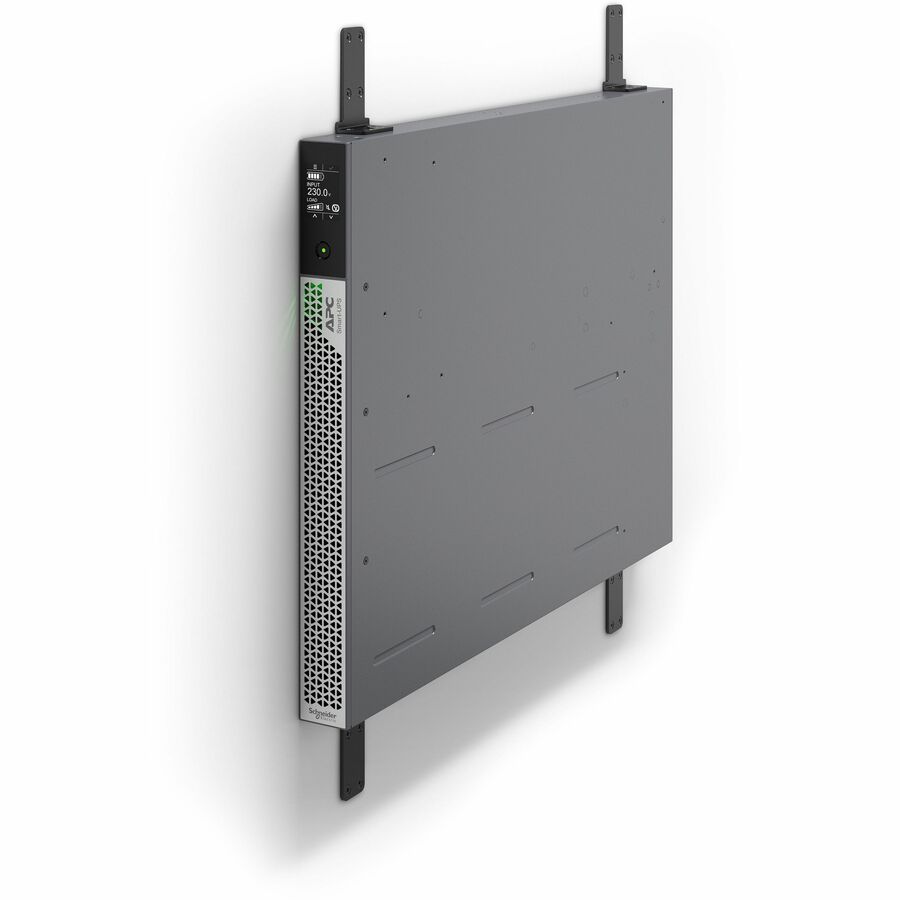

With Smart-UPS? Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. 230V and 208V user selectable output. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.

Warranty

Limited Warranty: 5 Year

Highlights

  • 1U, 2200VA/2200W UPS with 5 mounting styles: rack/tower/wall/ceiling/desk under mount
  • 230V and 208V user selectable output.
  • Lithium-ion batteries lasts 3X VRLA UPS, no need to replace the battery during the life of the UPS
  • 1-Year Secure Network Management Card subscription included
  • Wireless communication capable with optional WiFi Device accessory (AP9834)
  • 5-year warranty on UPS and internal batteries

Specifications

Application/UsageNetwork, Server
Battery ChemistryLithium Ion (Li-Ion)
Package Contents
  • Smart-UPS Ultra 2200VA Tower UPS
  • RJ45 Cable
Product TypeDual Conversion Online UPS
Input Voltage208 V AC, 240 V AC
Manufacturer Part NumberSRTL2K2RM1UWNC
Limited Warranty5 Year
Output Voltage208 V AC, 240 V AC
Weight (Approximate)35.05 lb
Form FactorRack-mountable
ManufacturerSchneider Electric SA
Product NameSmart-UPS Ultra 2200VA Rack-mountable UPS
Network ManagementNetwork Card
Product LineSmart-UPS Ultra
Surge Energy Rating1600 J
Waveform TypeSine Wave
Rack Height1U
Brand NameAPC
Plug/Connector TypeBritish BS1363A
Input Voltage Range208 V AC - 240 V AC
Cord Length7.87 ft
Height1.69"
Width17.01"
Depth22.05"
Input Frequency50 Hz
PhaseSingle Phase
Receptacle TypeIEC 320-C13
Environmentally FriendlyYes
Network (RJ-45)Yes
Load Capacity (VA)2200 VA
Load Capacity (Watt)2200 W
Typical Battery Recharge Time1.50 Hour
Product ColorSilver Gray
Receptacle Detail2 x IEC 320-C19, 3 x IEC 320-C13
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping PackagingNo
