Attention: Due to high order volume, orders may require an additional business day to process.
4U Rack-mountable, Rack-mountable - 3 Hour Recharge - 6.30 Minute Stand-by - 208 V AC Input - 208 V AC Output - Sine Wave - Serial Port - USB - 2 x IEC 320-C19, 2 x NEMA L6-20R, 3 x IEC Jumper, 4 x IEC 320-C13 Receptacle(s) - 11 x Battery/Surge Outlet
MSRP$3,995.00
$3,555.55
Save 11%In stock: 8
Genuine Schneider Electric through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

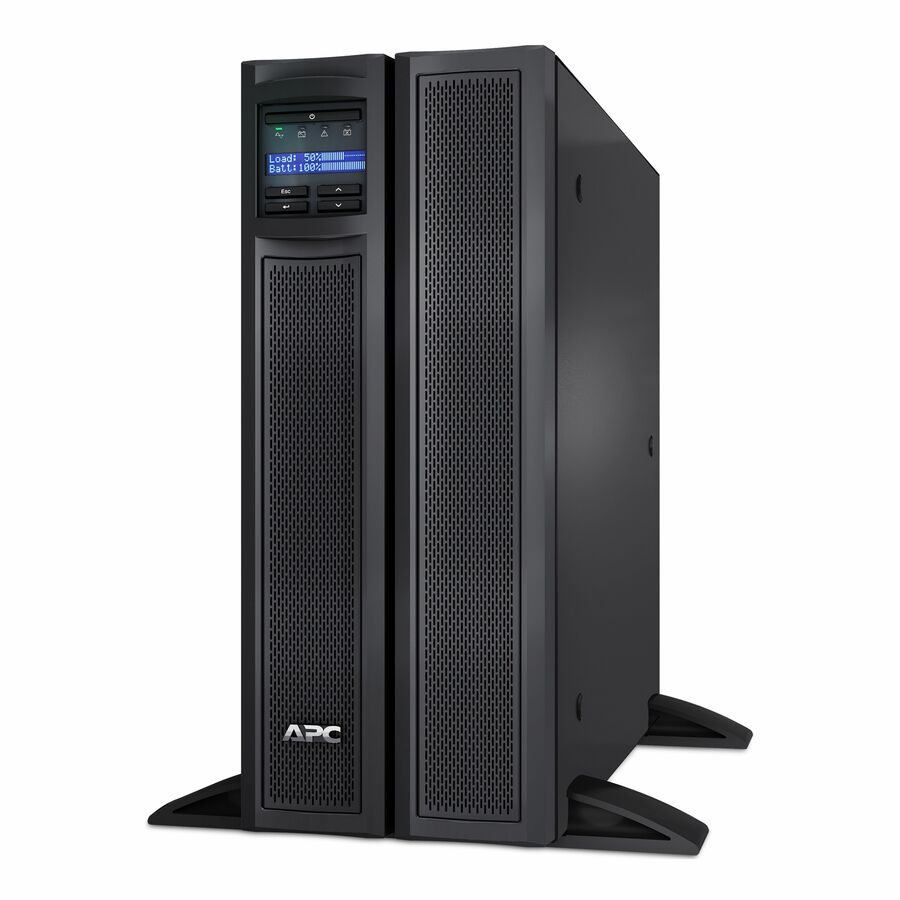

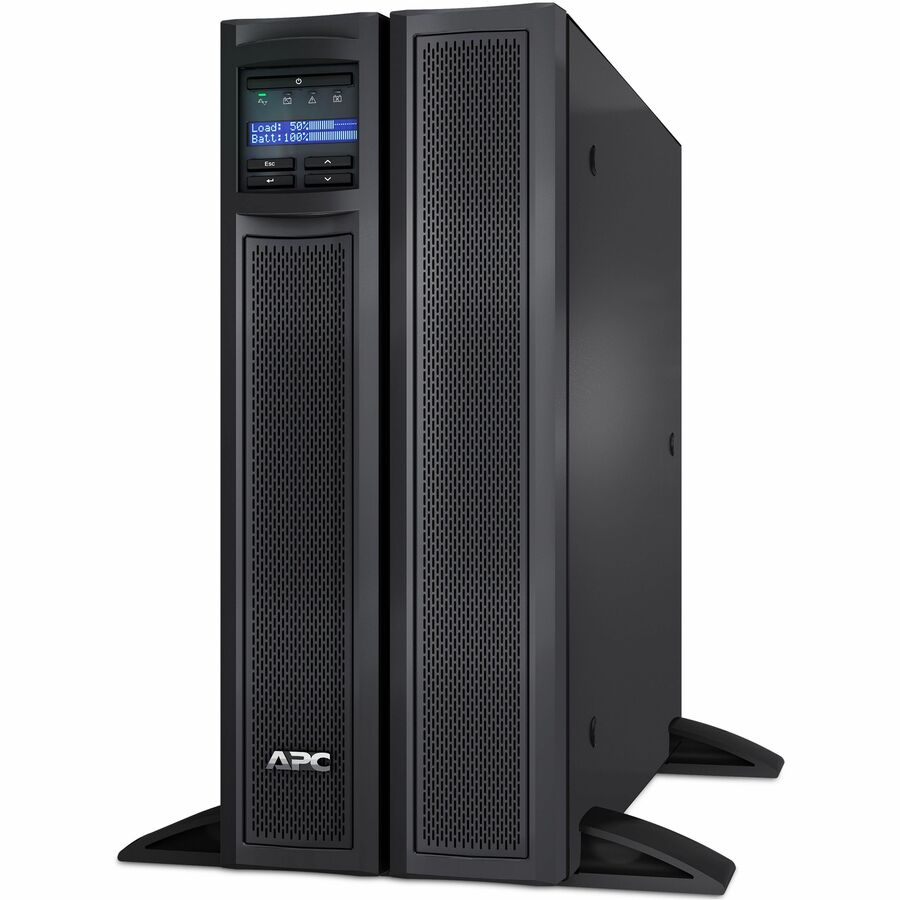

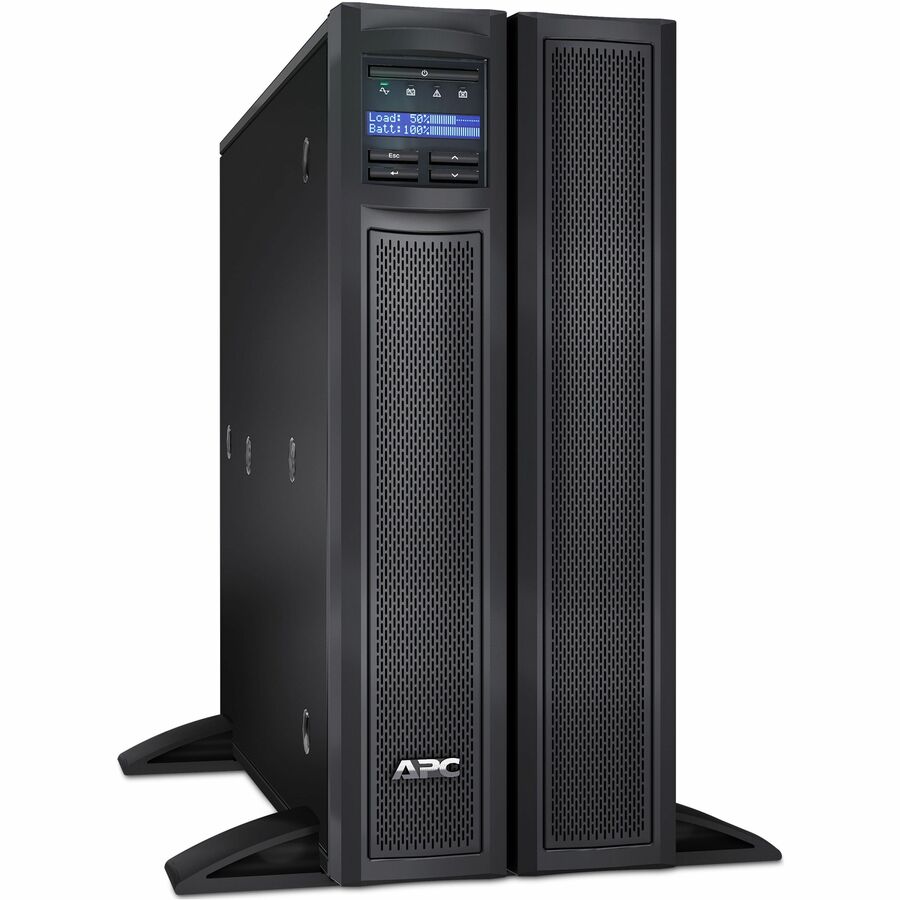

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
More from the Manufacturer
Key Features
Software and Communication Ports
Hot Spots

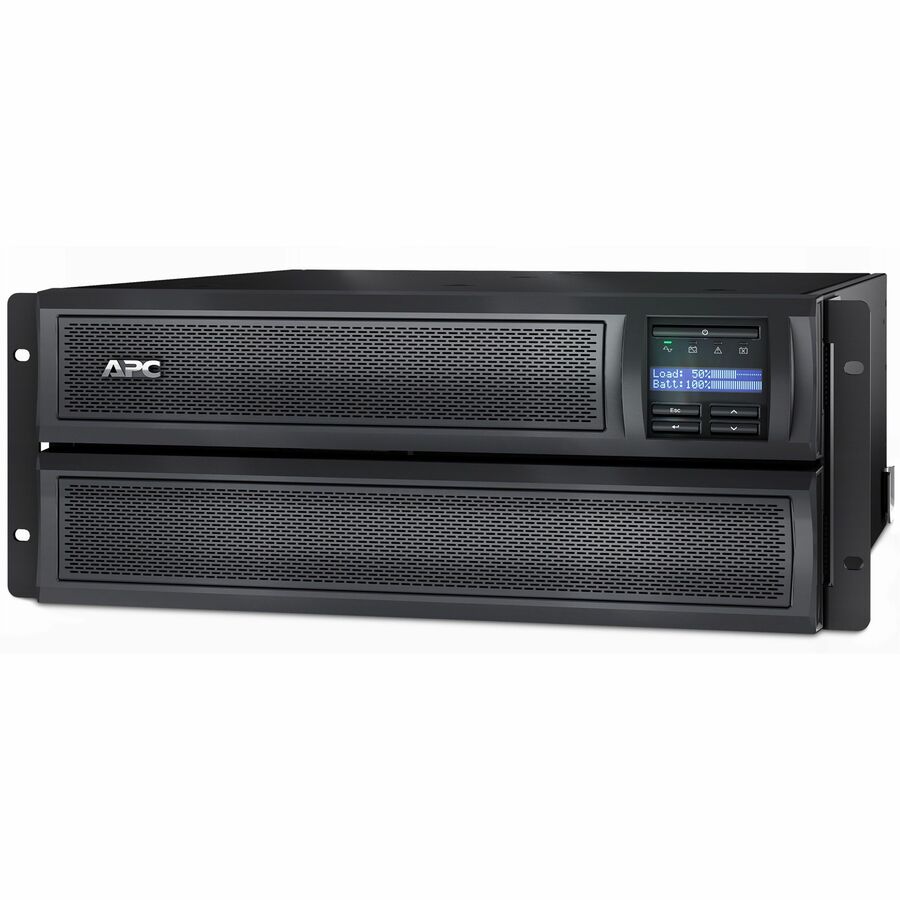

1) Short-depth design
Short-depth design saves valuable space for IT. Rackmount and tower convertible model.
2) Graphical LCD display
Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions.
3) SmartSlot
Add a network management card or purchase an -NC model with a pre-installed network card

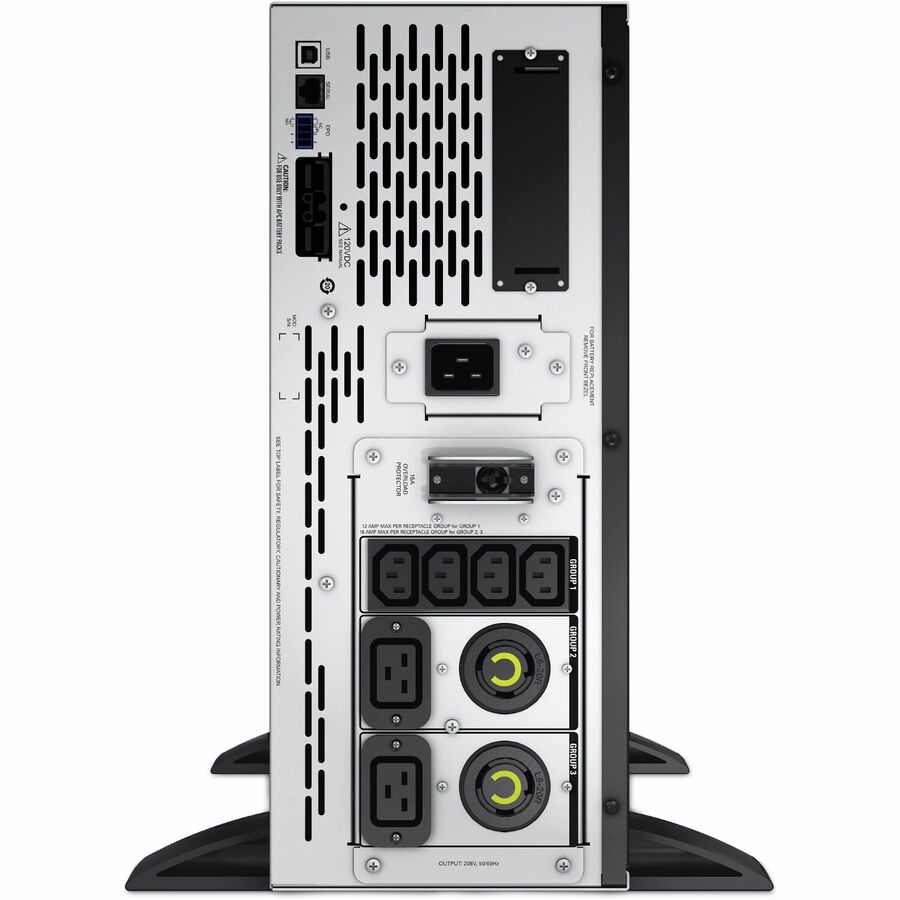

4) 8 outlets in 2U
2 NEMA L6-20R outlets, 2 IEC C13, and 2 IEC C19 outlets including 3 switched outlet groups
5)

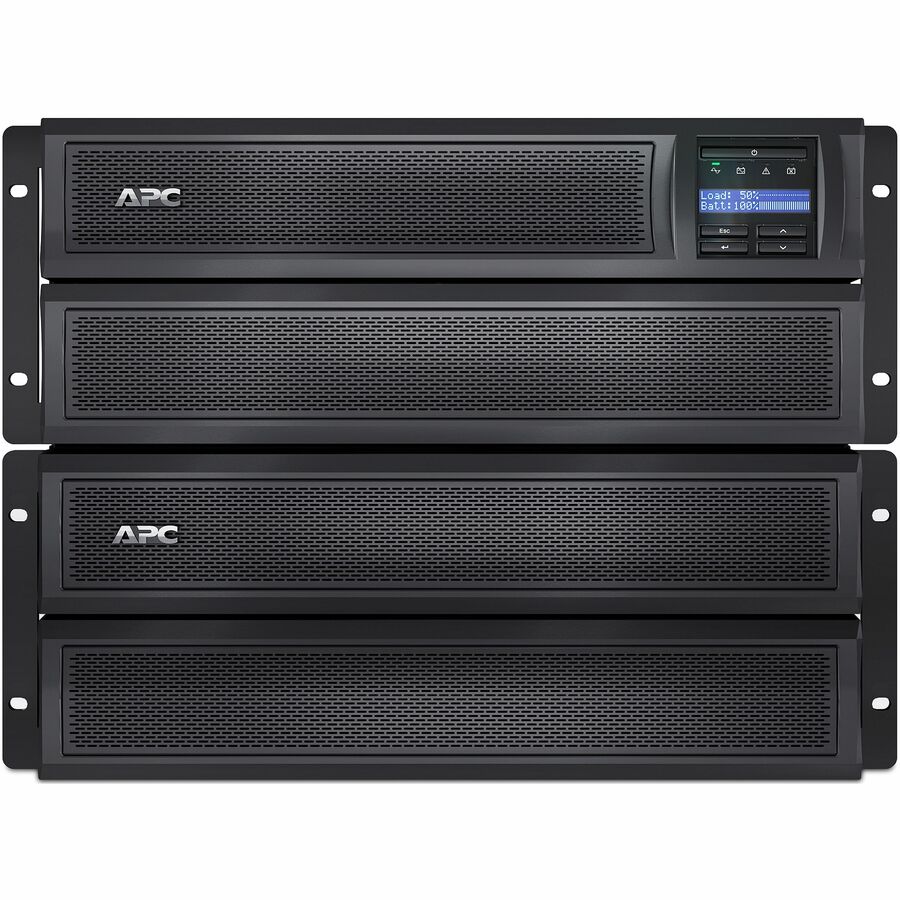

Extended runtime option
The UPS can support up to 10 external battery packs.
6) Emergency Power Off
Immediately turns off UPS and disconnects power to all connected equipment
FAQ
Can
I add external battery packs? How many?
Yes, SMX3000HVT supports up to 10 SMX120BP battery packs.
What are my options for UPS management and software?
Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.
What do switched outlet groups allow me to do?
Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.
Do all models come with a preinstalled Network Management Card?
Select models with an "NC" suffix come with the network management card preinstalled.
How does the 'green' mode operating mode increase efficiency?
APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.
What are the key benefits of upgrading to PowerChute Network Shutdown v5.0?
PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.
Comparison Table
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s) Limited Warranty: 3 Year
| Battery Information | |
|---|---|
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 6.30 Minute |
| Backup/Run Time (Half Load) | 15.70 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Controls/Indicators | |
| Status Indicators | LED status display with On Line : On Battery : Replace Battery and Overload indicators |
| Environmental Conditions | |
| Maximum Operating Temperature | 113°F (45°C) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 53.93 W |
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX3000HVT |
| Brand Name | APC |
| Product Line | Smart-UPS |
| Product Series | X |
| Product Name | Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Management | |
| Alarm | Low Battery, On Battery, Configurable Delay |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" |
| Width | 7.01" |
| Depth | 19.02" |
| Rack Height | 4U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 85.19 lb |
| Power Description | |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (Watt) | 2700 W |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 645 J |
| Circuit Breaker | Yes |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | NEMA L6-20P |
| Receptacle Detail | 2 x IEC 320-C19, 2 x NEMA L6-20R, 3 x IEC Jumper, 4 x IEC 320-C13 |
| Number of Battery & Surge Outlets | 11 |
| Cord Length | 6 ft |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Powerchute Serial Edition |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
