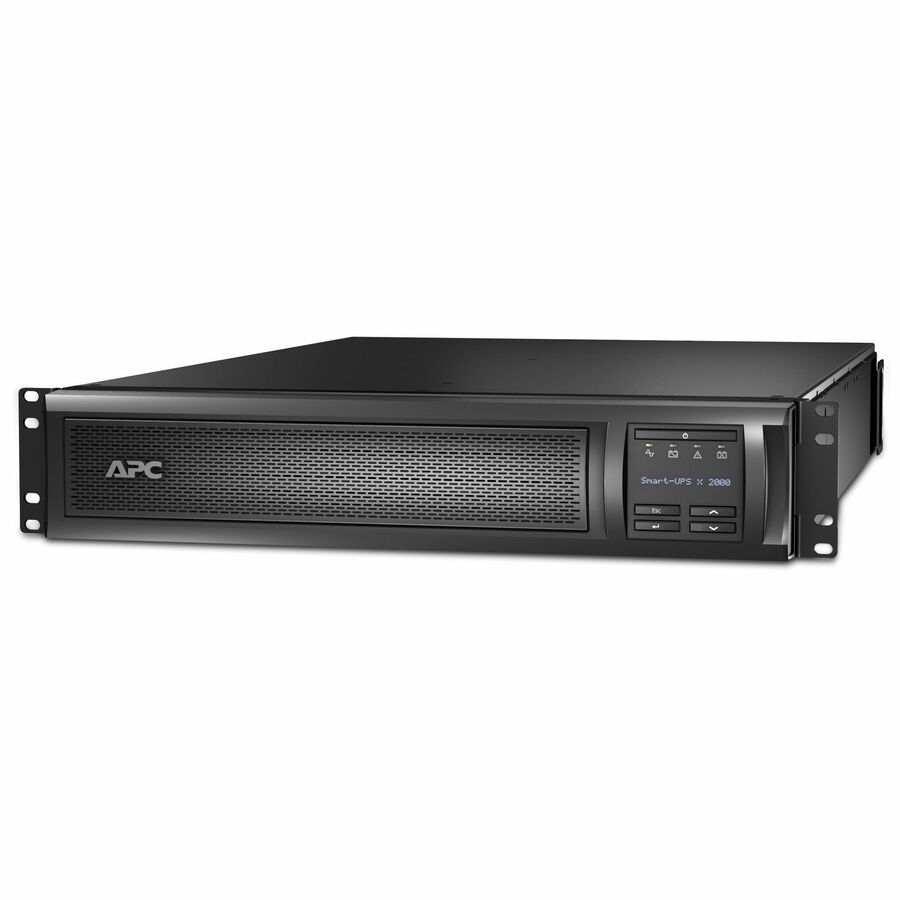

APC Smart-UPS X, Line Interactive, 2000VA, Rack/tower 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-20R NEMA, SmartSlot, Extended runtime, 10ft input cord
Schneider Electric

APC Smart-UPS X, Line Interactive, 2000VA, Rack/tower 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-20R NEMA, SmartSlot, Extended runtime, 10ft input cord

2U Tower/Rack Convertible - 3 Hour Recharge - 120 V AC Input - 120 V AC Output - Single Phase - 1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R Receptacle(s) - 7 x Battery/Surge Outlet

SKU
SMX2KR2UX145
Category
General Purpose UPS

MSRP$3,120.00

$2,150.34

Save 31%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SMX2KR2UX145
Category
General Purpose UPS

Overview

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Warranty

Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s) Limited Warranty: 3 Year

Highlights

  • 1920VA/1800W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
  • User-selectable low voltage setting of 100V-127V
  • Add up to 10 external battery packs (SMX120RMBP2U)
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Ideal for servers, storage, networking & commercial applications

Specifications

Additional Warranty InformationUPS: 36 month(s)|Battery: 24 month(s)
Application/UsageServer, POS, Router, Switch, Hub, Network Device
Battery Life5 Year
Battery ChemistryLead Acid
Package Contents
  • Smart-UPS X 2000VA Tower/Rack Convertible UPS
  • CD With Software
  • Documentation CD
  • Installation Guide
  • Rack Mounting Hardware
  • Rack Mounting Brackets
  • Rack Mounting Support Rails
  • Removable Support Feet
  • Smart UPS Signalling RS-232 Cable
  • USB Cable
Software IncludedPowerchute Serial Edition
Product TypeLine-interactive UPS
Input Voltage120 V AC
Manufacturer Part NumberSMX2KR2UX145
Limited Warranty3 Year
Output Voltage120 V AC
Weight (Approximate)84.59 lb
Form FactorTower/Rack Convertible
Status IndicatorsLED: On Line On Battery Replace Battery Overload Indicators
ManufacturerSchneider Electric SA
Product NameSmart-UPS X 2000VA Tower/Rack Convertible UPS
Product LineSmart-UPS X
Surge Energy Rating540 J
Thermal Dissipation59.49 W
Waveform TypeSine Wave
Rack Height2U
Brand NameAPC
Plug/Connector TypeNEMA 5-20P
Input Voltage Range70 V AC - 153 V AC, 75 V AC -154 V AC
Output Frequency60 Hz
AlarmOn Battery, Low Battery, Configurable Delay
Cord Length10 ft
Height3.35"
Width17.01"
Depth26.26"
Input Frequency60 Hz
PhaseSingle Phase
Receptacle TypeNEMA 5-20P
Environmentally FriendlyYes
Maximum Operating Temperature104°F (40°C)
Load Capacity (VA)1920 VA
Load Capacity (Watt)1800 W
EPO PortYes
USB (HID Compliant) PortYes
Maximum Operating Elevation10000 ft
Maximum Storage Elevation10000 ft
Number of Battery & Surge Outlets7
Storage Relative Humidity0% - 95%
Storage Temperature5°F (-15°C) - 113°F (45°C)
Transfer Time4 ms
Typical Battery Recharge Time3 Hour
Product ColorBlack
Receptacle Detail1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R
Sound Emission (A-Weighted)55 dB(A)
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Single-use Plastic (SUP) Free Shipping PackagingNo
