APC NetShelter 6U Low-profile Wallmount Rack Enclosure Cabinet 120V Server Depth

APC by Schneider Electric 6U Wall-Mount is an innovative new way to deploy server and networking equipment at the edge. Ideal for retail, healthcare, educational facilities and light industrial spaces, the low-profile design offers an efficient solution for deploying hyperconverged server and networking applications. The rack enclosure allows longer depth equipment to be wall mounted, up to 30 inches deep. A detachable wall bracket and optional casters (sold separately) allow the server rack to be mounted on either the wall or stand alone on the floor. A dust filter and two integrated fans allow deployment in light-industrial environments. APC Smart-UPS, APC NetBotz Physical and Environmental Security, and APC EcoStruxure IT can be configured with this cabinet (sold separately). 6U vertical wall-mount cabinet, 30 in mounting depth, 250 lb weight capacity, 19" rack width, side panels for access to equipment, ships fully assembled, UL2416 Listed, MERV 5 dust filter and 120V integrated fans included. Input connector IEC 60320 C13 with 500VA - 1.5kVA output power capacity.

More from the Manufacturer

Overview

NetShelter WX 6U Wall Mount Enclosure

The APC By Schneider Electric WX 6U Wall Mount Enclosure offers businesses and data centers an innovative and space-efficient solution for deploying server and networking equipment for edge computing applications. This versatile server rack cabinet features detachable wall brackets and optional casters that allow the enclosure to be mounted on the wall or floor to fit the needs of any installation site.

The compact, low-profile server rack or network rack extends only 13 inches (353mm) off the wall and supports equipment up to 30 inches (762mm) long, such as 1U and 2U hyperconverged servers, APC UPS (uninterruptible power supply), and network switches. Multiple enhanced security options (additional purchase required) allow you to protect against physical and environmental dangers, customizing your enclosure to ensure it is safe from a variety of threats.

WX 6U Wall Mount Enclosure

Features

Grow Your Edge Network

This 6U wall-mount server rack or network rack cabinet offers a complete storage solution for your edge computing equipment. The cabinet allows for flexible configuration, so you can pick the APC UPS (uninterruptible power supply), rack APC PDU (power distribution unit), and security solutions that best suit your needs.

Innovative Low-Profile Design

The server rack allows large-depth equipment to be wall mounted for optimal efficiency in IT areas with limited floor space. Narrower than traditional wall-mount cabinets, this server rack enclosure has a low-profile design that extends only 13 inches (353mm) off the wall and supports equipment up to 30 inches (762mm) long.

Versatile Installation Options

A detachable wall bracket and optional casters allow the server rack or network rack cabinet to be mounted on either the wall or the floor, and the cabinet door can be reversed to suit the installation space. Both the bottom and the roof of this wallbox feature easy-to-remove knockouts or built-in brush strips which can be used for cable exit and entry.

Air Filtration and Ventilation

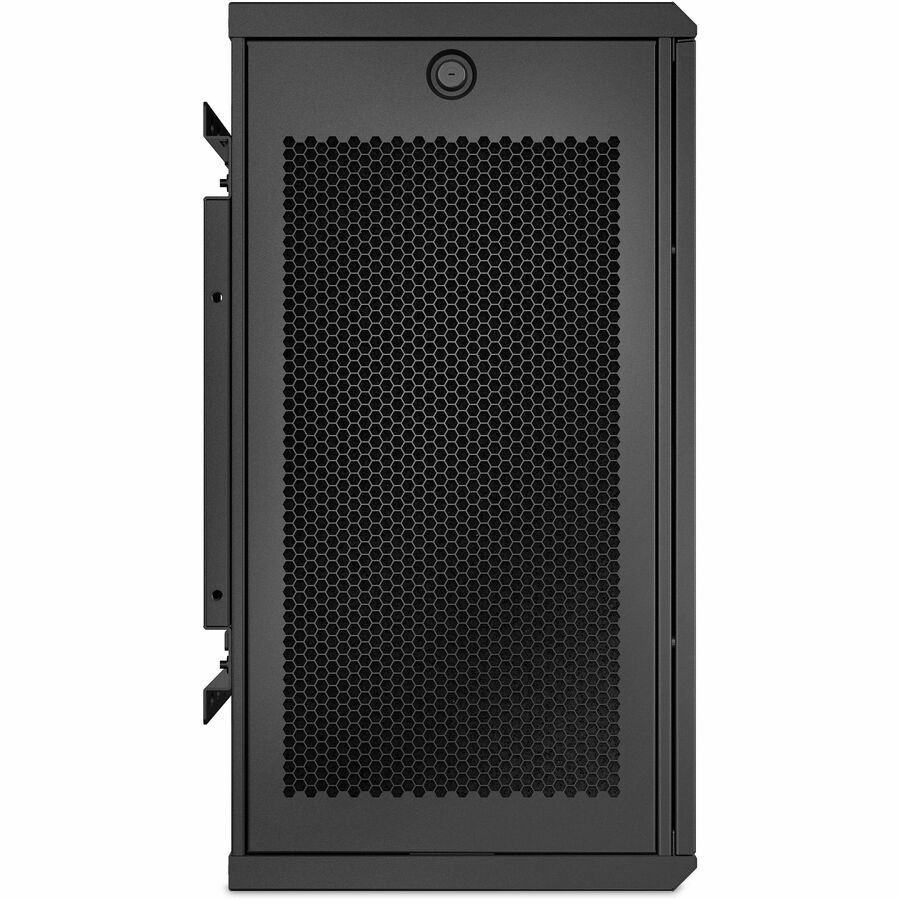

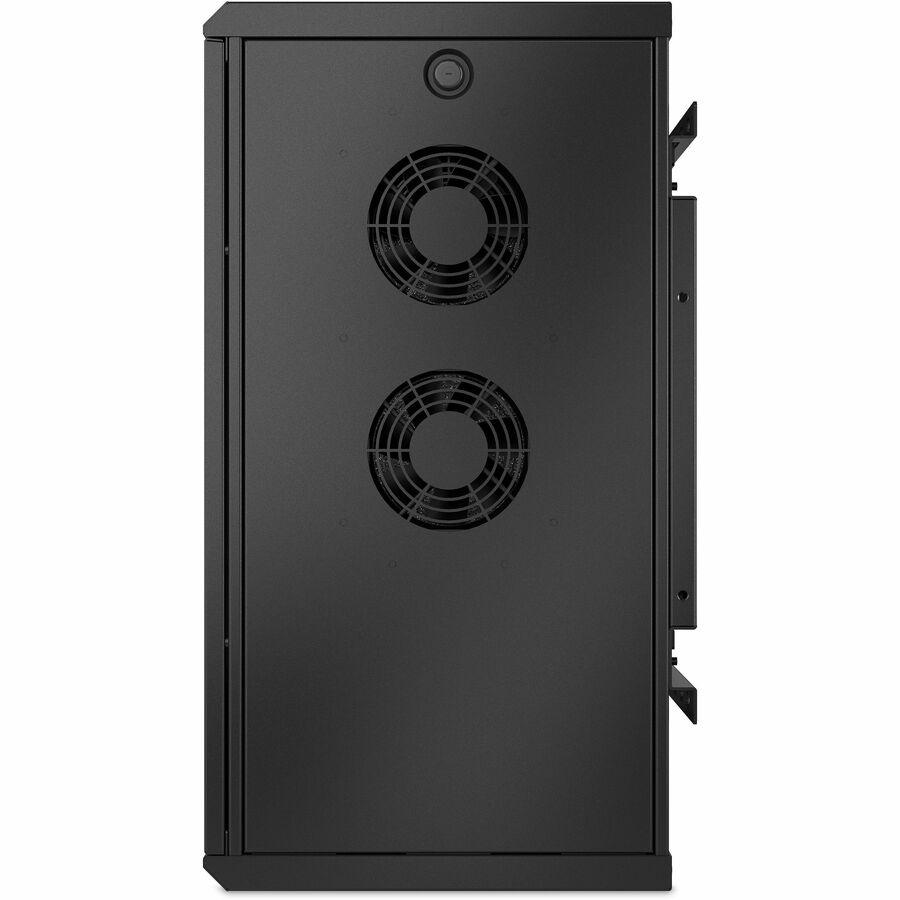

A perforated door with a replaceable MERV 5/G3 dust filter and two integrated fans allow this micro data center to be safely placed in dusty and light-industrial environments.

Enhanced Security and Remote Management Options

For an additional cost, the server rack or network rack cabinet is available with APC Smart UPS battery backup, APC NetBotz Physical and Environmental Security, and EcoStruxure IT (APC’s cloud-based remote monitoring platform), making this enclosure an ideal choice for remote locations that lack on-site IT personnel. APC NetBotz provides the functionality required in Edge computing including remote access, video surveillance, environmental management with optional smoke detector and fluid detection.

Ships Fully Assembled

Shock packaging allows additional optional equipment (APC Smart UPS battery backup, APC NetBotz Physical and Environmental Security, EcoStruxure IT, and third-party IT equipment) to be integrated into the enclosure before it ships, speeding up on-site IT deployment.

FAQ

What are the dimensions of the unit?

25.5in H x 38in W x 13in D (648mm x 968mm x 353mm)

How much weight can it support?

250 pounds (113 kilograms)

What is the rack unit (U) space?

6U total with 4U available after installation of an APC 2U Smart UPS (uninterruptible power supply)

What is the maximum supported IT power?

1.5 kilowatts

What is the supported APC UPS capacity?

500VA – 1.5kVA
