Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
8899S-0-D
Category
Transceivers/Media Converters
Overview

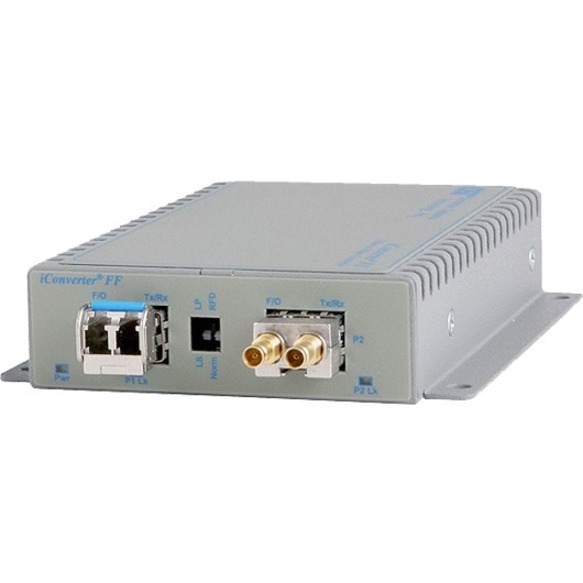

The iConverter STM 1 copper to fiber media converter converts 155.52Mbps STM-1e coax to STM-1 fiber. It can be used in Telecom or Enterprise applications where STM-1 or OC-3 transport is required beyond the maximum distance of copper (approximately 70m).
The copper port provides two mini-BNC 75? coax connectors that comply with the ITU-T G.703 and Telcordia GR-253 standards for CMI coded 155.52Mbps electrical interfaces. Adapter cables are included to convert the mini-BNC connectors to standard BNC type connectors.
Highlights
Coaxial cable for environment requiring moderate coverage and low bandwidth
Connect different types of media within a network with this single port
With OC-3 technology get up to 155.52Mbps data transfer rate over optical fiber cable by service provider
Tuck the device out of the way with its Wall Mounting feature
Specifications
Package Contents
STM-1/OC-3 Coax to Fiber Media Converter
External US AC Power Supply
Adapter Cables
Product Type
Transceiver/Media Converter
Manufacturer Part Number
8899S-0-D
Limited Warranty
Lifetime
Weight (Approximate)
1.50 lb
Form Factor
Wall Mountable, Desktop
Manufacturer
Omnitron Systems
Product Name
STM-1/OC-3 Coax to Fiber Media Converter
Network Technology
OC-3
Product Line
iConverter
Brand Name
Omnitron Systems
Expansion Slot Type
SFP
Country of Origin
United States
Height
1"
Width
3.8"
Depth
4.8"
Environmentally Friendly
Yes
USB
No
DVI
No
Network (RJ-45)
No
Number of SFP Slots
1
Management Port
No
Media Type Supported
Coaxial, Optical Fiber
Total Number of Ports
1
Total Number of Expansion Slots
1
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
