Overview

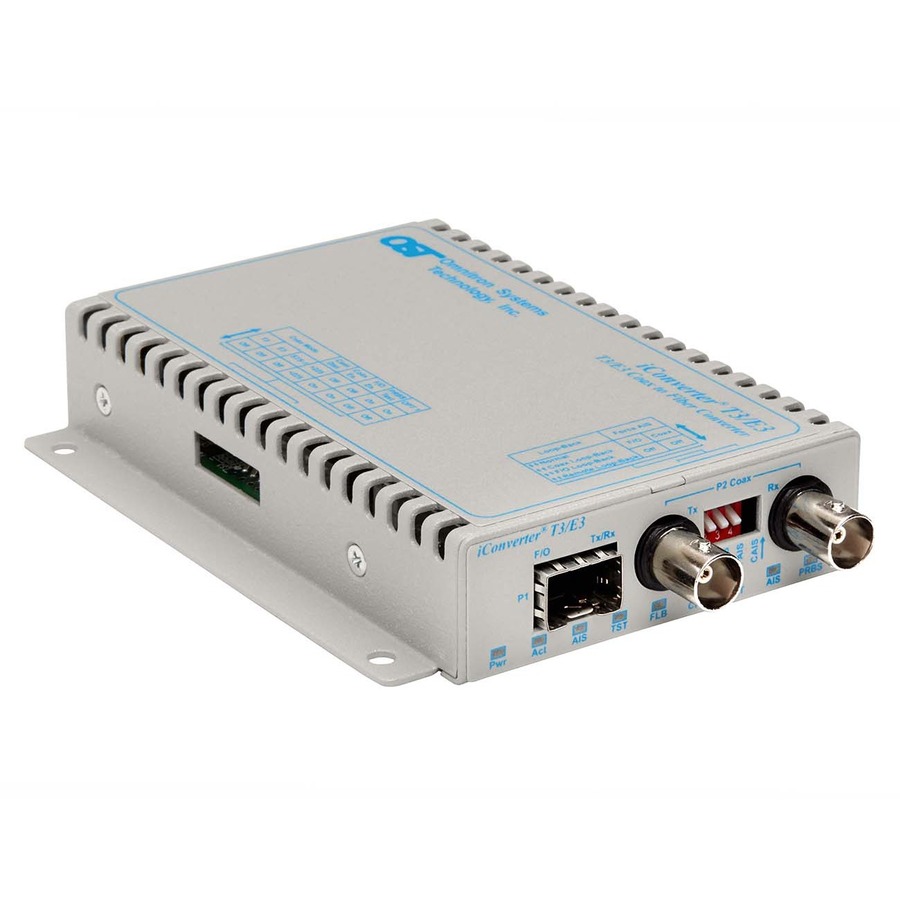

The iConverter T3/E3 media converter provides standard T3 (44.736Mbps) or E3 (34.368Mbps) coax to fiber conversion and can be used to connect to devices such as PBXs, multiplexers, routers and video servers via fiber. T3/E3 media converters operate in pairs, extending distances over fiber, which improves noise immunity, quality of service, intrusion protection and network security.
• Supports B3ZS for T3 (DS3) and HDB3 for E3 codes
• Framing independent; supports framed or unframed and channelized or fractional unchannelized data
• Supports RG-59 75 ohms coax interface with shorthaul and long-haul build-out options
• Features user-selectable local and remote loopback modes and Force 1s (AIS) to Coax and Fiber
• Management is available with the addition of a management module to the chassis
• Modules are hot-swappable and can be used in the 19-Module, 5-Module, 2-Module or 1-Module iConverter chassis
• LED displays for immediate visual status of each port
• Lifetime Warranty and free 24/7 Technical Support
Highlights
Coaxial cable for environment requiring moderate coverage and low bandwidth
Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
With T3/E3 technology get up to 34.368Mbps (E-carrier) or 44.736Mbps (T-carrier) data transfer rate over service provider link
Rackmountable feature for convenient and safe installation of device
Specifications
Package Contents
iConverter T3/E3 SFP Wall-Mount Standalone US AC Powered
US Power Supply - 100-120Volt / 60Hz
User Manual
Product Type
Transceiver/Media Converter
Manufacturer Part Number
8759-0-D
Limited Warranty
Lifetime
Weight (Approximate)
1 lb
Form Factor
Rack-mountable, Desktop, External, Wall Mountable
Manufacturer
Omnitron Systems
Product Model
8759-0-x
Product Name
iConverter T3/E3 SFP Wall-Mount Standalone US AC Powered
Network Technology
T3/E3, DS-3
Package Type
Retail
Product Line
iConverter
Brand Name
Omnitron Systems
Expansion Slot Type
SFP
Country of Origin
United States
Height
1"
Width
3.1"
Depth
4.8"
Environmentally Friendly
Yes
USB
No
DVI
No
Number of SFP Slots
1
Management Port
No
Media Type Supported
Coaxial, Optical Fiber
Total Number of Ports
2
Total Number of Expansion Slots
1
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
