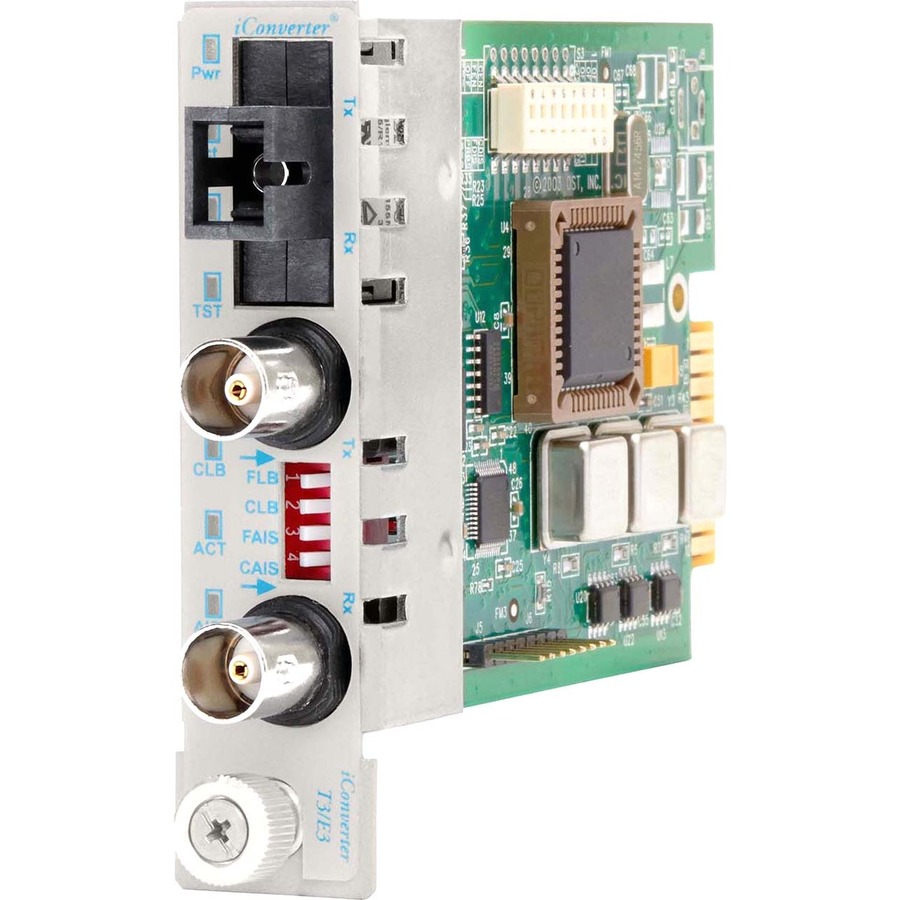

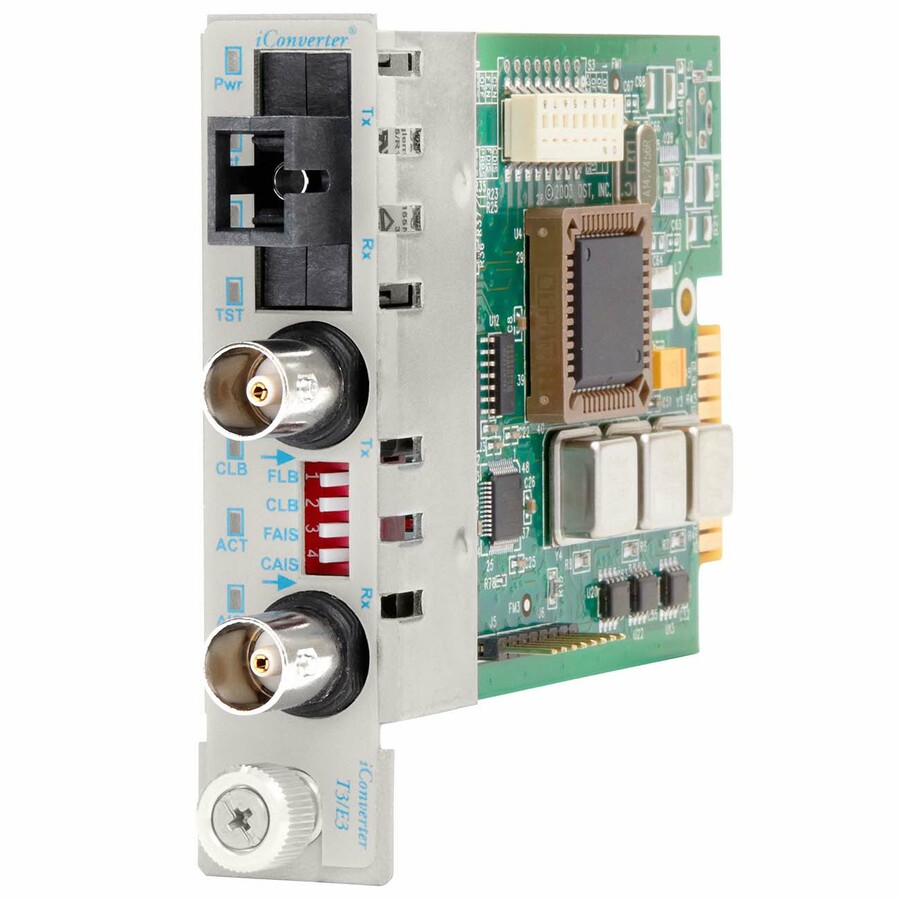

iConverter T3/E3 Single-Fiber Media Converter Coaxial SC Single-mode 20km BiDi Module
1 x T3/E3/DS-3; 1 x SC Single-mode Single-Fiber (1310/1550); Internal Module; Lifetime Warranty
- SKU
- 8750-1
- Category
- Transceivers/Media Converters
MSRP$1,695.00
$1,240.43
Save 27%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 8750-1
- Category
- Transceivers/Media Converters
Overview
The iConverter T3/E3 media converter provides standard T3 (44.736Mbps) or E3 (34.368Mbps) coax to fiber conversion and can be used to connect to devices such as PBXs, multiplexers, routers and video servers via fiber. T3/E3 media converters operate in pairs, extending distances over fiber, which improves noise immunity, quality of service, intrusion protection and network security.
• Supports B3ZS for T3 (DS3) and HDB3 for E3 codes
• Framing independent; supports framed or unframed and channelized or fractional unchannelized data
• Supports RG-59 75 ohms coax interface with shorthaul and long-haul build-out options
• Features user-selectable local and remote loopback modes and Force 1s (AIS) to Coax and Fiber
• Management is available with the addition of a management module to the chassis
• Modules are hot-swappable and can be used in the 19-Module, 5-Module, 2-Module or 1-Module iConverter chassis
• LED displays for immediate visual status of each port
• Lifetime Warranty and free 24/7 Technical Support
Highlights
- Coaxial cable for environment requiring moderate coverage and low bandwidth
- Expand your network capabilities with this 3 transceiver/media converter
- With T3/E3 technology get up to 34.368Mbps (E-carrier) or 44.736Mbps (T-carrier) data transfer rate over service provider link
- Rack mounting enables you to organize wires & secure cables for professional installation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 8750-1 |
| Maximum Distance Supported | 20 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 8 oz |
| Form Factor | Rack-mountable, Desktop, Internal, Wall Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 8750-1-x |
| Product Name | iConverter T3/E3 SC Single-mode Single-Fiber 13/15 20km Plug-In Module |
| Network Technology | T3/E3, DS-3 |
| Package Type | Retail |
| Product Line | iConverter |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 2.8" |
| Width | 0.9" |
| Depth | 4.5" |
| Environmentally Friendly | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Coaxial, Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 3 |
| SC Port Type | Simplex |
| Fiber Optic Cable Wavelength | 1310 nm |
