SKU
6ASJK-RL6
Category
Connectors
Overview

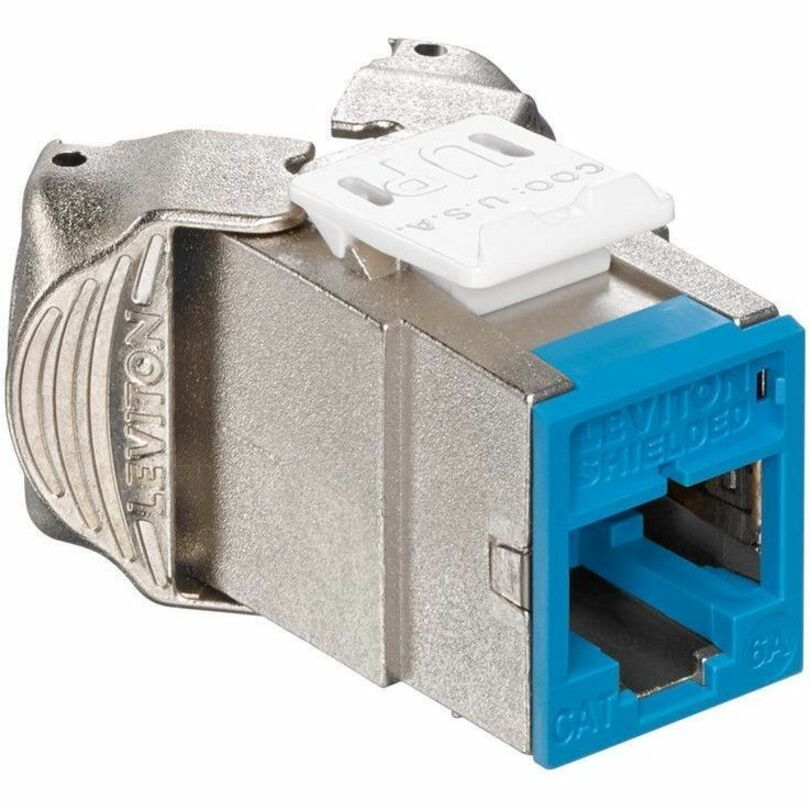

The ATLAS-X1 Category 6A Component-Rated Shielded QUICKPORT Jack supports 10GBASE-T networks. The shielded jack provides superior alien crosstalk (AXT) suppression and protects critical data from potential EMI/RFI (electromagnetic interference/radio frequency interference). The jack is part of a complete ATLAS-X1 Cat 6A shielded system ideal for government, healthcare, manufacturing, transportation, gaming, and other environments where EMI/RFI and/or security may be a concern.
Highlights
Independently tested and guaranteed to exceed all component, permanent link, and channel margins
Patented Retention Force Technology (RFT) protects against tine damage and increases system longevity
For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
Shielding provides EMI/RFI protection, signal isolation, and excellent alien crosstalk (AXT) suppression
Unique design supports tool-free termination/re-termination and requires no specialized termination tool
Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
Terminates from 26- to 22 AWG solid or stranded conductors for use on various cable types
Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
Available in 13 ANSI/TIA-606-C compatible colors
Select jacks available with interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face) for easy identification and tracking of data, voice, or other functions
Jack with internal shutter protects against dust and debris
Solid metal body dissipates 53% more heat than traditional plastic, minimizing damage from excess heat in PoE applications
Tine geometry prevents arcing damage where plug and jack make contact
Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
Specifications
General Information
Manufacturer
Leviton Mfg. Company, Inc
Manufacturer Part Number
6ASJK-RL6
Brand Name
Leviton
Product Line
Atlas-X1
Product Name
ATLAS-X1 Cat 6A Shielded QuickPort Jack, Component-Rated, Blue
