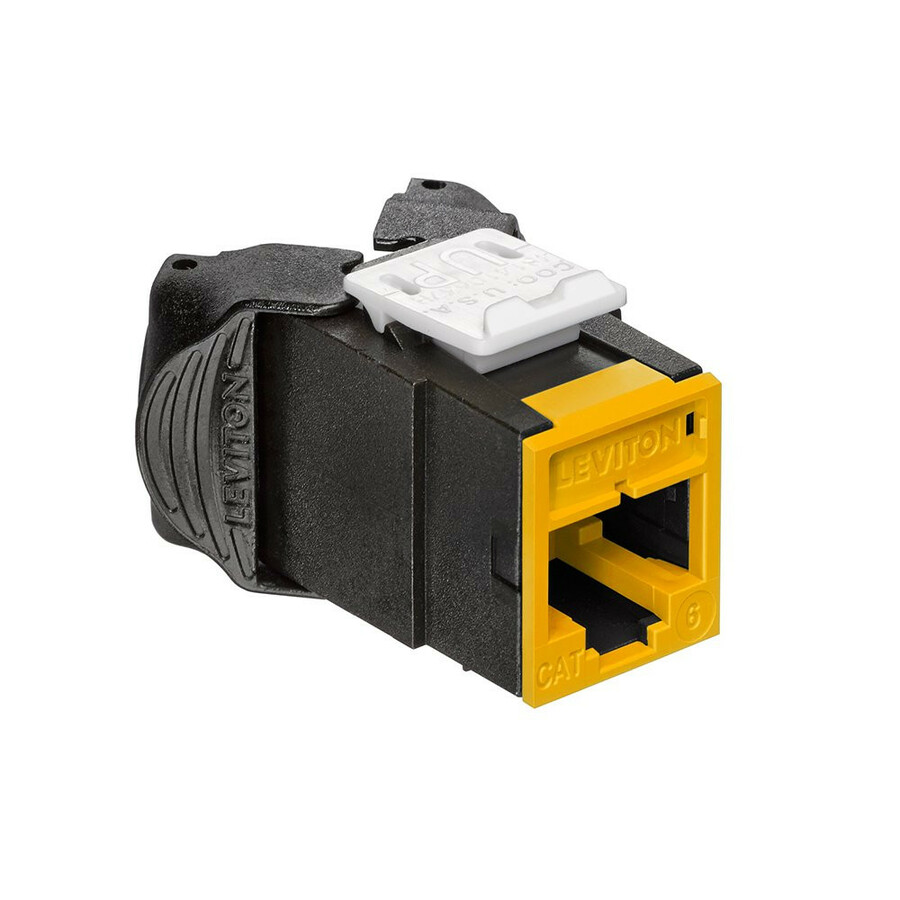

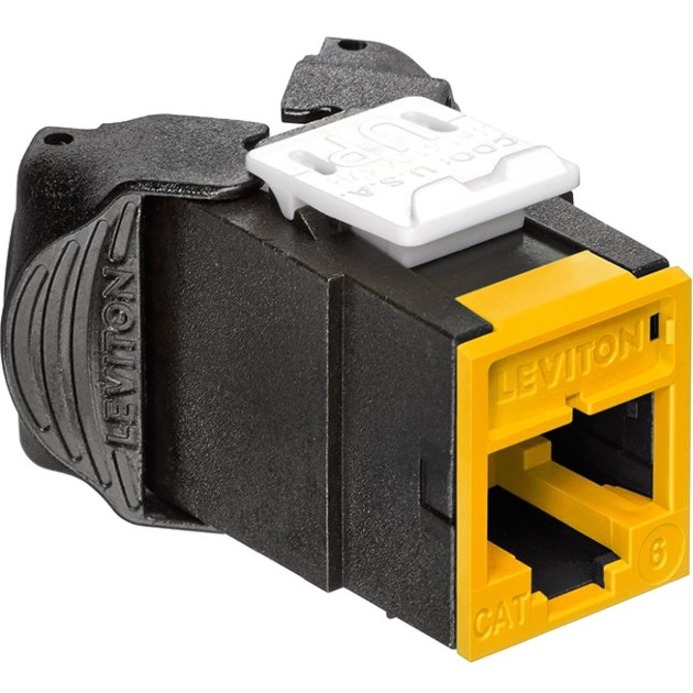

Leviton Atlas-X1 Cat 6 UTP QuickPort Jack, Yellow
Leviton Mfg

Leviton Atlas-X1 Cat 6 UTP QuickPort Jack, Yellow

1 x RJ-45 Network - Female - Yellow

SKU
61UJK-RY6
Category
Connectors

MSRP$16.94

$13.98

Save 17%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Leviton Mfg through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
61UJK-RY6
Category
Connectors

Overview

Atlas-X1 Cat 6 Component-Rated UTP QuickPort Jacks support 1000BASE-T networks. The jack is part of a complete Atlas-X1 Cat 6 UTP system, ideal for the most demanding mission-critical network applications. The jack supports emerging technologies and will easily adapt to network trends.

Highlights

  • Independently tested and guaranteed to exceed all component, permanent link, and channel margins
  • Patented Retention Force Technology? (RFT) protects against tine damage and increases system longevity
  • For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
  • Unique design supports tool-free termination/re-termination and requires no specialized termination tool
  • Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
  • Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
  • Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
  • Available in 13 ANSI/TIA-606-C compatible colors
  • Select jacks available with interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face), for easy identification and tracking of data, voice, or other functions
  • Jack with internal shutter protects against dust and debris

Specifications

Product TypeNetwork Connector
Connector Details1 x RJ-45 Network - Female
Manufacturer Part Number61UJK-RY6
ShieldingNo
Connector TypeRJ-45 Network - Female
FeaturesRetention Force Technology (RFT), Stranded, Dust Protection, Debris Resistant, PoE
ManufacturerLeviton Mfg. Company, Inc
Product NameAtlas-X1 Cat 6 UTP QuickPort Jack, Yellow
Mount TypeSurface Mount
Product LineAtlas-X1
Brand NameLeviton
Country of OriginUnited States
Environmentally FriendlyYes
Shielding MaterialCopper Alloy
Contact PlatingGold
Product ColorYellow
Product MaterialMetal, Die-cast Zinc
Compatible Wire Gauge22-26 AWG
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 3
